XD3001K Wi-Fi 6 AX3000 Dual-Band Ceiling Access Point
XD3001K
Type Indoor Ceiling Mount Access Point
Standard Wi-Fi 6 (802.11ax)
Band Dual-Band (2.4GHz + 5GHz)
Max Speed AX3000 (573 + 2402 Mbps)
Max Clients 128 concurrent users
5 Years Warranty
Overview
- Wi-Fi 6 AX3000 dual-band — 573Mbps on 2.4GHz and 2402Mbps on 5GHz, 3000Mbps aggregate
- MediaTek MT7981BA + MT7976CN enterprise platform — quad-core Cortex-A53 at 1.3GHz
- Supports up to 128 concurrent users with OFDMA, MU-MIMO and BSS Color spatial reuse
- Gigabit PoE uplink with HNAT hardware forwarding — up to 900Mbps+ wired throughput
- Single-cable 802.3af/at PoE (48V) or DC 12V/1.5A power — no separate outlet needed
- Integrated Fat-Thin firmware — standalone in small sites or AC/cloud-managed at scale
- Built-in MIMO antennas (2.4G 2dBi ×2, 5G 2dBi ×3) for even 360° ceiling coverage
- MESH and WDS networking, up to 5 SSIDs per band with VLAN tagging and AP isolation
- Standalone Web GUI management — pair with a ZW500 gateway/AC controller for cloud and remote management at scale
- 6KV common-mode lightning/surge protection and enhanced heatsink for 24/7 stability
The XD3001K is a dual-band Wi-Fi 6 indoor ceiling access point built on the MediaTek MT7981BA + MT7976CN enterprise platform. It delivers AX3000 performance (573Mbps on 2.4GHz and 2402Mbps on 5GHz), supports up to 128 concurrent clients with OFDMA, MU-MIMO and BSS Color, and is powered via a single 802.3af/at PoE cable or a DC 12V/1.5A adapter. Its slim Φ175 × 42 mm round form factor mounts flush on ceilings or walls without disrupting interior decor, making it the ideal choice for high-density, high-bandwidth indoor environments such as hotels, shopping malls, offices, conference rooms, KTVs, and restaurants.
Ideal For

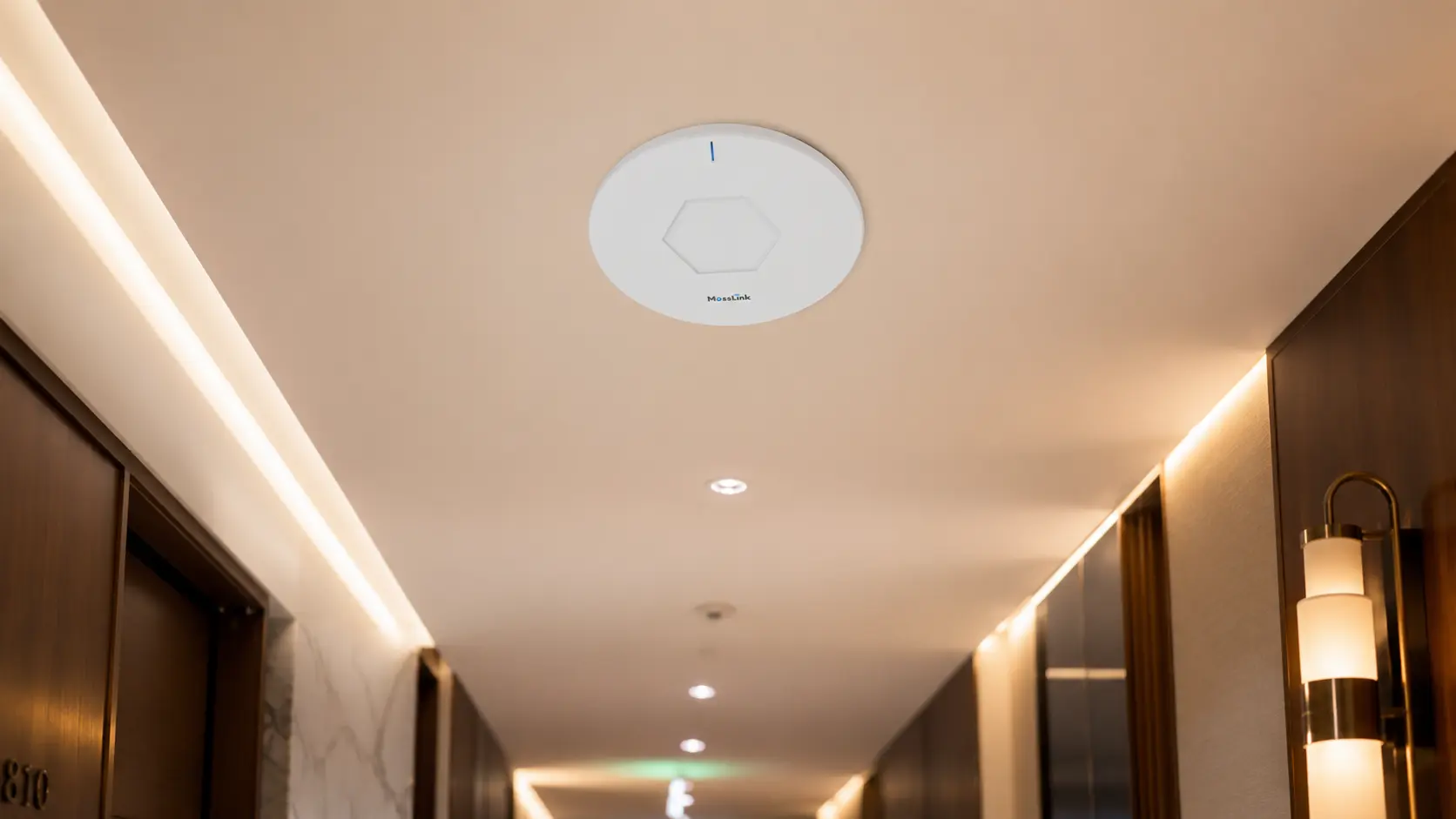

- Hotel guest rooms and corridors requiring even, per-floor Wi-Fi 6 coverage

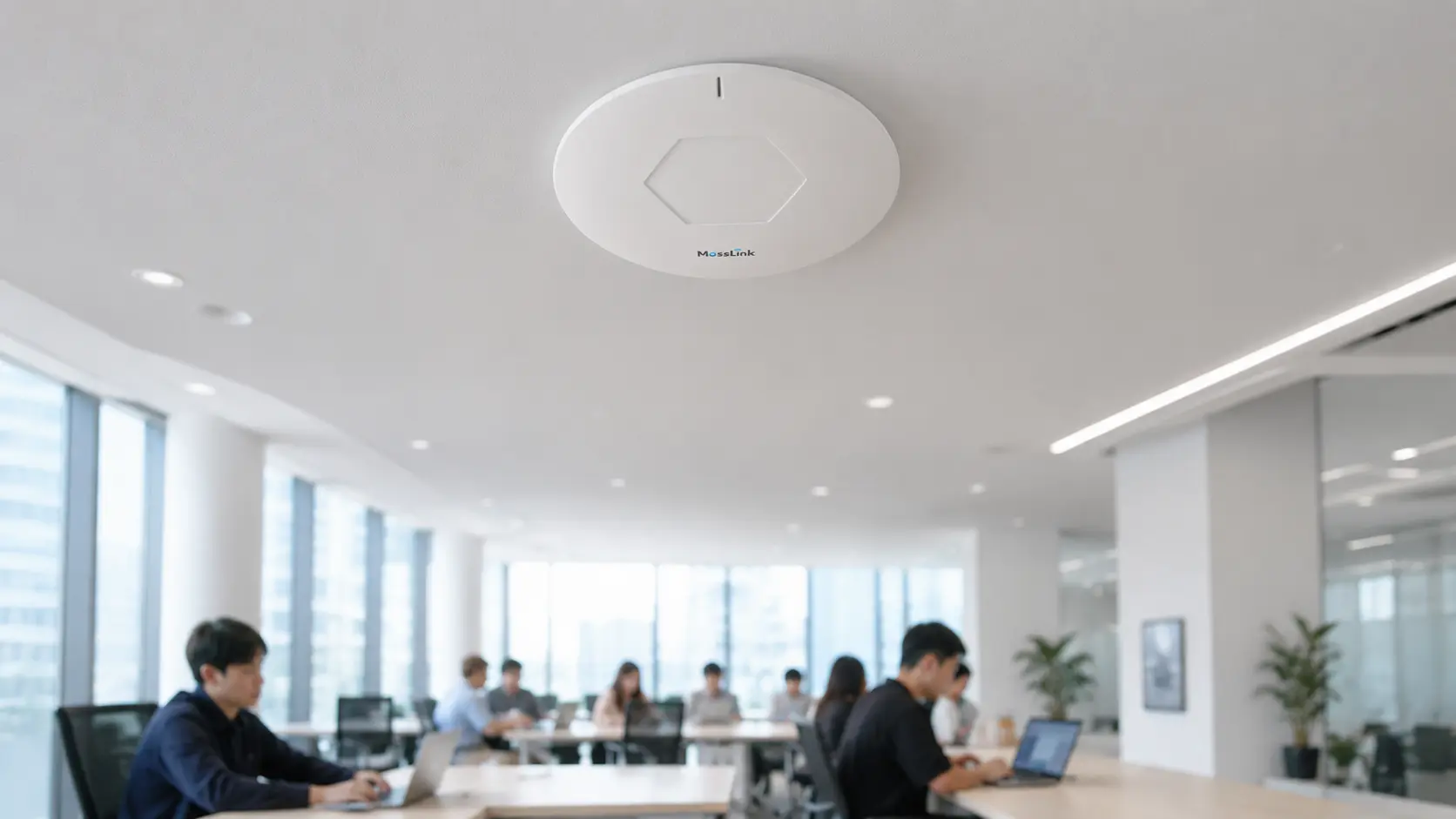

- Offices, conference rooms, and open-plan areas with dense concurrent users
- Schools, classrooms, and dormitories with large numbers of student devices

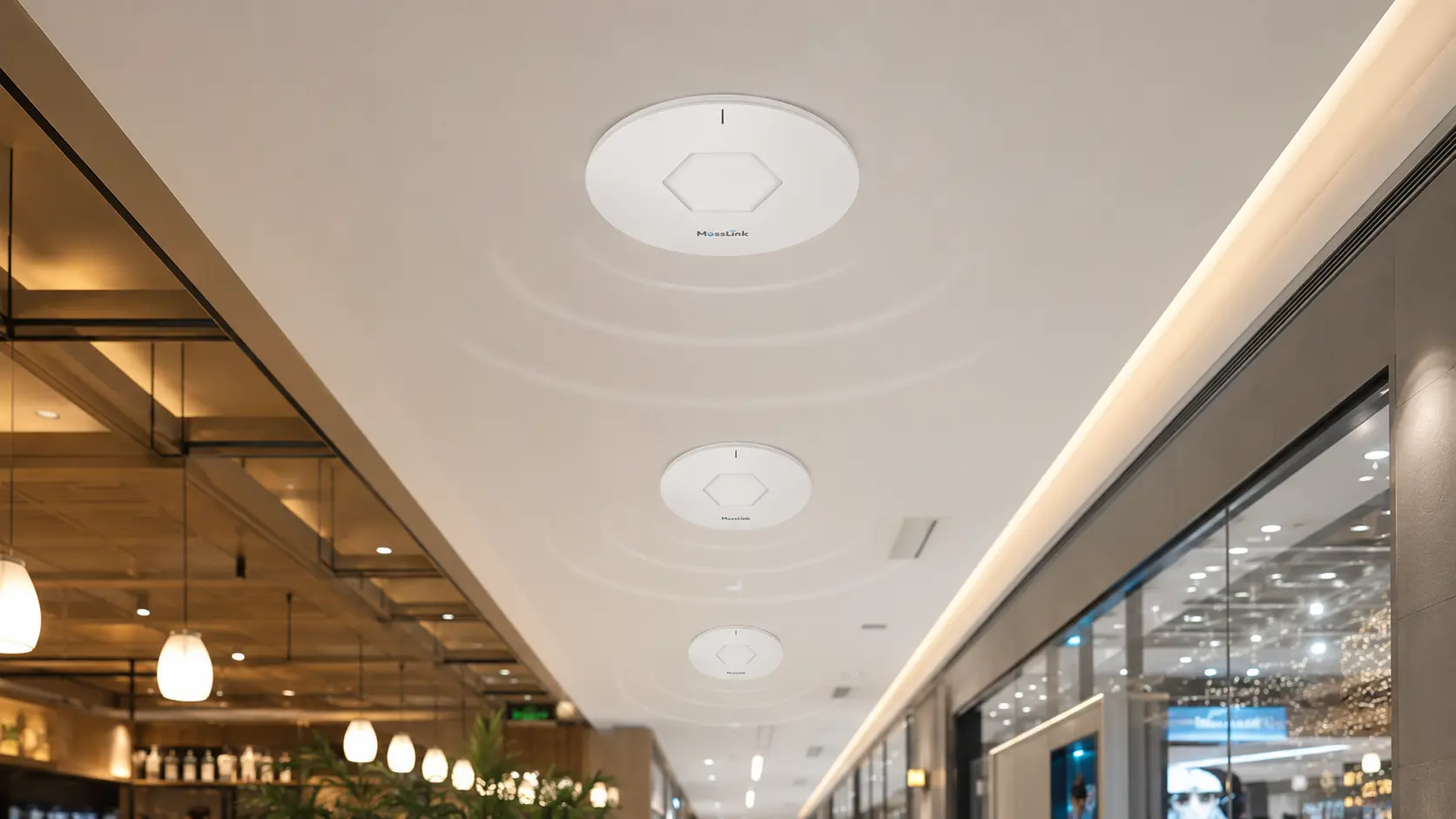

- Restaurants, KTVs, shopping malls, and hospitality venues with guest Wi-Fi
- Managed service providers running multi-site networks with cloud management via a ZW500 gateway/AC controller
Deployment Advantages

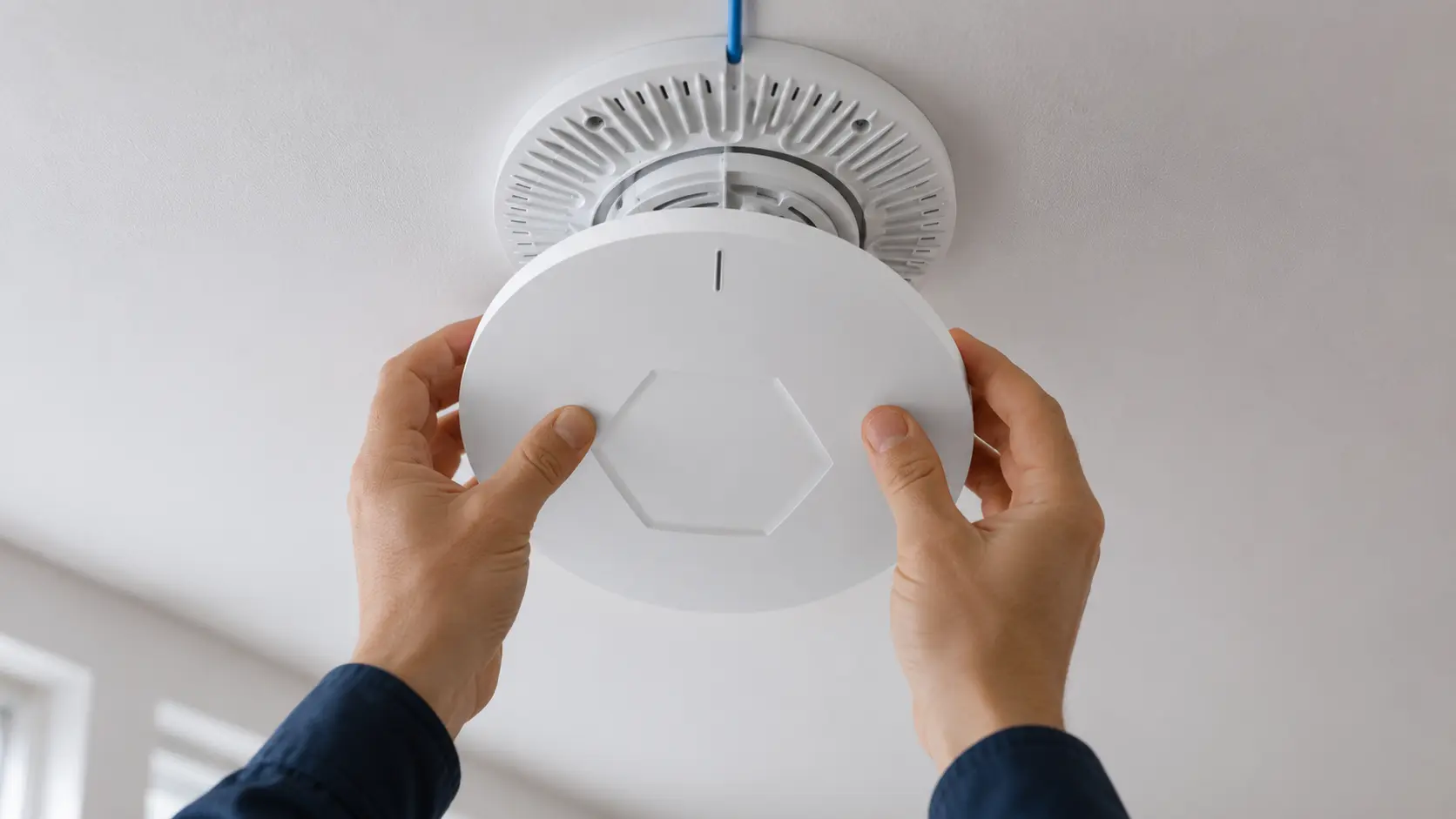

The single-cable 802.3af/at PoE connection simplifies installation — no separate power outlet or AC adapter is required, though a DC 12V/1.5A input is available where PoE is not. The round Φ175 × 42 mm ceiling form factor distributes signal evenly across the floor below, reducing the number of APs needed per floor compared with wall-mounted alternatives.
The MediaTek MT7981BA + MT7976CN platform handles up to 128 simultaneous connections through OFDMA scheduling and MU-MIMO, with HNAT hardware fast-forwarding sustaining 900Mbps+ of wired throughput so the gigabit uplink never bottlenecks the wireless side. Integrated Fat-Thin firmware lets the XD3001K run standalone in small sites or be centrally managed — with cloud control — by a ZW500 gateway/AC controller at scale, while MESH and WDS support flexible topologies. Multi-SSID with VLAN tagging and AP isolation protect tenant and guest traffic on shared infrastructure, and 6KV common-mode lightning protection with an enhanced heatsink keeps the device stable around the clock.
OEM/ODM Ready
MossLink offers OEM and ODM customization for the XD3001K, including custom SSID and captive-portal firmware, enclosure branding, and private-label packaging. Volume pricing is available for hotels, IT integrators, and enterprise wireless resellers. MossLink is the access point ODM partner for brands building white-label indoor Wi-Fi lines. Contact us to discuss your project requirements.
Specifications
| Type | Indoor Ceiling Mount Access Point |
| Standard | Wi-Fi 6 (802.11ax) |
| Band | Dual-Band (2.4GHz + 5GHz) |
| Max Speed | AX3000 (573 + 2402 Mbps) |
| Max Clients | 128 concurrent users |
| Chipset | MediaTek MT7981BA + MT7976CN |
| CPU | Quad-core ARM Cortex-A53 @ 1.3GHz |
| Memory | 256MB RAM / 16MB Flash |
| Antennas | 2.4G 2dBi ×2 + 5G 2dBi ×3 (built-in FPC) |

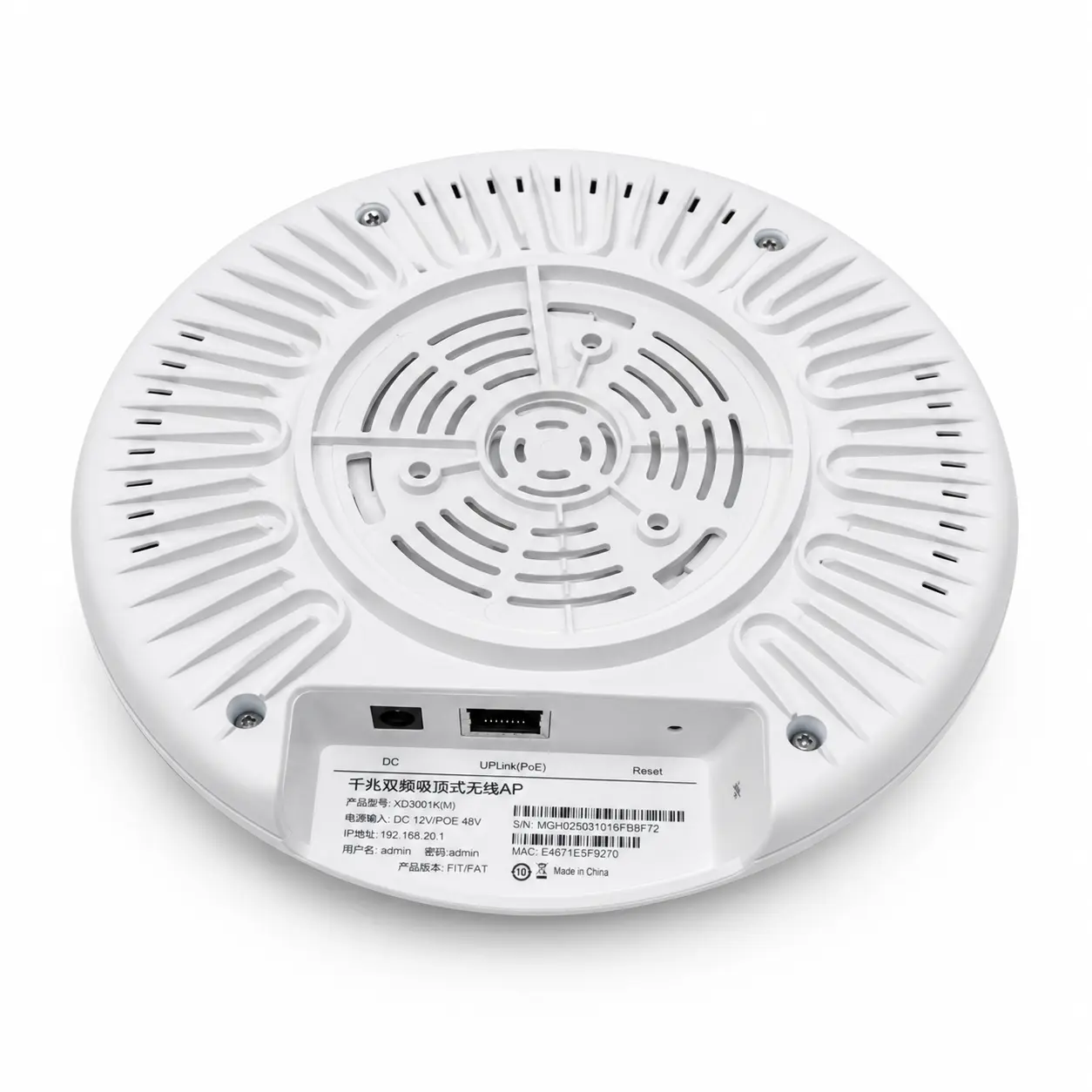

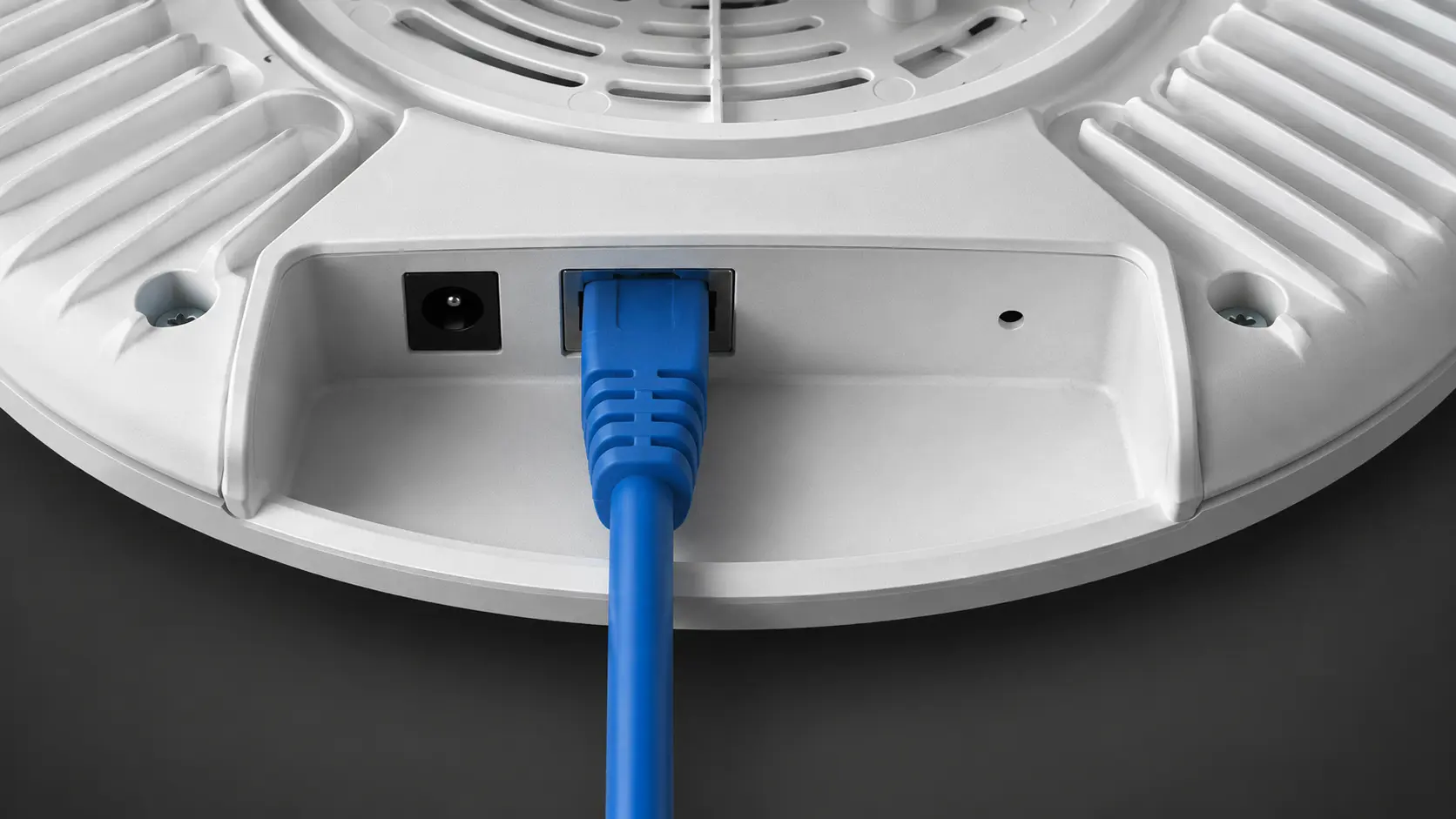

| Port | 1× 10/100/1000Mbps PoE (WAN) |
| Power | 802.3af/at PoE (48V) or DC 12V/1.5A |
| Working Mode | Integrated Fat-Thin (FAT/FIT) |
| Management | Standalone Web GUI; Cloud/AC via ZW500 Gateway |
| Wireless Tech | OFDMA · MU-MIMO · BSS Color · 1024-QAM |
| Networking | MESH / WDS / up to 5 SSIDs per band / VLAN |

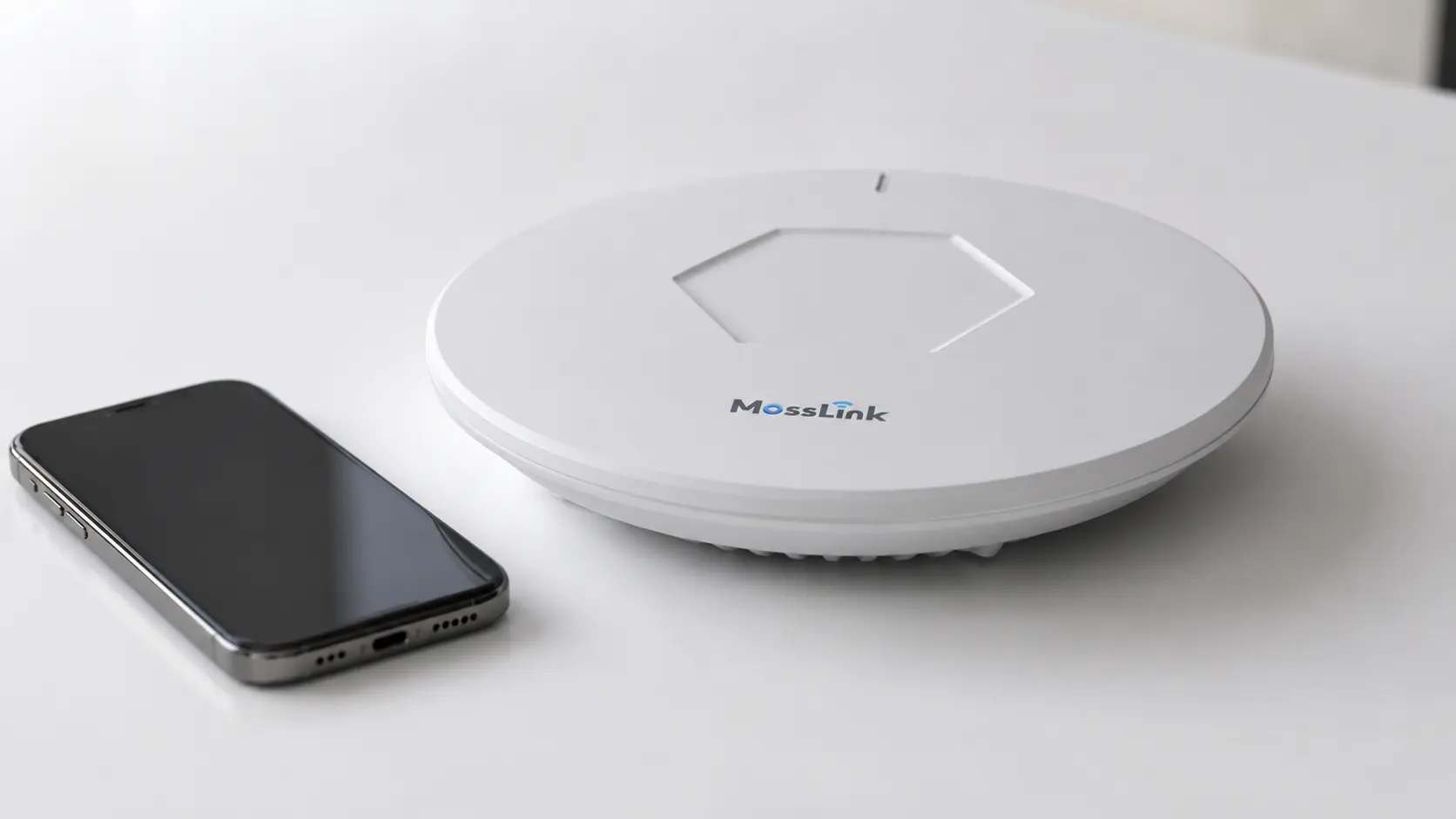

| Dimensions | Φ175 × 42 mm |
| Operating Temp | -10°C ~ +45°C |
| Humidity | 10% ~ 90% non-condensing |
Ordering & Customization
The XD3001K ships factory-direct from Shenzhen with full OEM/ODM support. Three customization levels are available depending on your order quantity:
Logo & Packaging (OEM)
From 100 units
- Your logo on the enclosure
- Branded box, labels & user manual
- Zero MossLink branding on final product
Custom Firmware (Software)
From 500 units
- Custom web UI & boot screen
- Default configuration & feature tuning
- Regional and regulatory presets
Custom Hardware (ODM)
From 1,000 units
- Enclosure & antenna modifications
- Port and power-budget variations
- PCB-level customization
Learn more about our OEM/ODM process →
- Standard MOQ
- 100 units for standard products with no customization
- Samples
- 1–5 evaluation units at product cost plus shipping — sample fee credited toward your first bulk order
- Lead Time
- In-stock products: 3–5 business days · bulk production: 3–4 weeks · OEM/ODM orders: 4–8 weeks
- Payment Terms
- 30% deposit, 70% balance before shipment · T/T and L/C accepted, in USD
- Shipping
- DHL / FedEx / UPS express, air and sea freight · DDP, FOB Shenzhen, or CIF terms
- Packaging
- Each unit individually boxed with protective foam; palletized export cartons for freight — carton specs available on request
- Quality Control
- 100% inspection and 24-hour burn-in testing; a signed QC report ships with every order
- Certifications
- CE, FCC, and RoHS standard · additional market certifications (IC, TELEC, NCC, etc.) available via ODM
Downloads
Frequently Asked Questions
How many clients can the XD3001K ceiling AP support simultaneously?
The XD3001K supports up to 128 concurrent wireless clients across its dual-band radios. The MediaTek MT7981BA + MT7976CN platform with OFDMA, MU-MIMO and BSS Color spatial reuse keeps per-device throughput stable even at full load, making it well suited for hotels, offices, classrooms, restaurants, KTVs, and other high-density indoor spaces.
What power options does the XD3001K support?
The XD3001K is powered via IEEE 802.3af/at PoE (48V) over a single Cat5e or better Ethernet cable, or by a DC 12V/1.5A adapter. PoE delivers both power and data over one cable run, eliminating the need for a local power outlet and simplifying ceiling installation in commercial spaces.
Can the XD3001K run without an AC controller?
Yes. The XD3001K ships with integrated Fat-Thin firmware. In small sites it runs standalone (fat mode) from its own English Web UI; in larger deployments a ZW500 gateway/AC controller manages it centrally (thin mode) and adds cloud and remote management. It also supports MESH networking and WDS for flexible wireless topologies.
Does the XD3001K support cloud and remote management?
On its own, the XD3001K is managed through its built-in Web GUI as a standalone AP. For cloud and remote management across multiple sites, pair it with a MossLink [ZW500 gateway/AC controller](/routers/zw500/) — the ZW500 provides the built-in AC and cloud platform, and the XD3001K is centrally managed through it. Standalone sites stay simple, while multi-site operators get centralised cloud control without on-site visits.
Is OEM/ODM customization available for this product?
Yes. MossLink offers full OEM and ODM services for the XD3001K, including custom firmware features, hardware modifications, enclosure branding, and private-label packaging. Minimum order quantities apply. Contact us to discuss your project requirements.
What is the MOQ for the XD3001K?
Standard XD3001K orders start at 100 units. Logo and packaging customization (OEM) also starts at 100 units, custom firmware at 500 units, and custom hardware (ODM) at 1,000 units. Contact sales with your target quantity for a formal quotation.
Can I get a sample of the XD3001K before bulk ordering?
Yes. We supply 1–5 evaluation units at product cost plus shipping, and the sample fee is credited toward your first bulk order. Contact us via email or WhatsApp with the model number to arrange a sample.
What is the lead time for the XD3001K?
In-stock units ship within 3–5 business days. Bulk production orders typically require 3–4 weeks, and OEM/ODM orders with customization take 4–8 weeks depending on complexity. Rush production is available at additional cost.
Is the XD3001K certified for my market?
The XD3001K carries CE, FCC, and RoHS certification as standard. Additional certifications for specific markets (IC, TELEC, NCC, etc.) can be arranged through our ODM service.
How is product quality controlled before shipment?
Every unit undergoes 100% inspection and 24-hour burn-in testing before leaving the factory, and a signed QC report ships with every order — full traceability from component to delivery.
What payment terms do you accept?
Standard terms are a 30% deposit with order confirmation and the 70% balance before shipment, paid in USD via T/T. Letter of credit and flexible terms are available for established partners.
Related Products
APH6-AX3000 Wi-Fi 6 Outdoor AP, IP67, SFP Port
APH6-AX3000
Wi-Fi 6 (802.11ax) · Dual-Band (2.4GHz + 5GHz) · AX3000 (574 + 2402 Mbps) · 802.3at (48V)
See This Product in Action
The XD3001K is used in these MossLink deployment solutions.
Campus Wi-Fi Network Solution & Access Points
MossLink manufactures high-density APs, PoE switches, and bridges for campus networks. 5,000+ devices, seamless roaming, OEM/ODM, factory-direct China.
View Solution →
Hotel Wi-Fi Manufacturer: Access Points for Hotels
Access points for hotels: Wi-Fi 6/7 ceiling APs, corridor deployment, captive portal, VLAN segmentation, and PoE switches. Factory-direct from Shenzhen.
View Solution →
Managed Wi-Fi for Apartments & MDU Buildings
Managed Wi-Fi for apartments and MDU buildings with per-unit VLAN isolation, ISP billing, corridor APs, and PoE switches. OEM manufacturer from China.
View Solution →
Restaurant & Retail Chain Wi-Fi Solution
MossLink manufactures ceiling APs and managed routers for restaurant and retail chain Wi-Fi. Guest Wi-Fi, captive portal, POS isolation. OEM/ODM available.
View Solution →
Starlink Internet Distribution for Farms & Multiple Buildings
Distribute Starlink across farms, compounds, communities, and multiple buildings using outdoor access points, wireless bridges, PoE, and solar power.
View Solution →
Wi-Fi 6 & Wi-Fi 7 Access Point Manufacturer for OEM Buyers
Wi-Fi 6 and Wi-Fi 7 access point manufacturer in Shenzhen. AX3000 to BE3600, OEM/ODM, CE/FCC certified, factory-direct for hotels, campuses, and ISPs.
View Solution →
Read More on Our Blog
Guides, comparisons, and case studies featuring the XD3001K.
Buying Guide
Managed WiFi for Apartment Buildings (MDU Guide)
Forty units, forty consumer routers, constant interference. How property owners cover a whole apartment building from one managed WiFi network.
Read Article →
Buying Guide

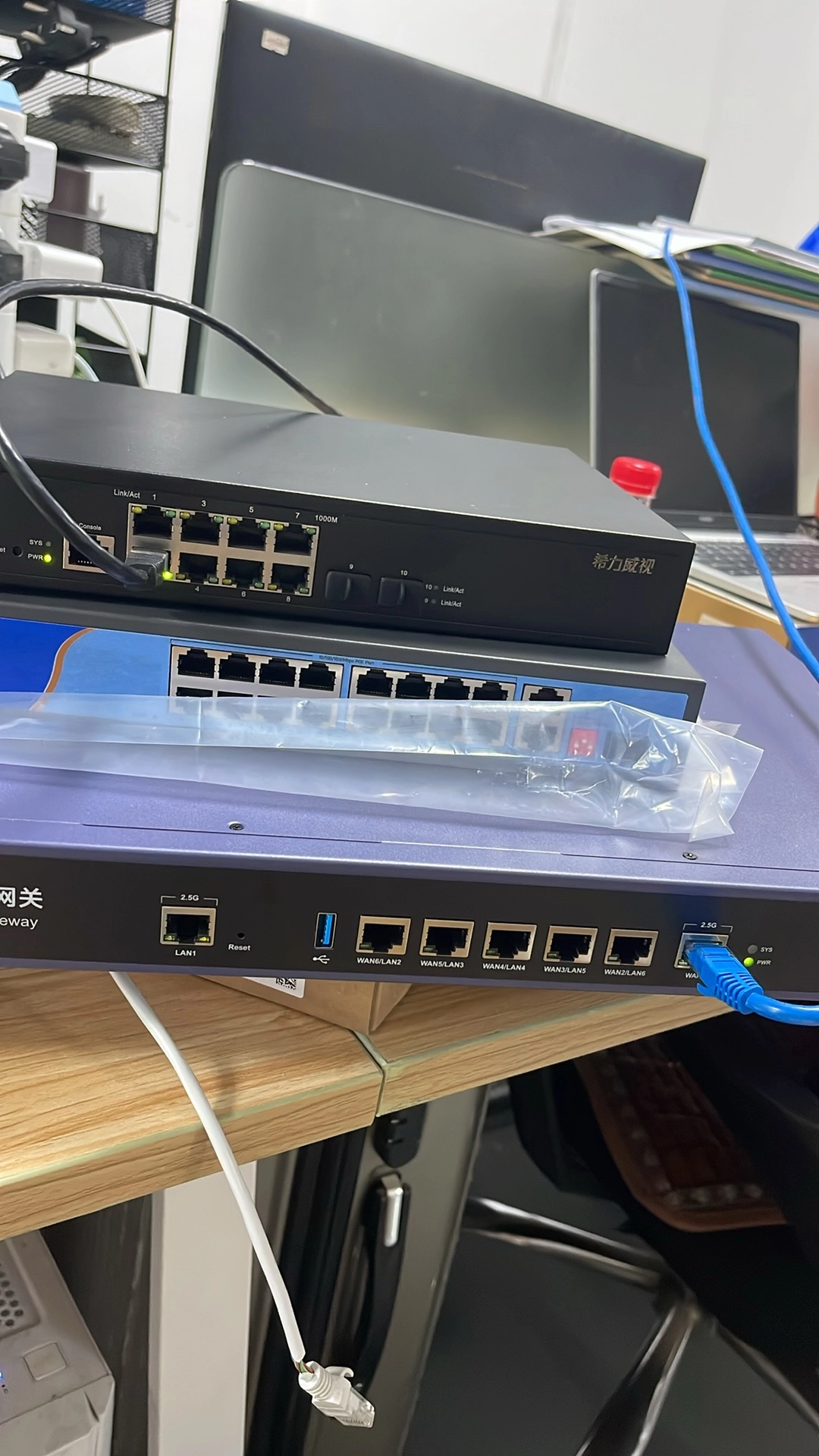

Pre-Configured WiFi for Overseas Deployment: Ship It Ready to Plug In
