AP3000G 3000Mbps Wi-Fi 6 Outdoor Access Point
AP3000G
Standard Wi-Fi 6 (802.11ax)
Band Dual-Band (2.4GHz + 5GHz)
Max Speed AX3000 (574 + 2402 Mbps)
Antenna 2× External Dual-Band Omni, 5dBi
Ethernet 1× GbE WAN (PoE) + 1× GbE LAN
5 Years Warranty
Overview
- Wi-Fi 6 dual-band 3000Mbps (574Mbps @ 2.4GHz + 2402Mbps @ 5GHz)

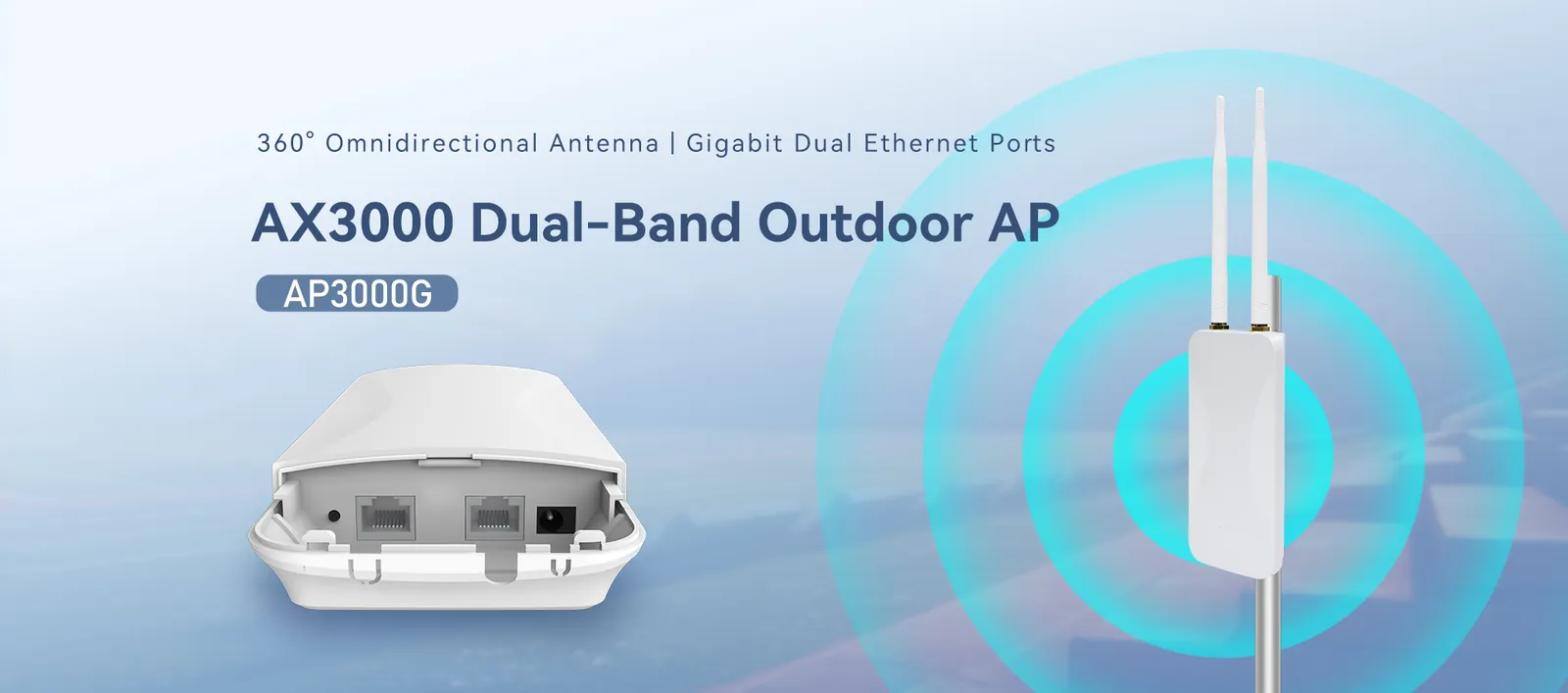

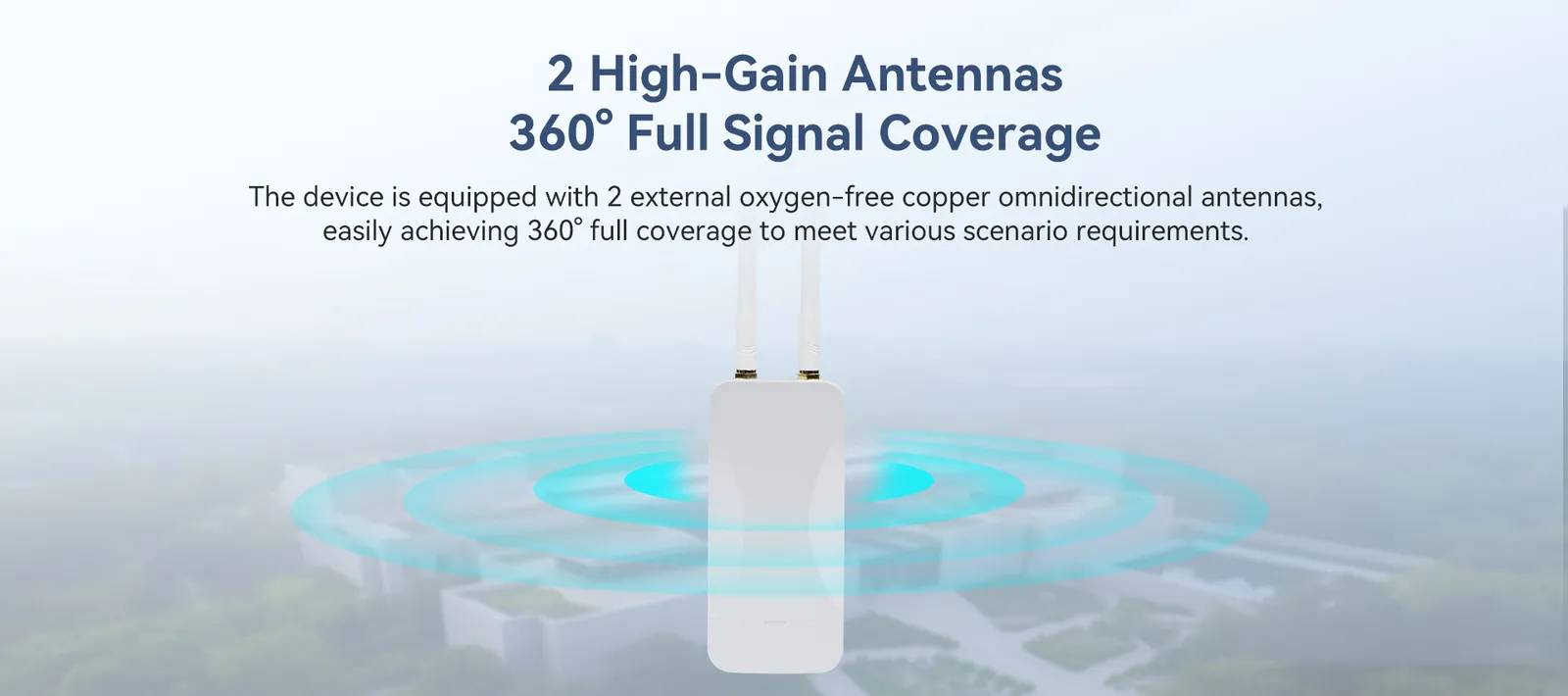

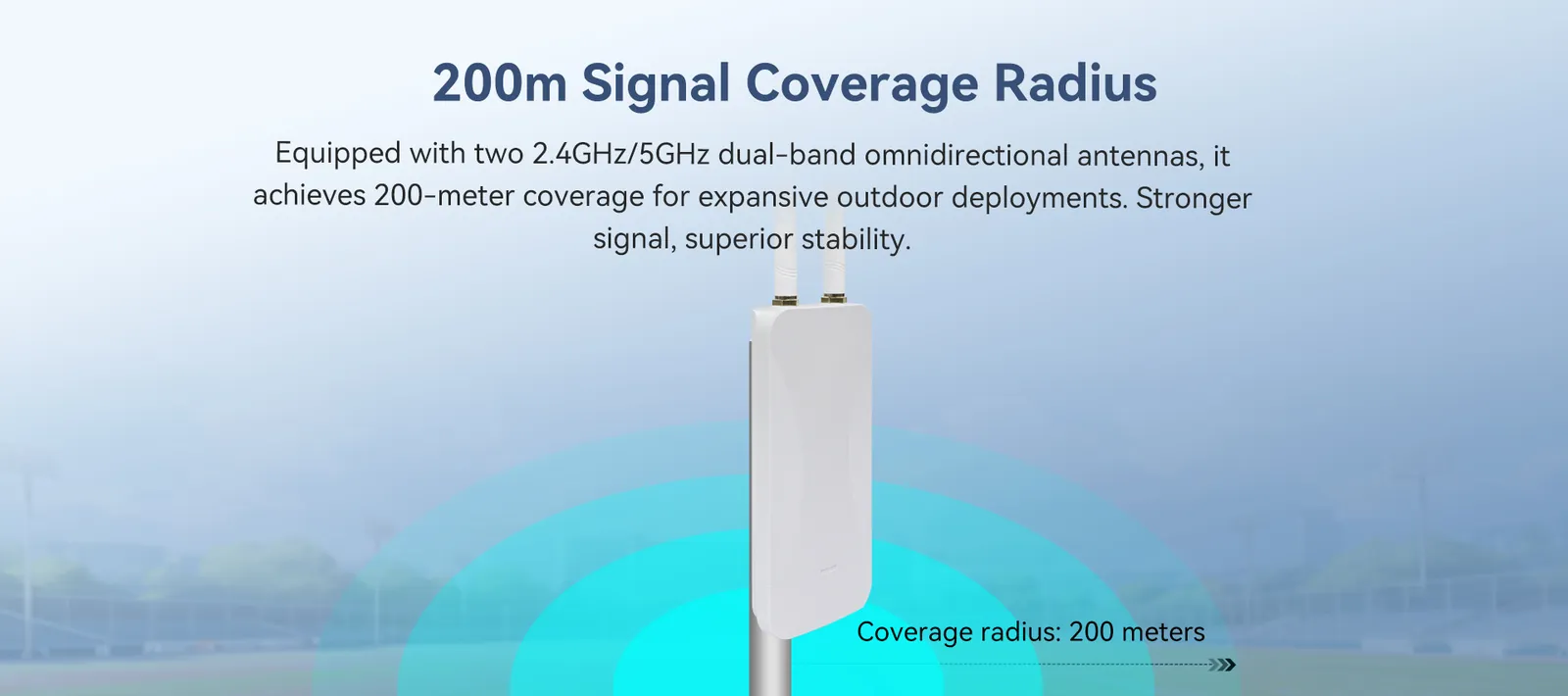

- 360° omnidirectional coverage with dual high-gain external antennas

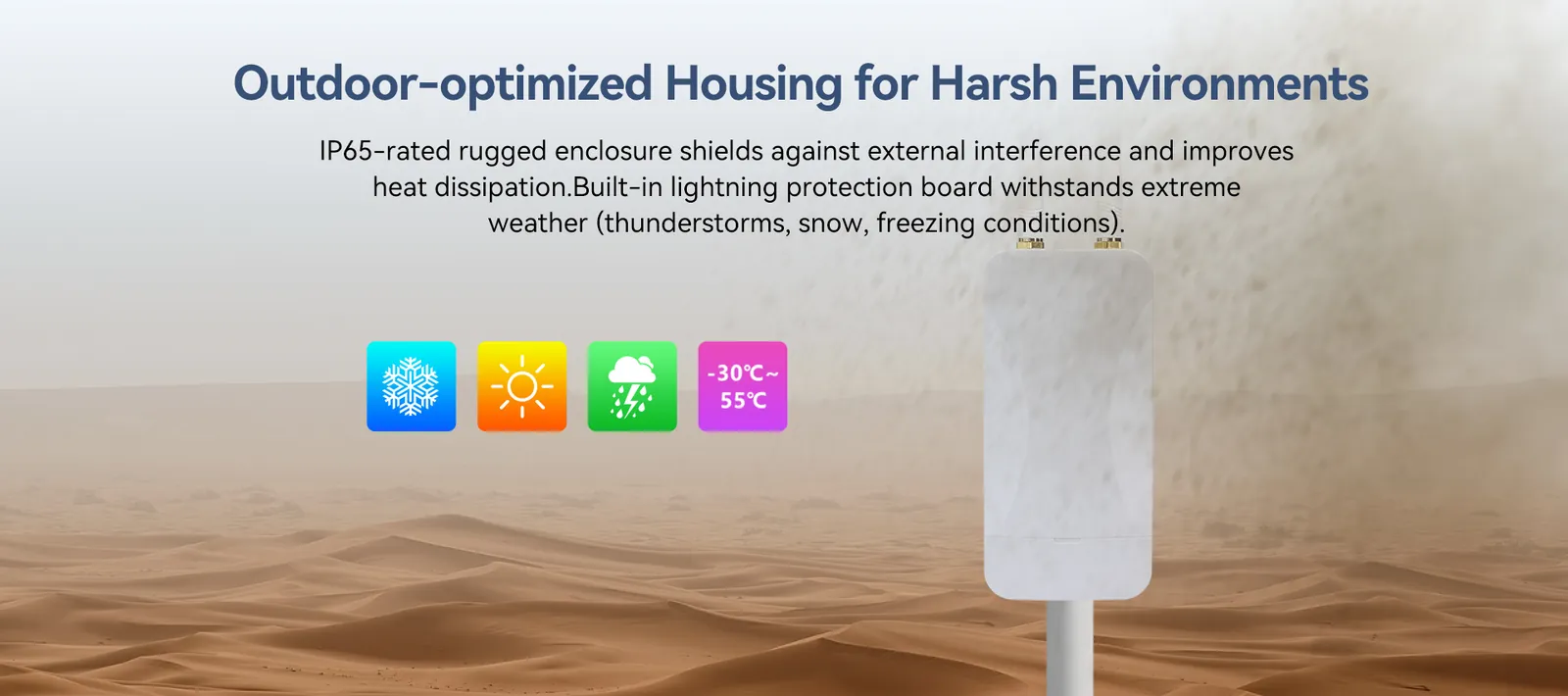

- IP65 weatherproof enclosure, rated for -30°C to +55°C

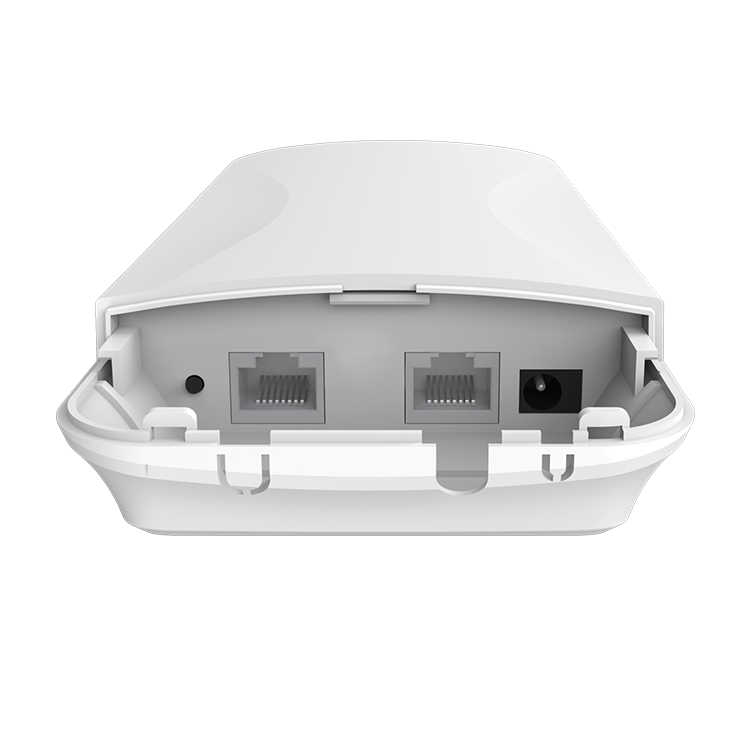

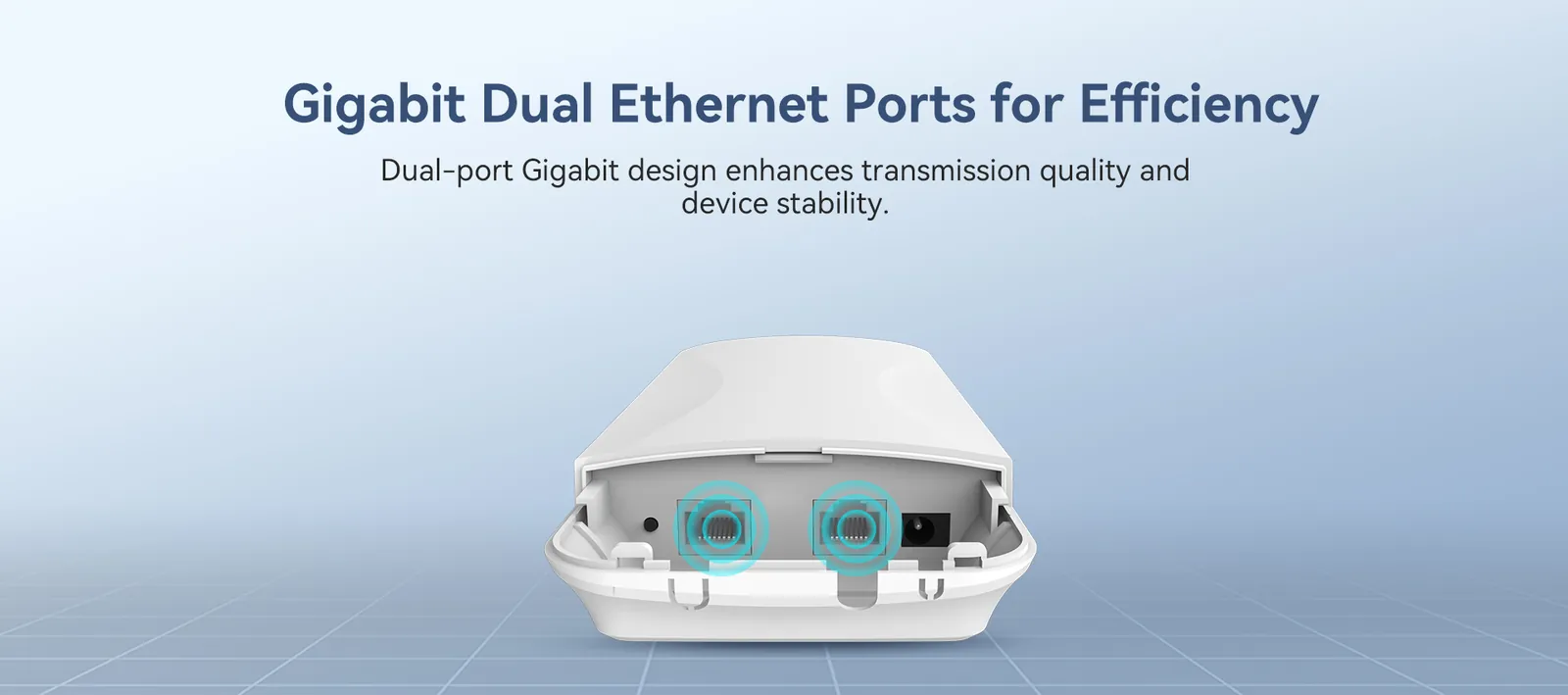

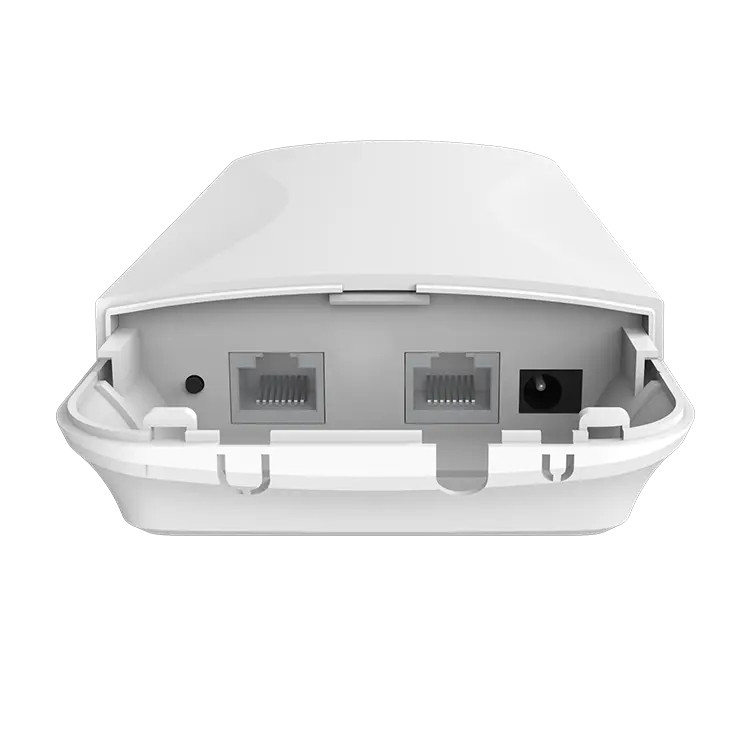

- Dual gigabit Ethernet ports for flexible wired backhaul
- Supports 48V PoE (802.3af) and 12V DC power input
- Up to 128 concurrent client connections

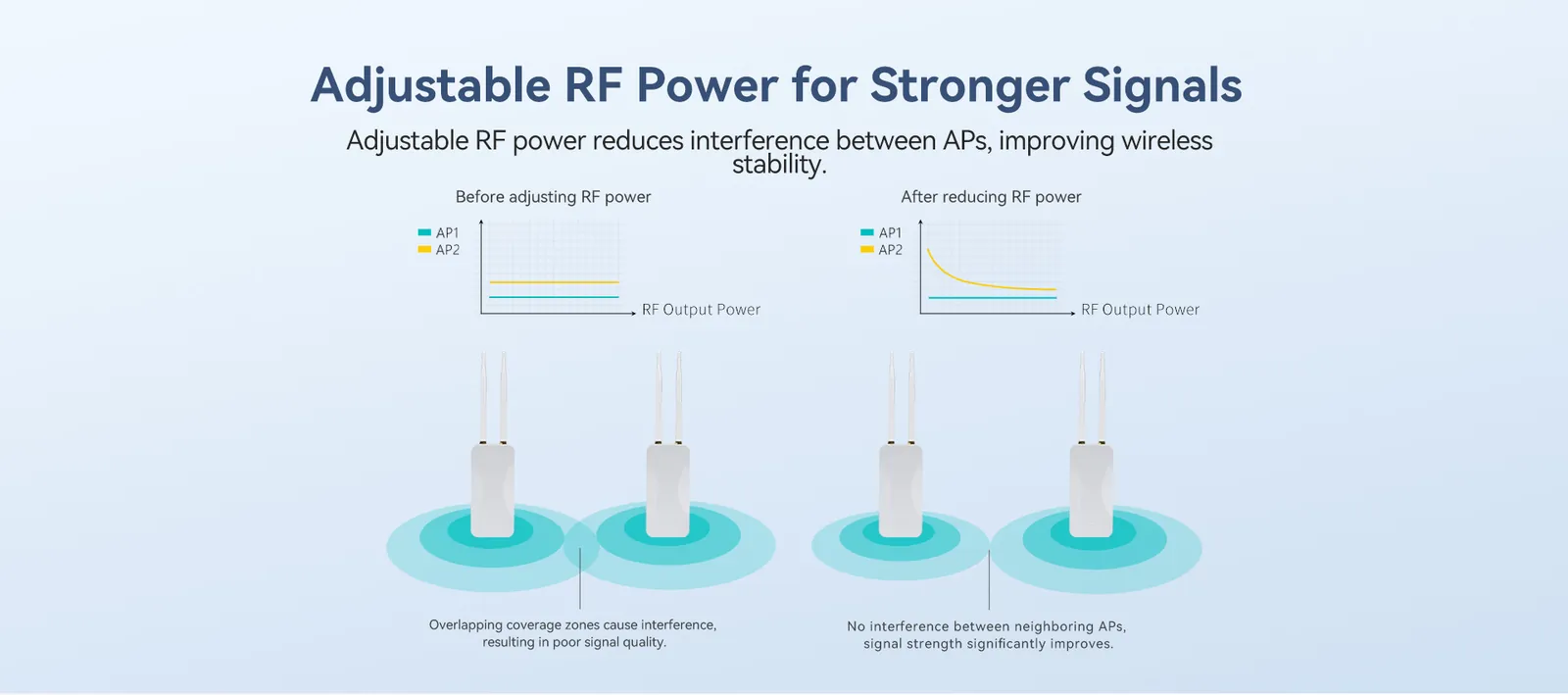

- Adjustable RF power output to reduce inter-AP interference

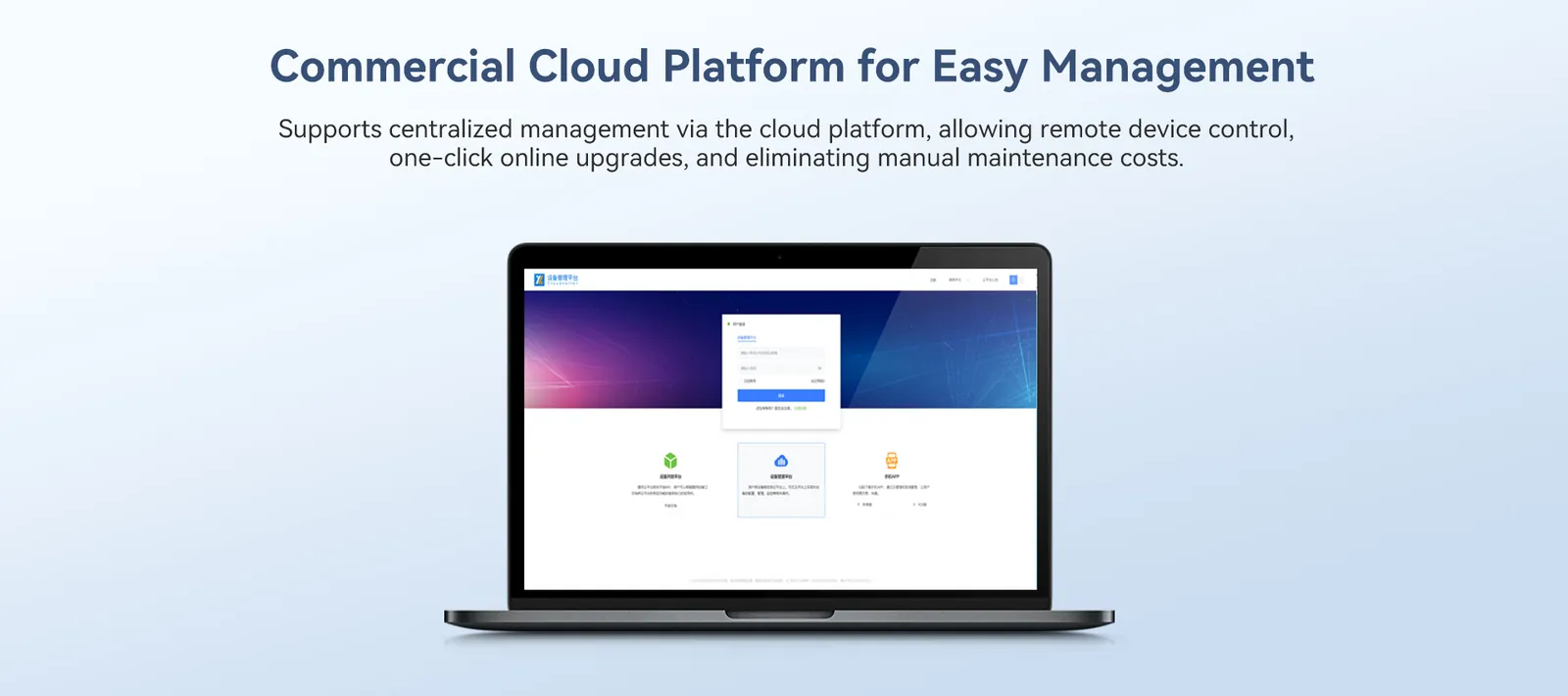

- Cloud-based centralized management and remote monitoring
The AP3000G is a dual-band Wi-Fi 6 outdoor access point delivering 3000Mbps (574Mbps @ 2.4GHz + 2402Mbps @ 5GHz) in an IP65-rated enclosure. Designed for enterprise outdoor deployments, it features dual high-gain omnidirectional antennas for 360° coverage and supports up to 128 concurrent clients with cloud-based centralized management.
Ideal For
- Hotels, resorts, and hospitality venues requiring outdoor guest Wi-Fi
- Parks, scenic attractions, and public gathering spaces
- University campuses and school outdoor areas
- Transportation hubs, subway stations, and smart city projects
- Stadiums, concert venues, and large outdoor events
Deployment Advantages
The AP3000G combines Wi-Fi 6 performance with practical outdoor engineering. Its dual gigabit Ethernet ports provide flexible wired backhaul options, while PoE (802.3af) support simplifies installation by delivering power and data over a single cable. The adjustable RF output power minimizes inter-AP interference in high-density multi-AP deployments.
Cloud-based management enables remote configuration, firmware updates, and real-time monitoring across multiple sites — reducing on-site maintenance overhead for ISPs and enterprise IT teams managing distributed outdoor networks.
OEM/ODM Ready
MossLink offers OEM and ODM customization for this product, including custom firmware, enclosure branding, antenna configuration, and private-label packaging. Volume pricing is available for system integrators, ISPs, and resellers. For projects combining long-range backhaul with local outdoor coverage, see the wireless bridge deployment guide for Africa. Learn more about our access point OEM program for white-label branding and volume manufacturing. Contact us to discuss your project requirements.
Specifications
| Standard | Wi-Fi 6 (802.11ax) |
| Band | Dual-Band (2.4GHz + 5GHz) |
| Max Speed | AX3000 (574 + 2402 Mbps) |
| Antenna | 2× External Dual-Band Omni, 5dBi |
| Ethernet | 1× GbE WAN (PoE) + 1× GbE LAN |
| PoE | 802.3af (48V) |
| Max Clients | 128 |
| Enclosure | IP65 Outdoor Rated |

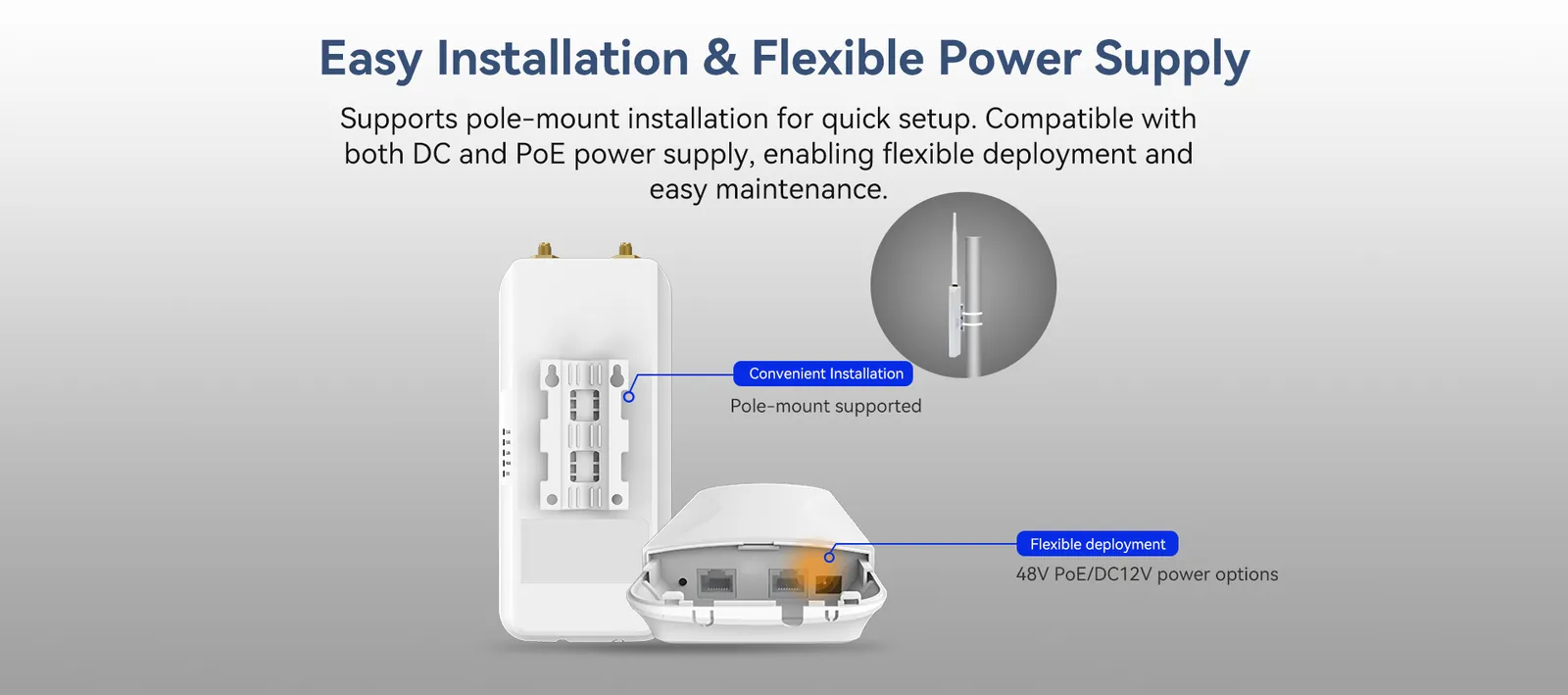

| Mounting | Pole / Wall Mount |
| Dimensions | 196 × 86 × 40 mm |
| Temperature | -30°C ~ +55°C |
| Power | 802.3af PoE / 12V DC 1A |
Ordering & Customization
The AP3000G ships factory-direct from Shenzhen with full OEM/ODM support. Three customization levels are available depending on your order quantity:
Logo & Packaging (OEM)
From 100 units
- Your logo on the enclosure
- Branded box, labels & user manual
- Zero MossLink branding on final product
Custom Firmware (Software)
From 500 units
- Custom web UI & boot screen
- Default configuration & feature tuning
- Regional and regulatory presets
Custom Hardware (ODM)
From 1,000 units
- Enclosure & antenna modifications
- Port and power-budget variations
- PCB-level customization
Learn more about our OEM/ODM process →
- Standard MOQ
- 100 units for standard products with no customization
- Samples
- 1–5 evaluation units at product cost plus shipping — sample fee credited toward your first bulk order
- Lead Time
- In-stock products: 3–5 business days · bulk production: 3–4 weeks · OEM/ODM orders: 4–8 weeks
- Payment Terms
- 30% deposit, 70% balance before shipment · T/T and L/C accepted, in USD
- Shipping
- DHL / FedEx / UPS express, air and sea freight · DDP, FOB Shenzhen, or CIF terms
- Packaging
- Each unit individually boxed with protective foam; palletized export cartons for freight — carton specs available on request
- Quality Control
- 100% inspection and 24-hour burn-in testing; a signed QC report ships with every order
- Certifications
- CE, FCC, and RoHS standard · additional market certifications (IC, TELEC, NCC, etc.) available via ODM
Downloads
Frequently Asked Questions
What is the wireless speed of the AP3000G?
The AP3000G delivers up to 3000Mbps combined throughput — 574Mbps on 2.4GHz and 2402Mbps on 5GHz — using Wi-Fi 6 (802.11ax) with OFDMA and MU-MIMO technology for efficient multi-user performance.
What outdoor environments is this access point designed for?
The AP3000G is designed for parks, campuses, scenic areas, stadiums, transportation hubs, hotels, and smart city projects. Its IP65-rated enclosure and operating range of -30°C to +55°C ensure year-round reliability in harsh conditions.
What power options does the AP3000G support?
The AP3000G supports 48V PoE (802.3af) for single-cable installation and 12V DC input. Both options are compatible with standard outdoor deployments using CAT5e or better cabling up to 100m.
Is OEM/ODM customization available for this product?
Yes. MossLink offers full OEM and ODM services for this product, including custom firmware features, hardware modifications, enclosure branding, and private-label packaging. Minimum order quantities apply. Contact us to discuss your project requirements.
What is the MOQ for the AP3000G?
Standard AP3000G orders start at 100 units. Logo and packaging customization (OEM) also starts at 100 units, custom firmware at 500 units, and custom hardware (ODM) at 1,000 units. Contact sales with your target quantity for a formal quotation.
Can I get a sample of the AP3000G before bulk ordering?
Yes. We supply 1–5 evaluation units at product cost plus shipping, and the sample fee is credited toward your first bulk order. Contact us via email or WhatsApp with the model number to arrange a sample.
What is the lead time for the AP3000G?
In-stock units ship within 3–5 business days. Bulk production orders typically require 3–4 weeks, and OEM/ODM orders with customization take 4–8 weeks depending on complexity. Rush production is available at additional cost.
Is the AP3000G certified for my market?
The AP3000G carries CE, FCC, and RoHS certification as standard. Additional certifications for specific markets (IC, TELEC, NCC, etc.) can be arranged through our ODM service.
How is product quality controlled before shipment?
Every unit undergoes 100% inspection and 24-hour burn-in testing before leaving the factory, and a signed QC report ships with every order — full traceability from component to delivery.
What payment terms do you accept?
Standard terms are a 30% deposit with order confirmation and the 70% balance before shipment, paid in USD via T/T. Letter of credit and flexible terms are available for established partners.
