APH5-AX830 Wi-Fi 6 Outdoor AP, 2.5Gbps Port, IP65

Name: APH5-AX830 Wi-Fi 6 Outdoor AP, 2.5Gbps Port, IP65
Brand: MossLink
SKU: APH5-AX830

APH5-AX830

Standard Wi-Fi 6 (802.11ax)

Band Dual-Band (2.4GHz + 5GHz)

Max Speed AX3000 (574 + 2402 Mbps)

CPU IPQ5018 + QCN6102 + QCA8081

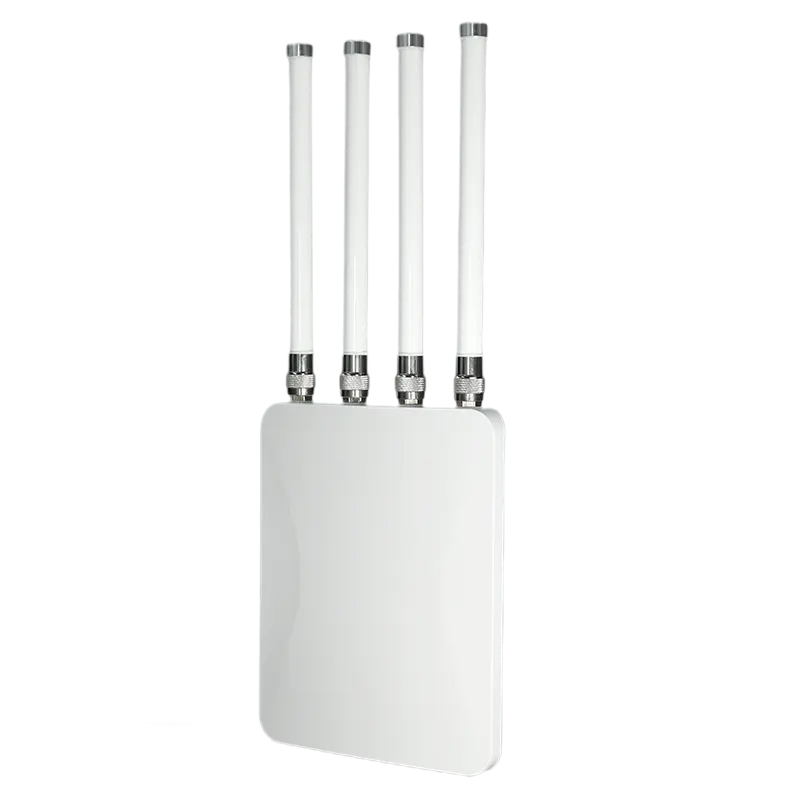

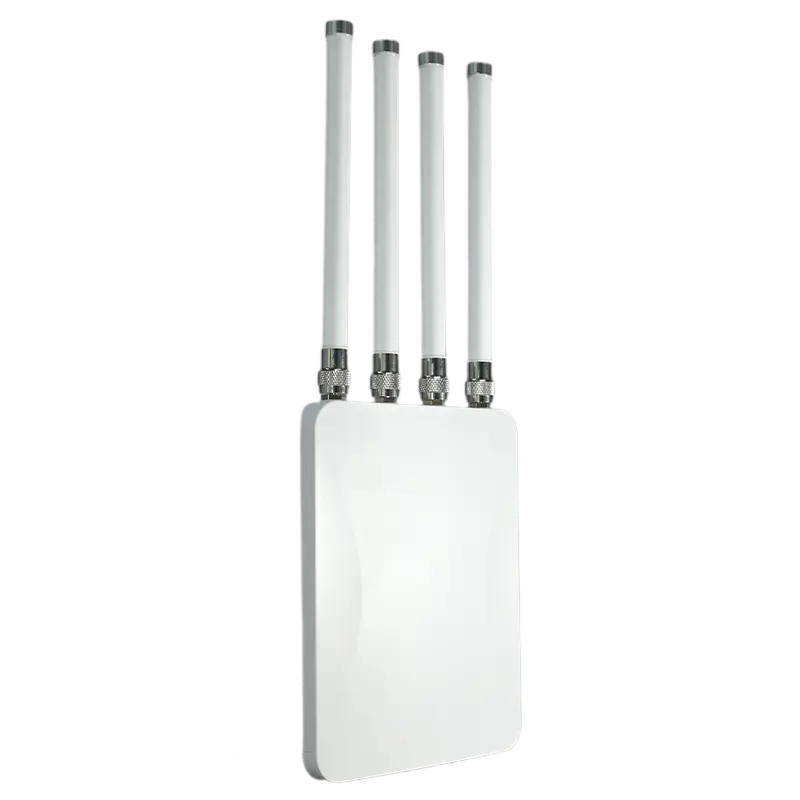

Antenna 2×2.4GHz + 2×5GHz External Omni, 6dBi each, 360° adjustable

View all specifications → APH5-AX830 Datasheet

5 Years Warranty

Talk via WhatsApp

Overview

Wi-Fi 6 AX3000 on Qualcomm IPQ5018 + QCN6102 enterprise platform
2.5Gbps WAN port for high-bandwidth backhaul connections
Four 6dBi 360°-adjustable omnidirectional antennas, 100m coverage radius
IP65 UV-resistant weatherproof enclosure
Supports up to 128 concurrent clients with OFDMA and MU-MIMO
Seamless roaming, VLAN, and cloud platform management
Built-in surge and lightning protection
Supports 802.3at PoE (48V) and 12V DC power input

The APH5-AX830 is an enterprise-grade dual-band Wi-Fi 6 outdoor access point built on the Qualcomm IPQ5018 + QCN6102 platform. Delivering 3000Mbps (574 + 2402Mbps) with a 2.5Gbps WAN port, four 6dBi adjustable antennas covering a 100m radius, and an IP65-rated UV-resistant enclosure, it is designed for hotels, campuses, factories, and ISP outdoor deployments requiring high-bandwidth reliability.

Ideal For

Hotels and hospitality venues with large outdoor coverage requirements
Corporate campuses and office parks
Factories and industrial facilities
ISP outdoor commercial Wi-Fi deployments
University open-air areas and sports facilities

Deployment Advantages

The 2.5Gbps WAN port eliminates the bottleneck that occurs when aggregated Wi-Fi 6 throughput exceeds standard GbE capacity — a common issue in high-density deployments. Combined with the Qualcomm enterprise chipset’s hardware-accelerated OFDMA scheduling, the APH5-AX830 maintains low latency and consistent throughput even when 128 clients are connected simultaneously.

Four 360°-adjustable antennas provide installation flexibility: they can be optimized for coverage patterns specific to the deployment environment — directing signal horizontally for street-level hotspots or angling for terrace and pool-deck coverage. Cloud management enables centralized configuration and remote firmware updates across multi-site deployments.

OEM/ODM Ready

MossLink offers OEM and ODM customization for this product, including custom firmware, antenna configuration, enclosure branding, and private-label packaging. Volume pricing is available for system integrators, ISPs, and enterprise resellers. Our custom access point ODM program builds to your spec — firmware, antenna, enclosure, and packaging. Contact us to discuss your project requirements.

Specifications

Standard	Wi-Fi 6 (802.11ax)
Band	Dual-Band (2.4GHz + 5GHz)
Max Speed	AX3000 (574 + 2402 Mbps)
CPU	IPQ5018 + QCN6102 + QCA8081
Antenna	2×2.4GHz + 2×5GHz External Omni, 6dBi each, 360° adjustable

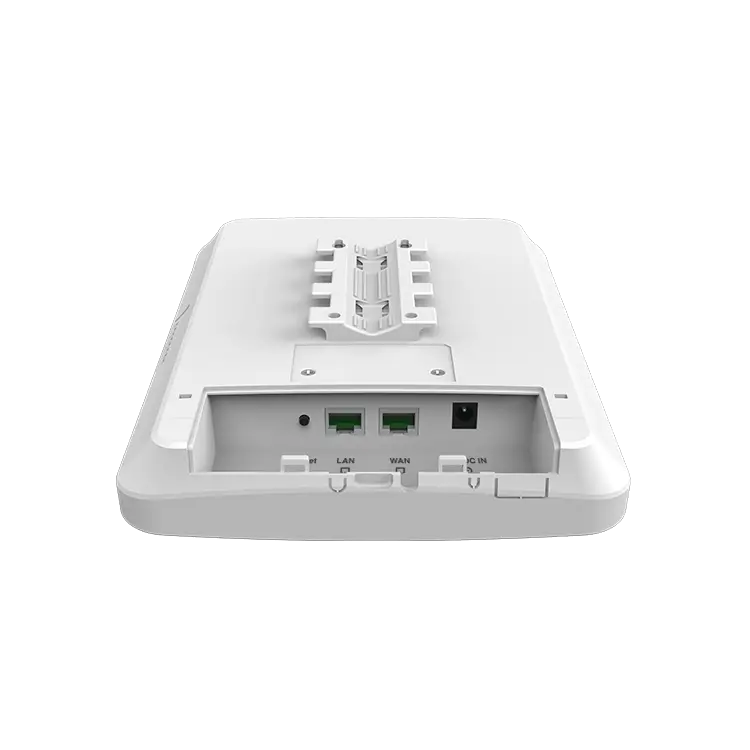

Ethernet	1× 2.5GbE WAN (PoE 48V) + 1× GbE LAN
PoE	802.3at (48V)
Max Clients	128
Coverage	Up to 100m radius
Enclosure	IP65 UV-Resistant

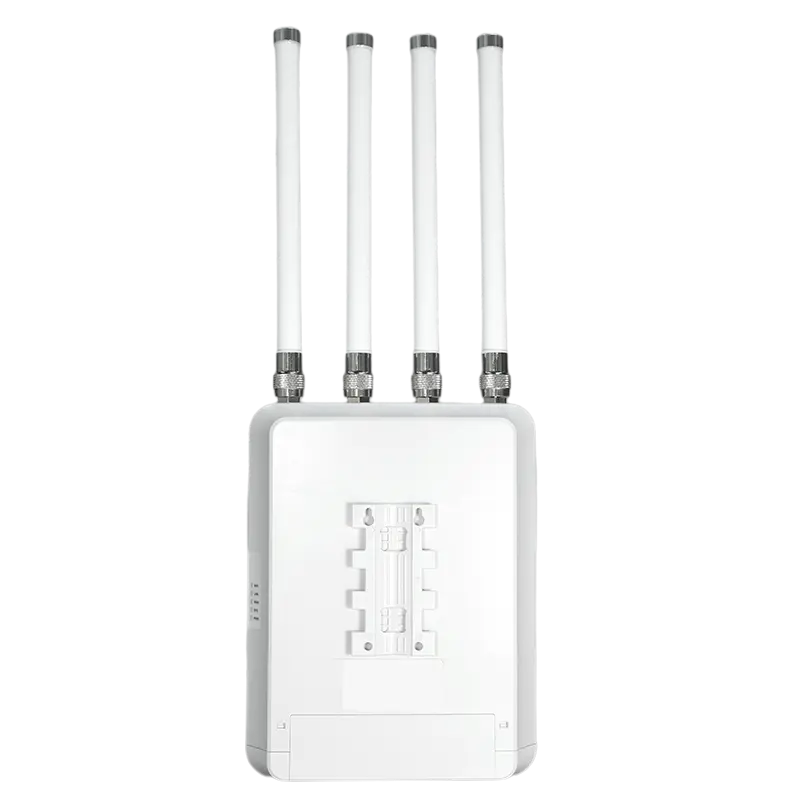

Mounting	Pole / Wall Mount
Dimensions	230 × 180 × 47.1 mm
Temperature	-30°C ~ +55°C
Power	12V DC 2A / 802.3at PoE, < 22W

Ordering & Customization

The APH5-AX830 ships factory-direct from Shenzhen with full OEM/ODM support. Three customization levels are available depending on your order quantity:

Logo & Packaging (OEM)

From 100 units

Your logo on the enclosure
Branded box, labels & user manual
Zero MossLink branding on final product

Custom Firmware (Software)

From 500 units

Custom web UI & boot screen
Default configuration & feature tuning
Regional and regulatory presets

Custom Hardware (ODM)

From 1,000 units

Enclosure & antenna modifications
Port and power-budget variations
PCB-level customization

Learn more about our OEM/ODM process →

Standard MOQ: 100 units for standard products with no customization
Samples: 1–5 evaluation units at product cost plus shipping — sample fee credited toward your first bulk order
Lead Time: In-stock products: 3–5 business days · bulk production: 3–4 weeks · OEM/ODM orders: 4–8 weeks
Payment Terms: 30% deposit, 70% balance before shipment · T/T and L/C accepted, in USD
Shipping: DHL / FedEx / UPS express, air and sea freight · DDP, FOB Shenzhen, or CIF terms
Packaging: Each unit individually boxed with protective foam; palletized export cartons for freight — carton specs available on request
Quality Control: 100% inspection and 24-hour burn-in testing; a signed QC report ships with every order
Certifications: CE, FCC, and RoHS standard · additional market certifications (IC, TELEC, NCC, etc.) available via ODM

Downloads

APH5-AX830 Datasheet

datasheet

Frequently Asked Questions

Why does the APH5-AX830 have a 2.5Gbps WAN port?

The 2.5Gbps WAN port ensures the access point can fully utilize its AX3000 Wi-Fi 6 throughput without creating a bottleneck at the wired uplink. This is especially important in high-density environments where aggregated wireless throughput can exceed standard GbE capacity.

What enterprise scenarios is this AP designed for?

The APH5-AX830 is designed for hotels, corporate campuses, factories, ISP outdoor deployments, and campus networks — anywhere requiring reliable enterprise-grade outdoor Wi-Fi with high-bandwidth uplinks and centralized management.

How does the Qualcomm platform benefit performance?

The IPQ5018 + QCN6102 + QCA8081 chipset provides hardware-accelerated OFDMA and MU-MIMO, enabling efficient multi-user scheduling and low latency for up to 128 simultaneous clients — key for high-density environments such as hotel pool areas or campus open spaces.

Is OEM/ODM customization available for this product?

Yes. MossLink offers full OEM and ODM services for this product, including custom firmware features, hardware modifications, enclosure branding, and private-label packaging. Minimum order quantities apply. Contact us to discuss your project requirements.

What is the MOQ for the APH5-AX830?

Standard APH5-AX830 orders start at 100 units. Logo and packaging customization (OEM) also starts at 100 units, custom firmware at 500 units, and custom hardware (ODM) at 1,000 units. Contact sales with your target quantity for a formal quotation.

Can I get a sample of the APH5-AX830 before bulk ordering?

Yes. We supply 1–5 evaluation units at product cost plus shipping, and the sample fee is credited toward your first bulk order. Contact us via email or WhatsApp with the model number to arrange a sample.

What is the lead time for the APH5-AX830?

In-stock units ship within 3–5 business days. Bulk production orders typically require 3–4 weeks, and OEM/ODM orders with customization take 4–8 weeks depending on complexity. Rush production is available at additional cost.

Is the APH5-AX830 certified for my market?

The APH5-AX830 carries CE, FCC, and RoHS certification as standard. Additional certifications for specific markets (IC, TELEC, NCC, etc.) can be arranged through our ODM service.

How is product quality controlled before shipment?

Every unit undergoes 100% inspection and 24-hour burn-in testing before leaving the factory, and a signed QC report ships with every order — full traceability from component to delivery.

What payment terms do you accept?

Standard terms are a 30% deposit with order confirmation and the 70% balance before shipment, paid in USD via T/T. Letter of credit and flexible terms are available for established partners.
