1 / 6
CE FCC RoHS
S402E-Outdoor 6-Port PoE Switch, IP65, 250m Extend
S402E-Outdoor
Type Outdoor Unmanaged PoE Switch
PoE Ports 4× 10/100Mbps (IEEE 802.3af/at)
Uplink Ports 2× 10/100Mbps RJ45
PoE Per Port Up to 30W (802.3at)
Total PoE Budget 65W (52V 1.25A)
5 Years Warranty
Overview
- IP65 weatherproof outdoor enclosure for harsh environment deployment
- 4× PoE ports (802.3af/at) — up to 30W per port, 65W total budget
- EXTEND mode supports 250m long-distance PoE data + power transmission
- AI Watchdog auto-reboots frozen or unresponsive IP cameras
- VLAN isolation mode prevents broadcast storms between PoE ports
- Power prioritization — critical devices powered first under load
- Auto-detect PoE and non-PoE devices for safe mixed connections

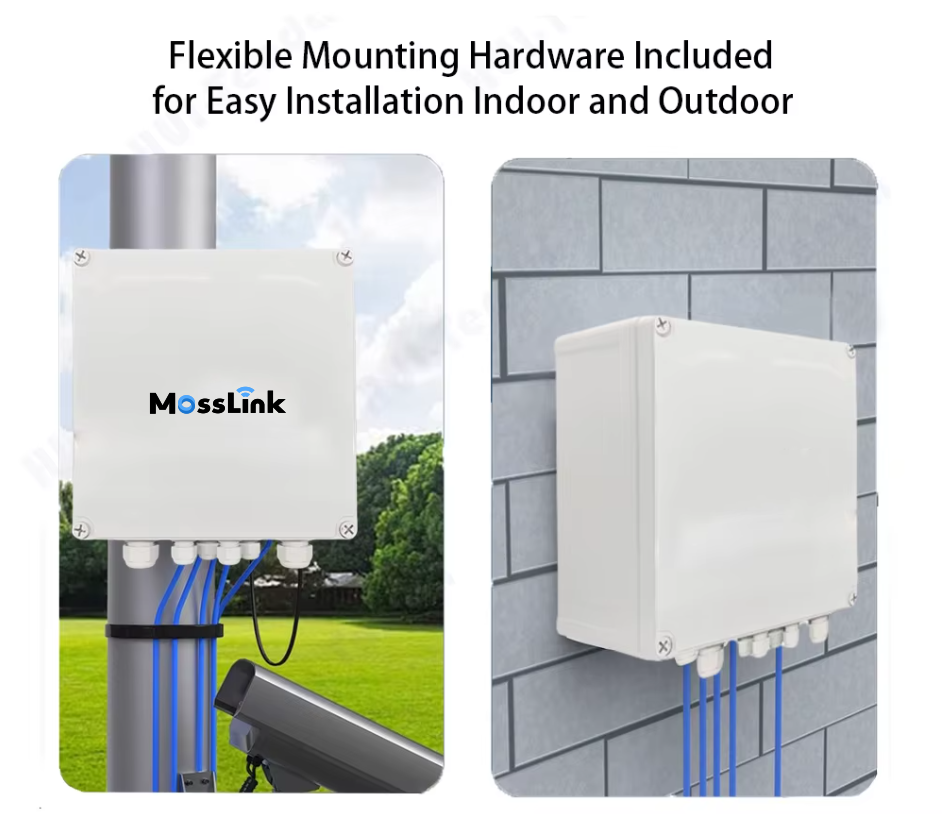

- Plug-and-play — no configuration required for installation
The S402E-Outdoor is a compact 6-port outdoor PoE switch with an IP65-rated weatherproof enclosure, four 802.3af/at PoE ports (30W each, 65W total), and EXTEND mode supporting 250m long-distance power and data transmission. With AI Watchdog, VLAN isolation, and plug-and-play operation, it is designed for outdoor IP camera systems, wireless AP deployments, and remote PoE installations in harsh environments.
Ideal For
- Outdoor IP camera and CCTV system power and networking
- Outdoor wireless access point PoE power delivery
- Campus perimeter, industrial yard, and parking lot surveillance
- Construction sites and temporary outdoor network deployments
- Rural and remote monitoring installations with long cable runs
Deployment Advantages
The 250m EXTEND mode addresses one of the most common challenges in outdoor surveillance installation: cable run length. Standard PoE is limited to 100m, but EXTEND mode at 10Mbps provides power and HD camera data at distances up to 250m — sufficient for most outdoor perimeter camera placements without signal boosters or additional equipment.
AI Watchdog eliminates the most common support call for outdoor camera systems — a frozen camera that needs a power cycle. The switch autonomously detects the unresponsive device and restores it, typically within seconds. Combined with IP65 sealing against rain, dust, and temperature extremes from -10°C to +55°C, the S402E-Outdoor requires minimal maintenance after installation.
OEM/ODM Ready
MossLink offers OEM and ODM customization for this product, including custom enclosure branding, port configuration, extend mode range tuning, and private-label packaging. Volume pricing is available for surveillance integrators, security equipment distributors, and system installers. Contact us to discuss your project requirements.
Specifications
| Type | Outdoor Unmanaged PoE Switch |
| PoE Ports | 4× 10/100Mbps (IEEE 802.3af/at) |
| Uplink Ports | 2× 10/100Mbps RJ45 |
| PoE Per Port | Up to 30W (802.3at) |
| Total PoE Budget | 65W (52V 1.25A) |
| Switching Capacity | 1.6Gbps |
| Extend Mode | Up to 250m @ 10Mbps |
| AI Watchdog | Auto-detect and reboot unresponsive PoE devices |

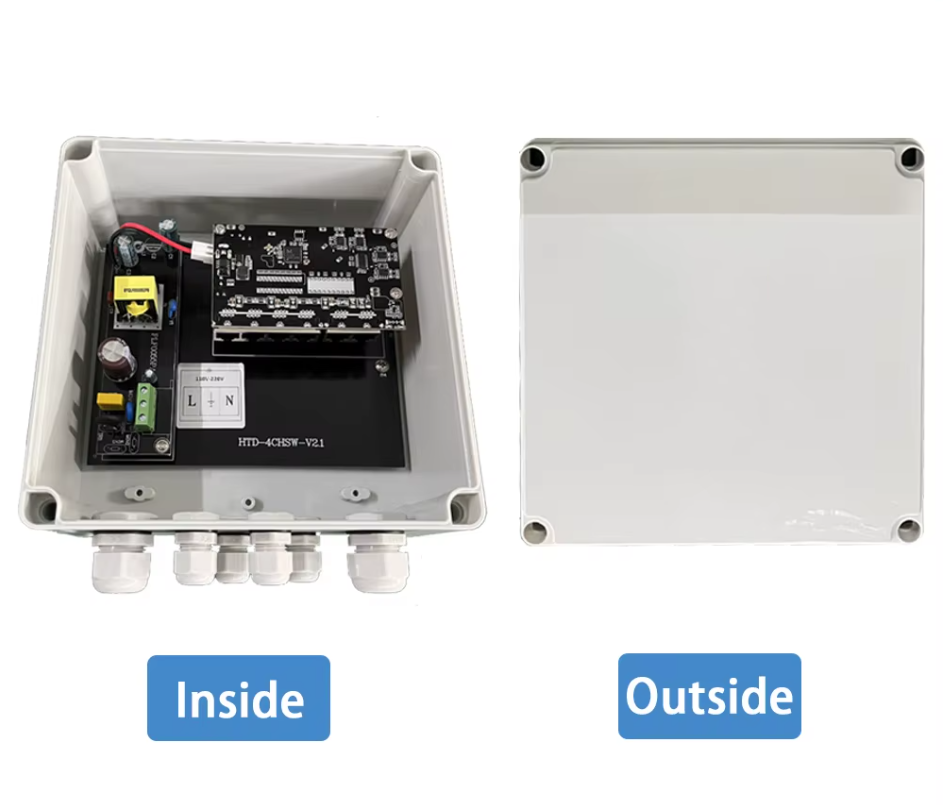

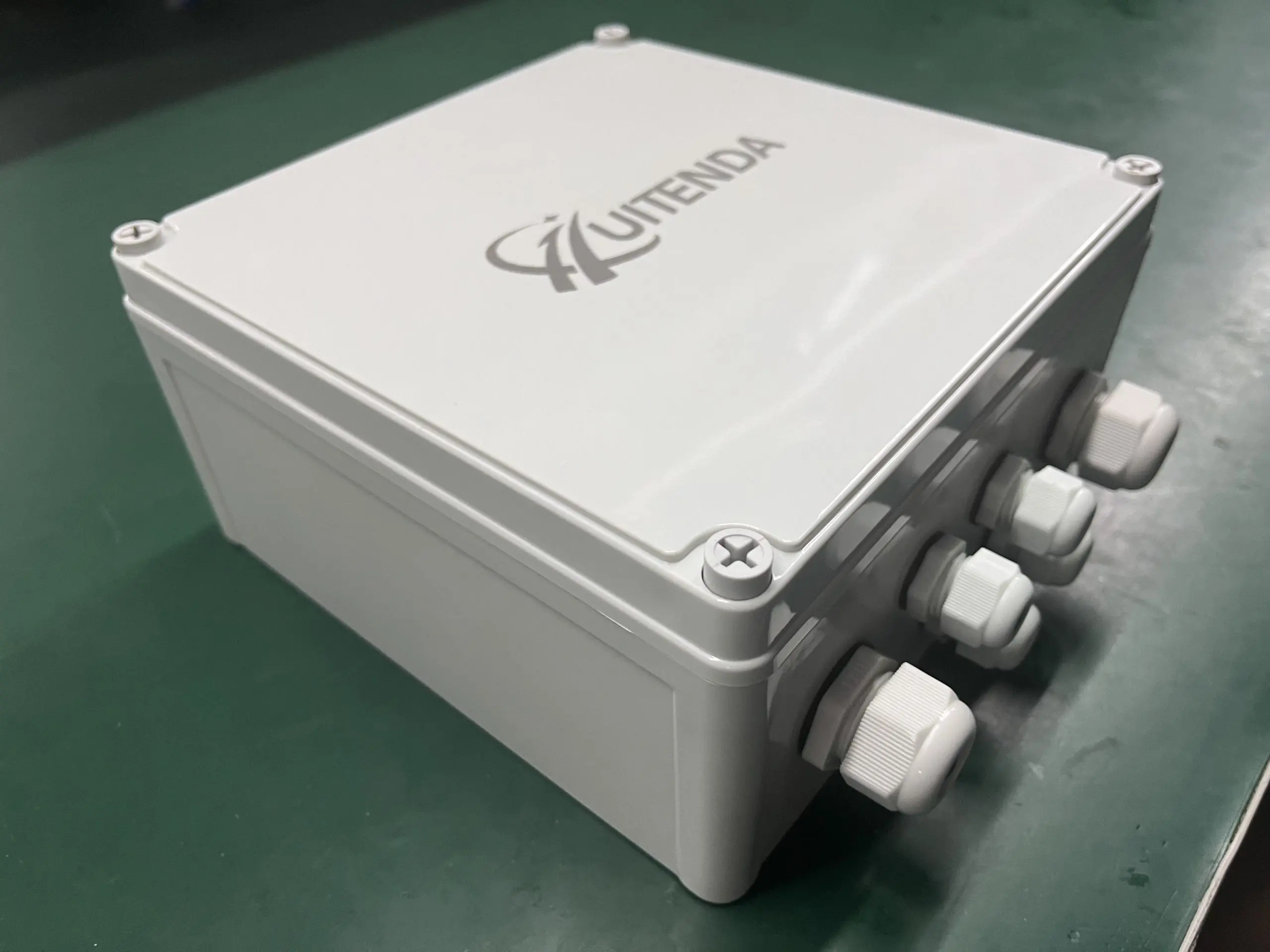

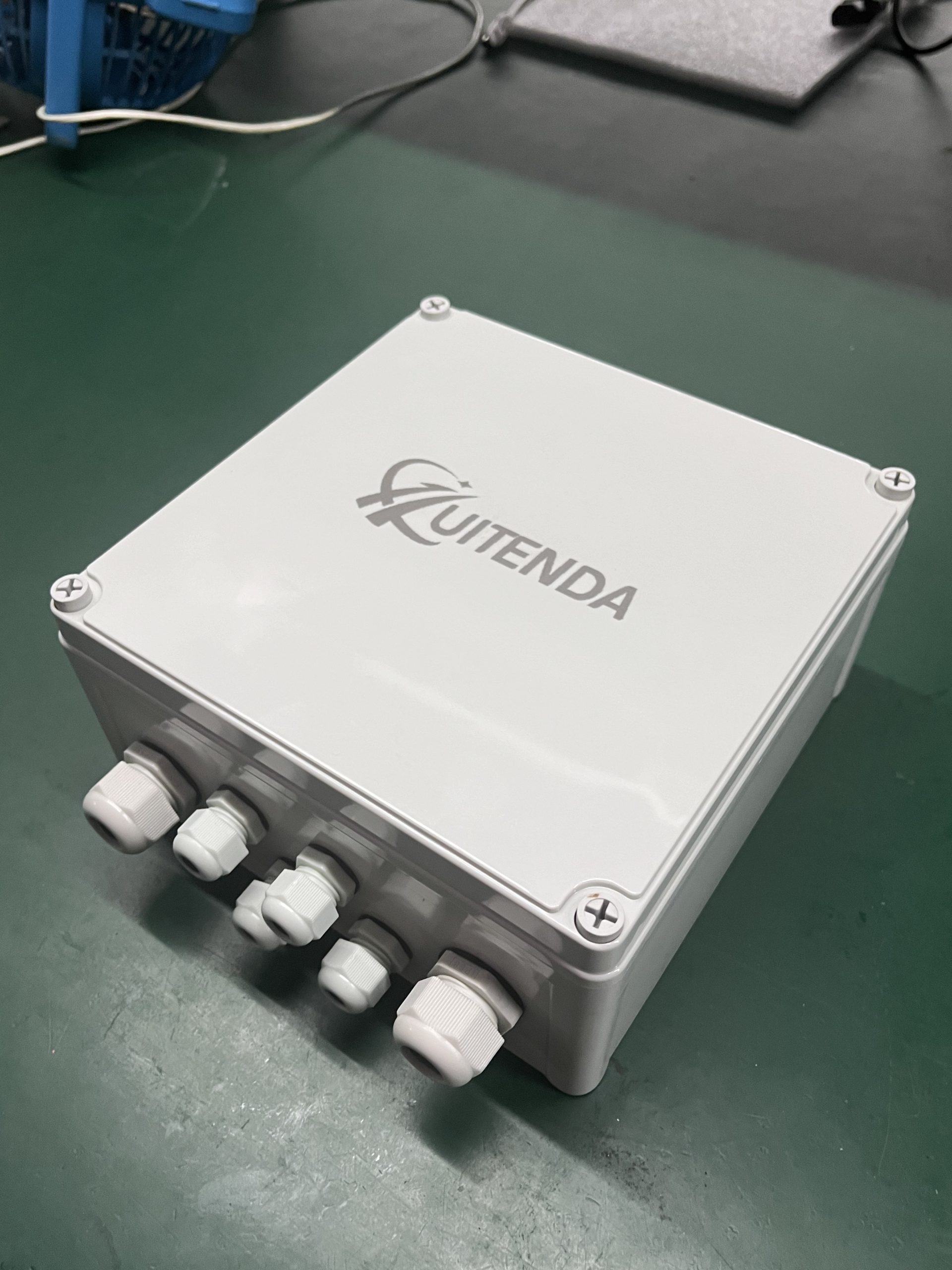

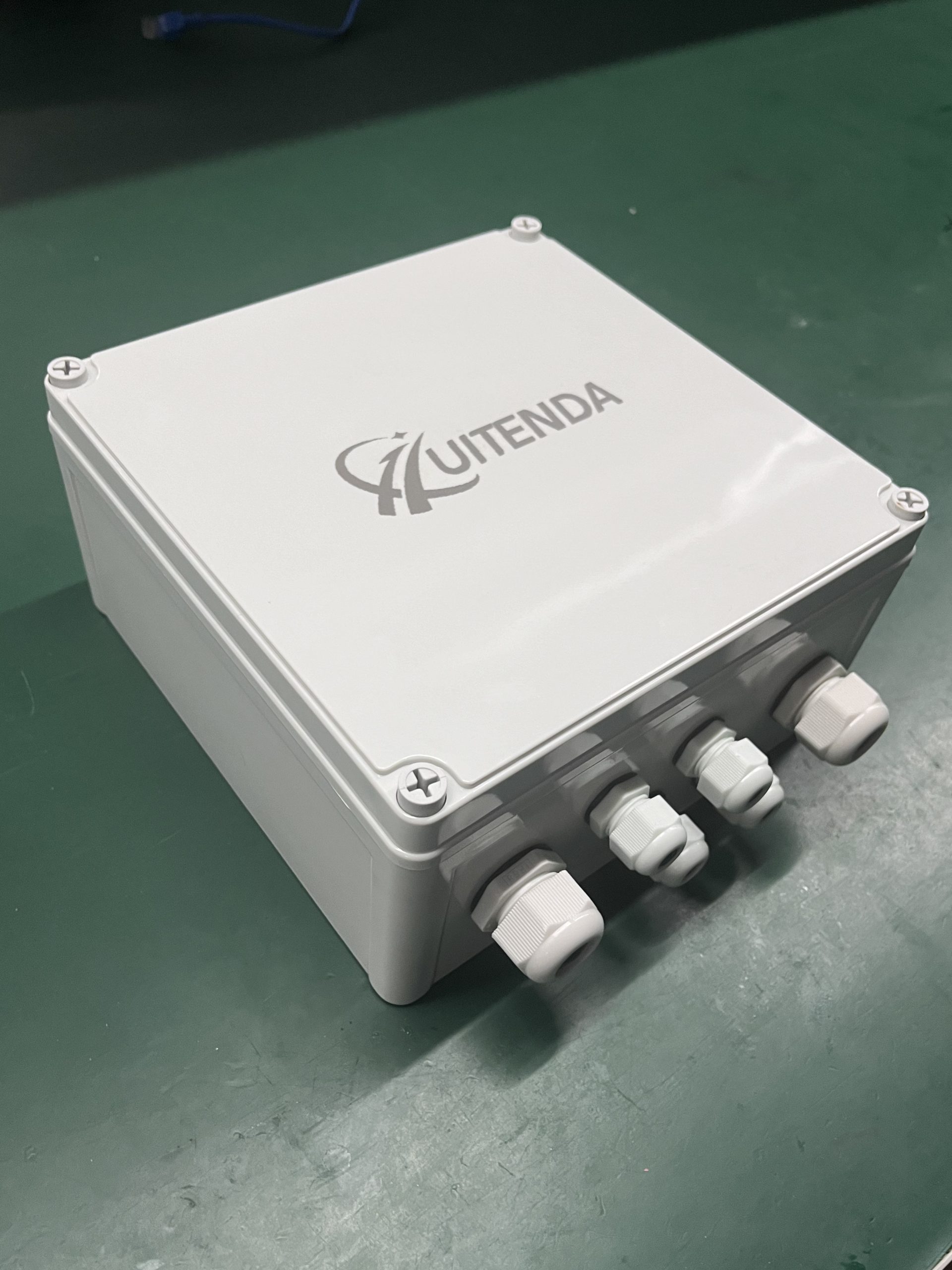

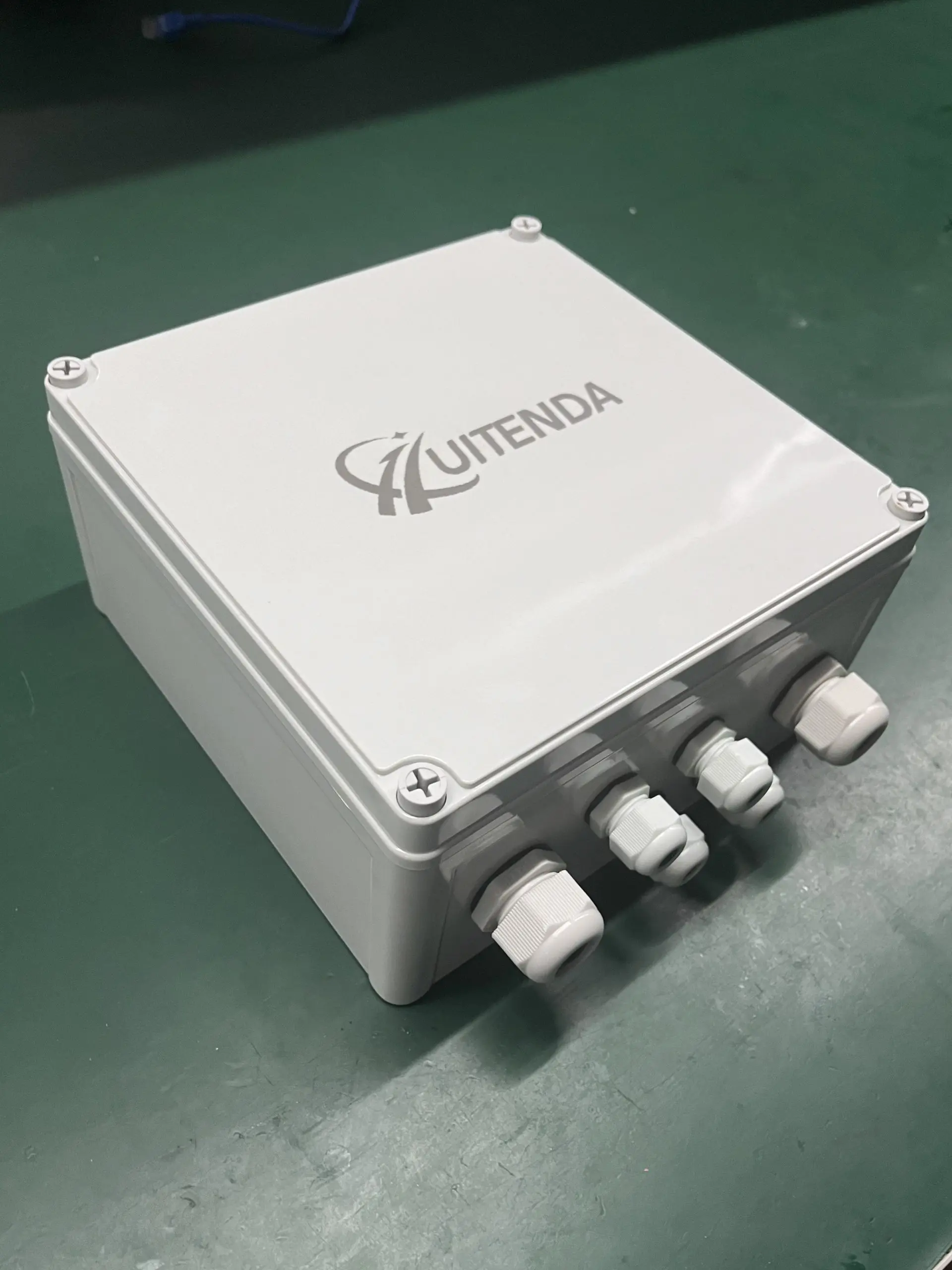

| Enclosure | IP65 Waterproof |
| Dimensions | 230 × 150 × 45 mm |
| Temperature | -10°C ~ +55°C |
| Weight | 1 kg |
Ordering & Customization
The S402E-Outdoor ships factory-direct from Shenzhen with full OEM/ODM support. Three customization levels are available depending on your order quantity:
Logo & Packaging (OEM)
From 100 units
- Your logo on the enclosure
- Branded box, labels & user manual
- Zero MossLink branding on final product
Custom Firmware (Software)
From 500 units
- Custom web UI & boot screen
- Default configuration & feature tuning
- Regional and regulatory presets
Custom Hardware (ODM)
From 1,000 units
- Enclosure & antenna modifications
- Port and power-budget variations
- PCB-level customization
Learn more about our OEM/ODM process →
- Standard MOQ
- 100 units for standard products with no customization
- Samples
- 1–5 evaluation units at product cost plus shipping — sample fee credited toward your first bulk order
- Lead Time
- In-stock products: 3–5 business days · bulk production: 3–4 weeks · OEM/ODM orders: 4–8 weeks
- Payment Terms
- 30% deposit, 70% balance before shipment · T/T and L/C accepted, in USD
- Shipping
- DHL / FedEx / UPS express, air and sea freight · DDP, FOB Shenzhen, or CIF terms
- Packaging
- Each unit individually boxed with protective foam; palletized export cartons for freight — carton specs available on request
- Quality Control
- 100% inspection and 24-hour burn-in testing; a signed QC report ships with every order
- Certifications
- CE, FCC, and RoHS standard · additional market certifications (IC, TELEC, NCC, etc.) available via ODM
Frequently Asked Questions
What is the EXTEND mode on the S402E-Outdoor?
EXTEND mode reduces the port speed to 10Mbps to enable PoE power and data transmission over cable runs up to 250 metres — more than double the standard 100m limit. This is essential for outdoor surveillance installations where cameras are mounted far from the nearest wiring closet or NVR.
How does the AI Watchdog function work?
The AI Watchdog continuously monitors connected PoE devices (such as IP cameras). If a device stops responding, the switch automatically cuts and restores power to that port — effectively rebooting the stuck device without any manual intervention. This prevents on-site service calls and maintains network uptime in unmanned outdoor locations.
Is the S402E-Outdoor suitable for CCTV installations?
Yes. The S402E-Outdoor is specifically designed for outdoor CCTV deployments. IP65 weatherproofing, 250m extend mode for long cable runs, AI Watchdog for camera auto-recovery, VLAN isolation, and plug-and-play operation make it a complete solution for security integrators and installers.
Is OEM/ODM customization available for this product?
Yes. MossLink offers full OEM and ODM services for this product, including custom firmware features, hardware modifications, enclosure branding, and private-label packaging. Minimum order quantities apply. Contact us to discuss your project requirements.
What is the MOQ for the S402E-Outdoor?
Standard S402E-Outdoor orders start at 100 units. Logo and packaging customization (OEM) also starts at 100 units, custom firmware at 500 units, and custom hardware (ODM) at 1,000 units. Contact sales with your target quantity for a formal quotation.
Can I get a sample of the S402E-Outdoor before bulk ordering?
Yes. We supply 1–5 evaluation units at product cost plus shipping, and the sample fee is credited toward your first bulk order. Contact us via email or WhatsApp with the model number to arrange a sample.
What is the lead time for the S402E-Outdoor?
In-stock units ship within 3–5 business days. Bulk production orders typically require 3–4 weeks, and OEM/ODM orders with customization take 4–8 weeks depending on complexity. Rush production is available at additional cost.
Is the S402E-Outdoor certified for my market?
The S402E-Outdoor carries CE, FCC, and RoHS certification as standard. Additional certifications for specific markets (IC, TELEC, NCC, etc.) can be arranged through our ODM service.
How is product quality controlled before shipment?
Every unit undergoes 100% inspection and 24-hour burn-in testing before leaving the factory, and a signed QC report ships with every order — full traceability from component to delivery.
What payment terms do you accept?
Standard terms are a 30% deposit with order confirmation and the 70% balance before shipment, paid in USD via T/T. Letter of credit and flexible terms are available for established partners.
