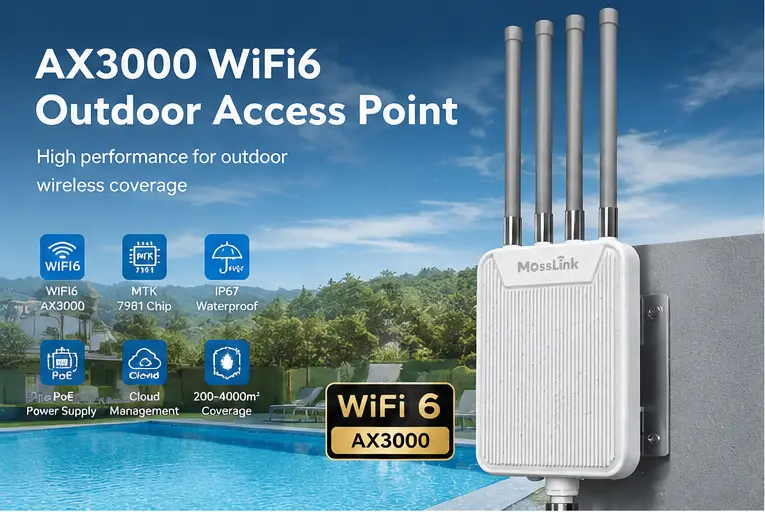

AP3000M AX3000 Wi-Fi 6 Outdoor Access Point, IP67

The AP3000M is a dual-band Wi-Fi 6 outdoor access point delivering AX3000 speeds (574Mbps @ 2.4GHz + 2402Mbps @ 5GHz) across four external 7dBi omnidirectional antennas. With up to 500m line-of-sight outdoor coverage, 200+ simultaneous clients, an IP67 enclosure, 4kV lightning protection, and five flexible working modes, it provides reliable high-throughput Wi-Fi 6 connectivity for parks, resorts, rural communities, and outdoor commercial sites.

Ideal For

• Parks, scenic spots, and outdoor recreational areas
• Resort pools, hotel gardens, and villa outdoor coverage
• Outdoor job sites and construction yard Wi-Fi
• Rural communities, farms, and last-kilometre coverage
• Street-level hotspots and outdoor commercial venues
• Community Wi-Fi extension and WISP distribution

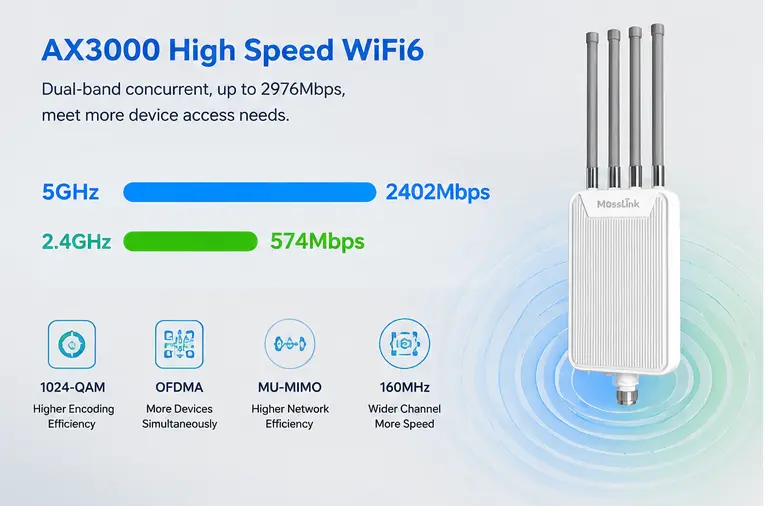

Wi-Fi 6 AX3000 Performance

The AP3000M brings high-throughput Wi-Fi 6 to outdoor deployments that previously relied on older 802.11ac hardware. The MT7981B dual-core A53 chipset delivers 2402Mbps on the 5GHz band and 574Mbps on 2.4GHz — combined AX3000 throughput with the efficiency improvements that define Wi-Fi 6.

OFDMA splits each channel into smaller sub-channels, allowing the AP to serve multiple clients simultaneously rather than sequentially — the key improvement for outdoor deployments where 100–200 devices connect concurrently. MU-MIMO handles parallel spatial streams, and BSS Coloring reduces interference in environments where multiple APs operate in proximity. 1024-QAM increases data density per transmission, delivering higher effective throughput at close to medium range.

For deployments that need the widest temperature range with lower throughput requirements, the AP1800M offers AX1800 speeds across four 7dBi antennas with the same -30°C to +70°C operating range.

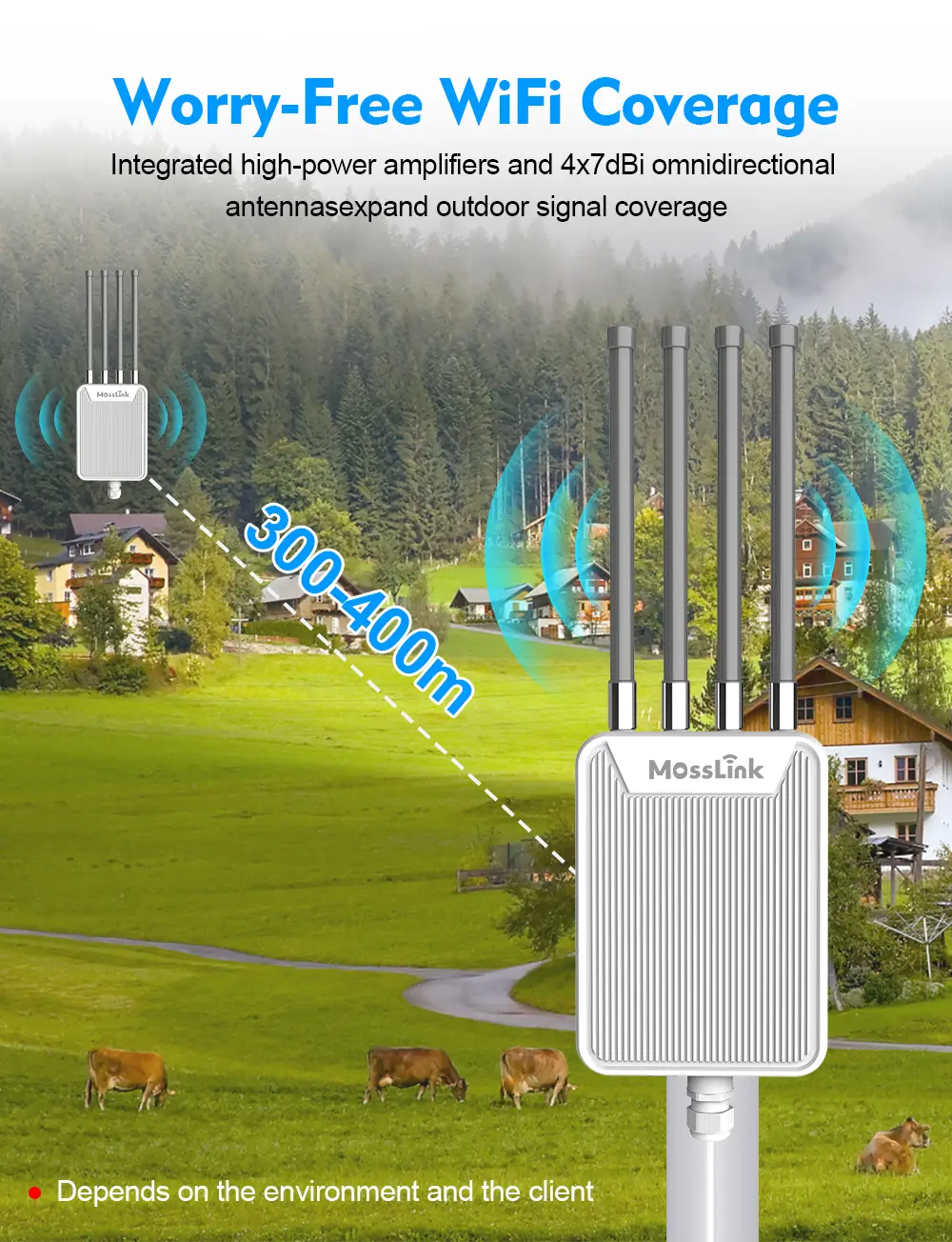

Four-Antenna Long-Range Design

Four 7dBi external omnidirectional antennas provide 360° coverage and deliver signal up to 500 metres under clear line-of-sight conditions. Integrated high-power amplifiers extend signal strength beyond standard consumer-grade APs, while the four-antenna layout ensures even coverage without dead spots.

In residential and hospitality outdoor deployments — resort pools, garden areas, outdoor dining terraces — the 300–400m effective range in typical environments covers the entire venue from a single pole-mounted unit. Rural and community Wi-Fi operators can position units to achieve overlapping coverage across larger areas in Mesh mode.

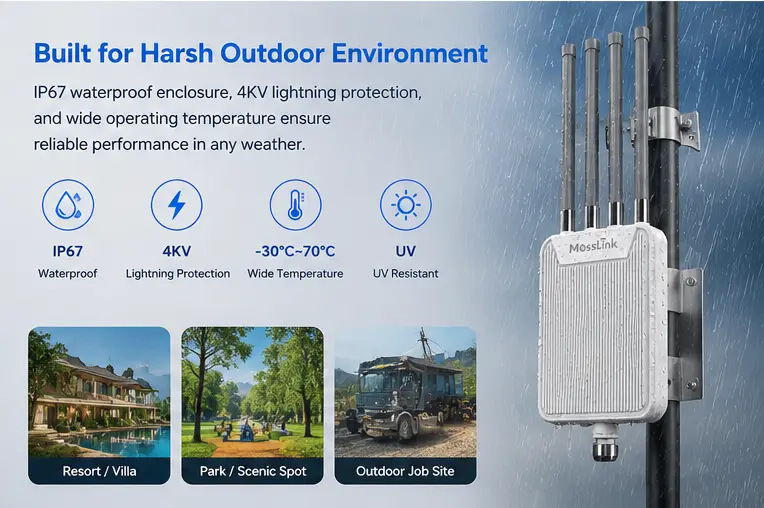

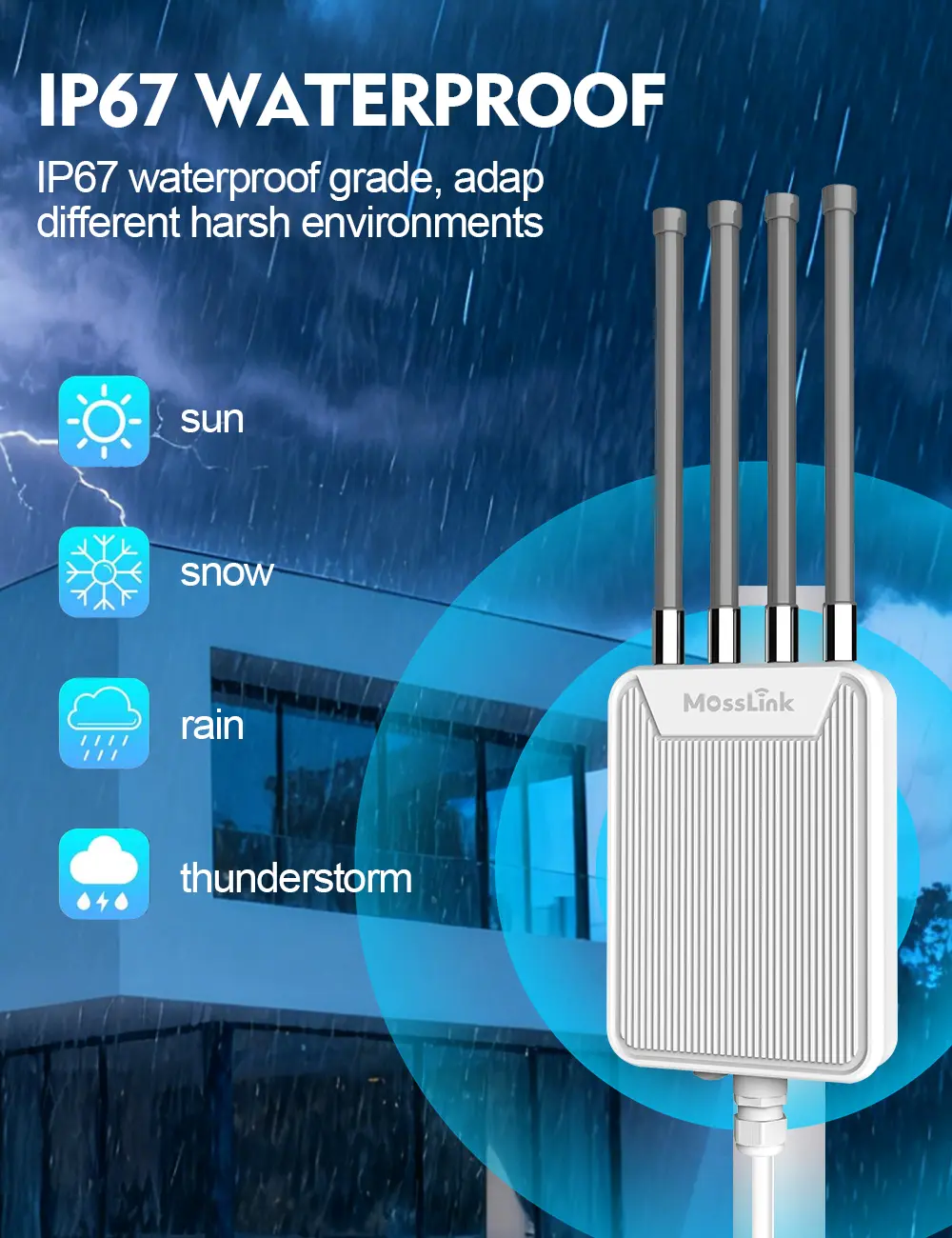

IP67 Outdoor Enclosure with 4kV Lightning Protection

The AP3000M is engineered for permanent outdoor installation, not occasional exposure. IP67 certification means the enclosure is completely sealed against dust ingress and can withstand temporary water immersion — exceeding the IP65 standard used by many entry-level outdoor APs. Rain, coastal humidity, poolside splash, and sustained outdoor exposure do not penetrate the sealed housing.

The 4kV lightning protection on the Ethernet port guards against surge events from nearby strikes — a common cause of outdoor AP failure on exposed poles and rooftop mounts. UV-resistant ABS plastic prevents the yellowing and brittleness that shortens the life of cheaper outdoor enclosures in tropical and high-UV environments.

The -30°C to +70°C operating temperature range covers deployment zones from northern European winters to Middle Eastern summers, making the AP3000M a single SKU for global outdoor projects.

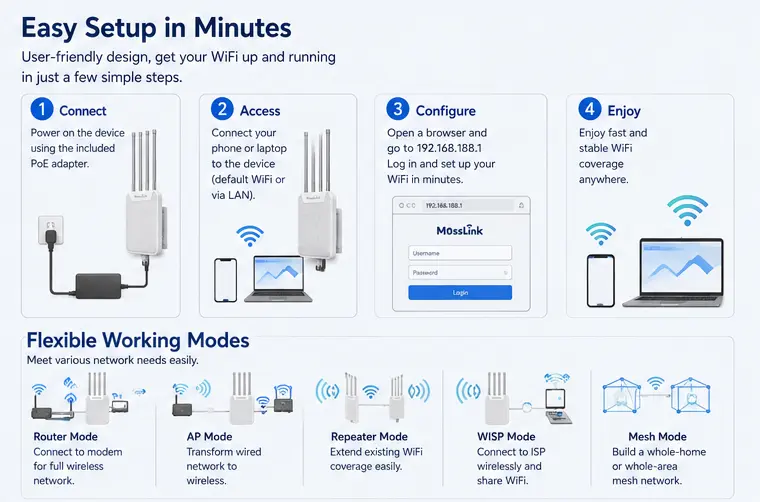

Five Flexible Working Modes

A single AP3000M adapts to different network topologies without requiring additional hardware:

• AP mode — convert a wired Ethernet connection into Wi-Fi coverage, the standard hotel and campus deployment model
• Router mode — connect to a modem or gateway for a complete wireless network with built-in DHCP
• Repeater mode — extend an existing Wi-Fi network wirelessly, useful where running Ethernet cable to a distant outdoor location is impractical
• AP+Repeater mode — simultaneously serve local clients and repeat an upstream wireless signal, expanding coverage without a wired backhaul run
• Mesh mode — combine multiple AP3000M units into a seamless roaming network, allowing users to move freely across a large outdoor area without SSID switching

Mode selection is handled from the browser-based web GUI — no command-line access required for initial setup.

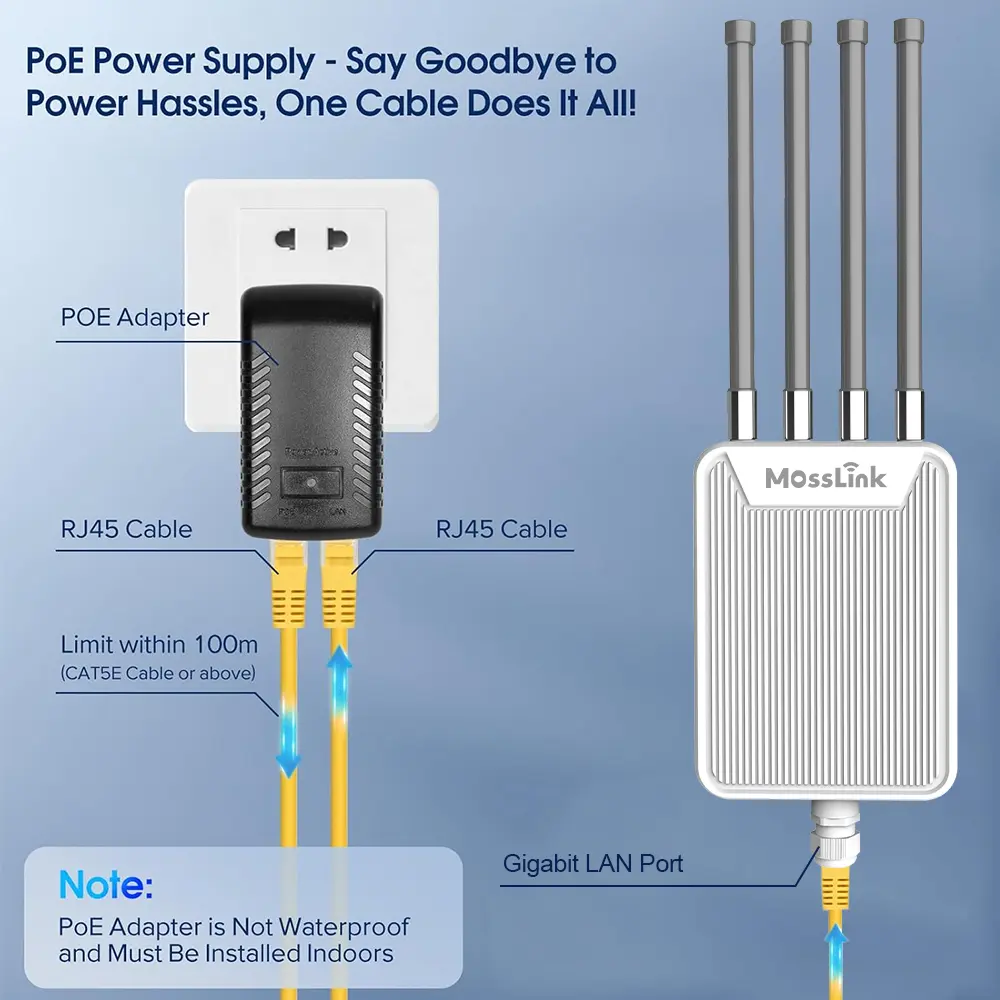

Single-Cable PoE Installation

The AP3000M accepts 48V active or passive PoE, delivering both power and Gigabit data over a single Cat5e or Cat6 cable up to 100 metres from the PoE switch or injector. For pole installations, this means a single conduit run — no separate mains cable, no junction box at the pole top. The waterproof Ethernet gland seals the cable entry point against moisture ingress.

OEM/ODM Ready

MossLink offers OEM and ODM customization for this product, including custom firmware defaults, SSID and management portal branding, enclosure silkscreen, antenna configuration, and private-label packaging. Volume pricing is available for system integrators, ISPs, hospitality operators, and community Wi-Fi providers. Contact us to discuss your project requirements.
