APM5-AX3000 AX3000 Wi-Fi 6 Outdoor Access Point, IP67

APM5-AX3000

Standard Wi-Fi 6 (802.11ax/ac/a/n/g/b)
Band Dual-Band (2.4GHz + 5GHz)
Max Speed AX3000 (574 + 2402 Mbps)
CPU MT7981B + MT7976DAN
Antenna 6× 7dBi External Omni (Dual-Band)
View all specifications → Datasheet

5 Years Warranty

Talk via WhatsApp

Specifications

Standard Wi-Fi 6 (802.11ax/ac/a/n/g/b)
Band Dual-Band (2.4GHz + 5GHz)
Max Speed AX3000 (574 + 2402 Mbps)
CPU MT7981B + MT7976DAN
Antenna 6× 7dBi External Omni (Dual-Band)
Ethernet 1× 10/100/1000M RJ45 (PoE)
PoE 48V Active & Passive PoE
Max Clients 200+
Working Mode AP / Router / Repeater / AP+Repeater / Mesh
Enclosure IP67 Outdoor Rated
Lightning Protection 6kV
ESD Protection 15kV
Operating Temperature -10°C ~ +50°C

Features

  • Wi-Fi 6 dual-band AX3000 — 574Mbps @ 2.4GHz + 2402Mbps @ 5GHz

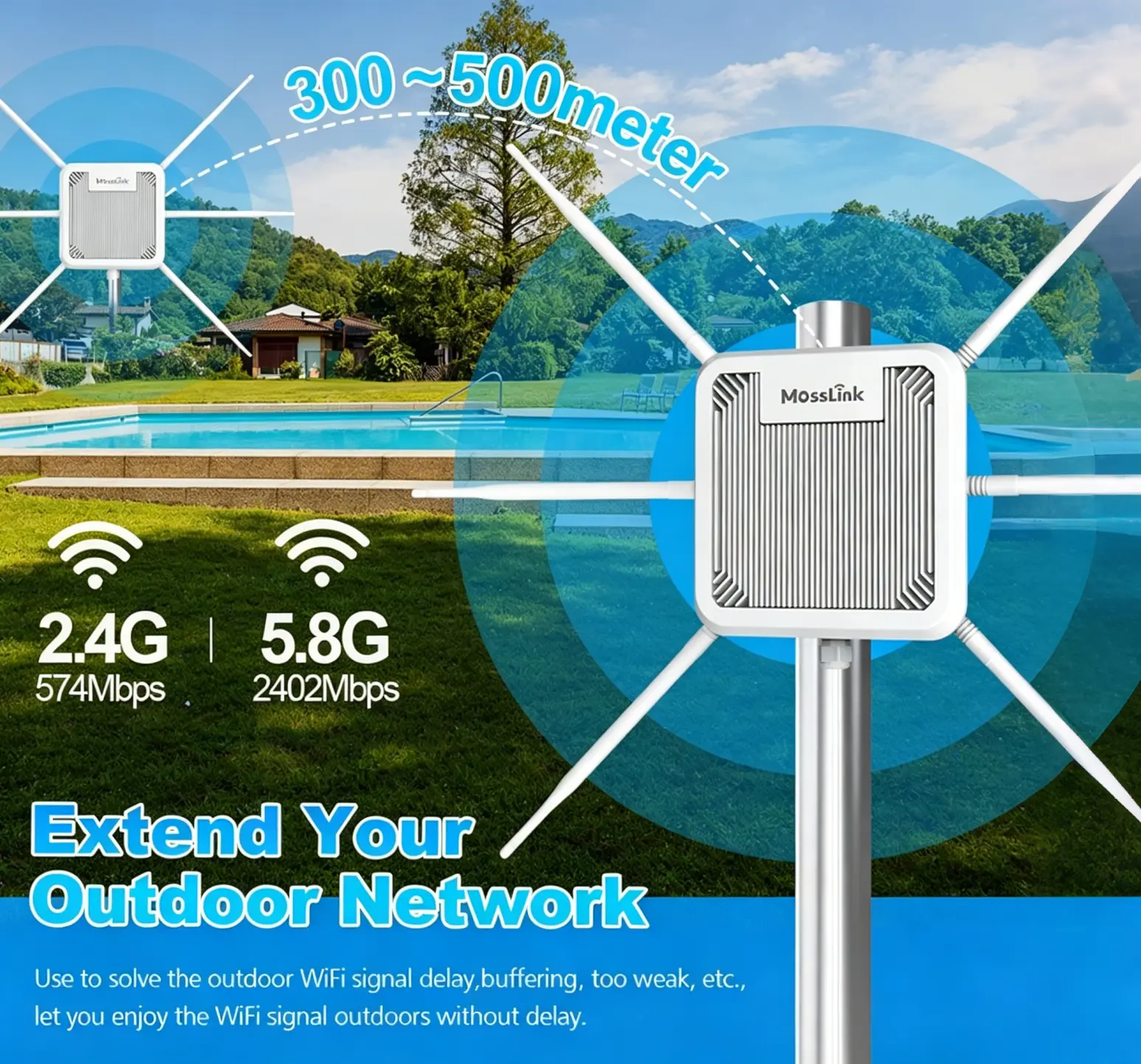

  • Six external 7dBi omnidirectional antennas — up to 500m line-of-sight outdoor coverage

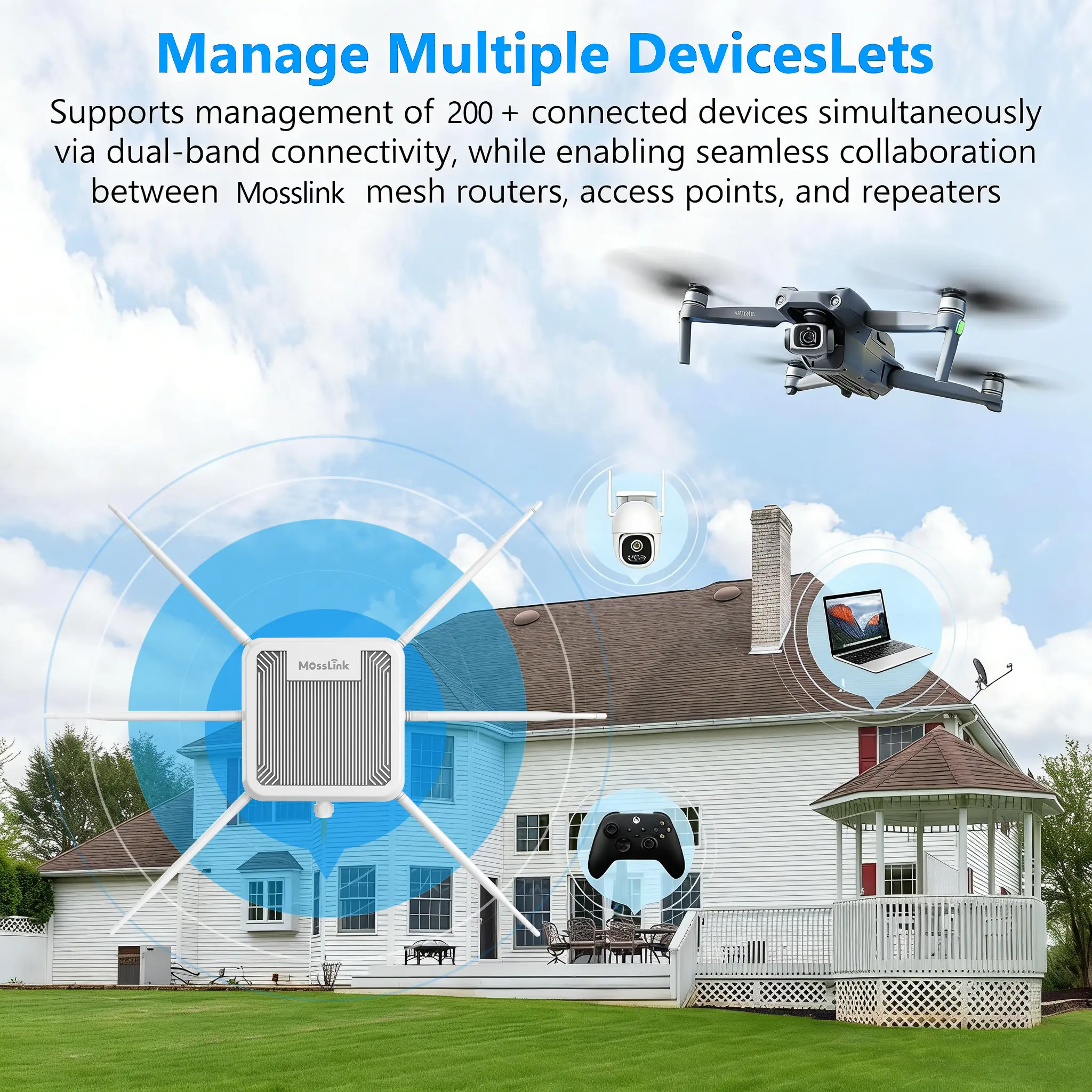

  • Supports 200+ concurrent connected devices via dual-band MU-MIMO

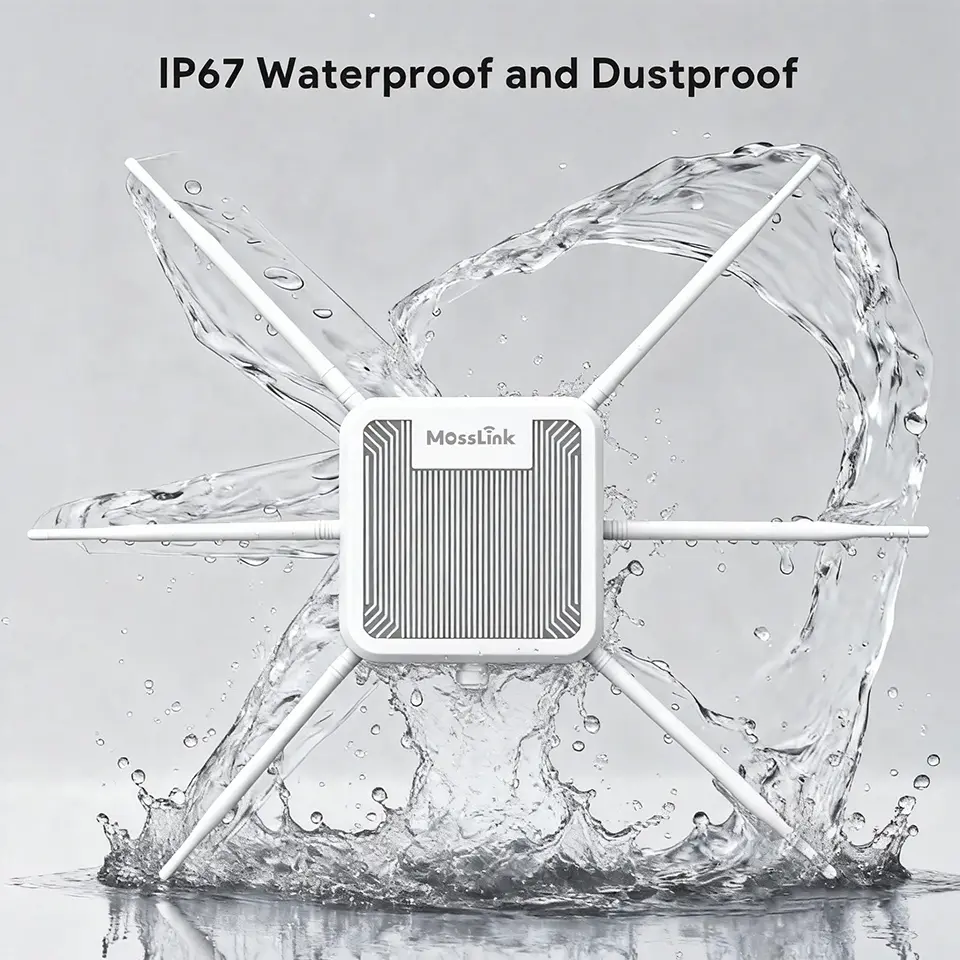

  • IP67 waterproof and dustproof enclosure for all outdoor environments
  • 6kV lightning and 15kV ESD protection against outdoor electrical events
  • Four working modes: AP/Router, Repeater, AP+Repeater, and Mesh
  • 48V PoE (active and passive) — single-cable power and Gigabit data up to 100m
  • Operating range -10°C to +50°C covering most outdoor climate zones

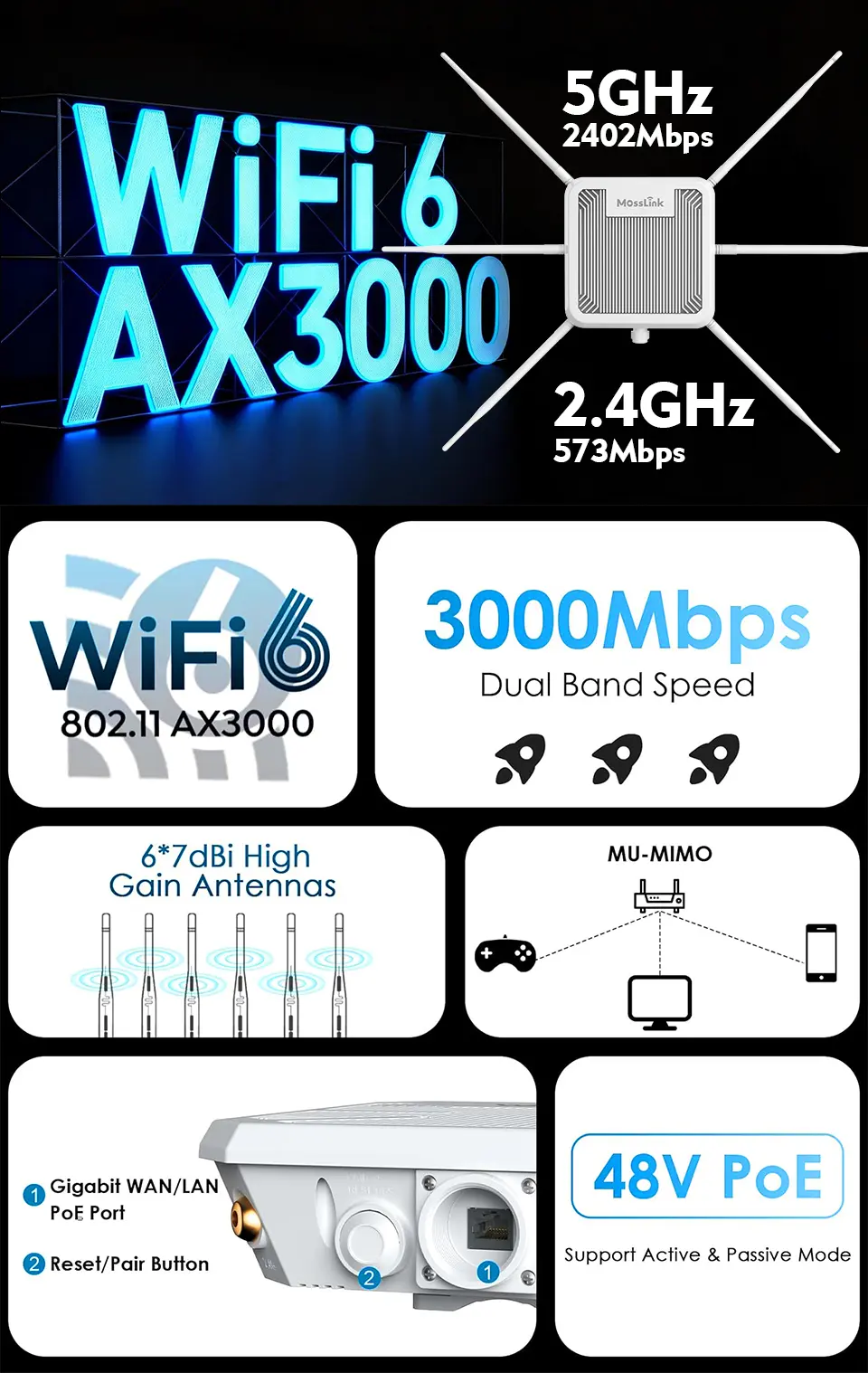

APM5-AX3000 Wi-Fi 6 AX3000 dual-band outdoor access point
Wi-Fi 6 AX3000 — 574Mbps @ 2.4GHz + 2402Mbps @ 5GHz with 6×7dBi omnidirectional antennas for up to 500m outdoor coverage

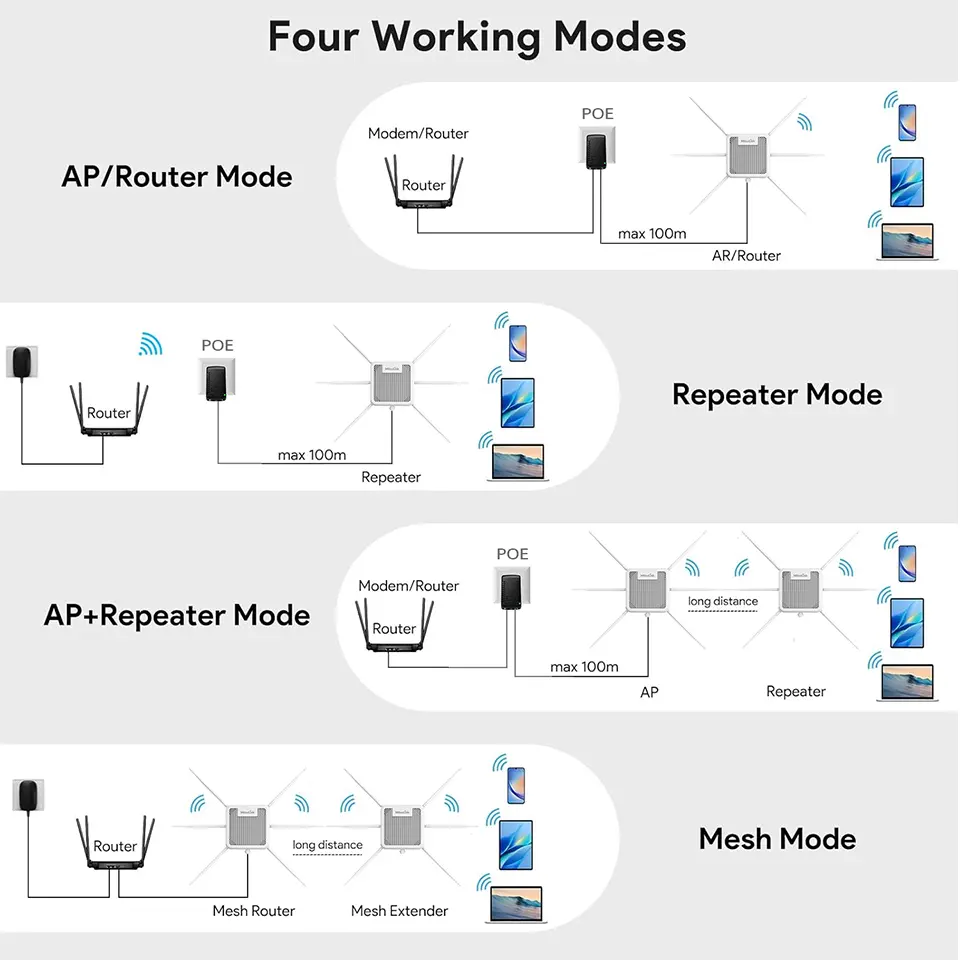

APM5-AX3000 four working modes — AP/Router, Repeater, AP+Repeater, Mesh
Four flexible working modes: AP/Router, Repeater, AP+Repeater, and Mesh — deploy as a standalone AP or extend coverage wirelessly across large outdoor areas

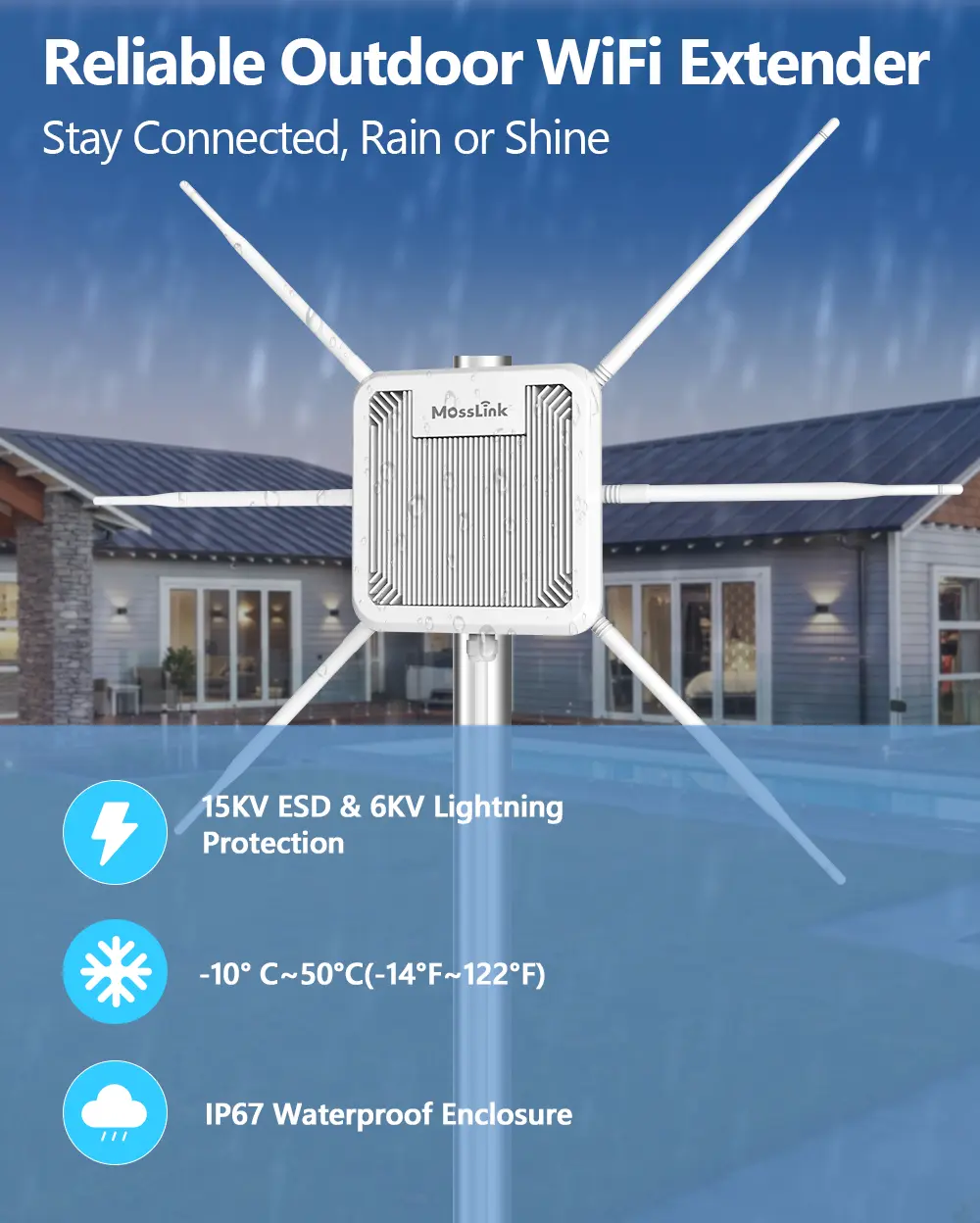

APM5-AX3000 IP67 waterproof, 6kV lightning and 15kV ESD protection
IP67 sealed enclosure with 6kV lightning and 15kV ESD protection — reliable outdoor operation from -10°C to 50°C in rain, humidity, and coastal environments

The APM5-AX3000 is a dual-band Wi-Fi 6 outdoor access point delivering AX3000 speeds (574 + 2402 Mbps) across six external 7dBi omnidirectional antennas. With up to 500m line-of-sight outdoor coverage, support for 200+ simultaneous clients, and an IP67 enclosure with 6kV lightning and 15kV ESD protection, it provides reliable high-throughput outdoor connectivity in a single pole-mountable unit.

Ideal For

  • Outdoor hospitality Wi-Fi — hotels, resorts, pool areas, and outdoor dining
  • Gardens, yards, parks, and community outdoor spaces
  • Parking lots, garages, and outdoor commercial venues
  • Stadiums, farmsteads, and large outdoor event spaces
  • Starlink and WISP last-metre coverage in residential and rural areas

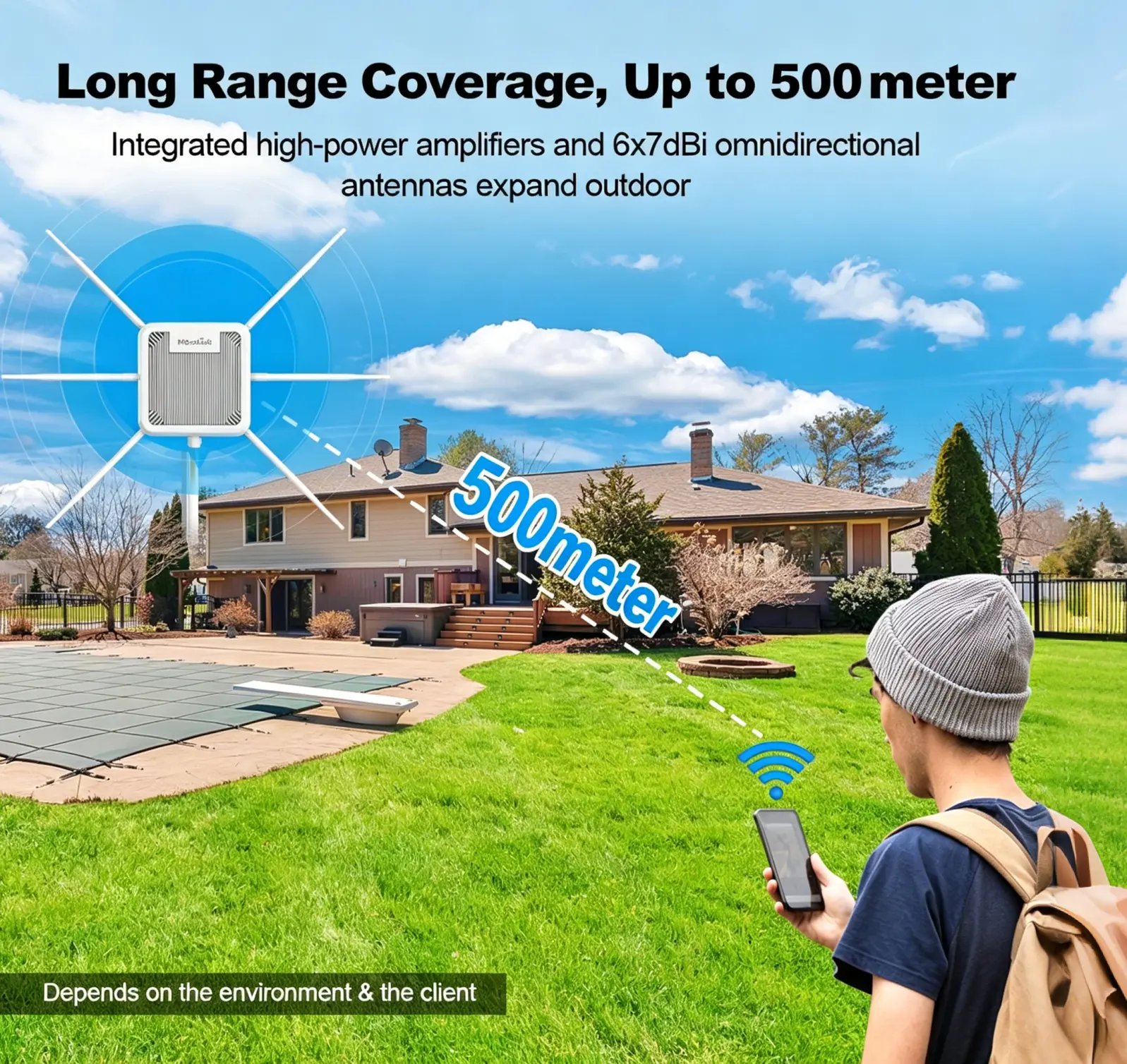

Six-Antenna Long-Range Design

Six 7dBi omnidirectional antennas spread across both 2.4GHz and 5GHz bands provide 360° outdoor coverage up to 500 metres — reaching across large gardens, pools, and yards from a single pole mount. Integrated high-power amplifiers boost signal output beyond standard consumer-grade APs, while the antenna layout ensures consistent coverage without dead spots common in lower-antenna-count designs.

Four Flexible Working Modes

A single APM5-AX3000 adapts to different deployment scenarios without hardware changes. In AP/Router mode it connects via PoE cable for wired-uplink deployments. Repeater mode wirelessly extends an existing network — useful where running Ethernet to a distant point is impractical. AP+Repeater mode chains multiple units for long linear coverage. Mesh mode creates a seamless roaming network across multiple APM5-AX3000 units, allowing users to move freely across a large outdoor area without manually switching SSIDs.

Built for Outdoor Environments

The IP67 rating provides complete dust protection and water immersion resistance — suitable for coastal climates, high-humidity tropical conditions, and poolside installations exposed to splash and driven rain. The 6kV lightning protection and 15kV ESD protection guard the electronics against outdoor electrical events that commonly damage equipment on open poles or rooftops. Operating range of -10°C to +50°C covers most outdoor deployment locations worldwide.

OEM/ODM Ready

MossLink offers OEM and ODM customization for this product, including custom firmware defaults, SSID and management portal branding, enclosure silkscreen, antenna configuration, and private-label packaging. Volume pricing is available for system integrators, ISPs, hospitality operators, and community Wi-Fi providers. Contact us to discuss your project requirements.

Frequently Asked Questions

What is the outdoor coverage range of the APM5-AX3000?
The APM5-AX3000 uses six 7dBi omnidirectional antennas with integrated high-power amplifiers to deliver up to 500 metres of outdoor coverage under clear line-of-sight conditions. Actual range depends on obstacles, client device radio quality, and RF environment.
How many devices can the APM5-AX3000 handle simultaneously?
The APM5-AX3000 supports 200+ concurrent connected devices using dual-band MU-MIMO across the 2.4GHz and 5GHz bands. This makes it well suited for public hotspots, garden venues, poolside Wi-Fi, and outdoor event areas where multiple users connect at once.
What working modes does the APM5-AX3000 support?
The APM5-AX3000 supports AP/Router mode for wired uplink deployments, Repeater mode to extend an existing Wi-Fi network wirelessly, AP+Repeater mode for chained outdoor coverage, and Mesh mode for seamless multi-unit roaming across large outdoor areas.
What power options does the APM5-AX3000 support?
The APM5-AX3000 is powered via its Gigabit RJ45 port using 48V active PoE or passive PoE, allowing a single CAT5e or better cable to carry both power and data up to 100 metres from the PoE injector or switch. This simplifies pole and rooftop installations where running mains power is impractical.
How does the APM5-AX3000 compare to the APM6-AX3000?
Both deliver Wi-Fi 6 AX3000 dual-band performance in IP67 enclosures with similar 300–500m outdoor range. The APM5-AX3000 features six 7dBi antennas and native Mesh mode for seamless multi-unit wireless extension, making it suited for consumer and prosumer outdoor deployments. The APM6-AX3000 features five 8dBi antennas, FAT AP and FIT AP (controller-managed) modes, and a wider operating temperature range down to -20°C — better suited to enterprise and WISP deployments.
Is OEM/ODM customization available for this product?
Yes. MossLink offers full OEM and ODM services for the APM5-AX3000, including custom firmware defaults, enclosure branding, antenna configuration, and private-label packaging. Minimum order quantities apply. Contact us to discuss your project requirements.
