ZW500 2.5G Multi-WAN Enterprise Gateway, Built-in AC
ZW500
Type Enterprise Multi-WAN Smart Gateway (Routing + AC Controller)
Chipset MediaTek MT7986A + MT7531AE + 2× RTL8221B
CPU Quad-core ARM Cortex-A53 @ 2.0GHz
Memory 1GB DDR4 RAM / 128MB SPI-NAND Flash

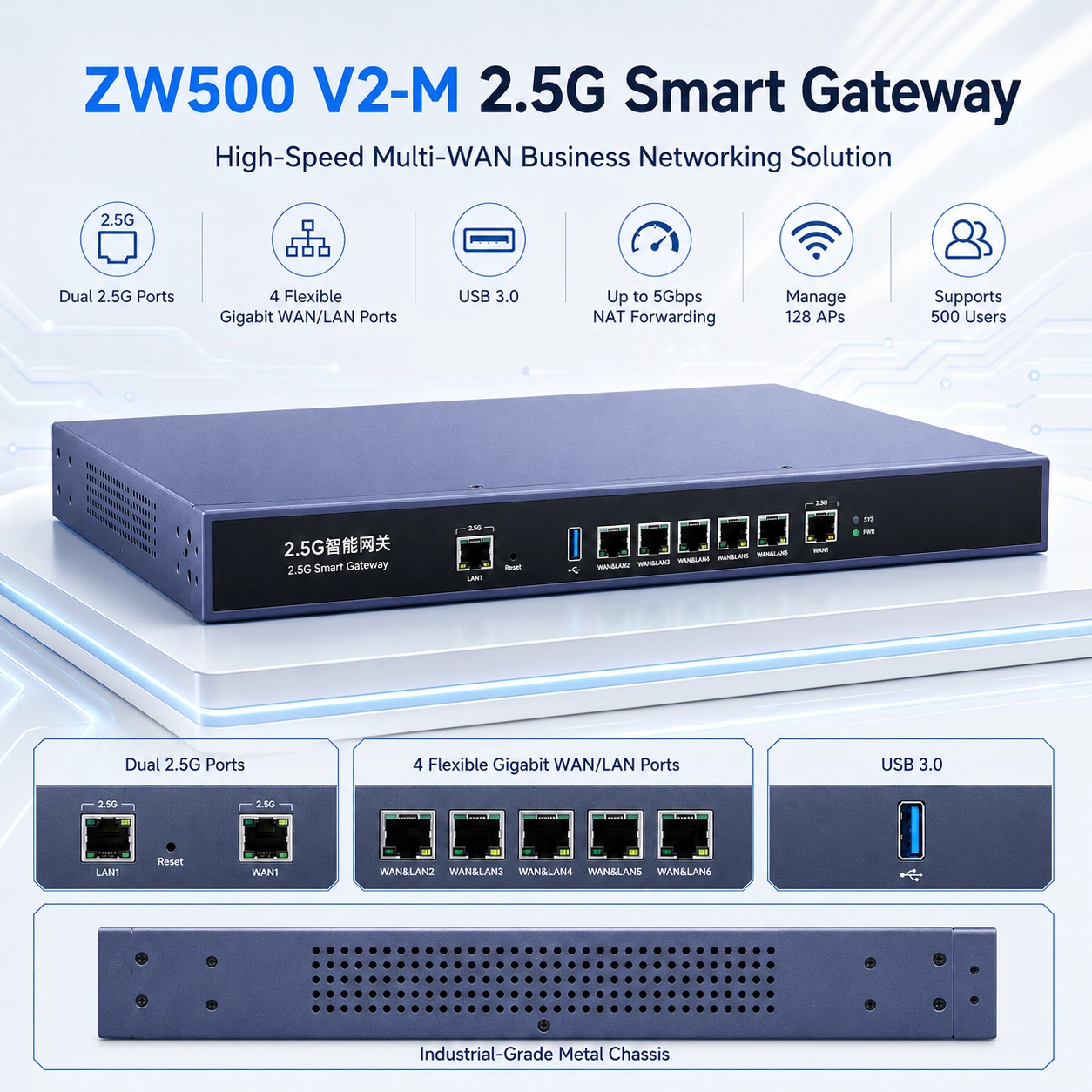

Ports 1× 2.5GbE WAN + 1× 2.5GbE LAN + 4× GbE LAN/WAN + USB 3.0 + Console
5 Years Warranty
Overview

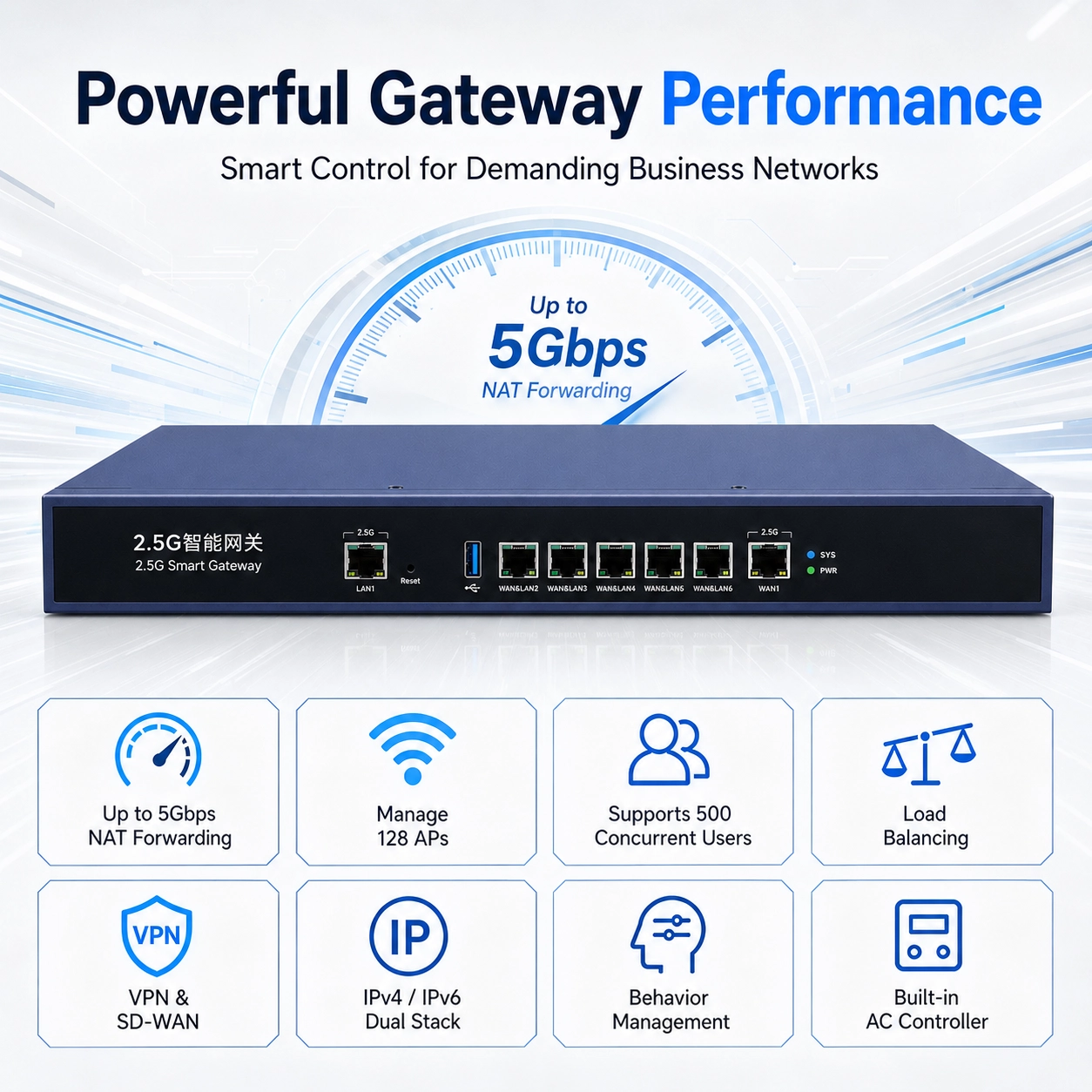

- 2.5G multi-WAN enterprise gateway on MediaTek MT7986A quad-core 2.0GHz platform — up to 5Gbps total NAT forwarding

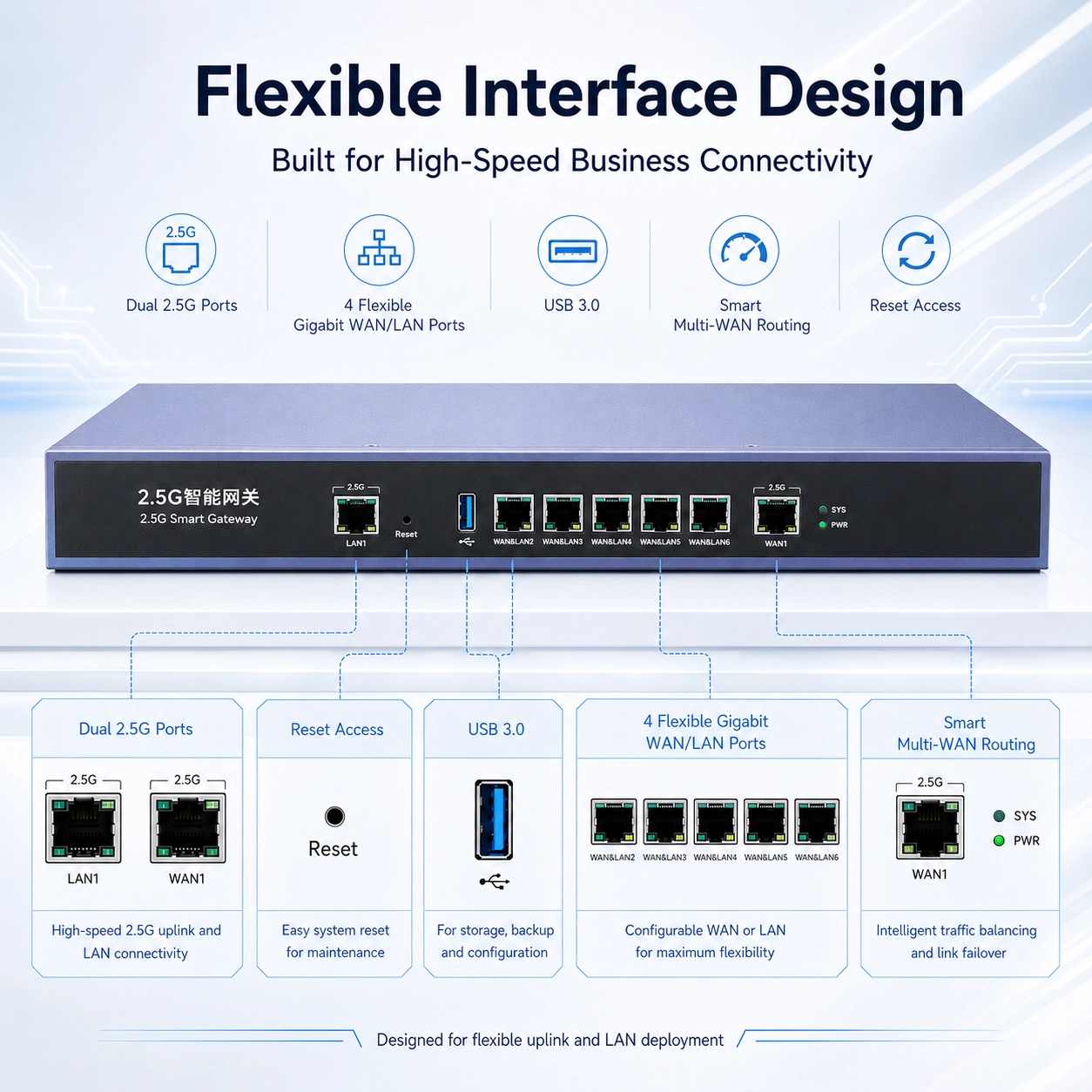

- Dual 2.5GbE ports plus 4× Gigabit LAN/WAN convertible ports for flexible multi-line WAN aggregation and failover
- Serves up to 500 concurrent users with Layer-7 intelligent flow control, bandwidth limiting and bandwidth guarantee
- Built-in AC controller centrally manages up to 128 access points — template config push, auto RF optimization, 802.11k/v/r roaming
- Multi-WAN load balancing by IP / session / ISP / bandwidth / time / small-packet priority, with policy routing and line backup
- Built-in behavior management — app control, P2P/Thunder blocking, game and web filtering, QQ control, IP and time-based rules
- IPv4/IPv6 dual-stack with IPSec / L2TP / PPTP VPN, SD-WAN one-click site-to-site networking, port aggregation, DDNS and DMZ
- Carrier-grade hardware design with 6KV surge protection, metal enclosure and dual-fan airflow for 24/7 stability
The ZW500 is a 2.5G multi-WAN enterprise smart gateway built on the MediaTek MT7986A quad-core 2.0GHz platform, delivering up to 5Gbps NAT forwarding through dual 2.5GbE ports and four Gigabit LAN/WAN convertible ports. A built-in AC controller centrally manages up to 128 access points while the gateway serves 500 concurrent users, combining Layer-7 flow control, multi-WAN load balancing, behavior management, VPN, and SD-WAN in a single 1U rackmount appliance (440 × 284 × 44 mm). Carrier-grade hardware with 6KV surge protection, a metal chassis, and dual-fan cooling keeps mid-to-large commercial networks fast and stable around the clock.
Ideal For
- Hotels, shopping malls, and department stores needing high-throughput managed networks
- Offices, co-working spaces, and SME headquarters with hundreds of concurrent users
- KTVs, restaurants, cafes, and hospitality venues requiring guest authentication
- Multi-site businesses linking branches to headquarters over SD-WAN
- ISPs and operators running local billing or authenticated public Wi-Fi
Network Control & Load Balancing
The MediaTek MT7986A quad-core platform sustains up to 5Gbps of NAT forwarding, so the dual 2.5GbE uplinks never become the bottleneck. Multiple internet lines can be aggregated across the 2.5GbE WAN and the four Gigabit LAN/WAN convertible ports, with intelligent load balancing weighted by IP address, session count, ISP, bandwidth, external-line status, time, or small-packet priority. Policy routing and automatic line backup keep traffic flowing when an upstream link degrades.
Layer-7 application identification drives bandwidth limiting and bandwidth guarantee policies, so critical applications stay responsive when the network is busy — “more capacity per user when it’s quiet, smooth performance when it’s full.” Built-in behavior management blocks P2P and Thunder downloads, restricts games, filters web pages, and controls chat applications, with flexible rules built from IP groups and time groups.
Built-in AC & Secure Access
An integrated AC controller manages up to 128 access points directly from the gateway — batch template provisioning for 2.4G and 5.8G radios, automatic signal optimization, 802.11k/v/r seamless roaming, weak-signal and low-rate client steering, wireless black/white lists, and DHCP protection. PPPoE server, Web portal, and RADIUS authentication control who joins the network and support local billing, while IPSec, L2TP, and PPTP VPN plus SD-WAN one-click networking securely connect remote sites. Remote operation through the web GUI and cloud platform lets administrators monitor, configure, and upgrade the device from anywhere.
OEM/ODM Ready
MossLink offers OEM and ODM customization for the ZW500, including custom firmware features, web UI branding and localization, port configuration changes, enclosure branding, and private-label packaging. Full cloud-platform white-labeling is a separately scoped program for selected models, with setup and committed-volume requirements; it is not a default ZW500 feature. Volume pricing is available for system integrators, hospitality chains, ISPs, and enterprise distributors.
Specifications
| Type | Enterprise Multi-WAN Smart Gateway (Routing + AC Controller) |
| Chipset | MediaTek MT7986A + MT7531AE + 2× RTL8221B |
| CPU | Quad-core ARM Cortex-A53 @ 2.0GHz |
| Memory | 1GB DDR4 RAM / 128MB SPI-NAND Flash |
| Ports | 1× 2.5GbE WAN + 1× 2.5GbE LAN + 4× GbE LAN/WAN + USB 3.0 + Console |
| NAT Throughput | Up to 5 Gbps |
| Concurrent Users | 500 |
| Managed APs | 128 (Built-in AC Controller) |
| Working Mode | Main Router / Bypass Mode |
| VPN | IPSec / L2TP / PPTP |
| Authentication | PPPoE Server / Web Portal / RADIUS |
| Management | Web GUI / Cloud Platform |
| Surge Protection | 6KV Common-Mode / 1.5KV Differential |
| Power | AC 100–240V, 50/60Hz |
| Operating Temp | -20°C ~ +50°C |
| Humidity | 10% ~ 90% non-condensing |
| Dimensions | 440 × 284 × 44 mm (1U) |
| Mounting | Desktop / 19" Rack (1U) |
Ordering & Customization
The ZW500 ships factory-direct from Shenzhen with full OEM/ODM support. Three customization levels are available depending on your order quantity:
Logo & Packaging (OEM)
From 100 units
- Your logo on the enclosure
- Branded box, labels & user manual
- Zero MossLink branding on final product
Custom Firmware (Software)
From 500 units
- Custom web UI & boot screen
- Default configuration & feature tuning
- Regional and regulatory presets
Custom Hardware (ODM)
From 1,000 units
- Enclosure & antenna modifications
- Port and power-budget variations
- PCB-level customization
Learn more about our OEM/ODM process →
- Standard MOQ
- 100 units for standard products with no customization
- Samples
- 1–5 evaluation units at product cost plus shipping — sample fee credited toward your first bulk order
- Lead Time
- In-stock products: 3–5 business days · bulk production: 3–4 weeks · OEM/ODM orders: 4–8 weeks
- Payment Terms
- 30% deposit, 70% balance before shipment · T/T and L/C accepted, in USD
- Shipping
- DHL / FedEx / UPS express, air and sea freight · DDP, FOB Shenzhen, or CIF terms
- Packaging
- Each unit individually boxed with protective foam; palletized export cartons for freight — carton specs available on request
- Quality Control
- 100% inspection and 24-hour burn-in testing; a signed QC report ships with every order
- Certifications
- CE, FCC, and RoHS standard · additional market certifications (IC, TELEC, NCC, etc.) available via ODM
Frequently Asked Questions
How many users and access points can the ZW500 support?
The ZW500 serves up to 500 concurrent users and includes a built-in AC controller that centrally manages up to 128 wireless access points. Its MediaTek MT7986A quad-core platform delivers up to 5Gbps NAT forwarding, so wired throughput keeps pace with the dual 2.5GbE ports even under full user load — ideal for mid-to-large networks.
What WAN and load-balancing features does the ZW500 offer?
The ZW500 provides 1× 2.5GbE WAN, 1× 2.5GbE LAN, and 4× Gigabit LAN/WAN convertible ports, allowing several internet lines to be aggregated. It supports intelligent multi-WAN load balancing by IP address, session count, ISP, bandwidth, time, or small-packet priority, plus policy routing and automatic line backup for failover.
Does the ZW500 need a separate AC controller for the access points?
No. The ZW500 has an integrated AC (access controller) function, so it manages MossLink and other compatible access points directly — batch template configuration, automatic RF optimization, 802.11k/v/r roaming, and wireless black/white lists — with no external controller or cloud subscription required.
What deployments is the ZW500 smart gateway designed for?
The ZW500 is built for mid-to-large commercial networks: hotels, shopping malls, department stores, offices, KTVs, and restaurants. Behavior management, PPPoE/Web/RADIUS authentication, and SD-WAN one-click site-to-site networking also make it well suited to multi-branch businesses and operators offering local billing or authenticated public Wi-Fi.
Is OEM/ODM customization available for this product?
Yes. MossLink offers full OEM and ODM services for the ZW500, including custom firmware features, hardware modifications, enclosure branding, and private-label packaging. Minimum order quantities apply. Contact us to discuss your project requirements.
What is the MOQ for the ZW500?
Standard ZW500 orders start at 100 units. Logo and packaging customization (OEM) also starts at 100 units, custom firmware at 500 units, and custom hardware (ODM) at 1,000 units. Contact sales with your target quantity for a formal quotation.
Can I get a sample of the ZW500 before bulk ordering?
Yes. We supply 1–5 evaluation units at product cost plus shipping, and the sample fee is credited toward your first bulk order. Contact us via email or WhatsApp with the model number to arrange a sample.
What is the lead time for the ZW500?
In-stock units ship within 3–5 business days. Bulk production orders typically require 3–4 weeks, and OEM/ODM orders with customization take 4–8 weeks depending on complexity. Rush production is available at additional cost.
Is the ZW500 certified for my market?
The ZW500 carries CE, FCC, and RoHS certification as standard. Additional certifications for specific markets (IC, TELEC, NCC, etc.) can be arranged through our ODM service.
How is product quality controlled before shipment?
Every unit undergoes 100% inspection and 24-hour burn-in testing before leaving the factory, and a signed QC report ships with every order — full traceability from component to delivery.
What payment terms do you accept?
Standard terms are a 30% deposit with order confirmation and the 70% balance before shipment, paid in USD via T/T. Letter of credit and flexible terms are available for established partners.
