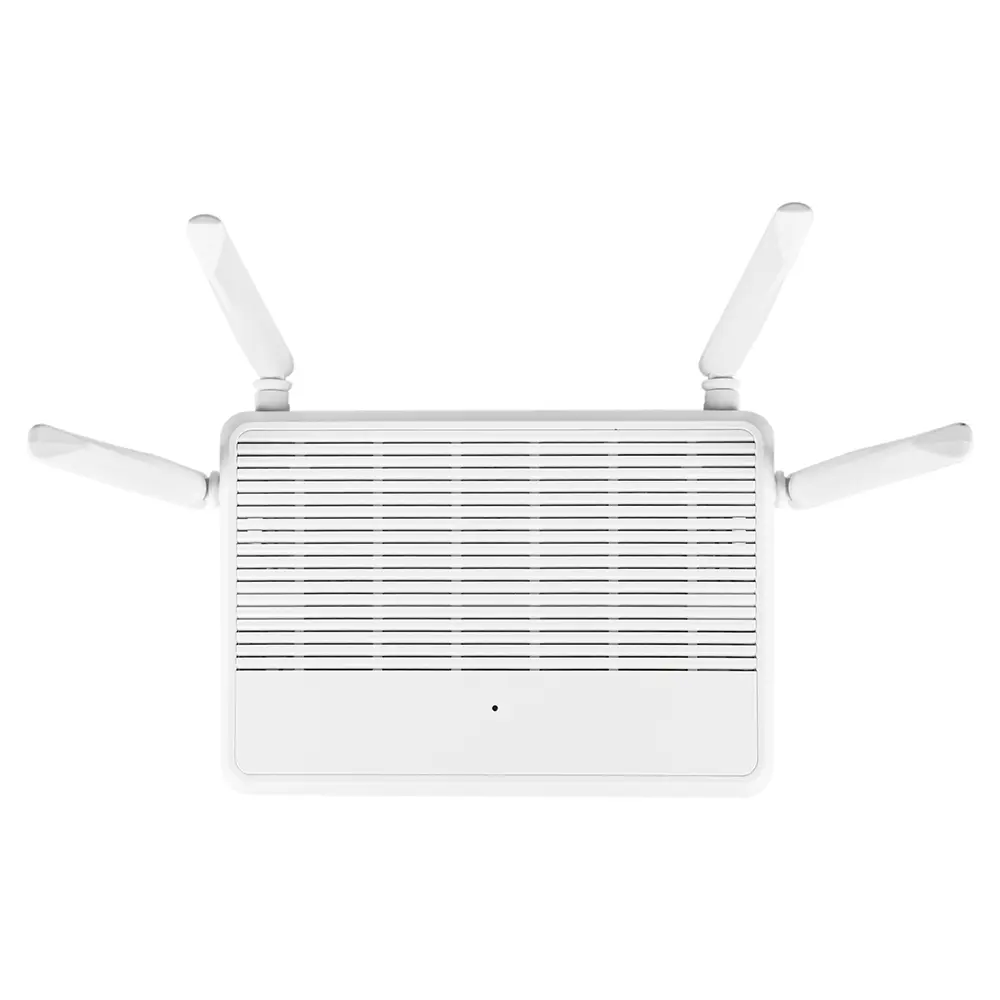

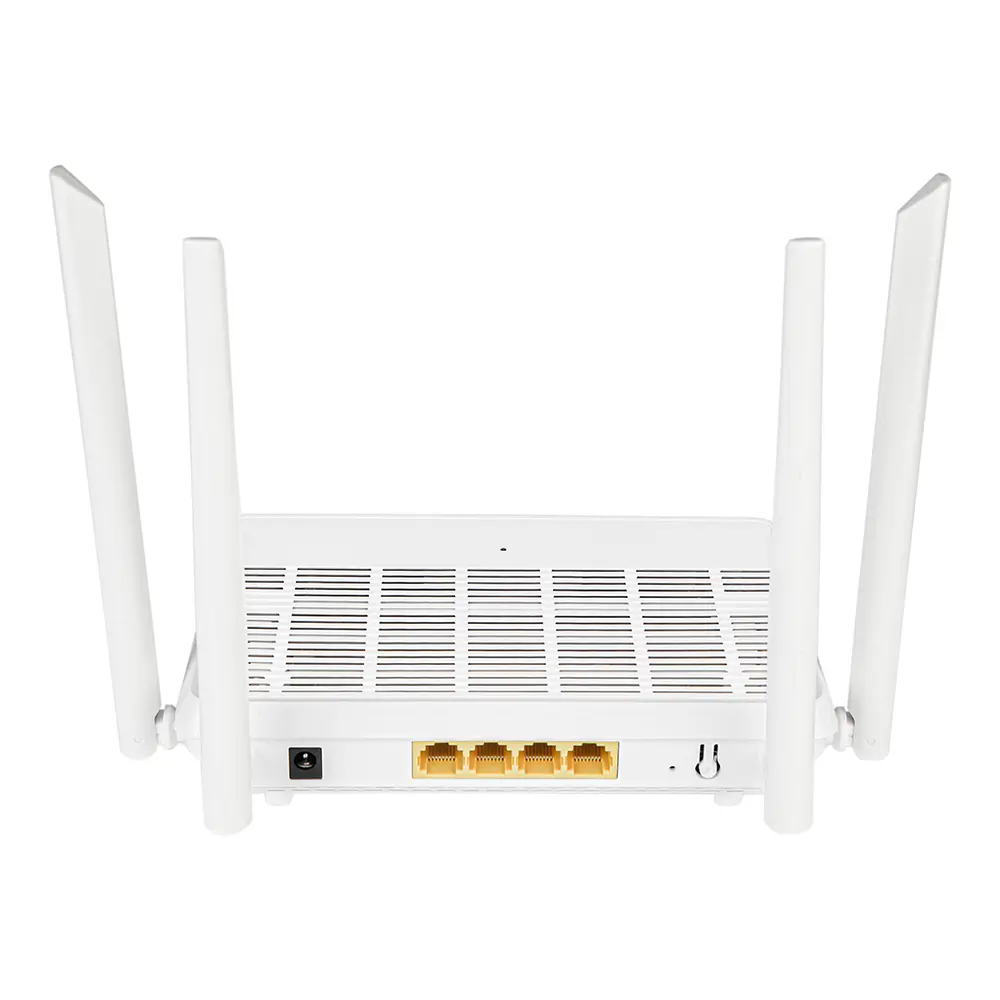

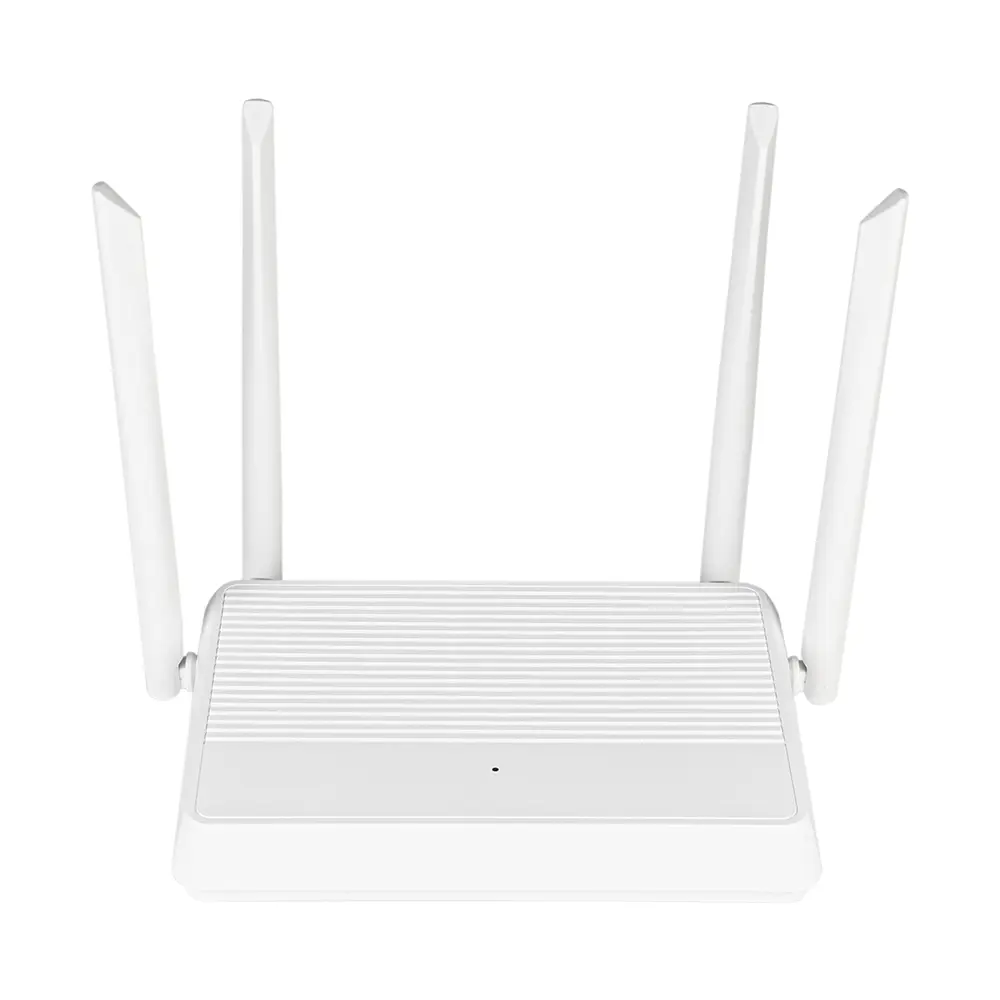

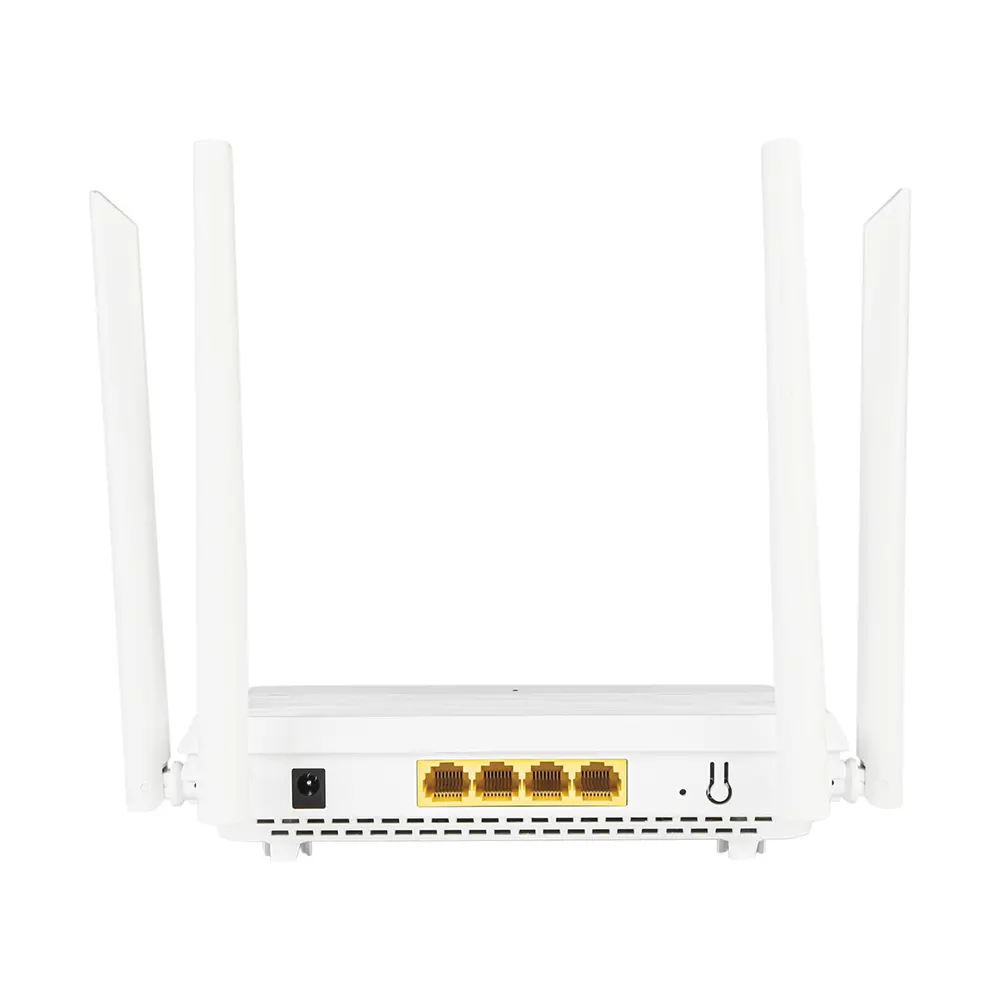

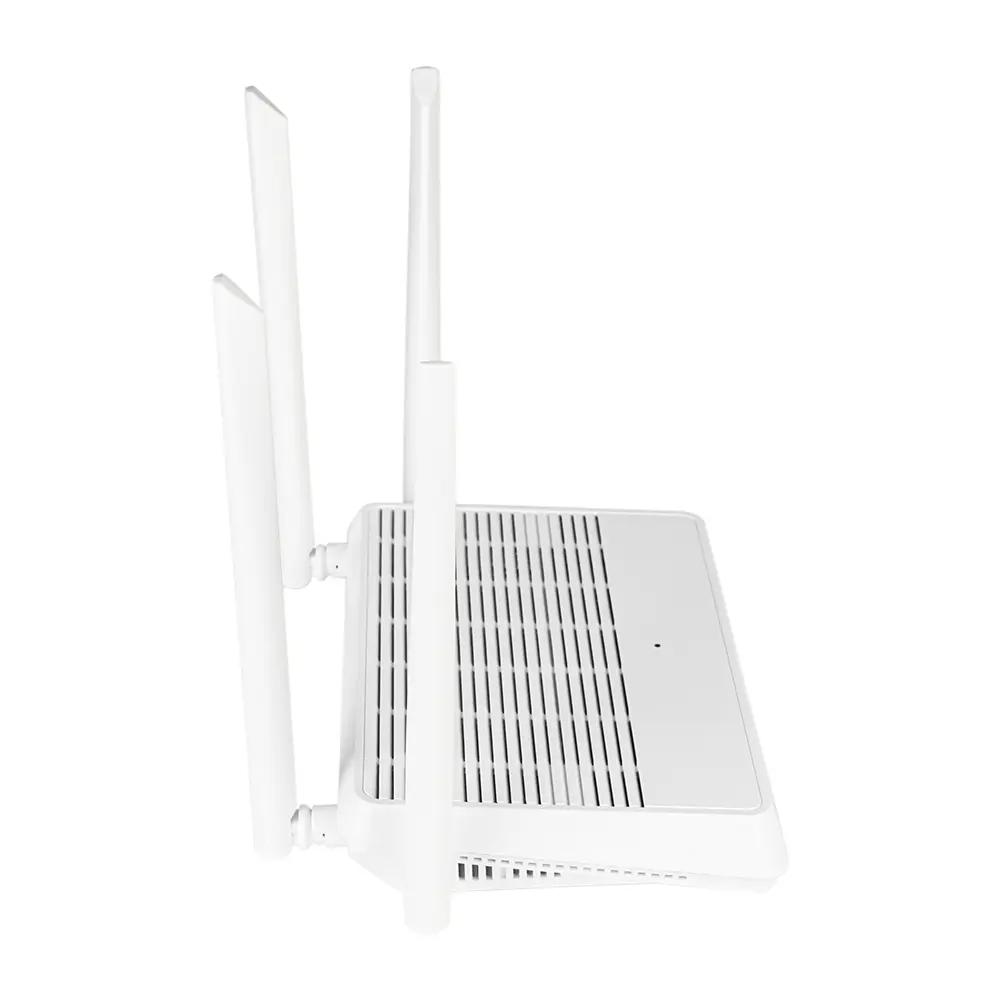

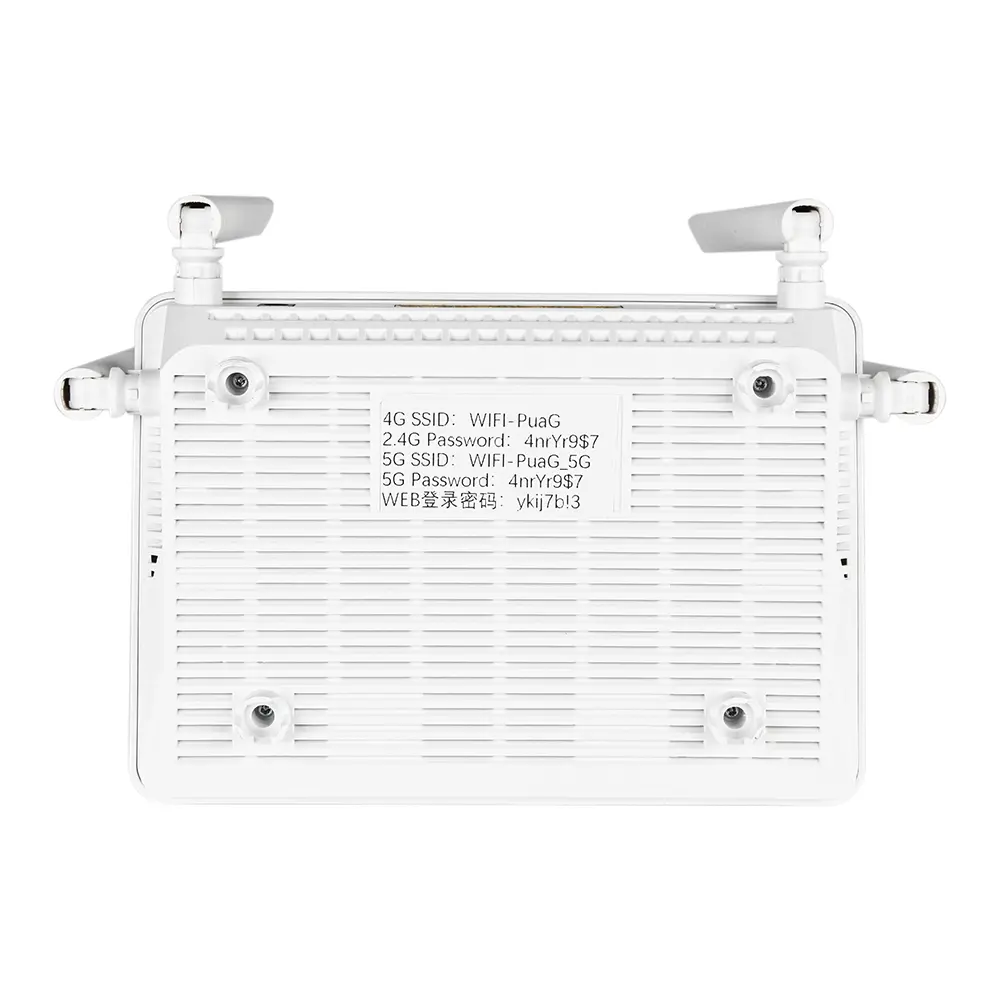

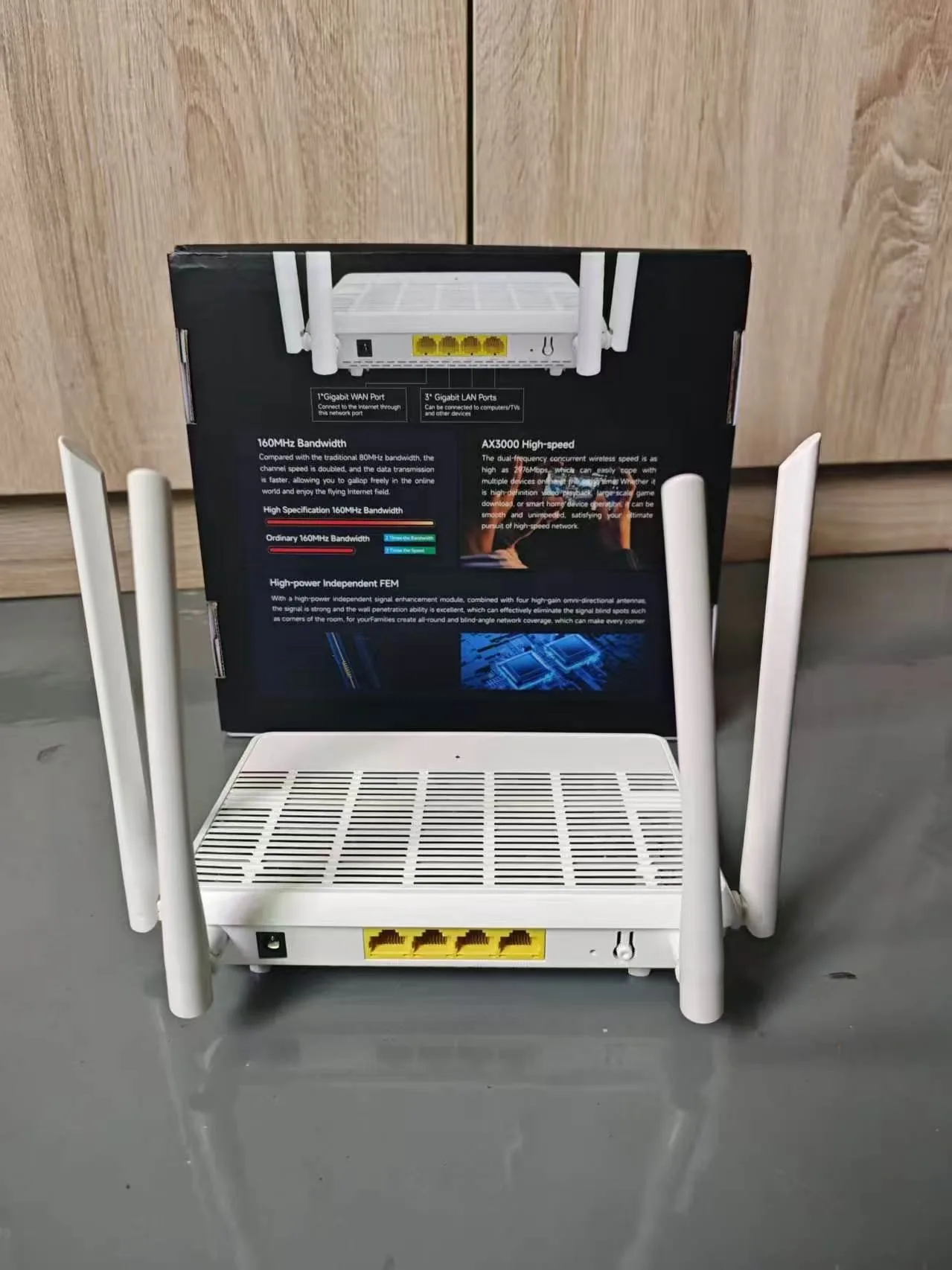

WR3011GP Wi-Fi 6 AX3000 Router, Qualcomm, Mesh, VPN
WR3011GP
Standard Wi-Fi 6 (802.11ax)
Band Dual-Band (2.4GHz + 5GHz)
Max Speed AX3000 (574 + 2474 Mbps = 3047Mbps)
CPU Qualcomm IPQ5000 + QCN6102 + QCA8337, ARM Cortex-A53 Dual-Core 1GHz
RAM 256MB DDR
5 Years Warranty
Overview
- Wi-Fi 6 AX3000 on Qualcomm IPQ5000 + QCN6102 enterprise platform
- 3047Mbps combined throughput (574 + 2474Mbps) with 160MHz bandwidth
- OFDMA, MU-MIMO, Beamforming, BSS Color for high-density performance
- Supports up to 128 concurrent clients
- Mesh and relay mode for scalable multi-room coverage
- 6kV surge protection, WPA3, VPN, guest WiFi, anti-DDoS
- 1× GbE WAN + 3× GbE LAN Gigabit ports
- TR069 remote management for ISP deployment and provisioning
The WR3011GP is a dual-band Wi-Fi 6 AX3000 router built on the Qualcomm IPQ5000 + QCN6102 enterprise platform, delivering 3047Mbps combined throughput (574 + 2474Mbps) with 160MHz bandwidth. Supporting 128 concurrent clients, Mesh networking, WPA3 security, VPN, and 6kV surge protection, it is a premium enterprise-grade wireless router for homes, offices, hospitality venues, and ISP CPE deployments.
Ideal For
- Homes and apartments requiring premium Wi-Fi 6 performance
- Offices, co-working spaces, cafes, and retail network deployments
- ISP CPE programs supplying high-performance home gateways
- Schools and educational institution wireless networks
- Smart home and IoT-dense environments requiring stable connectivity
Deployment Advantages
The Qualcomm IPQ5000 platform’s hardware-accelerated OFDMA scheduling provides a measurable throughput and latency advantage over MTK-based solutions in high-client-count environments. The 5GHz 2474Mbps throughput with 160MHz channel width is particularly effective in less congested Wi-Fi environments such as residential and small enterprise deployments.
Mesh and relay mode enables network administrators to deploy multiple WR3011GP units as a cohesive system, sharing a single management interface and SSID. TR069 support allows ISPs to provision, update, and monitor the device remotely — reducing truck rolls and support costs at scale.
OEM/ODM Ready
MossLink offers OEM and ODM customization for this product, including Qualcomm-based custom firmware, ISP UI branding, TR069 integration, antenna configuration, and private-label packaging. Volume pricing is available for ISPs, operators, and enterprise distributors. Contact us to discuss your project requirements.
Specifications
| Standard | Wi-Fi 6 (802.11ax) |
| Band | Dual-Band (2.4GHz + 5GHz) |
| Max Speed | AX3000 (574 + 2474 Mbps = 3047Mbps) |
| CPU | Qualcomm IPQ5000 + QCN6102 + QCA8337, ARM Cortex-A53 Dual-Core 1GHz |
| RAM | 256MB DDR |
| Flash | 128MB |
| Antenna | 4× 5dBi External (2×2.4G + 2×5G) |
| Ethernet | 1× GbE WAN + 3× GbE LAN |
| Max Clients | 128 |
| Surge Protection | 6kV (Common Mode) / 1.5kV (Differential Mode) |
| Dimensions | 188 × 130 × 26–36 mm |
| Temperature | -10°C ~ +45°C |
| Power | DC 12V / 1A |
Ordering & Customization
The WR3011GP ships factory-direct from Shenzhen with full OEM/ODM support. Three customization levels are available depending on your order quantity:
Logo & Packaging (OEM)
From 100 units
- Your logo on the enclosure
- Branded box, labels & user manual
- Zero MossLink branding on final product
Custom Firmware (Software)
From 500 units
- Custom web UI & boot screen
- Default configuration & feature tuning
- Regional and regulatory presets
Custom Hardware (ODM)
From 1,000 units
- Enclosure & antenna modifications
- Port and power-budget variations
- PCB-level customization
Learn more about our OEM/ODM process →
- Standard MOQ
- 100 units for standard products with no customization
- Samples
- 1–5 evaluation units at product cost plus shipping — sample fee credited toward your first bulk order
- Lead Time
- In-stock products: 3–5 business days · bulk production: 3–4 weeks · OEM/ODM orders: 4–8 weeks
- Payment Terms
- 30% deposit, 70% balance before shipment · T/T and L/C accepted, in USD
- Shipping
- DHL / FedEx / UPS express, air and sea freight · DDP, FOB Shenzhen, or CIF terms
- Packaging
- Each unit individually boxed with protective foam; palletized export cartons for freight — carton specs available on request
- Quality Control
- 100% inspection and 24-hour burn-in testing; a signed QC report ships with every order
- Certifications
- CE, FCC, and RoHS standard · additional market certifications (IC, TELEC, NCC, etc.) available via ODM
Downloads
Frequently Asked Questions
What is the advantage of the Qualcomm IPQ5000 chipset in the WR3011GP?
The Qualcomm IPQ5000 + QCN6102 platform is an enterprise-grade chipset combination that delivers hardware-accelerated OFDMA and MU-MIMO with low latency, making it well suited for high-density deployments. Qualcomm's ecosystem also provides mature driver stability and longer firmware support cycles compared to entry-level chipsets.
What is the maximum wireless throughput of the WR3011GP?
The WR3011GP achieves up to 3047Mbps combined throughput — 573.5Mbps on 2.4GHz and 2474Mbps on 5GHz with 160MHz bandwidth support. This makes it one of the higher-performing AX3000 routers in its class for single-band 5GHz throughput.
What deployment scenarios is the WR3011GP best suited for?
The WR3011GP is designed for homes, offices, cafes, retail stores, co-working spaces, and schools where up to 128 devices need reliable Wi-Fi 6 connectivity. Mesh support, TR069 management, and surge protection make it equally suitable for ISP CPE deployments and small enterprise networks.
Is OEM/ODM customization available for this product?
Yes. MossLink offers full OEM and ODM services for this product, including custom firmware features, hardware modifications, enclosure branding, and private-label packaging. Minimum order quantities apply. Contact us to discuss your project requirements.
What is the MOQ for the WR3011GP?
Standard WR3011GP orders start at 100 units. Logo and packaging customization (OEM) also starts at 100 units, custom firmware at 500 units, and custom hardware (ODM) at 1,000 units. Contact sales with your target quantity for a formal quotation.
Can I get a sample of the WR3011GP before bulk ordering?
Yes. We supply 1–5 evaluation units at product cost plus shipping, and the sample fee is credited toward your first bulk order. Contact us via email or WhatsApp with the model number to arrange a sample.
What is the lead time for the WR3011GP?
In-stock units ship within 3–5 business days. Bulk production orders typically require 3–4 weeks, and OEM/ODM orders with customization take 4–8 weeks depending on complexity. Rush production is available at additional cost.
Is the WR3011GP certified for my market?
The WR3011GP carries CE, FCC, and RoHS certification as standard. Additional certifications for specific markets (IC, TELEC, NCC, etc.) can be arranged through our ODM service.
How is product quality controlled before shipment?
Every unit undergoes 100% inspection and 24-hour burn-in testing before leaving the factory, and a signed QC report ships with every order — full traceability from component to delivery.
What payment terms do you accept?
Standard terms are a 30% deposit with order confirmation and the 70% balance before shipment, paid in USD via T/T. Letter of credit and flexible terms are available for established partners.
