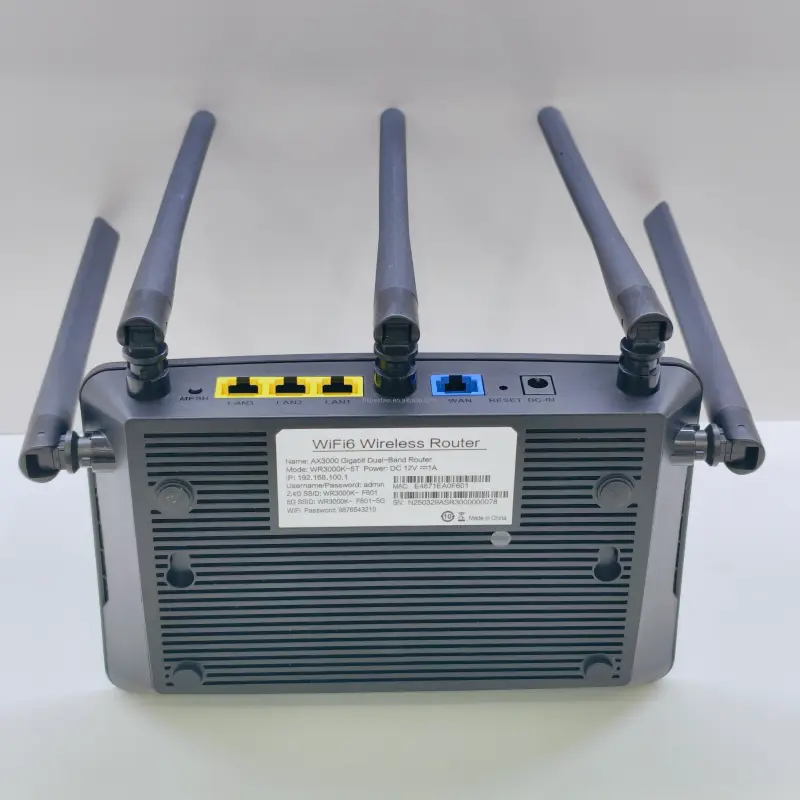

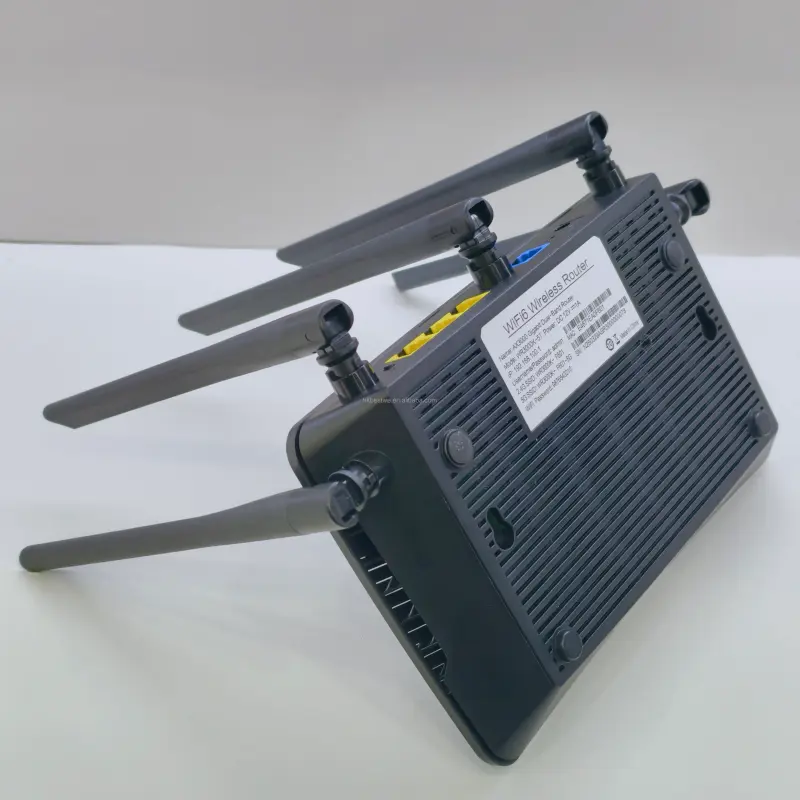

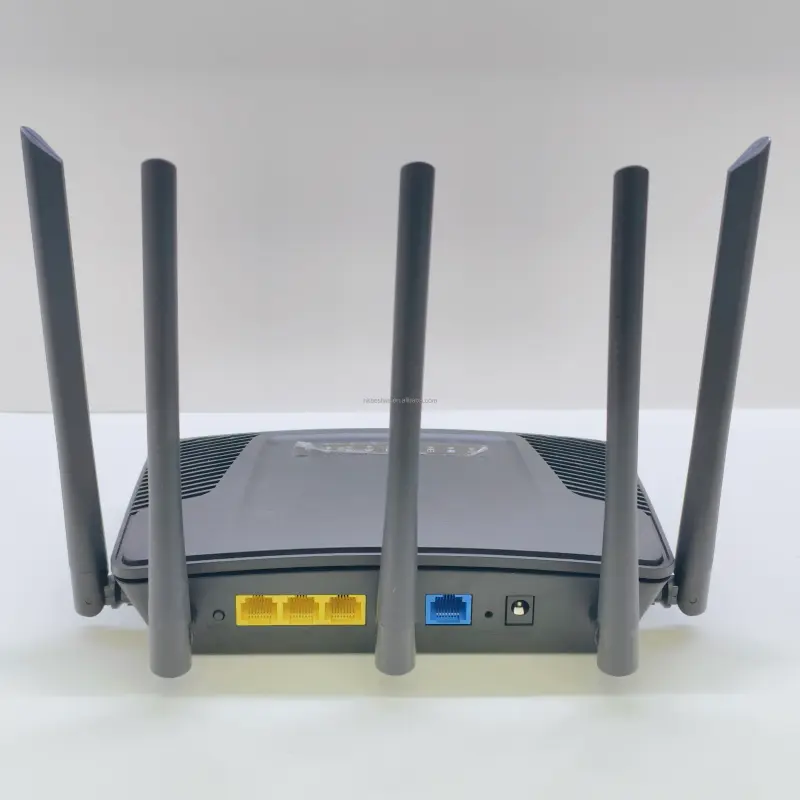

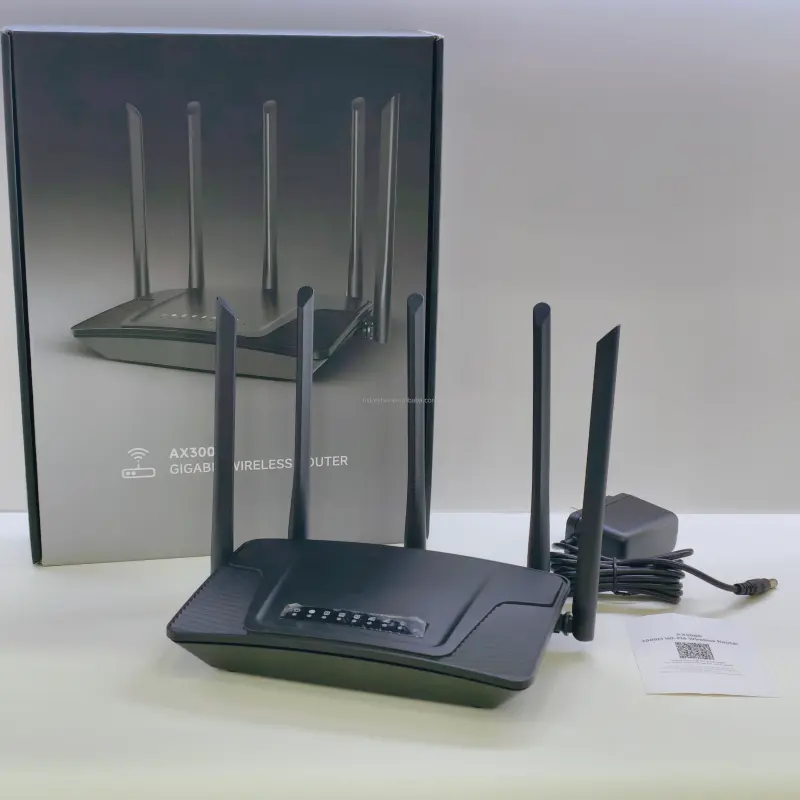

WR3005K Wi-Fi 6 AX3000 Gigabit Router, Industrial
WR3005K
Standard Wi-Fi 6 (802.11ax)
Band Dual-Band (2.4GHz + 5GHz)
Max Speed AX3000 (574 + 2402 Mbps)
CPU MT7981B + MT7976 + MT7531, ARM Dual-Core 1.3GHz
RAM 512MB DDR
5 Years Warranty
Overview
- Wi-Fi 6 AX3000 on MTK MT7981B Dual-Core 1.3GHz enterprise platform
- Industrial-grade 6kV surge and EMI shielding protection
- Six 5dBi external antennas — superior coverage vs. 4-antenna designs
- Hardware NAT up to 2Gbps for high-speed wired forwarding
- Supports up to 128 concurrent devices with OFDMA and MU-MIMO
- Mesh and relay mode for multi-room and multi-floor deployments
- WPA3, VPN client, guest WiFi, firewall, and TR069 management
- 512MB DDR RAM / 128MB Flash for stable high-load operation
The WR3005K is a dual-band Wi-Fi 6 AX3000 gigabit router with industrial-grade 6kV surge protection, six 5dBi external antennas, and the MTK MT7981B ARM Dual-Core 1.3GHz platform with 512MB RAM. Supporting 128 concurrent clients, Mesh networking, VPN, and TR069 management, it is engineered for ISPs, hospitality networks, offices, and enterprise environments requiring reliable, protected wireless infrastructure.
Ideal For
- ISP customer premises equipment (CPE) requiring surge protection
- Hotels, restaurants, and hospitality venue Wi-Fi networks
- Small-to-medium enterprise office networks
- Co-working spaces and educational institution networks
- Environments with power fluctuations requiring industrial protection
Deployment Advantages
The 6kV surge protection distinguishes the WR3005K from consumer-grade routers, making it suitable for deployment in regions with unstable power grids, thunderstorm-prone areas, or industrial environments. EMI shielding further protects the device from electromagnetic interference common in manufacturing or commercial facilities.
Six external antennas — four on 5GHz and two on 2.4GHz — provide more spatial streams and coverage than standard four-antenna designs. Hardware NAT at 2Gbps ensures forwarding performance keeps pace with multi-gigabit WAN connections. TR069 protocol support enables ISPs to remotely provision, configure, and troubleshoot devices across large subscriber deployments.
OEM/ODM Ready
MossLink offers OEM and ODM customization for this product, including custom firmware, ISP branding, TR069 server integration, surge protection specifications, and private-label packaging. Volume pricing is available for ISPs, telecom operators, and enterprise resellers. Contact us to discuss your project requirements.
Specifications
| Standard | Wi-Fi 6 (802.11ax) |
| Band | Dual-Band (2.4GHz + 5GHz) |
| Max Speed | AX3000 (574 + 2402 Mbps) |
| CPU | MT7981B + MT7976 + MT7531, ARM Dual-Core 1.3GHz |
| RAM | 512MB DDR |
| Flash | 128MB |
| Antenna | 6× 5dBi External (2×2.4G + 4×5G) |
| Ethernet | 1× GbE WAN + 3× GbE LAN (HNAT 2Gbps) |
| Max Clients | 128 |
| Surge Protection | 6kV (Common Mode) / 1.5kV (Differential Mode) |
| Dimensions | 208.6 × 129.5 × 40.6 mm |
| Temperature | -10°C ~ +45°C |
| Power | DC 12V / 1A |
Ordering & Customization
The WR3005K ships factory-direct from Shenzhen with full OEM/ODM support. Three customization levels are available depending on your order quantity:
Logo & Packaging (OEM)
From 100 units
- Your logo on the enclosure
- Branded box, labels & user manual
- Zero MossLink branding on final product
Custom Firmware (Software)
From 500 units
- Custom web UI & boot screen
- Default configuration & feature tuning
- Regional and regulatory presets
Custom Hardware (ODM)
From 1,000 units
- Enclosure & antenna modifications
- Port and power-budget variations
- PCB-level customization
Learn more about our OEM/ODM process →
- Standard MOQ
- 100 units for standard products with no customization
- Samples
- 1–5 evaluation units at product cost plus shipping — sample fee credited toward your first bulk order
- Lead Time
- In-stock products: 3–5 business days · bulk production: 3–4 weeks · OEM/ODM orders: 4–8 weeks
- Payment Terms
- 30% deposit, 70% balance before shipment · T/T and L/C accepted, in USD
- Shipping
- DHL / FedEx / UPS express, air and sea freight · DDP, FOB Shenzhen, or CIF terms
- Packaging
- Each unit individually boxed with protective foam; palletized export cartons for freight — carton specs available on request
- Quality Control
- 100% inspection and 24-hour burn-in testing; a signed QC report ships with every order
- Certifications
- CE, FCC, and RoHS standard · additional market certifications (IC, TELEC, NCC, etc.) available via ODM
Downloads
Frequently Asked Questions
What industrial protection does the WR3005K provide?
The WR3005K includes carrier-grade 6kV common mode and 1.5kV differential mode surge protection, over-voltage and over-current safeguards, and EMI shielding. This level of protection is standard for telecom and ISP equipment deployed in environments with power fluctuations or lightning exposure.
How does the WR3005K perform in high-density environments?
With MU-MIMO, OFDMA, and 160MHz bandwidth support on the MTK MT7981B platform, the WR3005K efficiently manages up to 128 simultaneous client connections. Hardware NAT at 2Gbps ensures wired throughput is not a bottleneck in mixed wired and wireless deployments.
Is the WR3005K suitable for hotels and offices?
Yes. Mesh/relay support, TR069 remote management, WPA3 enterprise security, guest WiFi, and VPN client capability make the WR3005K well suited for hotels, co-working spaces, restaurants, and small-to-medium enterprise networks where reliability and manageability are required.
Is OEM/ODM customization available for this product?
Yes. MossLink offers full OEM and ODM services for this product, including custom firmware features, hardware modifications, enclosure branding, and private-label packaging. Minimum order quantities apply. Contact us to discuss your project requirements.
What is the MOQ for the WR3005K?
Standard WR3005K orders start at 100 units. Logo and packaging customization (OEM) also starts at 100 units, custom firmware at 500 units, and custom hardware (ODM) at 1,000 units. Contact sales with your target quantity for a formal quotation.
Can I get a sample of the WR3005K before bulk ordering?
Yes. We supply 1–5 evaluation units at product cost plus shipping, and the sample fee is credited toward your first bulk order. Contact us via email or WhatsApp with the model number to arrange a sample.
What is the lead time for the WR3005K?
In-stock units ship within 3–5 business days. Bulk production orders typically require 3–4 weeks, and OEM/ODM orders with customization take 4–8 weeks depending on complexity. Rush production is available at additional cost.
Is the WR3005K certified for my market?
The WR3005K carries CE, FCC, and RoHS certification as standard. Additional certifications for specific markets (IC, TELEC, NCC, etc.) can be arranged through our ODM service.
How is product quality controlled before shipment?
Every unit undergoes 100% inspection and 24-hour burn-in testing before leaving the factory, and a signed QC report ships with every order — full traceability from component to delivery.
What payment terms do you accept?
Standard terms are a 30% deposit with order confirmation and the 70% balance before shipment, paid in USD via T/T. Letter of credit and flexible terms are available for established partners.
