WR30X B1 Wi-Fi 6 AX3000 Router, EasyMesh, TR-069, VPN
WR30X-B1
MOQ 100 units Lead time 3–4 weeks Samples 1–5 units 5 Years warranty
Standard Wi-Fi 6 (802.11ax)
Band Dual-Band (2.4GHz + 5.8GHz)
Max Speed AX3000 (574 + 2402 Mbps)
Chipset Broadcom BCM6756
CPU Quad-Core 1.7GHz
Overview
- Wi-Fi 6 AX3000 dual-band — 574Mbps @ 2.4GHz + 2402Mbps @ 5GHz with HE160 and 1024-QAM
- Broadcom BCM6756 quad-core 1.7GHz with 256MB DDR3L and 128MB NAND flash
- Four 5dBi external high-gain antennas (2T2R per band) for whole-home coverage

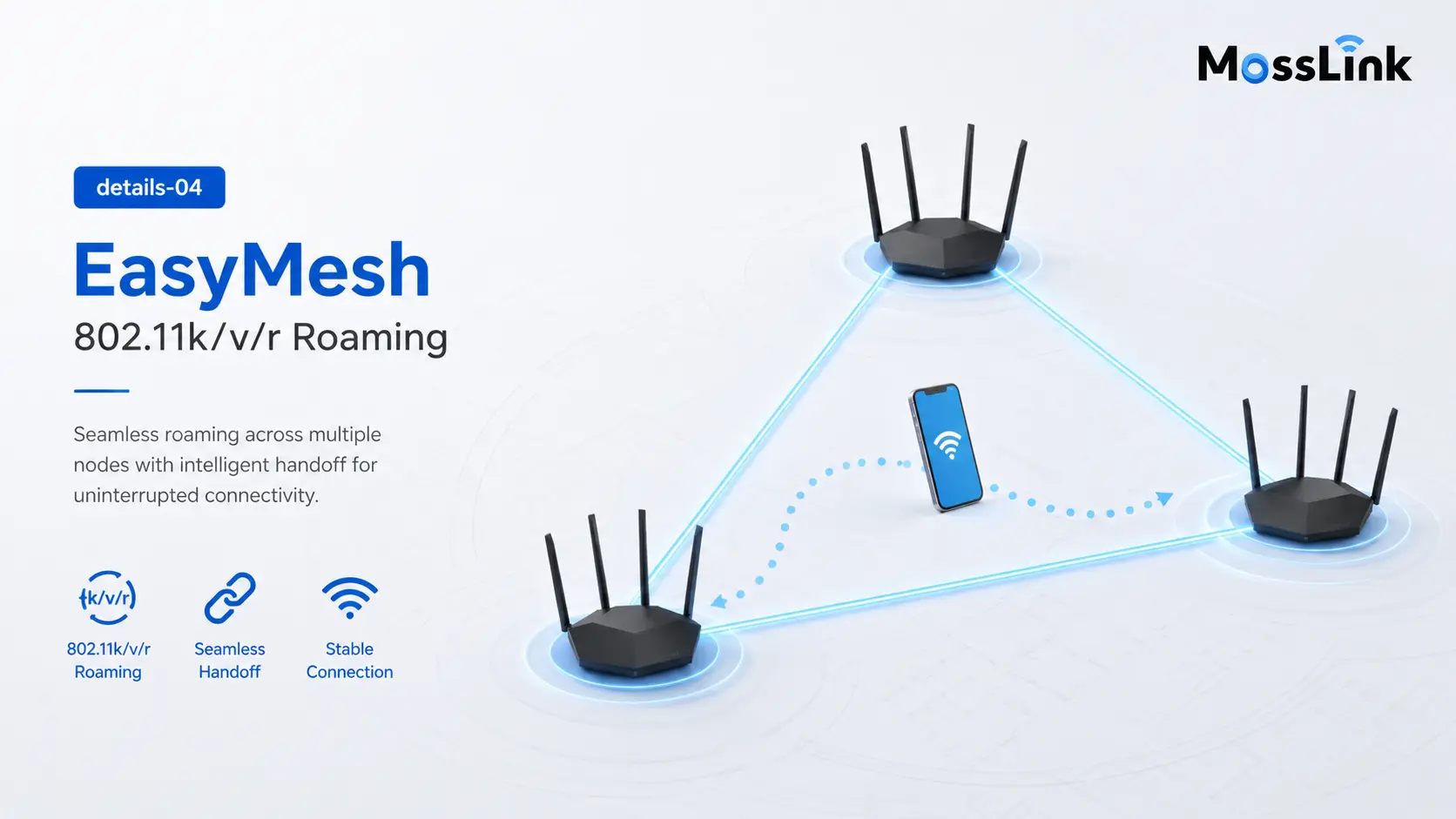

- Standards-based EasyMesh with 802.11k/v/r fast roaming for multi-node expansion

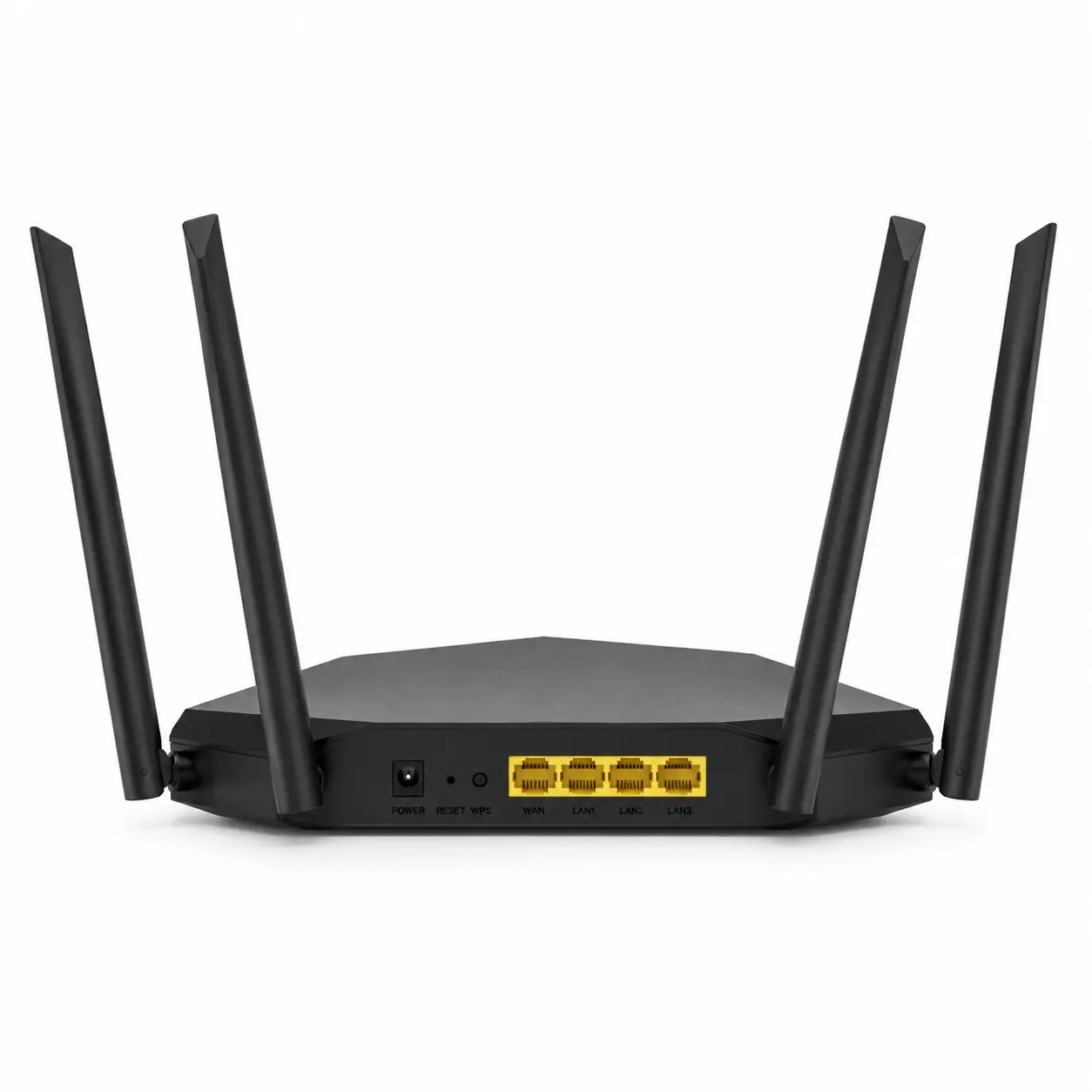

- Full gigabit wired connectivity — 1× GbE WAN + 3× GbE LAN

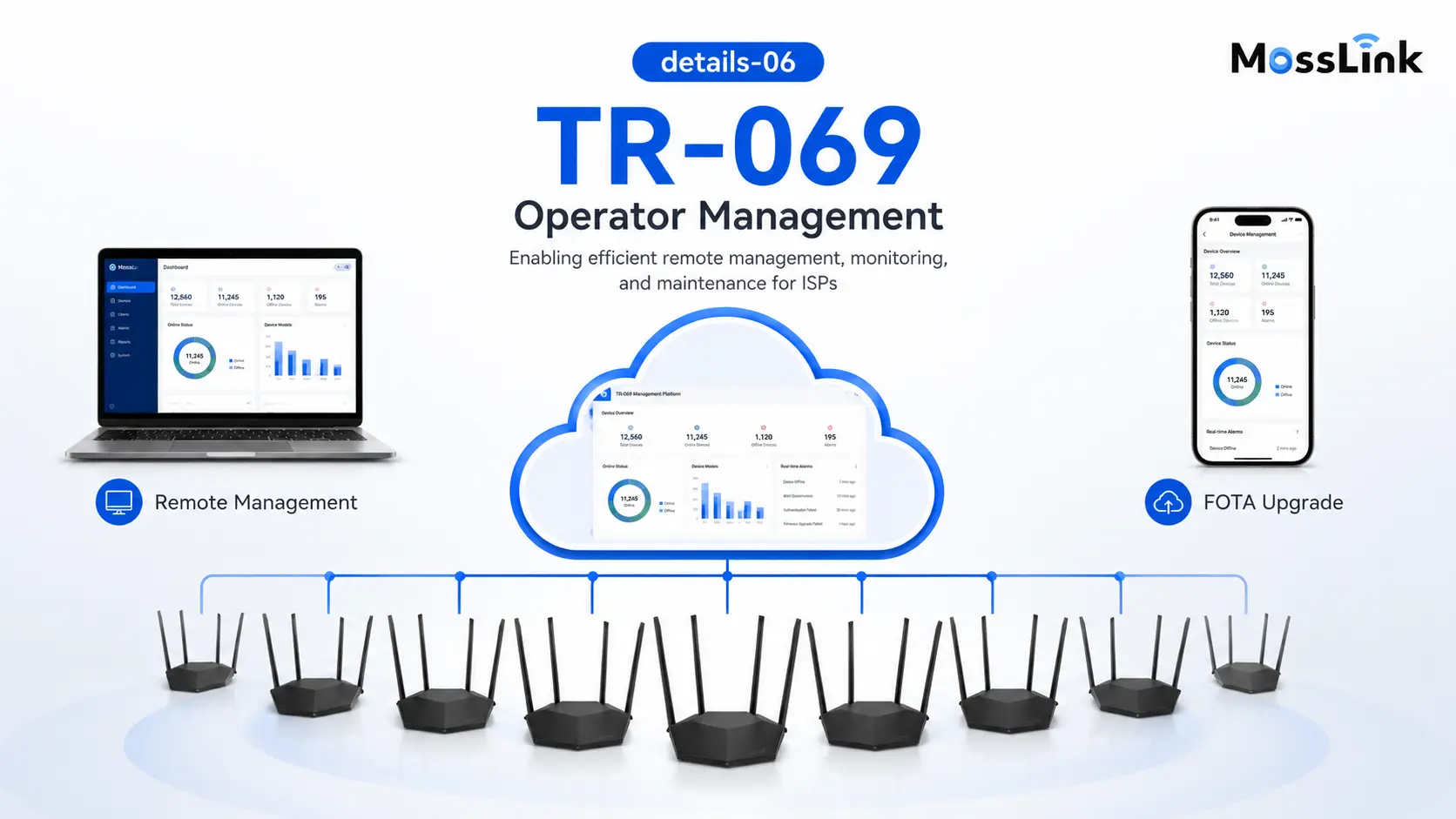

- Carrier-grade remote management — TR-069 (TR-181/104/140/143/157), FOTA, mobile APP
- WPA3/SAE security, SPI firewall, DoS protection, IP/Port/MAC and URL filtering
- IPSec, PPTP, L2TP, and GRE VPN support for remote work and site-to-site links
- IPv4/IPv6 dual stack with 6RD, plus IGMP proxy and MLD for IPTV services
- Up to 8 SSIDs per radio with separate authentication for guest and tenant separation
The WR30X B1 is a dual-band Wi-Fi 6 AX3000 router built on the Broadcom BCM6756 quad-core 1.7GHz platform with 256MB DDR3L and 128MB NAND flash. It delivers 574Mbps on 2.4GHz and 2402Mbps on 5GHz with HE160 channel width and 1024-QAM, through four 5dBi external high-gain antennas. Standards-based EasyMesh, WPA3 security, full VPN support, and a complete TR-069 carrier management stack make it equally at home as a retail Wi-Fi 6 router and as managed ISP customer-premises equipment.
Ideal For
- ISPs and telecom operators deploying managed Wi-Fi 6 home gateways at scale
- Triple-play subscriber packages requiring IPTV multicast and IPv6 support
- Homes and small offices with 4K streaming, gaming, and multi-device loads
- Remote-work setups needing built-in IPSec/PPTP/L2TP VPN connectivity
- Distributors and system integrators sourcing white-label Wi-Fi 6 routers
Built for ISP Fleet Deployment
Unlike consumer-only routers, the WR30X B1 ships with the management stack operators actually deploy against: TR-069 remote management with TR-181, TR-104, TR-140, TR-143, and TR-157 data models, periodic statistics reporting, and FOTA firmware upgrades across the subscriber base. WAN provisioning covers Static, IPoE, and PPPoE connection types plus an IPoE bridge mode, and the firmware handles IPv4/IPv6 dual stack with 6RD transition and stateless/stateful IPv6. IGMP proxy and MLD carry multicast IPTV cleanly — the full checklist for telecom triple-play CPE. End users get a mobile APP and web GUI, while operators keep telnet/SSH command-line access for diagnostics. See our ISP CPE solution for how MossLink routers fit into subscriber network rollouts.
Deployment Advantages
The Broadcom BCM6756 quad-core running at 1.7GHz is a step up from the dual-core platforms common in this class, keeping NAT, VPN, and Wi-Fi throughput stable when dozens of devices are active. Four external 5dBi antennas in a 2T2R-per-band configuration push signal through walls and floors, and band steering moves capable clients onto the faster 5GHz radio automatically.
Because mesh support is standards-based EasyMesh rather than a proprietary protocol, operators and end users can extend coverage with any EasyMesh-compatible node — no vendor lock-in on the expansion units. 802.11k/v/r fast roaming keeps devices connected while moving between nodes. Up to 8 SSIDs per radio with separate authentication support guest networks, IoT segmentation, and multi-tenant use, protected by WPA3/SAE, an SPI firewall with DoS protection, and IP/Port/MAC/URL filtering.
A cost-optimized sibling, the WR30X C1, swaps in a MediaTek MT7981B dual-core platform with five 6dBi antennas for coverage-focused, price-sensitive projects while keeping the same EasyMesh, VPN, IPTV, and TR-069 feature set. For more antennas or surge protection, compare the WR3000K six-antenna AX3000 router and the WR3005K with 6kV surge protection; for PoE-powered installs, see the WR3011GP.
OEM/ODM Ready
MossLink offers OEM and ODM customization for the WR30X B1, including custom firmware features, ISP-specific UI branding, TR-069 ACS integration, enclosure silkscreen, and private-label packaging. Volume pricing is available for ISPs, telecom operators, and distributors. Contact us to discuss your project requirements.
Specifications
| Standard | Wi-Fi 6 (802.11ax) |
| Band | Dual-Band (2.4GHz + 5.8GHz) |
| Max Speed | AX3000 (574 + 2402 Mbps) |
| Chipset | Broadcom BCM6756 |
| CPU | Quad-Core 1.7GHz |
| Memory | 256MB 16-bit DDR3L / 128MB NAND Flash |
| Antenna | 4× 5dBi External (2× 2.4G + 2× 5G, 2T2R per band) |
| Ethernet | 1× GbE WAN + 3× GbE LAN |
| Channel Width | Up to 160MHz (HE160, 2402Mbps @ 5GHz) |
| Wireless Tech | 1024-QAM · Band Steering · WMM · 802.11k/v/r |
| Mesh | EasyMesh |
| SSID | Up to 8 SSIDs per radio, separate authentication |
| Security | WPA3/SAE, SPI Firewall, DoS Protection, IP/Port/MAC/URL Filtering |
| VPN | IPSec / PPTP / L2TP / GRE |
| IPv6 | IPv4/IPv6 Dual Stack, 6RD, MLD |
| IPTV | IGMP Proxy |
| Management | Web GUI, Mobile APP, TR-069, FOTA, Telnet/SSH, UPnP |
| Dimensions | 227.8 × 150 × 30.5 mm |
| Weight | 318.5g |
| Operating Temp | 0°C ~ +40°C |
| Humidity | 5% ~ 95% (typical) |
| Power | DC 12V / 1A |
Ordering & Customization
The WR30X-B1 ships factory-direct from Shenzhen with full OEM/ODM support. Three customization levels are available depending on your order quantity:
Logo & Packaging (OEM)
From 100 units- Your logo on the enclosure
- Branded box, labels & user manual
- Zero MossLink branding on final product
Custom Firmware (Software)
From 500 units- Custom web UI & boot screen
- Default configuration & feature tuning
- Regional and regulatory presets
Custom Hardware (ODM)
From 1,000 units- Enclosure & antenna modifications
- Port and power-budget variations
- PCB-level customization
Learn more about our OEM/ODM process →
- Standard MOQ
- 100 units for standard products with no customization
- Samples
- 1–5 evaluation units at product cost plus shipping — sample fee credited toward your first bulk order
- Lead Time
- In-stock products: 3–5 business days · bulk production: 3–4 weeks · OEM/ODM orders: 4–8 weeks
- Payment Terms
- 30% deposit, 70% balance before shipment · T/T and L/C accepted, in USD
- Shipping
- DHL / FedEx / UPS express, air and sea freight · DDP, FOB Shenzhen, or CIF terms
- Packaging
- Each unit individually boxed with protective foam; palletized export cartons for freight — carton specs available on request
- Quality Control
- 100% inspection and 24-hour burn-in testing; a signed QC report ships with every order
- Certifications
- CE, FCC, and RoHS standard · additional market certifications (IC, TELEC, NCC, etc.) available via ODM
Downloads
Frequently Asked Questions
What is the difference between the WR30X B1 and WR30X C1?
Both are AX3000 Wi-Fi 6 routers sharing the same firmware feature set — EasyMesh, WPA3, full VPN, IPTV multicast, and TR-069 with FOTA. The B1 uses the Broadcom BCM6756 quad-core 1.7GHz platform with four 5dBi antennas, supports 8 SSIDs per radio, and adds extended TR-069 data models (TR-181/104/140/143/157) plus mobile APP management — the carrier-spec choice for managed fleets. The C1 uses the MediaTek MT7981B dual-core 1.3GHz platform with five 6dBi external antennas in a compact chassis, making it the cost-optimized, coverage-focused variant.
What makes the WR30X B1 suitable for ISP deployments?
The WR30X B1 carries a full carrier management stack: TR-069 remote management with TR-181, TR-104, TR-140, TR-143, and TR-157 data models, FOTA firmware upgrades, and periodic statistics reporting. Combined with IPoE/PPPoE/Static WAN modes, an IPoE bridge mode, IGMP proxy for IPTV, and IPv6 dual stack with 6RD, ISPs can provision, monitor, and upgrade subscriber devices remotely without truck rolls.
Does the WR30X B1 support Mesh networking?
Yes. The WR30X B1 implements standards-based EasyMesh rather than a proprietary mesh protocol, so it can form a unified network with other EasyMesh-compatible nodes under a single SSID. 802.11k/v/r fast roaming and band steering keep client devices on the best node and band as they move through the premises.
How fast is the WR30X B1 in real use?
The 5GHz radio delivers up to 2402Mbps with HE160 (160MHz) channel width and 1024-QAM, while 2.4GHz adds up to 574Mbps — an AX3000-class combined rate. The Broadcom BCM6756 quad-core 1.7GHz processor and 256MB DDR3L keep throughput stable with dozens of concurrent devices streaming, gaming, and transferring files.
What security features does the WR30X B1 include?
The WR30X B1 supports WPA3/SAE wireless encryption, an SPI firewall with Denial of Service protection, IP/Port/MAC filtering, and URL filtering for parental controls. Up to 8 SSIDs per radio with separate authentication allow guest and tenant networks to be isolated from the main network.
Does the WR30X B1 support VPN and IPTV?
Yes. It supports IPSec, PPTP, L2TP, and GRE VPN for remote work and site-to-site connectivity, and IGMP proxy plus MLD for multicast IPTV services — a common requirement for telecom and ISP triple-play packages.
Is OEM/ODM customization available for this product?
Yes. MossLink offers full OEM and ODM services for the WR30X B1, including custom firmware features, ISP UI branding, TR-069 ACS integration, enclosure silkscreen, and private-label packaging. Minimum order quantities apply. Contact us to discuss your project requirements.
What is the MOQ for the WR30X-B1?
Standard WR30X-B1 orders start at 100 units. Logo and packaging customization (OEM) also starts at 100 units, custom firmware at 500 units, and custom hardware (ODM) at 1,000 units. Contact sales with your target quantity for a formal quotation.
Can I get a sample of the WR30X-B1 before bulk ordering?
Yes. We supply 1–5 evaluation units at product cost plus shipping, and the sample fee is credited toward your first bulk order. Contact us via email or WhatsApp with the model number to arrange a sample.
What is the lead time for the WR30X-B1?
In-stock units ship within 3–5 business days. Bulk production orders typically require 3–4 weeks, and OEM/ODM orders with customization take 4–8 weeks depending on complexity. Rush production is available at additional cost.
Is the WR30X-B1 certified for my market?
The WR30X-B1 carries CE, FCC, and RoHS certification as standard. Additional certifications for specific markets (IC, TELEC, NCC, etc.) can be arranged through our ODM service.
How is product quality controlled before shipment?
Every unit undergoes 100% inspection and 24-hour burn-in testing before leaving the factory, and a signed QC report ships with every order — full traceability from component to delivery.
What payment terms do you accept?
Standard terms are a 30% deposit with order confirmation and the 70% balance before shipment, paid in USD via T/T. Letter of credit and flexible terms are available for established partners.
