WR30X C1 Wi-Fi 6 AX3000 Router, 5× 6dBi Antennas, EasyMesh
WR30X-C1
MOQ 100 units Lead time 3–4 weeks Samples 1–5 units 5 Years warranty
Standard Wi-Fi 6 (802.11ax)
Band Dual-Band (2.4GHz + 5.8GHz)
Max Speed AX3000 (574 + 2402 Mbps)
Chipset MediaTek MT7981B + MT7976C + MT7531AE
CPU Dual-Core 1.3GHz
Overview

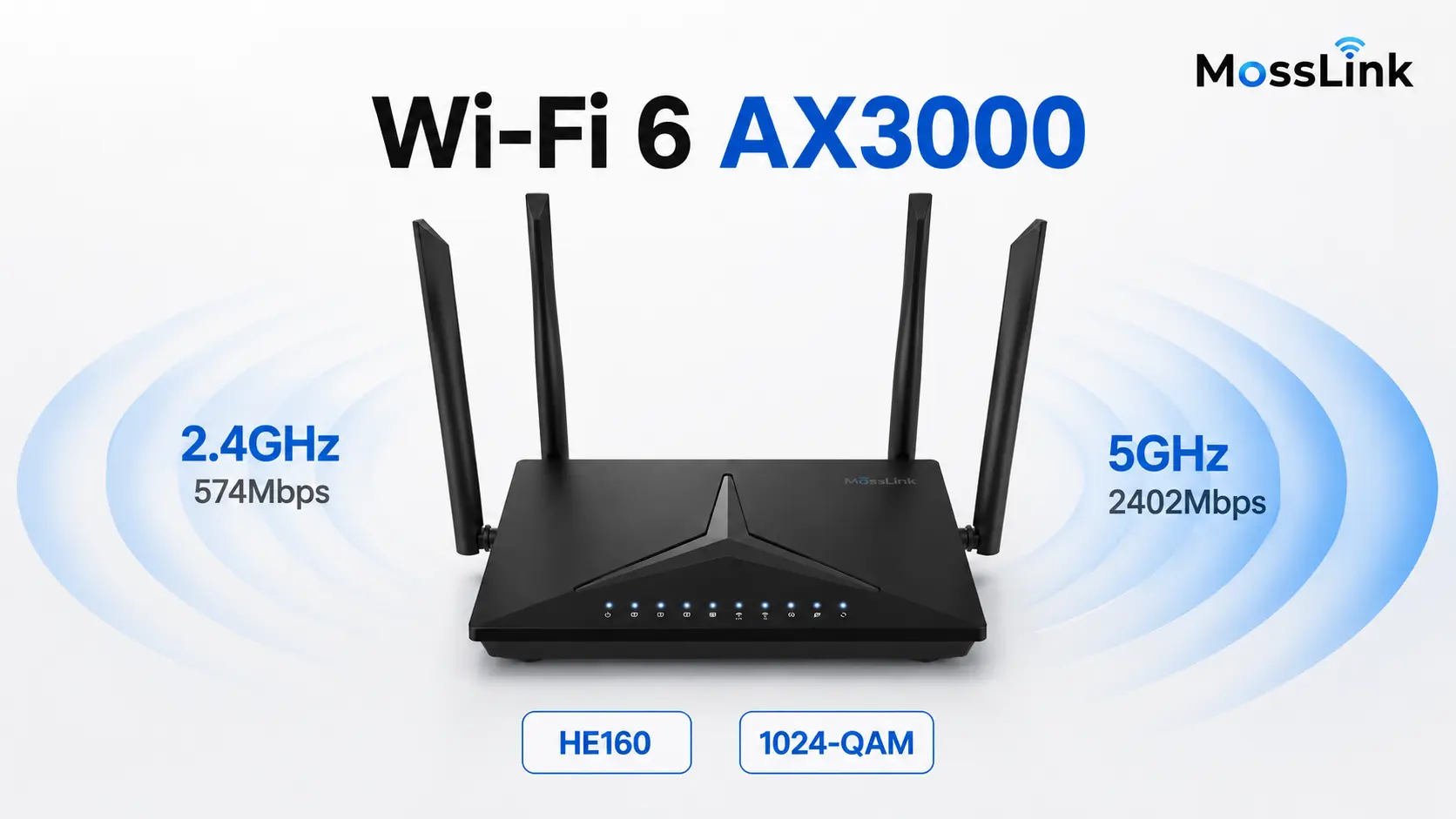

- Wi-Fi 6 AX3000 dual-band — 574Mbps @ 2.4GHz + 2402Mbps @ 5GHz with HE160 and 1024-QAM

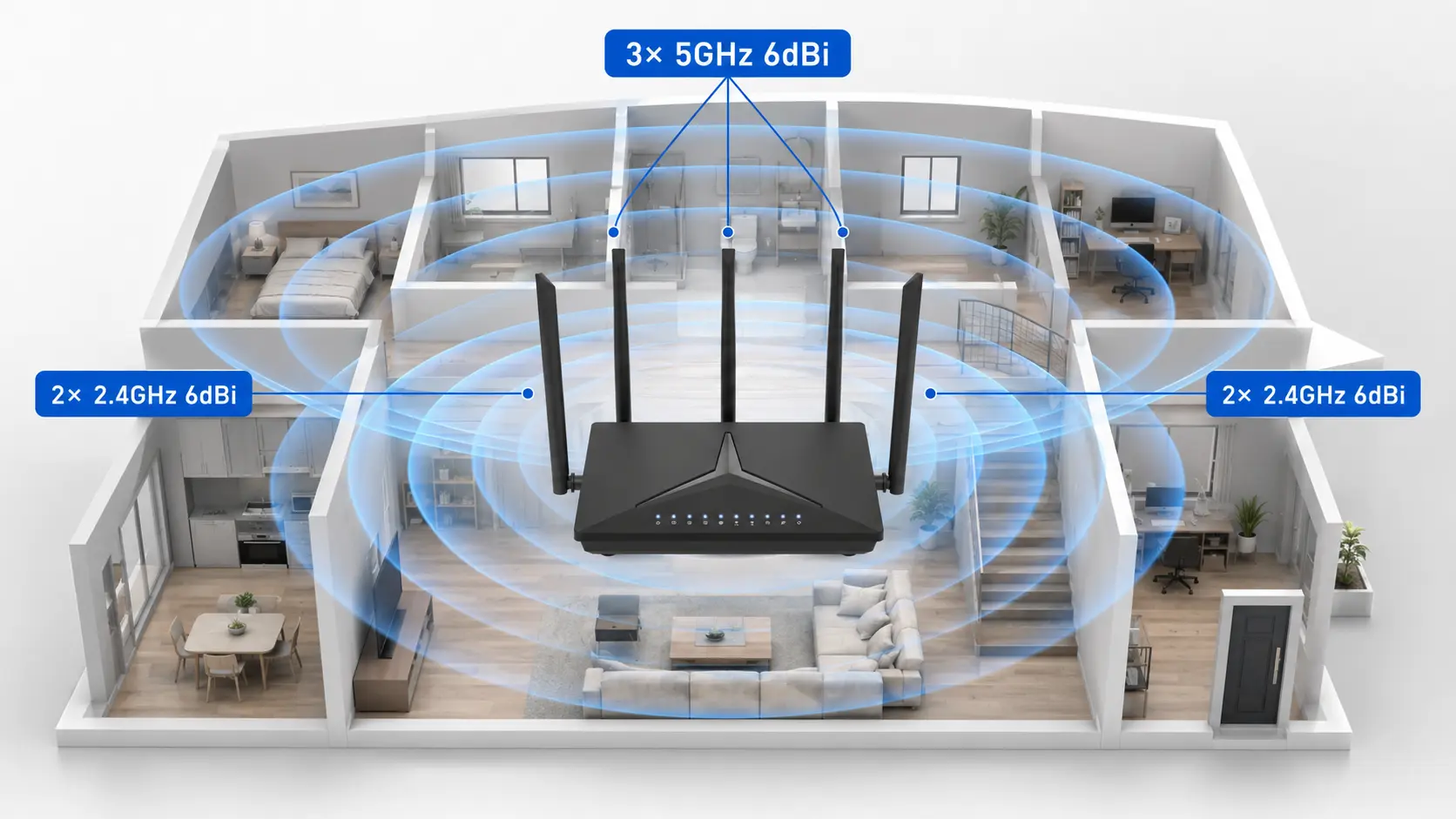

- Five 6dBi external high-gain antennas (2× 2.4G + 3× 5G) for whole-home coverage
- MediaTek MT7981B dual-core 1.3GHz with 256MB DDR3L and 128MB SPI NAND flash

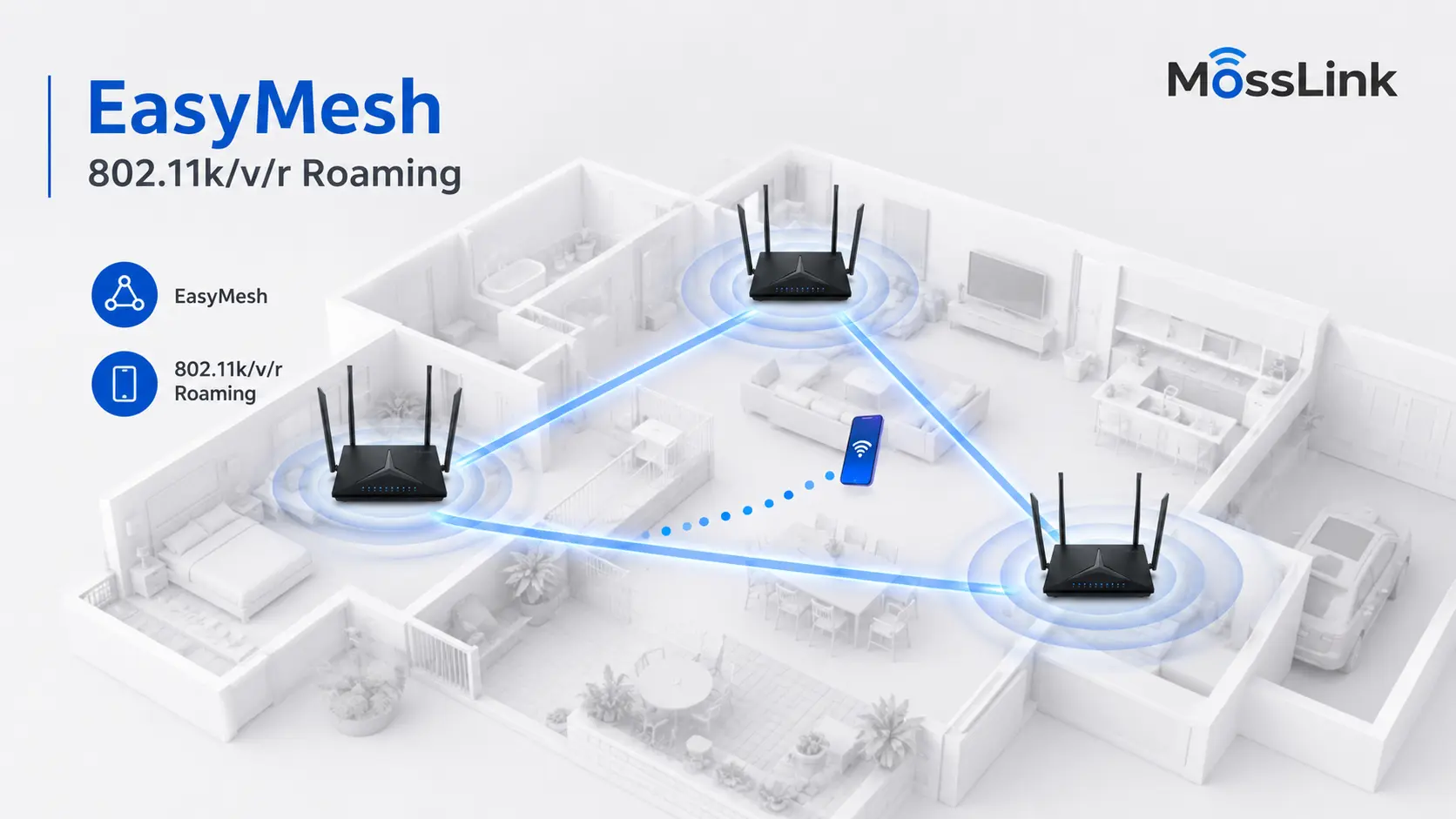

- Standards-based EasyMesh with 802.11k/v/r fast roaming for multi-node expansion

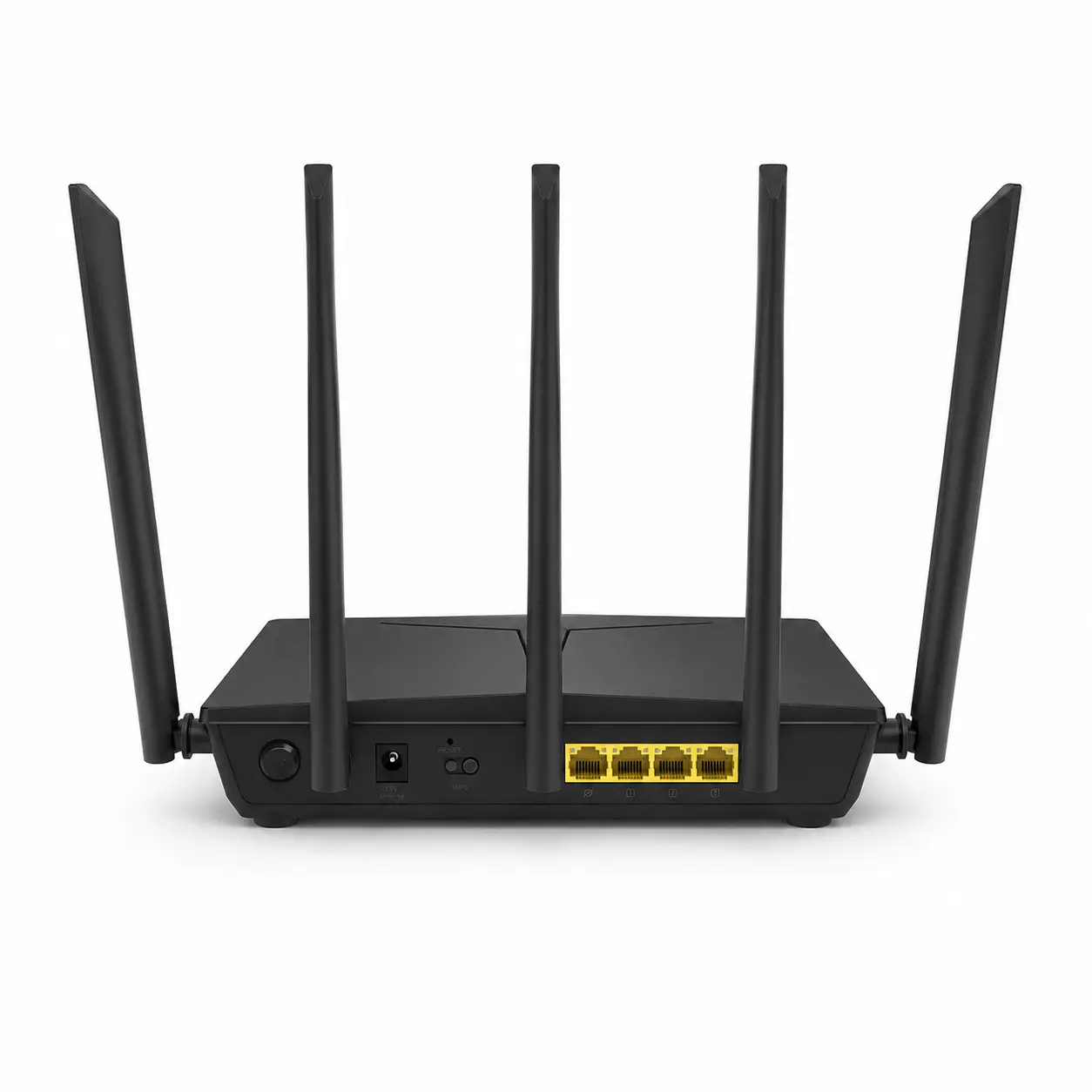

- Full gigabit wired connectivity — 1× GbE WAN + 3× GbE LAN
- TR-069 remote management and FOTA firmware upgrades for ISP deployments

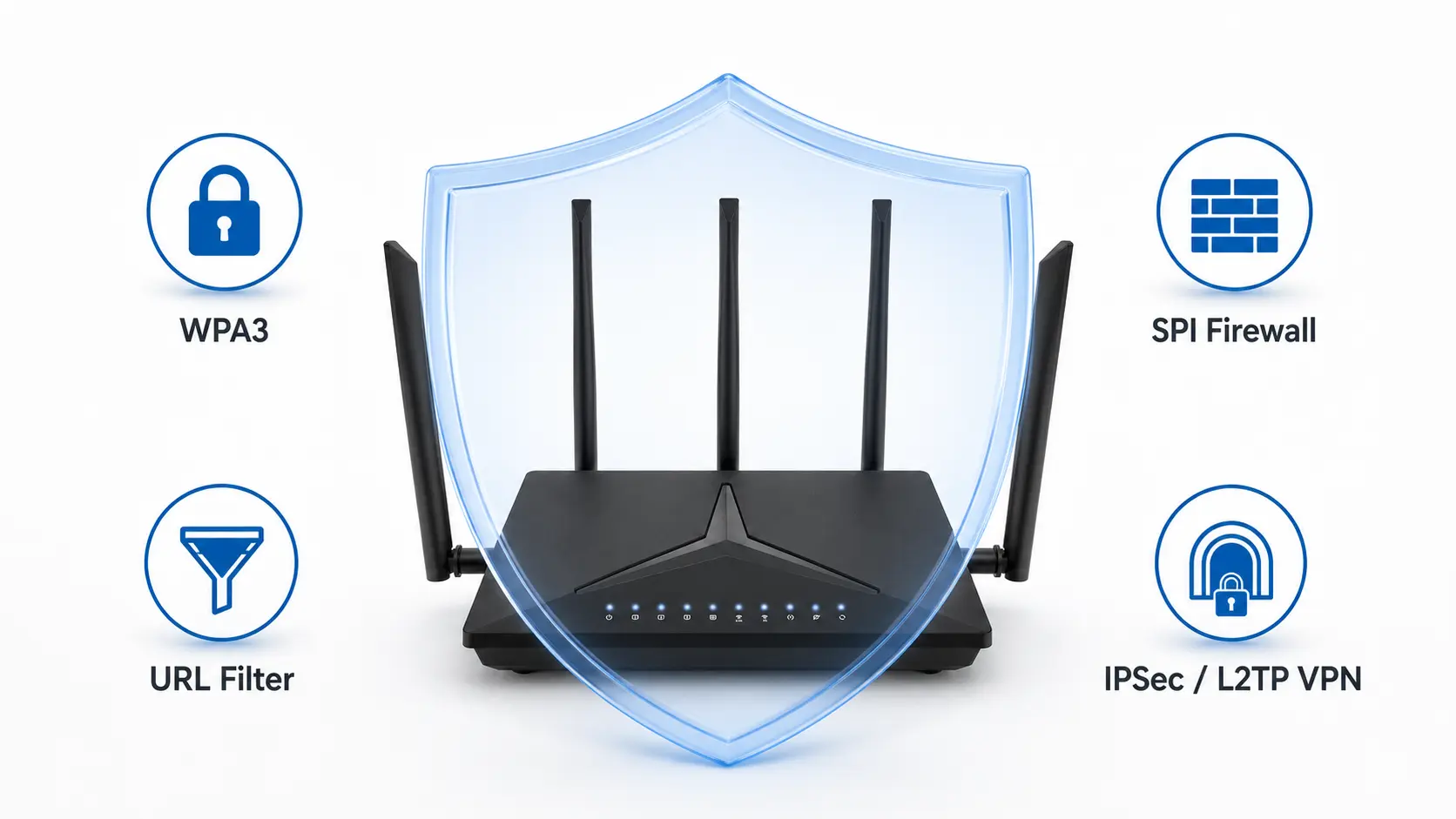

- WPA3/SAE security, SPI firewall, DoS protection, IP/Port/MAC and URL filtering
- IPSec, PPTP, L2TP, and GRE VPN support for remote work and site-to-site links
- IPv4/IPv6 dual stack with 6RD, plus IGMP proxy and MLD for IPTV services
- QoS flow control, DMZ and port forwarding, DDNS, and scheduled automatic restart
The WR30X C1 is a dual-band Wi-Fi 6 AX3000 router built on the MediaTek MT7981B dual-core 1.3GHz platform with 256MB DDR3L and 128MB SPI NAND flash. Five 6dBi external high-gain antennas — two on 2.4GHz and three on 5GHz — push 574Mbps + 2402Mbps dual-band coverage through walls and floors, while standards-based EasyMesh, WPA3 security, full VPN support, and TR-069 with FOTA make it a versatile, cost-effective Wi-Fi 6 gateway for both retail distribution and managed ISP deployment.
Ideal For
- Homes and small offices needing strong multi-room Wi-Fi 6 coverage on a budget
- ISPs and operators deploying TR-069-managed Wi-Fi 6 CPE at scale
- Triple-play subscriber packages requiring IPTV multicast and IPv6 support
- EasyMesh whole-home deployments mixing compatible nodes
- Distributors and system integrators sourcing white-label Wi-Fi 6 routers
Coverage-First Antenna Design
Where most AX3000 routers in this class ship four 5dBi antennas, the WR30X C1 carries five 6dBi high-gain antennas with three dedicated to the 5GHz radio. The extra gain and the third 5GHz antenna improve signal margin at range, keeping HE160 rates usable further from the router before clients fall back to slower modes. Band steering automatically moves capable clients onto 5GHz, and 802.11k/v/r fast roaming hands devices off cleanly in EasyMesh multi-node setups — no vendor lock-in on the expansion units.
ISP-Ready Management

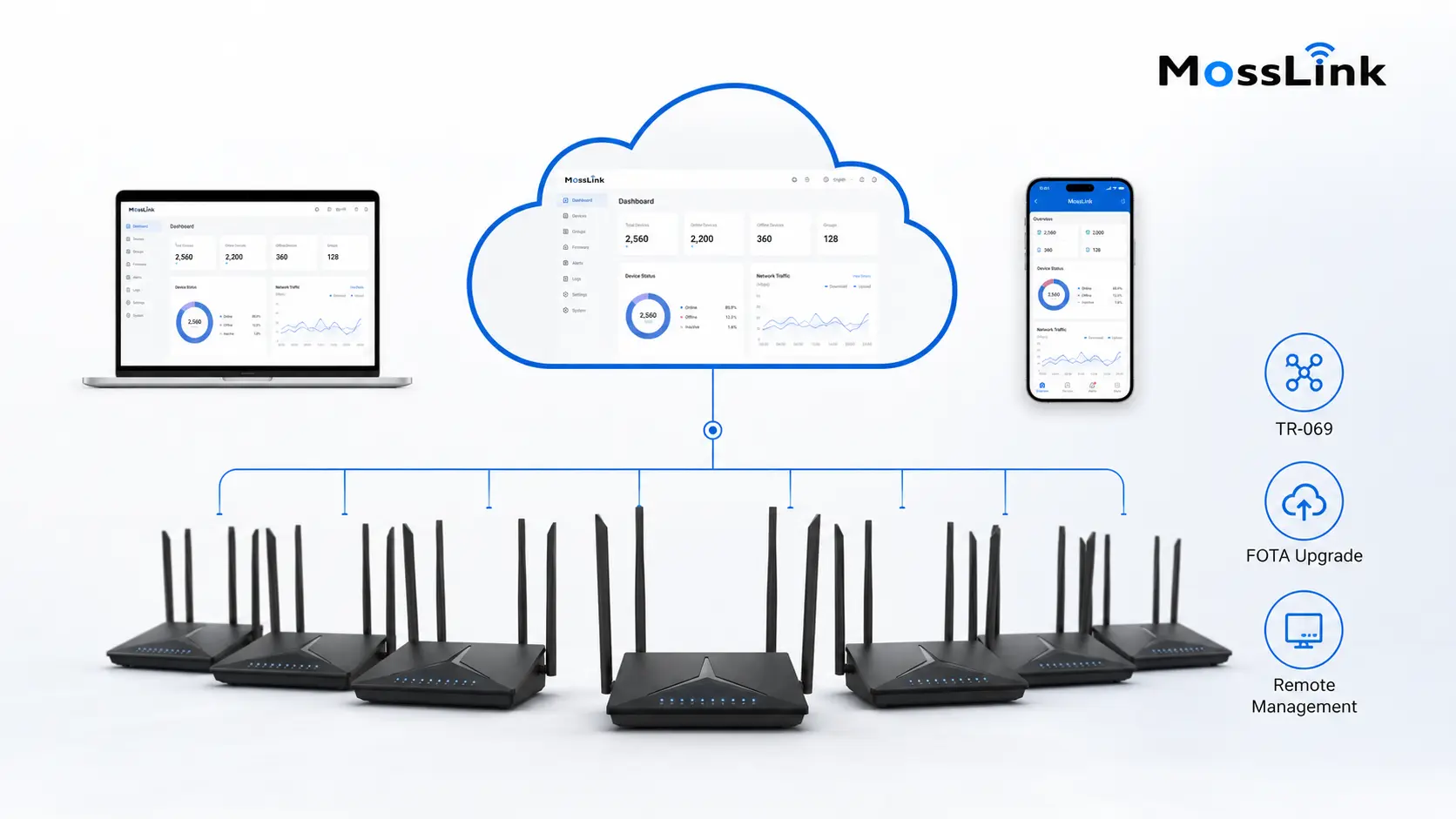

The WR30X C1 supports TR-069 remote management and FOTA firmware upgrades, letting operators provision, monitor, and update devices across the subscriber base without truck rolls. WAN provisioning covers Static, IPoE, and PPPoE connection types plus an IPoE bridge mode, and the firmware handles IPv4/IPv6 dual stack with 6RD transition. IGMP proxy and MLD carry multicast IPTV cleanly for triple-play packages. See our ISP CPE solution for how MossLink routers fit into subscriber network rollouts.
Deployment Advantages
The MediaTek MT7981B (Filogic-class) platform is a proven, widely deployed Wi-Fi 6 SoC with mature drivers and stable thermals in a compact 197 × 135 × 42 mm chassis. WPA3/SAE encryption, an SPI firewall with DoS protection, IP/Port/MAC filtering, and URL-based parental controls cover home and small-business security needs, while IPSec, PPTP, L2TP, and GRE VPN connect remote workers and branch sites. QoS flow control, DMZ and port forwarding, DDNS, and scheduled automatic restart round out the toolset.
For projects that need a quad-core carrier-spec platform with 8 SSIDs per radio and extended TR-069 data models, see the WR30X B1 Broadcom variant; for more RAM and six antennas on the same MediaTek family, compare the WR3000K and the surge-protected WR3005K.
OEM/ODM Ready
MossLink offers OEM and ODM customization for the WR30X C1, including custom firmware features, ISP-specific UI branding, TR-069 ACS integration, enclosure silkscreen, and private-label packaging. Volume pricing is available for ISPs, telecom operators, and distributors. Contact us to discuss your project requirements.
Specifications
| Standard | Wi-Fi 6 (802.11ax) |
| Band | Dual-Band (2.4GHz + 5.8GHz) |
| Max Speed | AX3000 (574 + 2402 Mbps) |
| Chipset | MediaTek MT7981B + MT7976C + MT7531AE |
| CPU | Dual-Core 1.3GHz |
| Memory | 256MB DDR3L / 128MB SPI NAND Flash |
| Antenna | 5× 6dBi External (2× 2.4G + 3× 5G) |
| Ethernet | 1× GbE WAN + 3× GbE LAN |
| Channel Width | Up to 160MHz (HE160, 2402Mbps @ 5GHz) |
| Wireless Tech | 1024-QAM · Band Steering · WMM · 802.11k/v/r |
| Mesh | EasyMesh |
| SSID | 2 SSIDs per radio, separate authentication |
| Security | WPA3/SAE, SPI Firewall, DoS Protection, IP/Port/MAC/URL Filtering |
| VPN | IPSec / PPTP / L2TP / GRE |
| IPv6 | IPv4/IPv6 Dual Stack, 6RD, MLD |
| IPTV | IGMP Proxy |
| Management | Web GUI, TR-069, FOTA, Telnet/SSH, UPnP |
| Buttons | Power, WPS, Reset |
| Dimensions | 197 × 135 × 42 mm |
| Operating Temp | 0°C ~ +40°C |
| Humidity | 5% ~ 95% (typical) |
| Power | DC 12V / 1A |
Ordering & Customization
The WR30X-C1 ships factory-direct from Shenzhen with full OEM/ODM support. Three customization levels are available depending on your order quantity:
Logo & Packaging (OEM)
From 100 units- Your logo on the enclosure
- Branded box, labels & user manual
- Zero MossLink branding on final product
Custom Firmware (Software)
From 500 units- Custom web UI & boot screen
- Default configuration & feature tuning
- Regional and regulatory presets
Custom Hardware (ODM)
From 1,000 units- Enclosure & antenna modifications
- Port and power-budget variations
- PCB-level customization
Learn more about our OEM/ODM process →
- Standard MOQ
- 100 units for standard products with no customization
- Samples
- 1–5 evaluation units at product cost plus shipping — sample fee credited toward your first bulk order
- Lead Time
- In-stock products: 3–5 business days · bulk production: 3–4 weeks · OEM/ODM orders: 4–8 weeks
- Payment Terms
- 30% deposit, 70% balance before shipment · T/T and L/C accepted, in USD
- Shipping
- DHL / FedEx / UPS express, air and sea freight · DDP, FOB Shenzhen, or CIF terms
- Packaging
- Each unit individually boxed with protective foam; palletized export cartons for freight — carton specs available on request
- Quality Control
- 100% inspection and 24-hour burn-in testing; a signed QC report ships with every order
- Certifications
- CE, FCC, and RoHS standard · additional market certifications (IC, TELEC, NCC, etc.) available via ODM
Downloads
Frequently Asked Questions
What is the difference between the WR30X C1 and WR30X B1?
Both are AX3000 Wi-Fi 6 routers sharing the same firmware feature set — EasyMesh, WPA3, full VPN, IPTV multicast, and TR-069 with FOTA. The C1 uses the MediaTek MT7981B dual-core 1.3GHz platform with five 6dBi external antennas in a compact 197 × 135 mm chassis, making it the cost-optimized, coverage-focused variant. The B1 uses the Broadcom BCM6756 quad-core 1.7GHz platform with four 5dBi antennas, supports 8 SSIDs per radio, and adds extended TR-069 data models (TR-181/104/140/143/157) plus mobile APP management for carrier-managed fleets.
Does the WR30X C1 support Mesh networking?
Yes. The WR30X C1 implements standards-based EasyMesh rather than a proprietary mesh protocol, so it can form a unified whole-home network with other EasyMesh-compatible nodes under a single SSID. 802.11k/v/r fast roaming and band steering keep client devices on the best node and band as they move through the premises.
How is the WR30X C1 managed in ISP deployments?
The WR30X C1 supports TR-069 remote management and FOTA firmware upgrades, so ISPs can provision, monitor, and update subscriber devices without on-site visits. WAN provisioning covers Static, IPoE, and PPPoE connection types plus an IPoE bridge mode, and end users manage the router locally through the web GUI, with telnet/SSH command-line access available for diagnostics.
How fast is the WR30X C1 in real use?
The 5GHz radio delivers up to 2402Mbps with HE160 (160MHz) channel width and 1024-QAM, while 2.4GHz adds up to 574Mbps — an AX3000-class combined rate. Three dedicated 6dBi antennas on 5GHz and two on 2.4GHz keep signal strong through walls and floors, and the MediaTek MT7981B platform handles multi-device streaming, gaming, and file transfers smoothly.
Does the WR30X C1 support VPN and IPTV?
Yes. It supports IPSec, PPTP, L2TP, and GRE VPN for remote work and site-to-site connectivity, and IGMP proxy plus MLD for multicast IPTV services — a common requirement for telecom and ISP triple-play packages. IPv4/IPv6 dual stack with 6RD transition is included.
Is OEM/ODM customization available for this product?
Yes. MossLink offers full OEM and ODM services for the WR30X C1, including custom firmware features, ISP UI branding, TR-069 ACS integration, enclosure silkscreen, and private-label packaging. Minimum order quantities apply. Contact us to discuss your project requirements.
What is the MOQ for the WR30X-C1?
Standard WR30X-C1 orders start at 100 units. Logo and packaging customization (OEM) also starts at 100 units, custom firmware at 500 units, and custom hardware (ODM) at 1,000 units. Contact sales with your target quantity for a formal quotation.
Can I get a sample of the WR30X-C1 before bulk ordering?
Yes. We supply 1–5 evaluation units at product cost plus shipping, and the sample fee is credited toward your first bulk order. Contact us via email or WhatsApp with the model number to arrange a sample.
What is the lead time for the WR30X-C1?
In-stock units ship within 3–5 business days. Bulk production orders typically require 3–4 weeks, and OEM/ODM orders with customization take 4–8 weeks depending on complexity. Rush production is available at additional cost.
Is the WR30X-C1 certified for my market?
The WR30X-C1 carries CE, FCC, and RoHS certification as standard. Additional certifications for specific markets (IC, TELEC, NCC, etc.) can be arranged through our ODM service.
How is product quality controlled before shipment?
Every unit undergoes 100% inspection and 24-hour burn-in testing before leaving the factory, and a signed QC report ships with every order — full traceability from component to delivery.
What payment terms do you accept?
Standard terms are a 30% deposit with order confirmation and the 70% balance before shipment, paid in USD via T/T. Letter of credit and flexible terms are available for established partners.
