APH6-AX5400 Wi-Fi 6 Outdoor AP, 5400Mbps, SFP Port

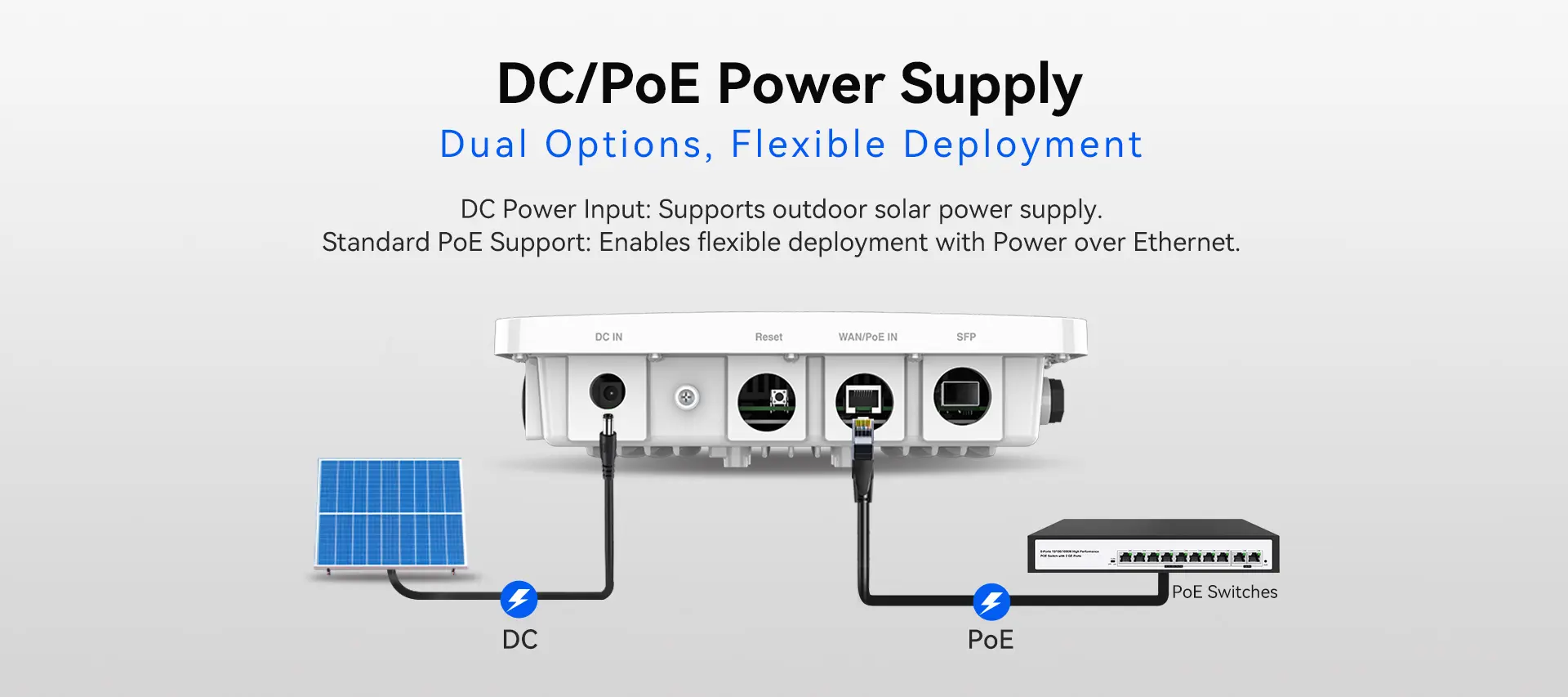

The APH6-AX5400 is a high-speed dual-band Wi-Fi 6 outdoor access point delivering up to 5400Mbps combined throughput. Built with a durable metal housing, an integrated Gigabit SFP port for fiber backhaul, and Gigabit PoE support, it is designed for enterprise, industrial, and large-venue outdoor deployments that demand both speed and long-term reliability.

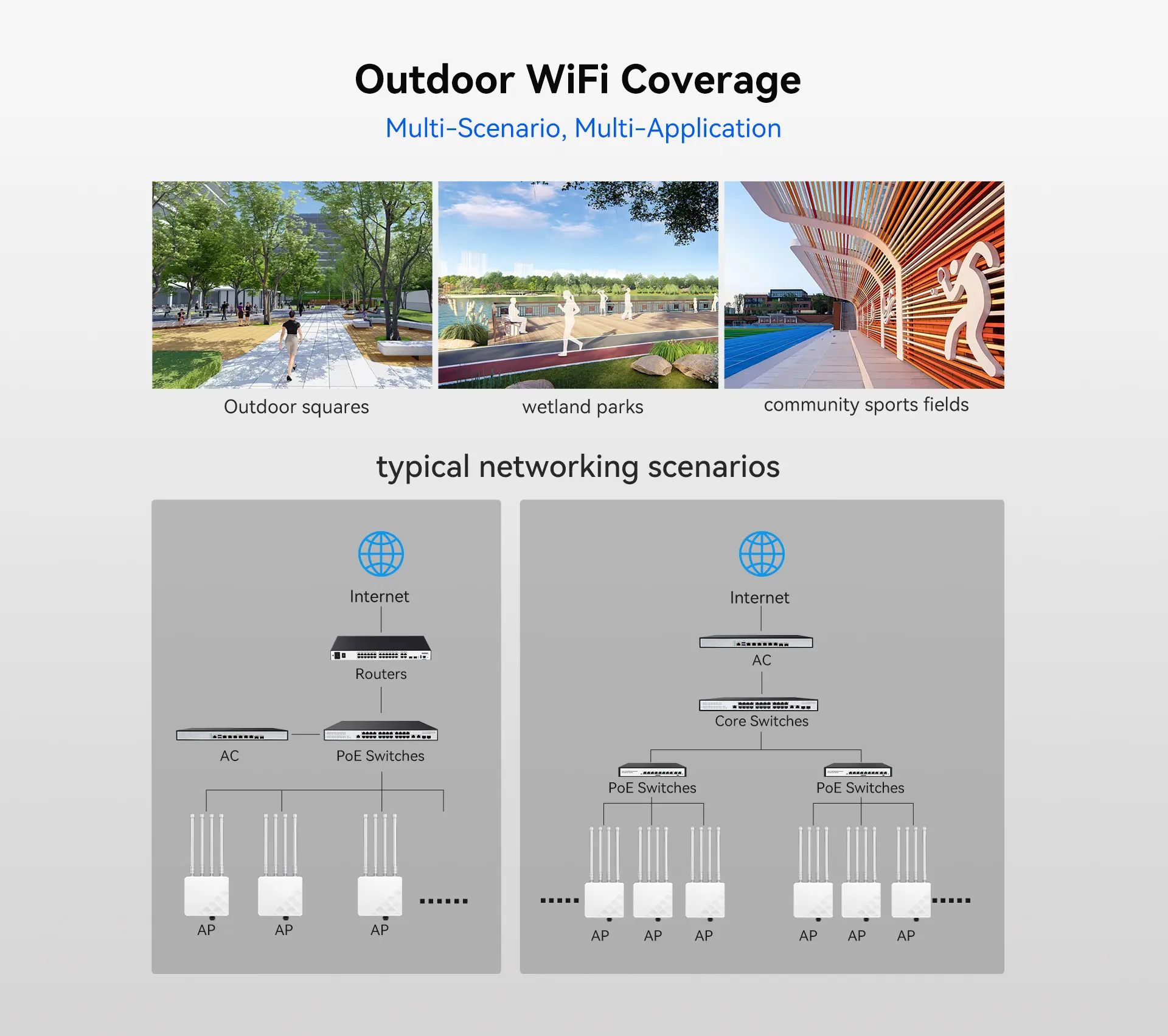

Ideal For

• Enterprise outdoor campuses and corporate facility networks
• Factories, farms, and industrial site wireless coverage
• Large outdoor venues, stadiums, and events
• ISP outdoor hotspot deployments requiring fiber backhaul
• Resorts, golf courses, and large hospitality properties

Deployment Advantages

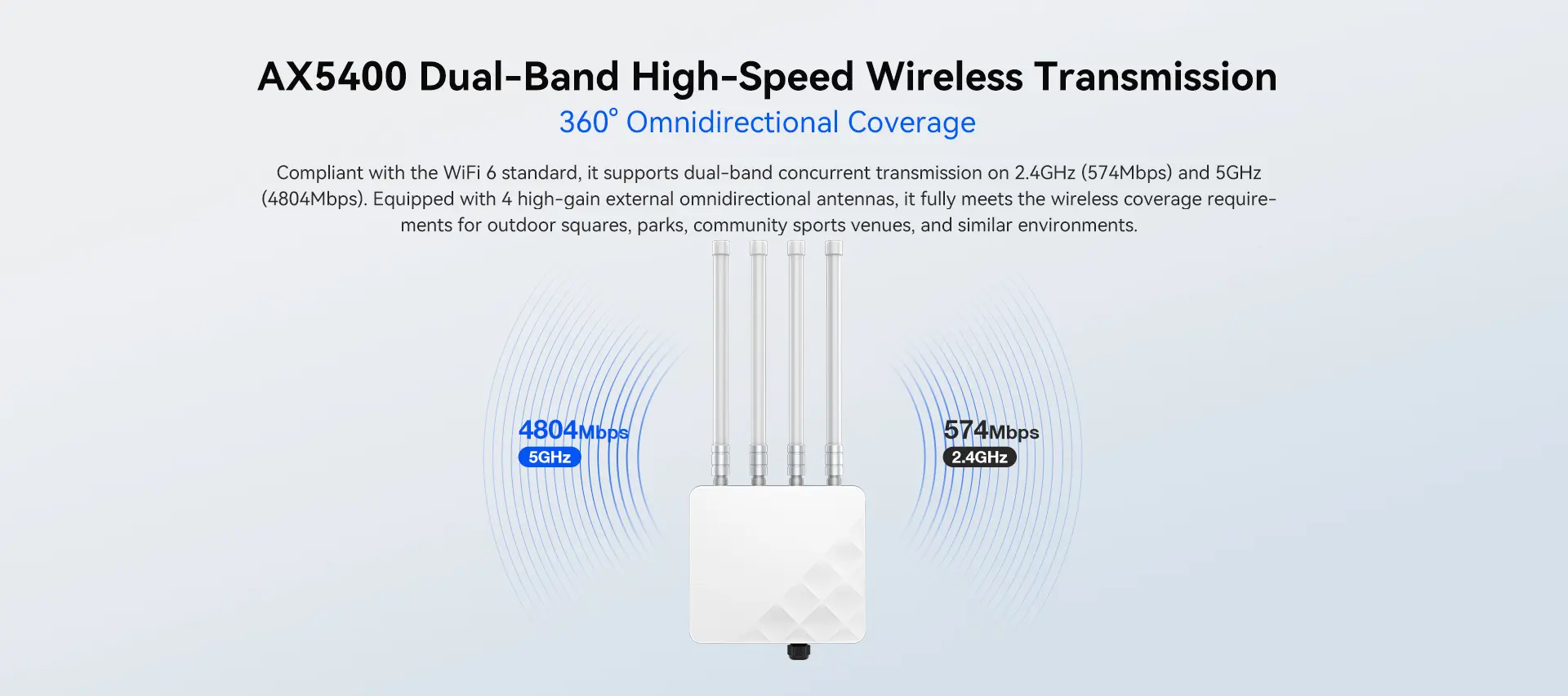

The AX5400 class Wi-Fi 6 chipset provides a significant throughput advantage over standard AX3000 outdoor APs, making it the right choice for high-bandwidth scenarios such as HD video distribution, large concurrent device loads, or enterprise backhaul links. The Gigabit SFP port provides direct fiber integration, eliminating copper distance limitations in long-reach deployments.

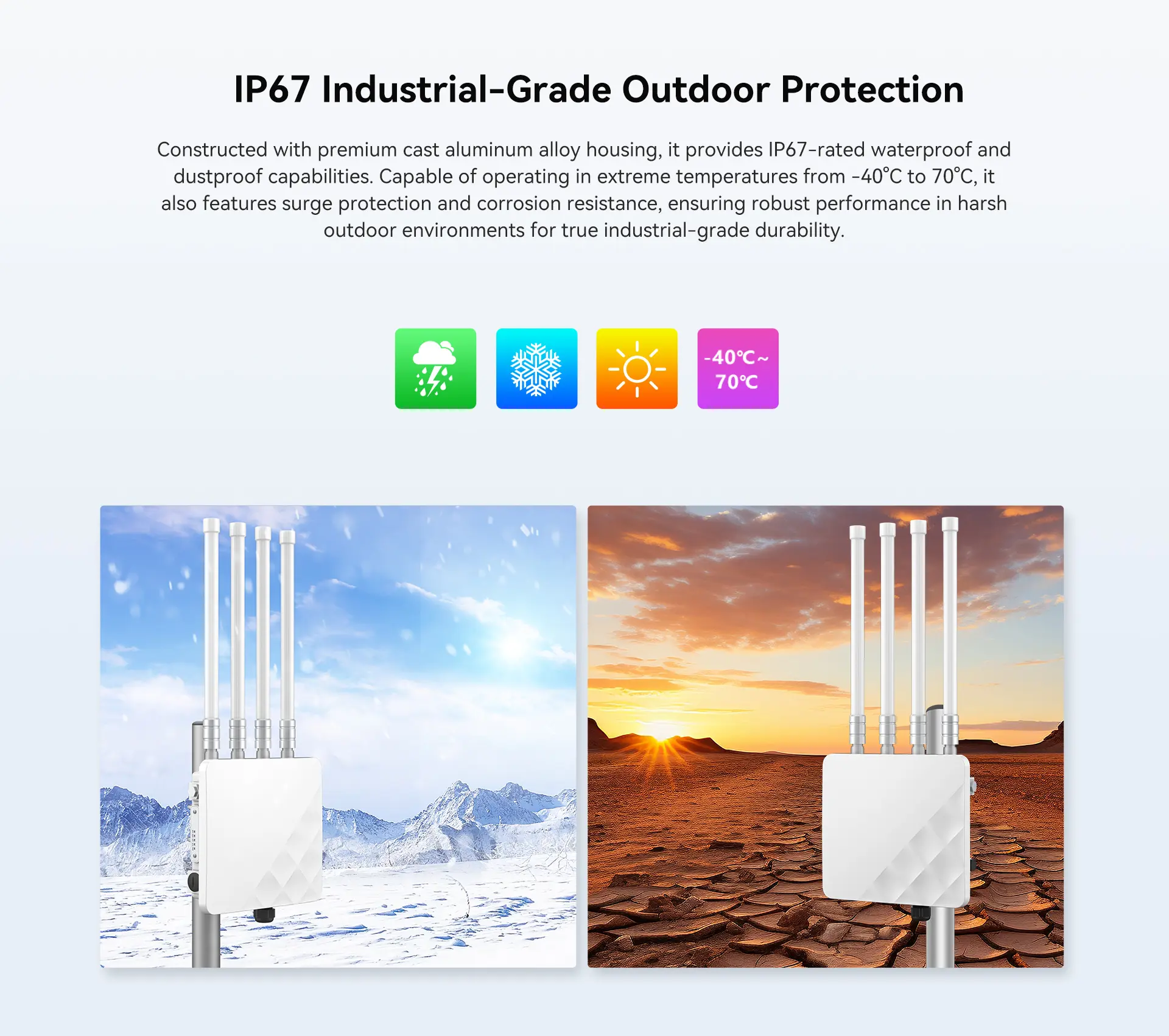

The metal housing offers superior structural durability compared to plastic enclosures, extending the device lifespan in harsh industrial or coastal environments. Combined with IP67 sealing, a -40°C to +70°C operating range, and PoE support, installation is straightforward across a wide range of mounting scenarios.

Optional 10dBi High-Gain Antenna

The four external antennas are detachable N-type, which makes antenna gain a specifiable option rather than a fixed property of the AP. For sites where one mast has to cover a large open area, the standard elements can be replaced with the ANT-O2458-10 dual-band MIMO omni: a single 850mm radome (Φ75mm, 2.1kg) with four ports — two for 2.4GHz, two for 5GHz — connected to the AP by 0.5m N-male jumper cables included in the kit. Coverage spans 2400–2500MHz and 5150–5850MHz at 10dBi per band, with VSWR ≤1.5, 100W power handling, 140km/h wind rating, and -40°C to +65°C operation.

Pairing the high-gain antenna with the AX5400 radio is aimed at a specific case: a large open venue that needs both reach and throughput — resort grounds, golf courses, stadium concourses, marinas, industrial yards, and event sites where a fiber-fed mast serves hundreds of clients spread across the property.

The gain is not free. A 10dBi omni radiates 360° horizontally but compresses the vertical pattern to roughly 6°, concentrating energy into a flat disc. Clients far out on the same plane benefit; clients directly beneath a tall mast or on upper floors of nearby buildings may see weaker signal than with the stock antennas, so multi-storey and short-radius high-density sites are better served by the standard configuration. Higher antenna gain also increases effective radiated power, and installations must remain within the EIRP limits of the destination market (CE, FCC, or local equivalent), typically by trimming AP transmit power.

The ANT-O2458-10 is configured and quoted together with the AP — with a new order or as a service part for an existing MossLink deployment — and is not offered as a standalone retail item. Share your site dimensions, mast height, and target market with us and we will confirm the configuration to quote.

OEM/ODM Ready

MossLink offers OEM and ODM customization for this product, including custom firmware, SFP module pairing, metal enclosure branding, and private-label packaging. Volume pricing is available for system integrators, ISPs, and resellers. Contact us to discuss your project requirements.
