ANT-O2458-10 Dual-Band 10dBi MIMO Omni Antenna
ANT-O2458-10
MOQ 100 units Lead time 3–4 weeks Samples 1–5 units 2 Years warranty
Type Dual-Band MIMO Omnidirectional Antenna
Frequency 2400–2500MHz / 5150–5850MHz
Gain 10dBi (both bands)
Ports 4 × N-Female (2 × 2.4GHz + 2 × 5GHz)
Jumper Cables 4 × 0.5m N-Male (included)
Overview
- Dual-band 10dBi gain on both 2.4GHz and 5GHz — one antenna covers both radios
- Four N-female ports (2 × 2.4GHz + 2 × 5GHz) for full 4×4 MIMO operation
- Four 0.5m N-male jumper cables supplied — direct swap for stock AP antennas
- 360° horizontal coverage with a 6° vertical pattern for long outdoor reach
- VSWR ≤1.5 and 100W power handling across the full band range
- 140km/h wind rating and -40°C to +65°C operating range for exposed masts
- DC-ground lightning protection on all elements
- Pole clamps, U-bolts, wall bracket and waterproof glands included

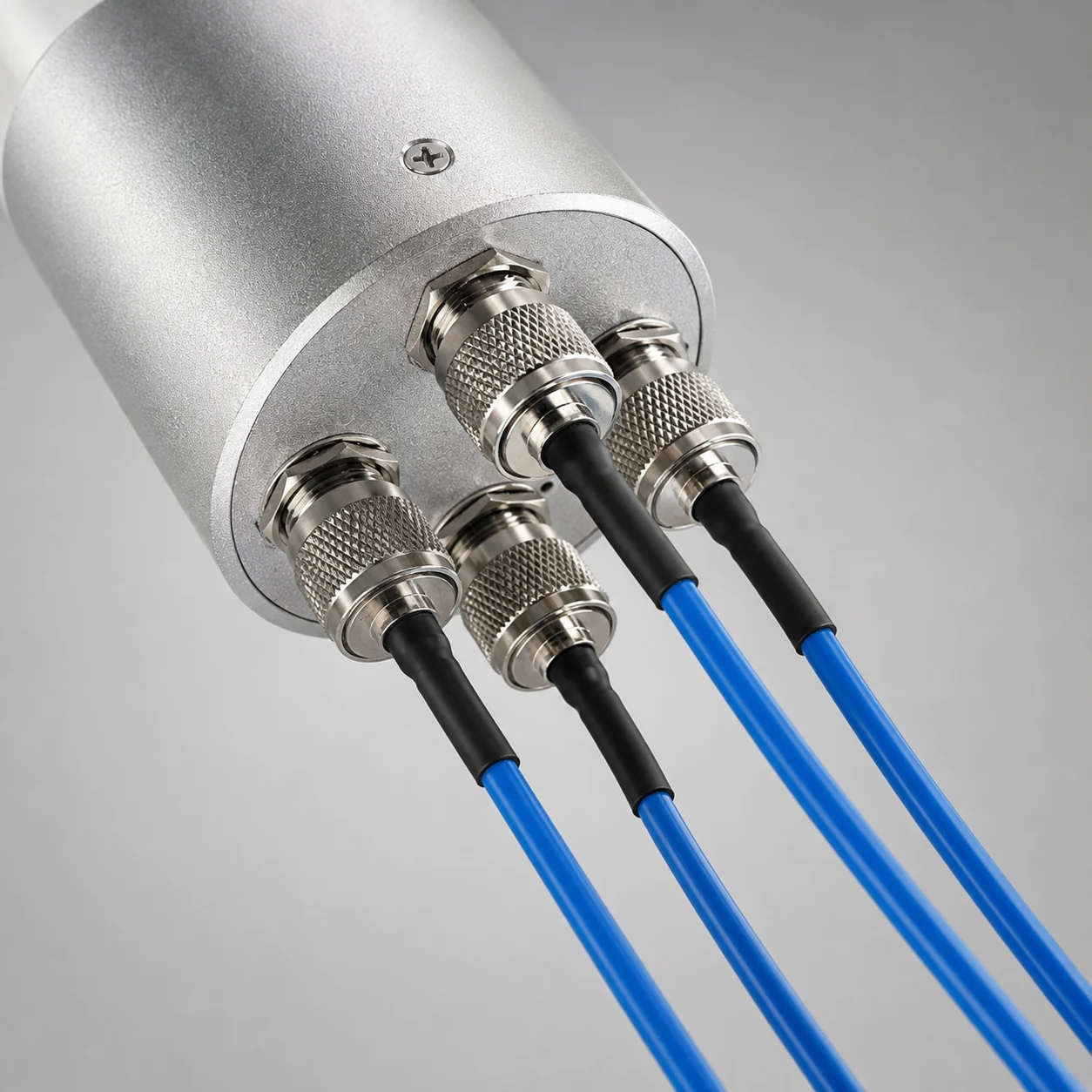

The ANT-O2458-10 is a dual-band 10dBi MIMO omnidirectional antenna for MossLink APH6 series outdoor access points. A single 850mm radome houses four elements — two for 2.4GHz, two for 5GHz — terminated in four N-female ports and connected to the AP with the four 0.5m N-male jumper cables supplied in the kit. It replaces the AP’s stock 6dBi antennas without any change to the access point itself.
What It Changes
The reason to fit a high-gain omni is not simply “more signal”. It is a change in the shape of coverage.

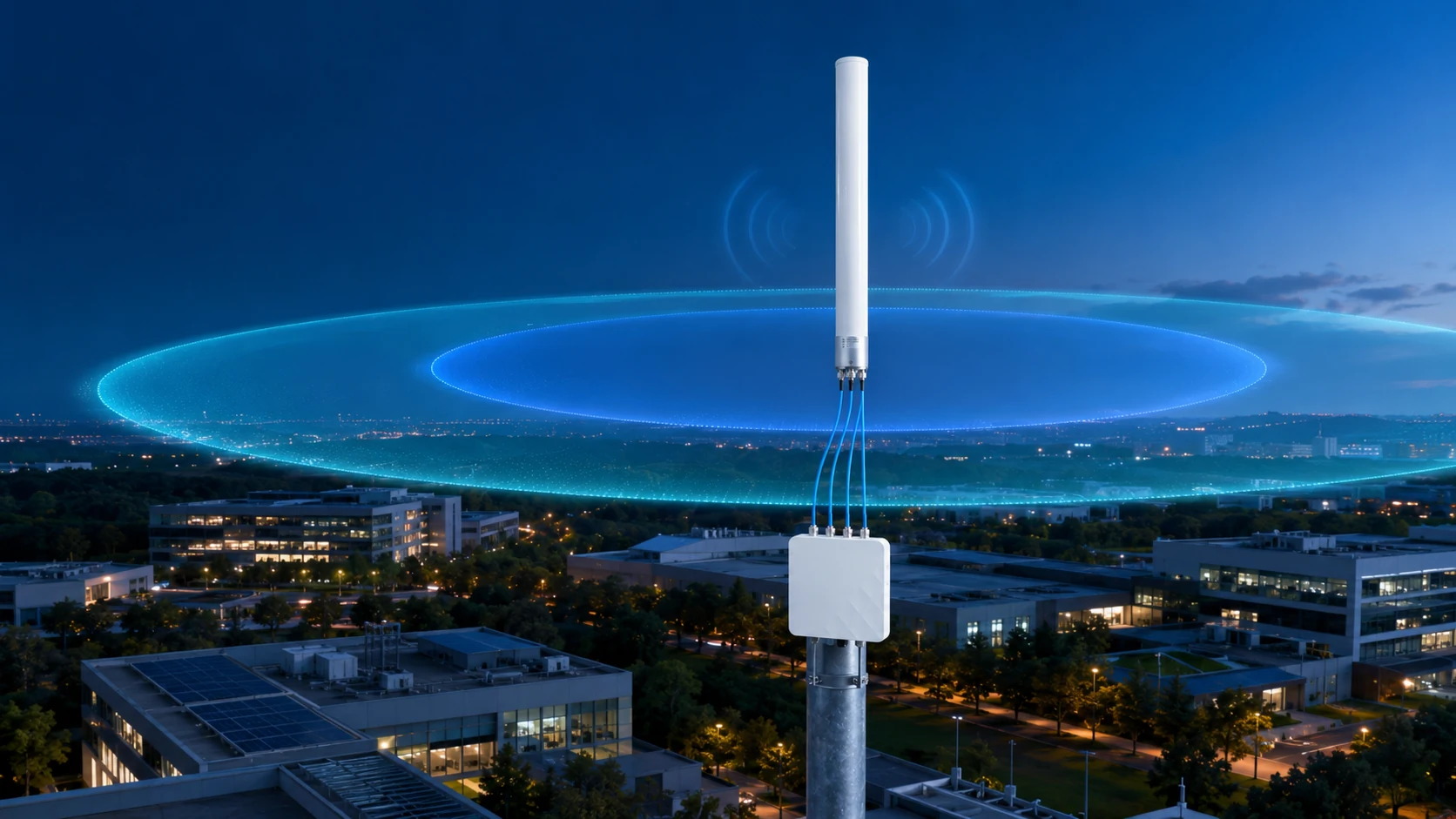

Stock 6dBi antennas radiate over a wide vertical angle: signal spreads outward and downward, keeping clients near the mast well served but limiting how far coverage travels. The ANT-O2458-10 takes the same transmit power and compresses it into a 6° vertical pattern across a full 360° horizontally — a flat disc rather than a sphere. Clients spread across open ground at roughly the antenna’s height gain substantially; clients directly beneath a tall mast can end up in a weaker zone than they were before.
That trade-off decides whether this antenna belongs on your site.
Right Fit
- Farms, ranches, and agricultural yards covered from a single mast
- Marinas, docks, and waterfront sites
- Campsites, RV parks, and outdoor event grounds
- Logistics yards, container storage, and construction sites
- Open-air parking and large industrial compounds
Wrong Fit
- Multi-storey buildings close to the mast, where clients sit well above or below the antenna
- Steeply sloping terrain that puts clients outside the vertical pattern
- Short-radius, high-density coverage where a wide vertical spread serves better
In these cases the stock antennas outperform the 10dBi option despite the lower gain number. Fitting a high-gain omni to the wrong site produces worse coverage, not better.
Regulatory Note
Raising antenna gain raises effective radiated power. Installations must remain within the EIRP limits of the destination market — CE, FCC, or the local equivalent — which usually means reducing the access point’s transmit power to compensate. MossLink can advise on the configuration for a given market, but compliance at the installation site remains the installer’s responsibility.
Build and Mounting
The antenna is rated for exposed mast installation: 140km/h wind loading, -40°C to +65°C operating range, and DC-ground lightning protection on all elements, matching the environmental class of the APH6 access points it pairs with. Pole clamps, U-bolts, a wall bracket, waterproof cable glands, and fixings are supplied, so the antenna and AP mount on the same mast without additional hardware.
Supply
The ANT-O2458-10 is quoted as a configured option with APH6-AX3000 or APH6-AX5400 access points, or as a service part for an existing MossLink installation — it is not sold as a standalone retail item. OEM and ODM options include radome colour, jumper cable lengths, connector variants, and private-label packaging bundled with the APs. Send us your site dimensions, mast height, and target market and we will confirm whether the high-gain option suits the deployment before quoting.
Specifications
| Type | Dual-Band MIMO Omnidirectional Antenna |
| Frequency | 2400–2500MHz / 5150–5850MHz |
| Gain | 10dBi (both bands) |
| Ports | 4 × N-Female (2 × 2.4GHz + 2 × 5GHz) |
| Jumper Cables | 4 × 0.5m N-Male (included) |
| VSWR | ≤ 1.5 |
| Impedance | 50Ω |
| Polarization | Horizontal + Vertical |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 6° (3dB) |
| Max Input Power | 100W |
| Dimensions | Φ75 × 850 mm |
| Weight | 2.1 kg |
| Wind Loading | 140 km/h |
| Lightning Protection | DC Ground |
| Mounting | Pole Mount (clamps and wall bracket included) |
| Operating Temperature | -40°C ~ +65°C |
| Compatibility | MossLink APH6 series access points (4 × detachable N-type) |
Ordering & Customization
The ANT-O2458-10 ships factory-direct from Shenzhen with full OEM/ODM support. Three customization levels are available depending on your order quantity:
Logo & Packaging (OEM)
From 100 units- Your logo on the enclosure
- Branded box, labels & user manual
- Zero MossLink branding on final product
Custom Firmware (Software)
From 500 units- Custom web UI & boot screen
- Default configuration & feature tuning
- Regional and regulatory presets
Custom Hardware (ODM)
From 1,000 units- Enclosure & antenna modifications
- Port and power-budget variations
- PCB-level customization
Learn more about our OEM/ODM process →
- Standard MOQ
- 100 units for standard products with no customization
- Samples
- 1–5 evaluation units at product cost plus shipping — sample fee credited toward your first bulk order
- Lead Time
- In-stock products: 3–5 business days · bulk production: 3–4 weeks · OEM/ODM orders: 4–8 weeks
- Payment Terms
- 30% deposit, 70% balance before shipment · T/T and L/C accepted, in USD
- Shipping
- DHL / FedEx / UPS express, air and sea freight · DDP, FOB Shenzhen, or CIF terms
- Packaging
- Each unit individually boxed with protective foam; palletized export cartons for freight — carton specs available on request
- Quality Control
- 100% inspection and 24-hour burn-in testing; a signed QC report ships with every order
- Certifications
- CE, FCC, and RoHS standard · additional market certifications (IC, TELEC, NCC, etc.) available via ODM
Frequently Asked Questions
Which MossLink access points does the ANT-O2458-10 work with?
It is designed for the APH6 series outdoor access points — the [APH6-AX3000](/access-points/aph6-ax3000/) and [APH6-AX5400](/access-points/aph6-ax5400/) — which carry four detachable N-type antenna connectors. The antenna's four N-female ports map one-to-one onto the AP's four connectors using the supplied 0.5m N-male jumper cables, so the swap needs no adapters and no change to the AP itself.
How much extra coverage does 10dBi give over the stock 6dBi antennas?
The gain difference is 4dB per band, which extends usable range meaningfully on open ground — but the honest answer is that it depends on mast height, terrain, and client device sensitivity, so we do not publish a single distance figure. What matters more is the change in coverage shape: a 10dBi omni radiates 360° horizontally within a 6° vertical pattern, pushing energy outward in a flat disc instead of spreading it in a sphere. Reach across open ground improves; coverage directly under a tall mast gets weaker.
When should I not use a high-gain omni antenna?
Avoid it where clients sit at sharply different heights than the antenna — multi-storey buildings near the mast, sites on steep terrain, or short-radius high-density areas where a wide vertical pattern serves better. In those cases the stock 6dBi antennas outperform the 10dBi option despite the lower gain figure. Higher gain also raises effective radiated power, so installers must keep total EIRP within the limits set by local regulations, typically by reducing AP transmit power.
Is the antenna sold separately?
The ANT-O2458-10 is configured and quoted together with APH6 access points, or supplied as a service part for an existing MossLink deployment. It is not offered as a standalone retail item. Tell us the site dimensions, mast height, and target market and we will quote the AP and antenna as one configuration.
Is OEM/ODM customization available?
Yes. MossLink supports OEM and ODM options for antenna accessories including radome colour, jumper cable lengths, connector variants, and private-label packaging bundled with APH6 access points. Minimum order quantities apply. Contact us to discuss your project requirements.
What is the MOQ for the ANT-O2458-10?
Standard ANT-O2458-10 orders start at 100 units. Logo and packaging customization (OEM) also starts at 100 units, custom firmware at 500 units, and custom hardware (ODM) at 1,000 units. Contact sales with your target quantity for a formal quotation.
Can I get a sample of the ANT-O2458-10 before bulk ordering?
Yes. We supply 1–5 evaluation units at product cost plus shipping, and the sample fee is credited toward your first bulk order. Contact us via email or WhatsApp with the model number to arrange a sample.
What is the lead time for the ANT-O2458-10?
In-stock units ship within 3–5 business days. Bulk production orders typically require 3–4 weeks, and OEM/ODM orders with customization take 4–8 weeks depending on complexity. Rush production is available at additional cost.
Is the ANT-O2458-10 certified for my market?
The ANT-O2458-10 carries CE, FCC, and RoHS certification as standard. Additional certifications for specific markets (IC, TELEC, NCC, etc.) can be arranged through our ODM service.
How is product quality controlled before shipment?
Every unit undergoes 100% inspection and 24-hour burn-in testing before leaving the factory, and a signed QC report ships with every order — full traceability from component to delivery.
What payment terms do you accept?
Standard terms are a 30% deposit with order confirmation and the 70% balance before shipment, paid in USD via T/T. Letter of credit and flexible terms are available for established partners.
