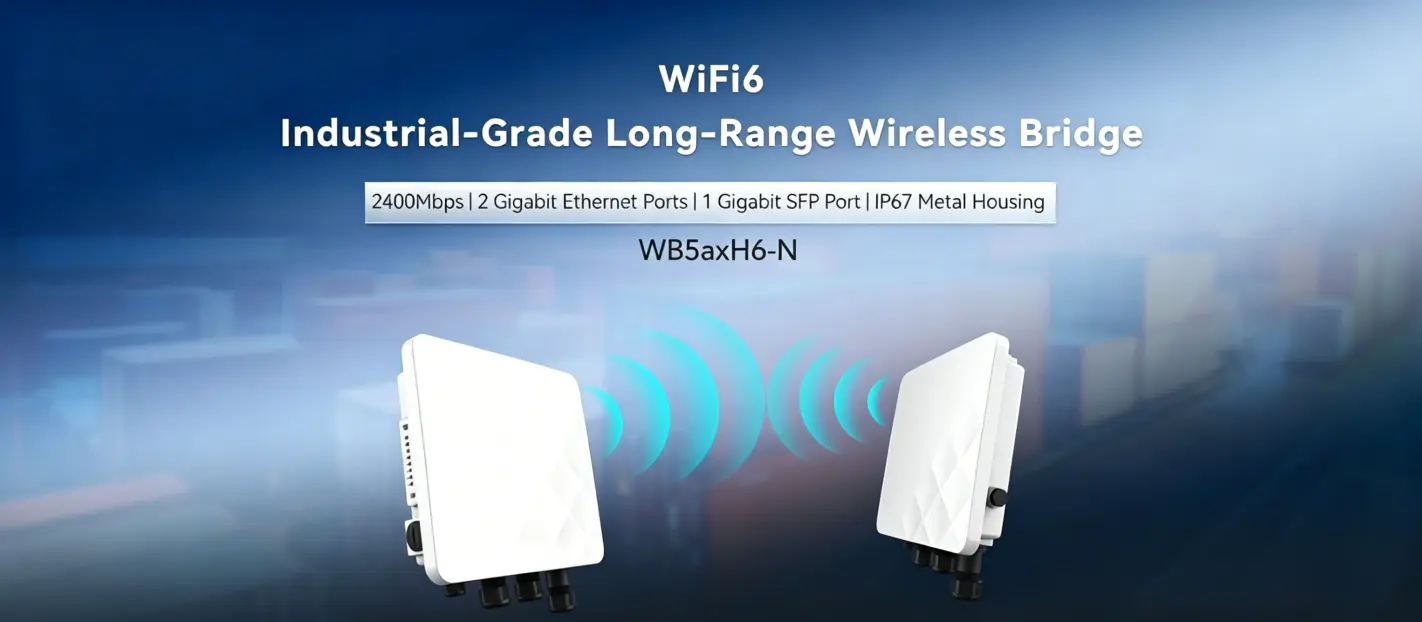

WB5axH6-35 Wi-Fi 6 Outdoor Bridge, 33dBi, 20KM, SFP
WB5AXH6-35
Type Outdoor Long-Range PtP Wireless Bridge
Standard Wi-Fi 6 (IEEE 802.11ax), 5GHz (5.150–5.850GHz)

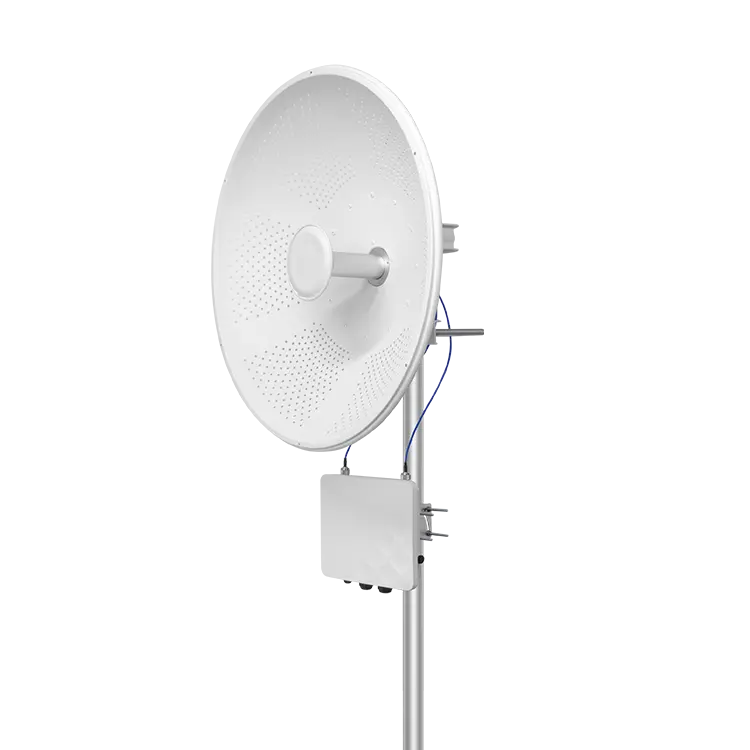

Antenna Built-in 33dBi Parabolic Dish

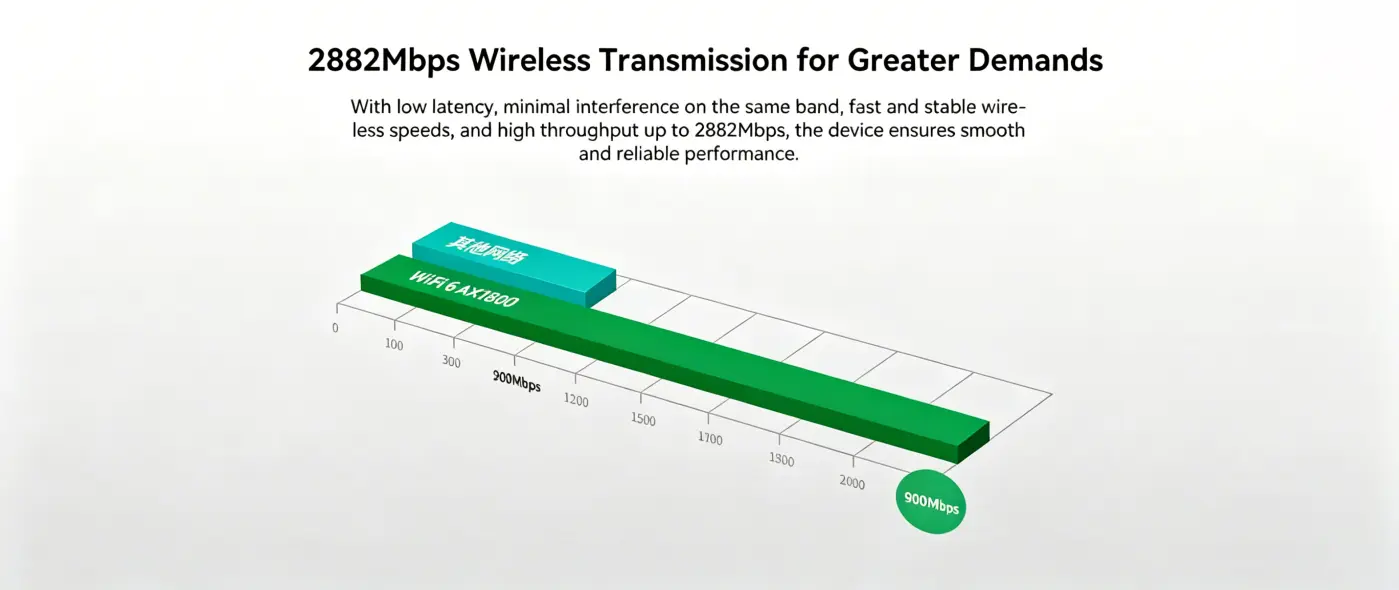

Max Speed 2402Mbps PHY, 900+ Mbps actual PTP
Range 20KM+ (LoS)
5 Years Warranty
Overview
- Wi-Fi 6 (802.11ax) with 2402Mbps PHY rate and 900+ Mbps actual PTP throughput

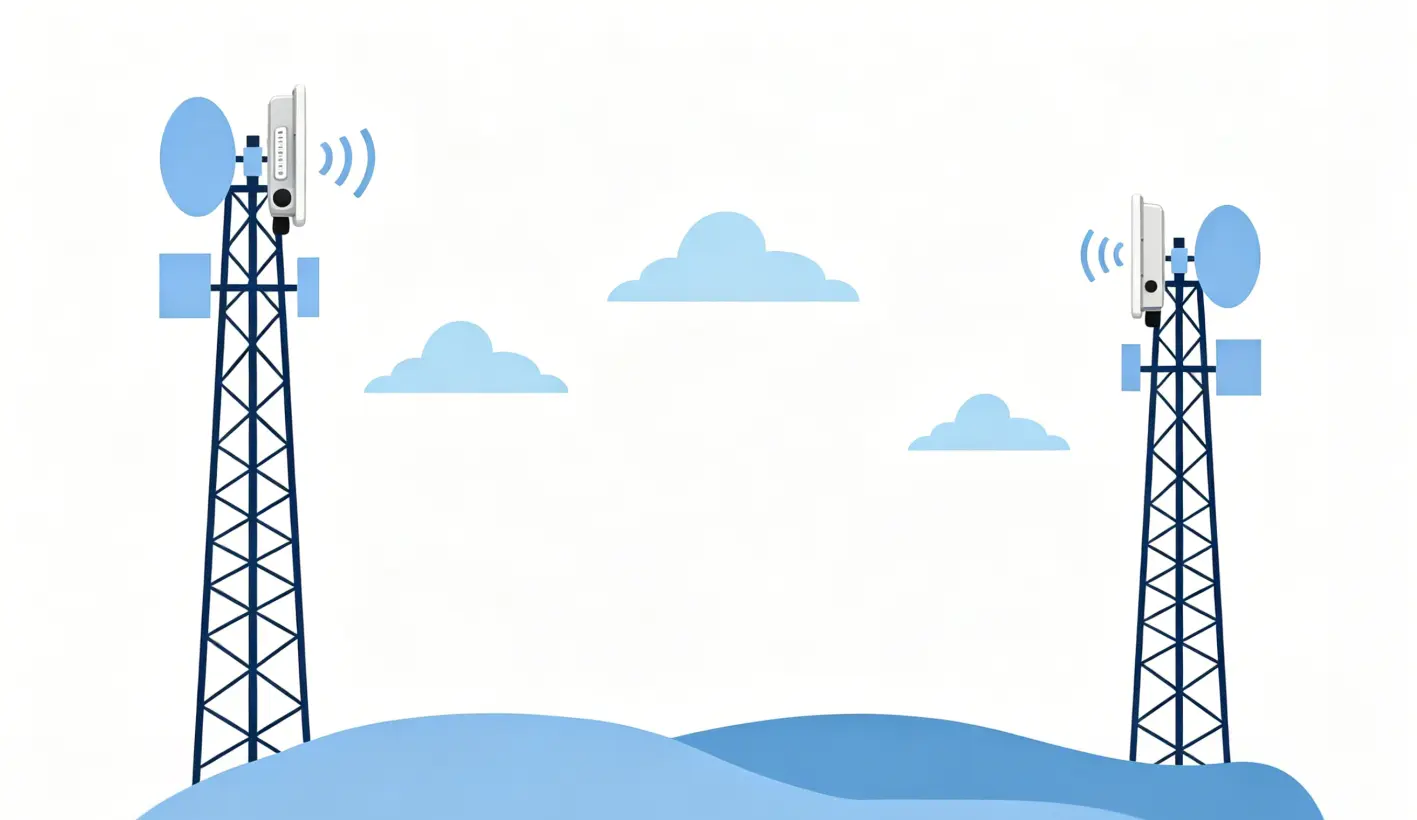

- Built-in 33dBi parabolic dish for 20KM+ ultra-long-range point-to-point links
- Gigabit SFP fiber port for hybrid copper+fiber backhaul network topologies
- IP67 metal enclosure rated -40°C to +70°C for extreme industrial environments
- TDMA intelligent polling, ATPC, and automatic channel selection
- VPN tunneling (IPSec/PPTP/L2TP) and VLAN transparent transmission
- Cloud, HTTP GUI, SSH, SNMP, QoS, and WNMS remote management
The WB5axH6-35 is a professional Wi-Fi 6 outdoor wireless bridge with a built-in 33dBi parabolic dish antenna for 20KM+ ultra-long-range point-to-point links. Delivering 2402Mbps PHY rate and 900+ Mbps actual throughput with TDMA intelligent polling, ATPC, Gigabit SFP fiber port, VPN tunneling, VLAN, and IP67 metal enclosure rated to -40°C to +70°C, it is engineered for WISP and ISP backhaul, surveillance data transmission, rural broadband, and industrial networking over the most demanding long-distance links.
Ideal For
- Ultra-long-range PtP backhaul links for WISPs, ISPs, and rural broadband providers
- High-definition IP camera and CCTV video transmission over 10–20KM+
- Mining, oilfield, mountain-to-valley, and remote facility broadband connectivity
- Secure site-to-site VPN backhaul links for industrial SCADA and enterprise networks
- Rural village and island broadband delivery requiring maximum link budget
Deployment Advantages
The 33dBi parabolic dish provides the highest gain in the WB5axH6 series, delivering superior link budget for the longest PtP distances where link margin is most critical. Wi-Fi 6’s OFDMA and MU-MIMO capabilities provide significantly higher actual throughput than 802.11ac platforms at equivalent antenna gain, enabling aggregation of multiple HD IP camera streams or high-bandwidth enterprise data links over a single PtP connection.
The Gigabit SFP port enables hybrid fiber+wireless topologies — connecting a fiber backbone at a tower to a wireless link reaching a remote building — without requiring a separate media converter. VPN support (IPSec/PPTP/L2TP) encrypts all traffic for secure industrial and enterprise deployments at -40°C to +70°C operating temperature extremes.
Application Scenarios

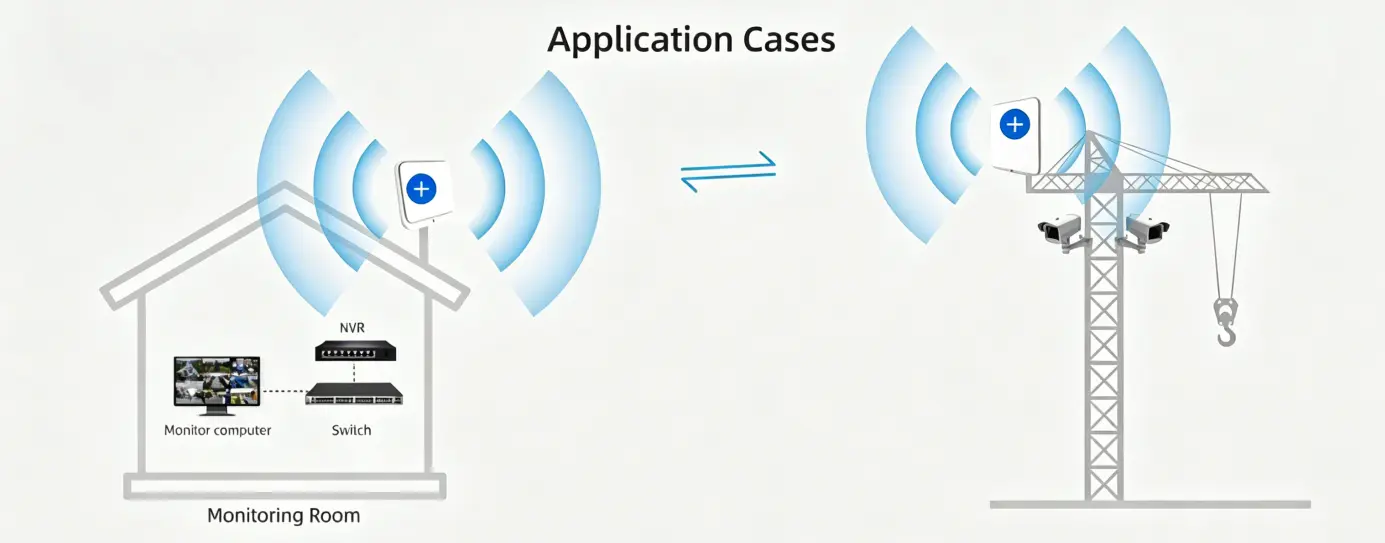

The WB5axH6-35 excels in real-world deployments such as remote surveillance monitoring, where a base station in the monitoring room connects wirelessly to cameras mounted on distant towers, cranes, or construction sites — eliminating the need for costly cable runs across challenging terrain.
OEM/ODM Ready
MossLink offers OEM and ODM customization for this product including custom firmware, enclosure branding, labels, and custom packaging. A fully white-labeled cloud platform is not a standard feature of this bridge; any cloud program must be separately scoped on an eligible platform. Volume pricing is available for WISPs, ISPs, industrial integrators, and wireless equipment distributors.
Specifications
| Type | Outdoor Long-Range PtP Wireless Bridge |
| Standard | Wi-Fi 6 (IEEE 802.11ax), 5GHz (5.150–5.850GHz) |
| Antenna | Built-in 33dBi Parabolic Dish |
| Max Speed | 2402Mbps PHY, 900+ Mbps actual PTP |
| Range | 20KM+ (LoS) |

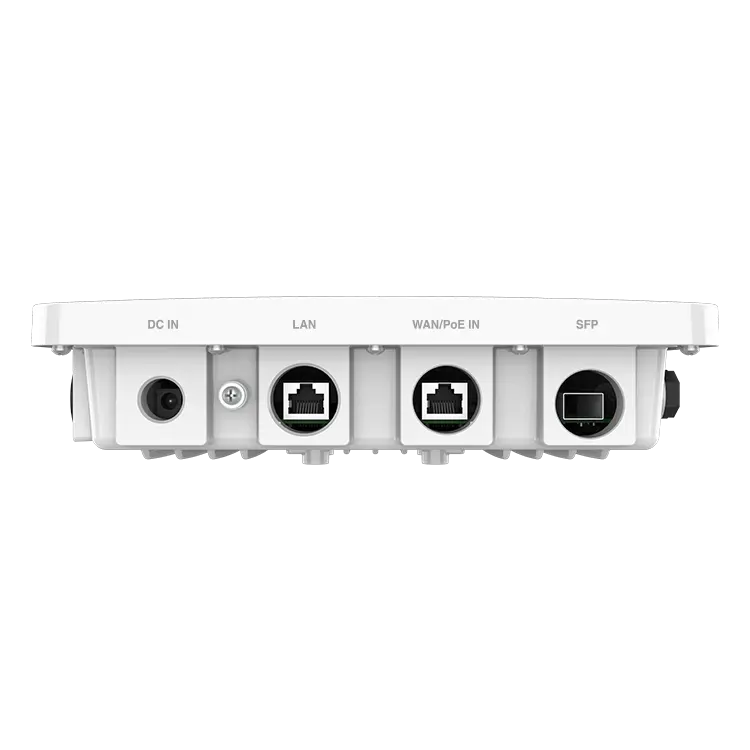

| SFP | 1× Gigabit SFP |
| WAN | 1× Gigabit (PoE 802.3at) |
| LAN | 1× Gigabit |
| Power | DC 12V/1A or PoE 802.3at |
| Power Consumption | <10W |
| Enclosure | IP67 Metal |
| Dimensions | 218 × 243 × 64 mm |
| Weight | 1.74 kg |
| Temperature | -40°C ~ +70°C |
Ordering & Customization
The WB5AXH6-35 ships factory-direct from Shenzhen with full OEM/ODM support. Three customization levels are available depending on your order quantity:
Logo & Packaging (OEM)
From 100 units
- Your logo on the enclosure
- Branded box, labels & user manual
- Zero MossLink branding on final product
Custom Firmware (Software)
From 500 units
- Custom web UI & boot screen
- Default configuration & feature tuning
- Regional and regulatory presets
Custom Hardware (ODM)
From 1,000 units
- Enclosure & antenna modifications
- Port and power-budget variations
- PCB-level customization
Learn more about our OEM/ODM process →
- Standard MOQ
- 100 units for standard products with no customization
- Samples
- 1–5 evaluation units at product cost plus shipping — sample fee credited toward your first bulk order
- Lead Time
- In-stock products: 3–5 business days · bulk production: 3–4 weeks · OEM/ODM orders: 4–8 weeks
- Payment Terms
- 30% deposit, 70% balance before shipment · T/T and L/C accepted, in USD
- Shipping
- DHL / FedEx / UPS express, air and sea freight · DDP, FOB Shenzhen, or CIF terms
- Packaging
- Each unit individually boxed with protective foam; palletized export cartons for freight — carton specs available on request
- Quality Control
- 100% inspection and 24-hour burn-in testing; a signed QC report ships with every order
- Certifications
- CE, FCC, and RoHS standard · additional market certifications (IC, TELEC, NCC, etc.) available via ODM
Downloads
Frequently Asked Questions
How does the WB5axH6-35 compare to the WB5axH6-20?
Both use Wi-Fi 6 (802.11ax) with the same 2402Mbps PHY rate, SFP port, and IP67 metal enclosure. The WB5axH6-35 uses a larger 33dBi parabolic dish for 20KM+ links, while the WB5axH6-20 uses a 20dBi flat panel antenna optimised for 16KM distances. Choose the WB5axH6-35 for maximum link budget on the longest PtP distances; choose the WB5axH6-20 for a more compact form factor at medium-long range.
Does the WB5axH6-35 support VPN tunneling?
Yes. The WB5axH6-35 supports IPSec, PPTP, and L2TP VPN protocols in addition to GRE tunneling, enabling encrypted site-to-site connectivity for industrial SCADA, enterprise, and government wireless backhaul applications.
Is OEM/ODM customization available for this product?
Yes. MossLink offers full OEM and ODM services including custom firmware, enclosure branding, and private-label packaging. Contact us to discuss your project requirements.
What is the MOQ for the WB5AXH6-35?
Standard WB5AXH6-35 orders start at 100 units. Logo and packaging customization (OEM) also starts at 100 units, custom firmware at 500 units, and custom hardware (ODM) at 1,000 units. Contact sales with your target quantity for a formal quotation.
Can I get a sample of the WB5AXH6-35 before bulk ordering?
Yes. We supply 1–5 evaluation units at product cost plus shipping, and the sample fee is credited toward your first bulk order. Contact us via email or WhatsApp with the model number to arrange a sample.
What is the lead time for the WB5AXH6-35?
In-stock units ship within 3–5 business days. Bulk production orders typically require 3–4 weeks, and OEM/ODM orders with customization take 4–8 weeks depending on complexity. Rush production is available at additional cost.
Is the WB5AXH6-35 certified for my market?
The WB5AXH6-35 carries CE, FCC, and RoHS certification as standard. Additional certifications for specific markets (IC, TELEC, NCC, etc.) can be arranged through our ODM service.
How is product quality controlled before shipment?
Every unit undergoes 100% inspection and 24-hour burn-in testing before leaving the factory, and a signed QC report ships with every order — full traceability from component to delivery.
What payment terms do you accept?
Standard terms are a 30% deposit with order confirmation and the 70% balance before shipment, paid in USD via T/T. Letter of credit and flexible terms are available for established partners.
