WB6axH6-20 Wi-Fi 6E Outdoor Bridge, 6GHz, 20KM, SFP
WB6AXH6-20
Type Outdoor Long-Range PtP Wireless Bridge
Standard Wi-Fi 6E (IEEE 802.11ax), 6GHz (5.925–7.125GHz)

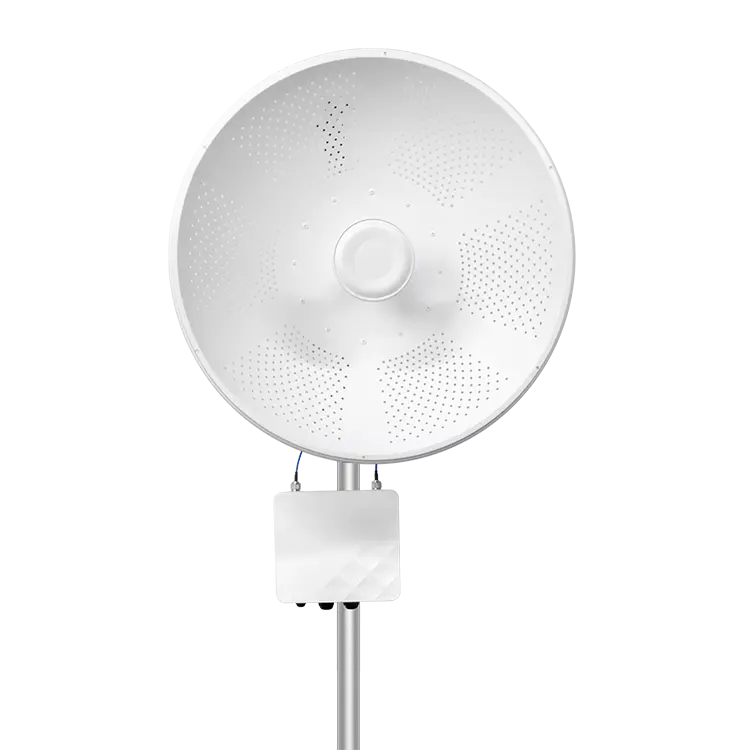

Antenna Built-in 33dBi Parabolic Dish
Max Speed 2882Mbps PHY, 900+ Mbps actual PTP
Range 20KM+ (LoS)
5 Years Warranty
Overview
- Wi-Fi 6E (802.11ax) on 6GHz band (5.925–7.125GHz) — uncongested spectrum for cleaner PtP links
- Built-in 33dBi parabolic dish for 20KM+ ultra-long-range directional links
- 2882Mbps PHY rate with 900+ Mbps actual PTP throughput
- Gigabit SFP fiber port for hybrid fiber+wireless backhaul topologies
- IP67 metal enclosure rated -40°C to +70°C for extreme outdoor environments
- VPN tunneling (IPSec/PPTP/L2TP), QoS, and VLAN transparent transmission
- Cloud, HTTP GUI, SSH, SNMP management with WNMS support
The WB6axH6-20 is a professional Wi-Fi 6E outdoor wireless bridge operating on the 6GHz band (5.925–7.125GHz) with a built-in 33dBi parabolic dish antenna for 20KM+ ultra-long-range point-to-point links. Delivering 2882Mbps PHY rate and 900+ Mbps actual throughput with Gigabit SFP fiber port, VPN tunneling, VLAN, and IP67 metal enclosure rated to -40°C to +70°C, it is designed for WISP and ISP backhaul, interference-sensitive environments, 4K/8K CCTV transmission, and enterprise network links requiring the uncongested 6GHz spectrum.
Ideal For
- PtP backhaul in urban and industrial areas with heavy 5GHz interference
- WISP and ISP long-range links requiring interference-free 6GHz spectrum
- High-definition 4K/8K CCTV and IP camera transmission over 10–20KM+
- Mining, oilfield, and remote facility broadband connectivity at extreme temperatures
- Enterprise and government site-to-site VPN links over wireless infrastructure
Deployment Advantages
The 6GHz band provides access to uncongested spectrum that is unavailable to legacy 5GHz outdoor bridges, resulting in consistently cleaner link performance in RF-dense environments where 5GHz channels are saturated by existing infrastructure. The 33dBi parabolic dish delivers the highest gain available in the product line, maximising link budget for the most demanding distance scenarios.
The Gigabit SFP port supports hybrid fiber+wireless topologies without a separate media converter. VPN tunneling (IPSec/PPTP/L2TP) enables encrypted secure links for government, enterprise, and industrial applications. Operating temperature of -40°C to +70°C ensures performance in Arctic climates, desert environments, and industrial heat zones.
OEM/ODM Ready
MossLink offers OEM and ODM customization for this product including custom firmware, frequency band configurations, enclosure branding, labels, and custom packaging. A fully white-labeled cloud platform is not a standard feature of this bridge; any cloud program must be separately scoped on an eligible platform. Volume pricing is available for WISPs, ISPs, system integrators, and wireless equipment distributors.
Specifications
| Type | Outdoor Long-Range PtP Wireless Bridge |
| Standard | Wi-Fi 6E (IEEE 802.11ax), 6GHz (5.925–7.125GHz) |
| Antenna | Built-in 33dBi Parabolic Dish |
| Max Speed | 2882Mbps PHY, 900+ Mbps actual PTP |
| Range | 20KM+ (LoS) |

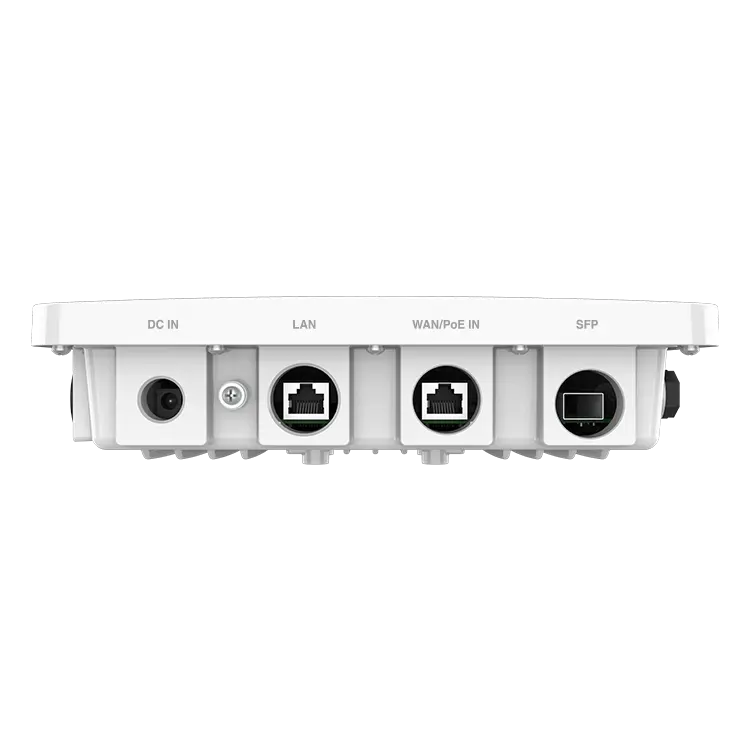

| SFP | 1× Gigabit SFP |
| WAN | 1× Gigabit (PoE 48V) |
| LAN | 1× Gigabit |
| Power | DC 12V/1A or PoE 802.3at |
| Power Consumption | <10W |

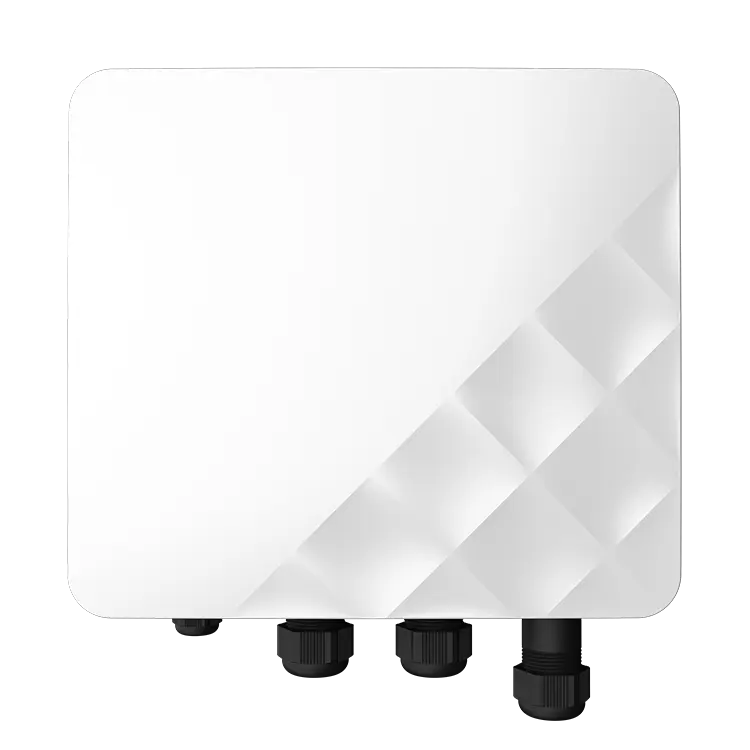

| Enclosure | IP67 Metal |
| Dimensions | 218 × 243 × 64 mm |
| Weight | 1.74 kg |
| Temperature | -40°C ~ +70°C |
Ordering & Customization
The WB6AXH6-20 ships factory-direct from Shenzhen with full OEM/ODM support. Three customization levels are available depending on your order quantity:
Logo & Packaging (OEM)
From 100 units
- Your logo on the enclosure
- Branded box, labels & user manual
- Zero MossLink branding on final product
Custom Firmware (Software)
From 500 units
- Custom web UI & boot screen
- Default configuration & feature tuning
- Regional and regulatory presets
Custom Hardware (ODM)
From 1,000 units
- Enclosure & antenna modifications
- Port and power-budget variations
- PCB-level customization
Learn more about our OEM/ODM process →
- Standard MOQ
- 100 units for standard products with no customization
- Samples
- 1–5 evaluation units at product cost plus shipping — sample fee credited toward your first bulk order
- Lead Time
- In-stock products: 3–5 business days · bulk production: 3–4 weeks · OEM/ODM orders: 4–8 weeks
- Payment Terms
- 30% deposit, 70% balance before shipment · T/T and L/C accepted, in USD
- Shipping
- DHL / FedEx / UPS express, air and sea freight · DDP, FOB Shenzhen, or CIF terms
- Packaging
- Each unit individually boxed with protective foam; palletized export cartons for freight — carton specs available on request
- Quality Control
- 100% inspection and 24-hour burn-in testing; a signed QC report ships with every order
- Certifications
- CE, FCC, and RoHS standard · additional market certifications (IC, TELEC, NCC, etc.) available via ODM
Frequently Asked Questions
What is the advantage of the 6GHz band on the WB6axH6-20?
The 6GHz band (5.925–7.125GHz) used by Wi-Fi 6E is newly allocated spectrum with significantly less interference than the congested 5GHz band used by most outdoor bridges. This translates to cleaner, more stable PtP links at long range, especially in urban or industrial areas with dense 5GHz deployments. The WB6axH6-20's 2882Mbps PHY rate also exceeds the 2402Mbps of Wi-Fi 6 (5GHz) counterparts.
How does the WB6axH6-20 compare to the WB5axH6-35?
Both share the same 33dBi parabolic dish, IP67 metal enclosure, SFP port, and 20KM+ range capability. The WB6axH6-20 operates on 6GHz Wi-Fi 6E (2882Mbps PHY) for cleaner, interference-free spectrum; the WB5axH6-35 uses 5GHz Wi-Fi 6 (2402Mbps PHY) with broader compatibility. Choose the WB6axH6-20 where 5GHz interference is a concern; choose the WB5axH6-35 for maximum regulatory compatibility.
Is OEM/ODM customization available for this product?
Yes. MossLink offers full OEM and ODM services including custom firmware, enclosure branding, and private-label packaging. Contact us to discuss your project requirements.
What is the MOQ for the WB6AXH6-20?
Standard WB6AXH6-20 orders start at 100 units. Logo and packaging customization (OEM) also starts at 100 units, custom firmware at 500 units, and custom hardware (ODM) at 1,000 units. Contact sales with your target quantity for a formal quotation.
Can I get a sample of the WB6AXH6-20 before bulk ordering?
Yes. We supply 1–5 evaluation units at product cost plus shipping, and the sample fee is credited toward your first bulk order. Contact us via email or WhatsApp with the model number to arrange a sample.
What is the lead time for the WB6AXH6-20?
In-stock units ship within 3–5 business days. Bulk production orders typically require 3–4 weeks, and OEM/ODM orders with customization take 4–8 weeks depending on complexity. Rush production is available at additional cost.
Is the WB6AXH6-20 certified for my market?
The WB6AXH6-20 carries CE, FCC, and RoHS certification as standard. Additional certifications for specific markets (IC, TELEC, NCC, etc.) can be arranged through our ODM service.
How is product quality controlled before shipment?
Every unit undergoes 100% inspection and 24-hour burn-in testing before leaving the factory, and a signed QC report ships with every order — full traceability from component to delivery.
What payment terms do you accept?
Standard terms are a 30% deposit with order confirmation and the 70% balance before shipment, paid in USD via T/T. Letter of credit and flexible terms are available for established partners.
