1 / 5
CE FCC RoHS

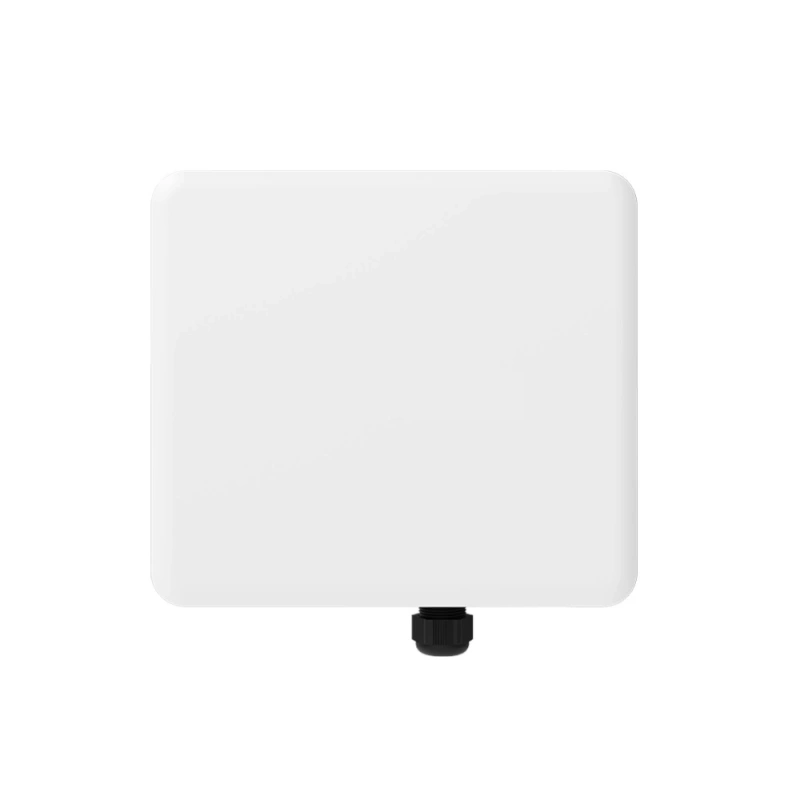

WB5axH6-20 Wi-Fi 6 Outdoor Bridge, 16KM, SFP, IP67
WB5AXH6-20
Type Industrial Outdoor PtP Wireless Bridge
Standard Wi-Fi 6 (IEEE 802.11ax), 5GHz
Antenna Built-in 20dBi Directional Flat Antenna
Max Speed 2402Mbps PHY, 900+ Mbps actual PTP
Range Up to 16km (LoS)
5 Years Warranty
Overview
- Wi-Fi 6 (802.11ax) with 2402Mbps PHY rate and 900+ Mbps actual PTP throughput
- Built-in 20dBi directional flat antenna for 16km point-to-point links
- Gigabit SFP fiber port for hybrid copper+fiber backhaul topologies
- IP67 metal industrial enclosure with -40°C to +70°C operating range
- VLAN transparent transmission, GRE tunnel, and VPN (IPSec/PPTP/L2TP)
- TDMA intelligent polling, ATPC, and automatic channel selection
- Cloud, HTTP GUI, SSH, SNMP, WNMS remote management
The WB5axH6-20 is an industrial-grade Wi-Fi 6 outdoor wireless bridge with a built-in 20dBi directional flat antenna for 16km point-to-point links. Delivering 2402Mbps PHY rate and 900+ Mbps actual throughput with TDMA intelligent polling, ATPC, Gigabit SFP fiber port, VPN tunneling, VLAN, and IP67 metal enclosure rated to -40°C to +70°C, it is engineered for industrial networking, surveillance backhaul, campus connectivity, and rural broadband in the most demanding outdoor environments.
Ideal For
- Industrial park and factory site-to-site wireless backhaul
- Mining, oil field, and substation surveillance data transmission
- Campus and enterprise building-to-building high-bandwidth connectivity
- Rural broadband delivery with optional fiber uplink via SFP
- Secure site-to-site VPN links over wireless infrastructure
Deployment Advantages
The Wi-Fi 6 platform’s OFDMA and MU-MIMO capabilities provide significantly higher actual throughput than 802.11ac at similar antenna gain levels, enabling the aggregation of multiple HD IP camera streams or high-bandwidth enterprise data links over a single PtP connection. TDMA intelligent dynamic polling prevents the hidden-node problem common in PtMP scenarios.
The Gigabit SFP port enables hybrid fiber+wireless network topologies, such as connecting a fiber backbone at a tower to a wireless link to a remote building — without requiring a separate media converter. VPN support (IPSec/PPTP/L2TP) encrypts all traffic over the wireless link for secure industrial SCADA and enterprise deployments.
OEM/ODM Ready
MossLink offers OEM and ODM customization for this product including custom firmware, enclosure branding, labels, and custom packaging. A fully white-labeled cloud platform is not a standard feature of this bridge; any cloud program must be separately scoped on an eligible platform. Volume pricing is available for industrial integrators, surveillance companies, and enterprise wireless resellers.
Specifications
| Type | Industrial Outdoor PtP Wireless Bridge |
| Standard | Wi-Fi 6 (IEEE 802.11ax), 5GHz |
| Antenna | Built-in 20dBi Directional Flat Antenna |
| Max Speed | 2402Mbps PHY, 900+ Mbps actual PTP |
| Range | Up to 16km (LoS) |

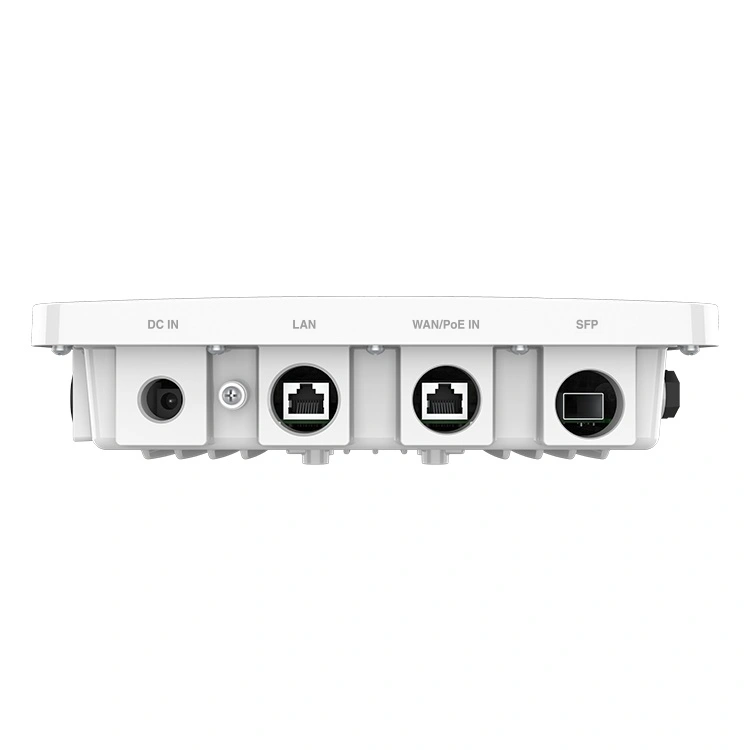

| SFP | 1× Gigabit SFP |
| WAN | 1× Gigabit (PoE 48V) |
| LAN | 1× Gigabit |
| Power | DC 12V/1A, PoE 802.3at |
| Power Consumption | <10W |

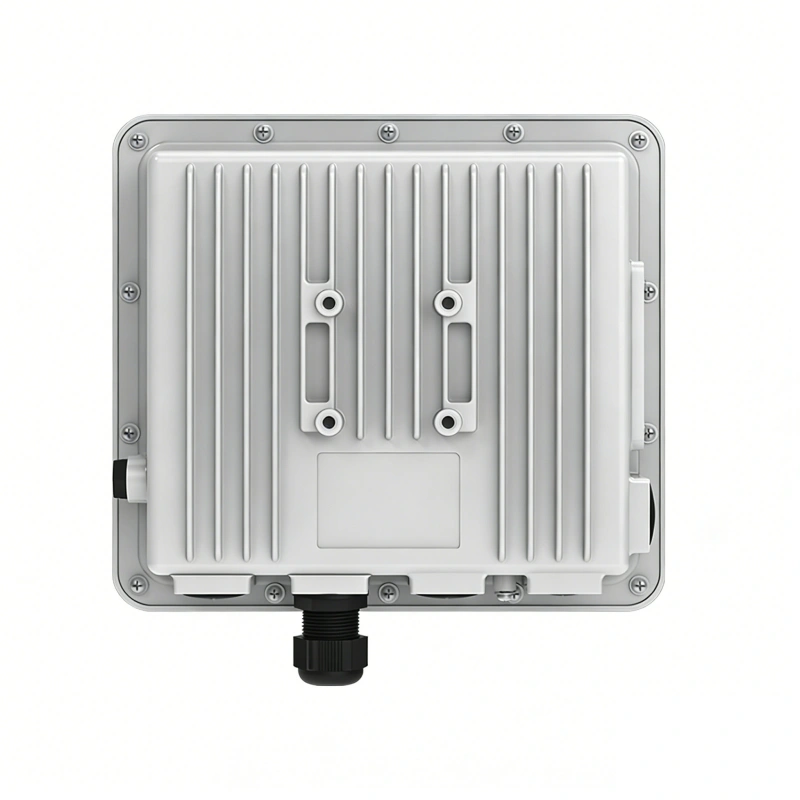

| Enclosure | IP67 Metal |
| Dimensions | 218 × 243 × 64 mm |
| Weight | 1.56 kg |
| Temperature | -40°C ~ +70°C |
Ordering & Customization
The WB5AXH6-20 ships factory-direct from Shenzhen with full OEM/ODM support. Three customization levels are available depending on your order quantity:
Logo & Packaging (OEM)
From 100 units
- Your logo on the enclosure
- Branded box, labels & user manual
- Zero MossLink branding on final product
Custom Firmware (Software)
From 500 units
- Custom web UI & boot screen
- Default configuration & feature tuning
- Regional and regulatory presets
Custom Hardware (ODM)
From 1,000 units
- Enclosure & antenna modifications
- Port and power-budget variations
- PCB-level customization
Learn more about our OEM/ODM process →
- Standard MOQ
- 100 units for standard products with no customization
- Samples
- 1–5 evaluation units at product cost plus shipping — sample fee credited toward your first bulk order
- Lead Time
- In-stock products: 3–5 business days · bulk production: 3–4 weeks · OEM/ODM orders: 4–8 weeks
- Payment Terms
- 30% deposit, 70% balance before shipment · T/T and L/C accepted, in USD
- Shipping
- DHL / FedEx / UPS express, air and sea freight · DDP, FOB Shenzhen, or CIF terms
- Packaging
- Each unit individually boxed with protective foam; palletized export cartons for freight — carton specs available on request
- Quality Control
- 100% inspection and 24-hour burn-in testing; a signed QC report ships with every order
- Certifications
- CE, FCC, and RoHS standard · additional market certifications (IC, TELEC, NCC, etc.) available via ODM
Downloads
Frequently Asked Questions
What is the difference between WB5axH6-20 (Wi-Fi 6) and WB5acH6-20 (Wi-Fi 5)?
The WB5axH6-20 uses Wi-Fi 6 (802.11ax) delivering 2402Mbps PHY rate and 900+ Mbps actual PTP throughput with OFDMA efficiency gains. The WB5acH6-20 uses Wi-Fi 5 (802.11ac) at 867Mbps. Both share the same 20dBi flat antenna and IP67 enclosure, but the Wi-Fi 6 model is better suited for high-bandwidth applications such as HD video aggregation or backbone uplinks.
Does the WB5axH6-20 support VPN tunneling?
Yes. The WB5axH6-20 supports IPSec, PPTP, and L2TP VPN protocols in addition to GRE tunneling, making it suitable for secure site-to-site connectivity where traffic must be encrypted across the wireless link.
Is OEM/ODM customization available for this product?
Yes. MossLink offers full OEM and ODM services including custom firmware, enclosure branding, and private-label packaging. Contact us to discuss your project requirements.
What is the MOQ for the WB5AXH6-20?
Standard WB5AXH6-20 orders start at 100 units. Logo and packaging customization (OEM) also starts at 100 units, custom firmware at 500 units, and custom hardware (ODM) at 1,000 units. Contact sales with your target quantity for a formal quotation.
Can I get a sample of the WB5AXH6-20 before bulk ordering?
Yes. We supply 1–5 evaluation units at product cost plus shipping, and the sample fee is credited toward your first bulk order. Contact us via email or WhatsApp with the model number to arrange a sample.
What is the lead time for the WB5AXH6-20?
In-stock units ship within 3–5 business days. Bulk production orders typically require 3–4 weeks, and OEM/ODM orders with customization take 4–8 weeks depending on complexity. Rush production is available at additional cost.
Is the WB5AXH6-20 certified for my market?
The WB5AXH6-20 carries CE, FCC, and RoHS certification as standard. Additional certifications for specific markets (IC, TELEC, NCC, etc.) can be arranged through our ODM service.
How is product quality controlled before shipment?
Every unit undergoes 100% inspection and 24-hour burn-in testing before leaving the factory, and a signed QC report ships with every order — full traceability from component to delivery.
What payment terms do you accept?
Standard terms are a 30% deposit with order confirmation and the 70% balance before shipment, paid in USD via T/T. Letter of credit and flexible terms are available for established partners.
