WB5acH6-20 5GHz 867Mbps Outdoor Bridge, 16KM, IP67

Name: WB5acH6-20 5GHz 867Mbps Outdoor Bridge, 16KM, IP67
Brand: MossLink
SKU: WB5ACH6-20

WB5ACH6-20

Type Industrial Outdoor PtP Wireless Bridge

Standard IEEE 802.11 a/n/ac (5GHz)

Antenna Built-in 20dBi Directional Flat Antenna

Max Speed 867Mbps

TX Power <26 ±2dBm

View all specifications →

5 Years Warranty

Talk via WhatsApp

Overview

20dBi built-in directional flat antenna for 16km stable PtP links
867Mbps 5GHz 802.11ac with TDMA3 intelligent dynamic polling protocol
Automatic Transmit Power Control (ATPC) for optimized RF performance

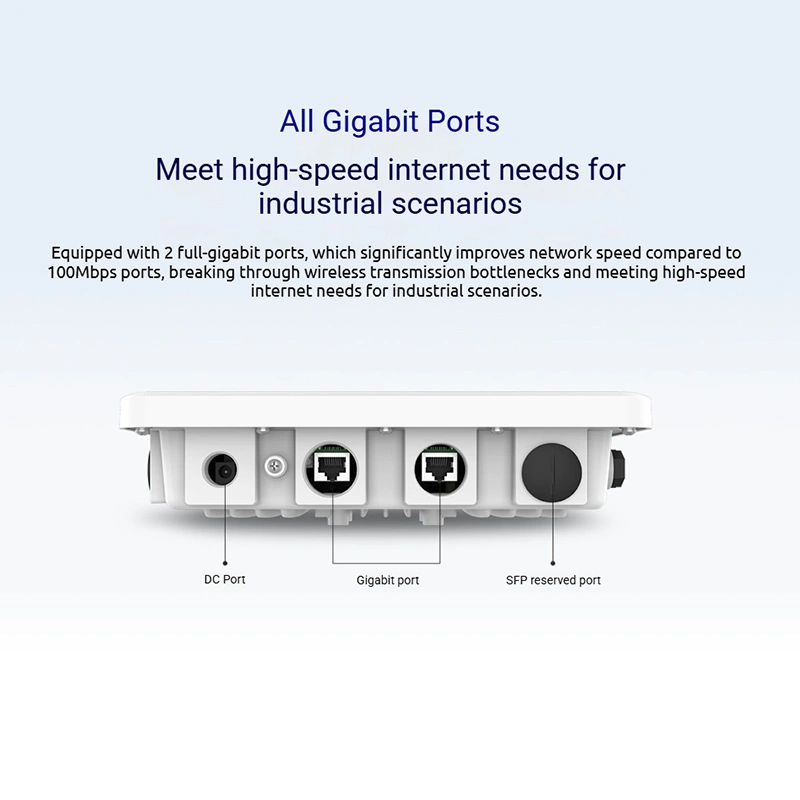

Gigabit WAN and LAN with 24–48V wide-voltage PoE support

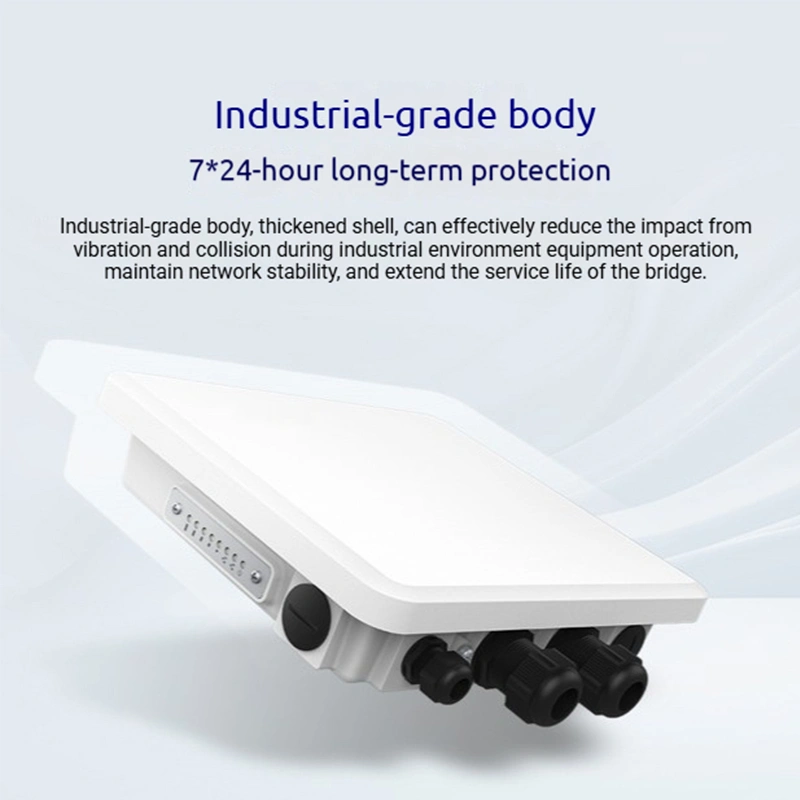

IP67 industrial enclosure with -40°C to +70°C operating range
VLAN transparent transmission, GRE tunnel, mDNS, CDP/LLDP/SSDP
Cloud, HTTP GUI, SSH, SNMP, WNMS, Telnet management

The WB5acH6-20 is an industrial-grade 5GHz 802.11ac outdoor wireless bridge with a built-in 20dBi directional flat antenna for 16km point-to-point links at 867Mbps. Featuring TDMA3 intelligent dynamic polling, ATPC, Gigabit WAN/LAN with wide 24–48V PoE, IP67 metal enclosure rated to -40°C to +70°C, VLAN transparent transmission, GRE tunnel, and comprehensive cloud/SNMP/SSH management, it is designed for industrial backhaul, rural broadband, campus connectivity, and remote surveillance infrastructure.

Ideal For

Industrial and manufacturing site wireless backbone links up to 16km
Rural and remote area broadband delivery from tower to building
Surveillance network backhaul across large industrial or campus sites
Cross-building enterprise networking without fiber trenching
Power grid, water treatment, and infrastructure monitoring data links

Deployment Advantages

TDMA3 intelligent dynamic polling provides consistent high-throughput performance in PtMP scenarios with multiple subscriber nodes — avoiding the performance degradation that standard 802.11 CSMA/CA experiences as client count increases. ATPC automatically adjusts transmit power to maintain optimal link quality while reducing interference with neighboring links.

Wide 24–48V PoE input range covers both passive PoE adapters and active 802.3at switches without additional hardware. The IP67 enclosure and -40°C to +70°C operating range match the requirements of industrial and harsh-climate deployments where standard IP65 equipment may not provide adequate sealing.

OEM/ODM Ready

MossLink offers OEM and ODM customization for this product including custom firmware, enclosure branding, WNMS private-label deployment, and custom packaging. Volume pricing is available for industrial integrators, WISPs, and surveillance system operators. Contact us to discuss your project requirements.

Specifications

Type	Industrial Outdoor PtP Wireless Bridge
Standard	IEEE 802.11 a/n/ac (5GHz)
Antenna	Built-in 20dBi Directional Flat Antenna
Max Speed	867Mbps
TX Power	<26 ±2dBm
Range	Up to 16km (LoS)
WAN	1× Gigabit (24–48V PoE)
LAN	1× Gigabit
Power	24V Passive PoE, DC 12V (802.3af optional)
Power Consumption	<12W
Enclosure	IP67
Dimensions	243 × 218 × 67 mm
Weight	1.5985 kg
Temperature	-40°C ~ +70°C

Ordering & Customization

The WB5ACH6-20 ships factory-direct from Shenzhen with full OEM/ODM support. Three customization levels are available depending on your order quantity:

Logo & Packaging (OEM)

From 100 units

Your logo on the enclosure
Branded box, labels & user manual
Zero MossLink branding on final product

Custom Firmware (Software)

From 500 units

Custom web UI & boot screen
Default configuration & feature tuning
Regional and regulatory presets

Custom Hardware (ODM)

From 1,000 units

Enclosure & antenna modifications
Port and power-budget variations
PCB-level customization

Learn more about our OEM/ODM process →

Standard MOQ: 100 units for standard products with no customization
Samples: 1–5 evaluation units at product cost plus shipping — sample fee credited toward your first bulk order
Lead Time: In-stock products: 3–5 business days · bulk production: 3–4 weeks · OEM/ODM orders: 4–8 weeks
Payment Terms: 30% deposit, 70% balance before shipment · T/T and L/C accepted, in USD
Shipping: DHL / FedEx / UPS express, air and sea freight · DDP, FOB Shenzhen, or CIF terms
Packaging: Each unit individually boxed with protective foam; palletized export cartons for freight — carton specs available on request
Quality Control: 100% inspection and 24-hour burn-in testing; a signed QC report ships with every order
Certifications: CE, FCC, and RoHS standard · additional market certifications (IC, TELEC, NCC, etc.) available via ODM

Frequently Asked Questions

What is the difference between WB5acH6-20 (Wi-Fi 5) and WB5axH6-20 (Wi-Fi 6)?

The WB5acH6-20 uses 802.11ac (Wi-Fi 5) delivering 867Mbps, while the WB5axH6-20 uses 802.11ax (Wi-Fi 6) delivering 2402Mbps PHY with higher actual throughput. Both share the same 20dBi flat antenna and IP67 enclosure. The WB5acH6-20 is a cost-effective option where 867Mbps throughput meets application requirements.

What is TDMA3 and why does it matter?

TDMA3 (Time Division Multiple Access 3) is an intelligent dynamic polling protocol that allocates wireless bandwidth in time slots rather than relying on the CSMA/CA contention mechanism used in standard Wi-Fi. This eliminates the hidden-node problem in PtMP scenarios, significantly improving throughput efficiency and latency consistency in multi-client backhaul deployments.

Is OEM/ODM customization available for this product?

Yes. MossLink offers full OEM and ODM services including custom firmware, enclosure branding, and private-label packaging. Contact us to discuss your project requirements.

What is the MOQ for the WB5ACH6-20?

Standard WB5ACH6-20 orders start at 100 units. Logo and packaging customization (OEM) also starts at 100 units, custom firmware at 500 units, and custom hardware (ODM) at 1,000 units. Contact sales with your target quantity for a formal quotation.

Can I get a sample of the WB5ACH6-20 before bulk ordering?

Yes. We supply 1–5 evaluation units at product cost plus shipping, and the sample fee is credited toward your first bulk order. Contact us via email or WhatsApp with the model number to arrange a sample.

What is the lead time for the WB5ACH6-20?

In-stock units ship within 3–5 business days. Bulk production orders typically require 3–4 weeks, and OEM/ODM orders with customization take 4–8 weeks depending on complexity. Rush production is available at additional cost.

Is the WB5ACH6-20 certified for my market?

The WB5ACH6-20 carries CE, FCC, and RoHS certification as standard. Additional certifications for specific markets (IC, TELEC, NCC, etc.) can be arranged through our ODM service.

How is product quality controlled before shipment?

Every unit undergoes 100% inspection and 24-hour burn-in testing before leaving the factory, and a signed QC report ships with every order — full traceability from component to delivery.

What payment terms do you accept?

Standard terms are a 30% deposit with order confirmation and the 70% balance before shipment, paid in USD via T/T. Letter of credit and flexible terms are available for established partners.
