WB5acH6-29 5GHz 867Mbps Outdoor Bridge, 30KM, IP67
WB5ACH6-29
Type Outdoor Long-Range PtP Bridge
Standard IEEE 802.11 a/n/ac (5GHz)
Antenna External 29dBi Parabolic Directional
Max Speed 867Mbps
Range Up to 30km (LoS)
5 Years Warranty
Overview

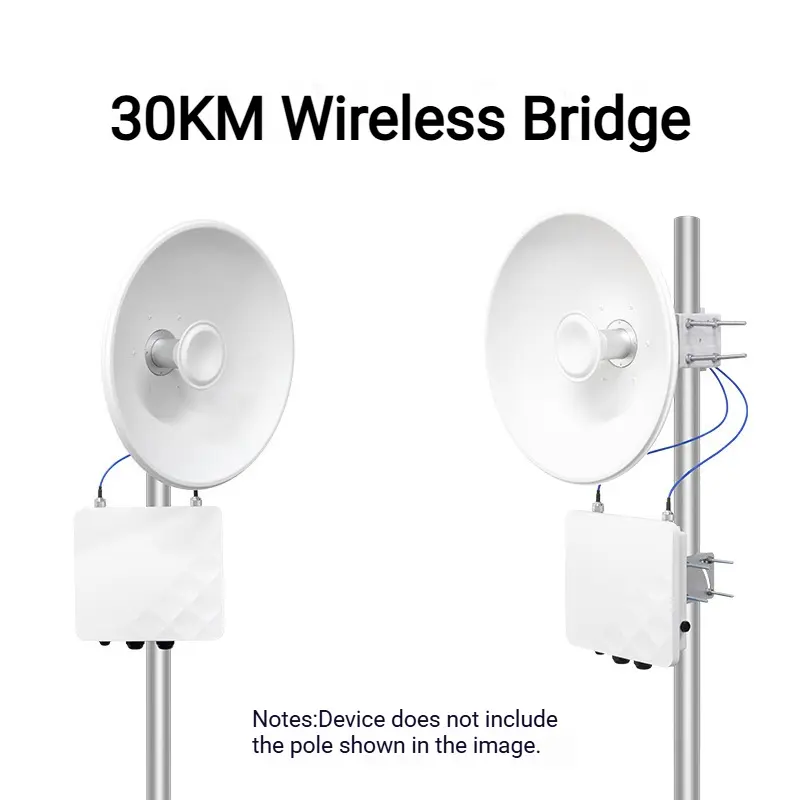

- 29dBi external parabolic directional antenna for 30km ultra-long PtP links
- 867Mbps 5GHz 802.11ac with TDMA and ATPC for optimized RF performance
- IP67 all-metal industrial housing for harsh outdoor environments
- Optional Gigabit SFP fiber port for hybrid copper+fiber deployments
- Wide operating temperature -40°C to +70°C for extreme climates
- VLAN, cloud management, and SNMP for enterprise-grade control
The WB5acH6-29 is an industrial-grade 5GHz outdoor wireless bridge with a 29dBi external parabolic directional antenna for ultra-long-range point-to-point links up to 30km. Running 802.11ac at 867Mbps with TDMA and Automatic Transmit Power Control, an IP67 all-metal enclosure, optional Gigabit SFP, and a -40°C to +70°C operating range, it is designed for WISP backhaul, industrial networking, oil field surveillance, and remote broadband delivery in the most demanding outdoor environments.
Ideal For
- WISP wireless backbone and ISP last-mile PtP links over 10–30km
- Industrial site surveillance and data backhaul (mining, oil fields, substations)
- Cross-mountain, cross-river, and cross-bay long-distance wireless networking
- Hybrid fiber+wireless network topologies with optional SFP connection
- Rural broadband delivery and emergency communications infrastructure
Deployment Advantages
The 29dBi external parabolic antenna provides extremely high gain and narrow beamwidth for maximum range and interference rejection in congested RF environments. ATPC automatically adjusts transmit power based on link quality, extending equipment life and reducing interference with adjacent links in multi-point deployments.
IP67 sealing protects all connectors and internal components against water immersion and dust ingress — significantly more robust than the IP65 standard used in consumer-grade equipment. The -40°C to +70°C operating range covers arctic winters and desert summers without performance degradation.
OEM/ODM Ready
MossLink offers OEM and ODM customization for this product including custom firmware, enclosure branding, SFP variant configurations, labels, and custom packaging. A fully white-labeled cloud platform is not a standard feature of this bridge. Volume pricing is available for WISPs, ISPs, and industrial network integrators.
Specifications
| Type | Outdoor Long-Range PtP Bridge |
| Standard | IEEE 802.11 a/n/ac (5GHz) |
| Antenna | External 29dBi Parabolic Directional |
| Max Speed | 867Mbps |
| Range | Up to 30km (LoS) |

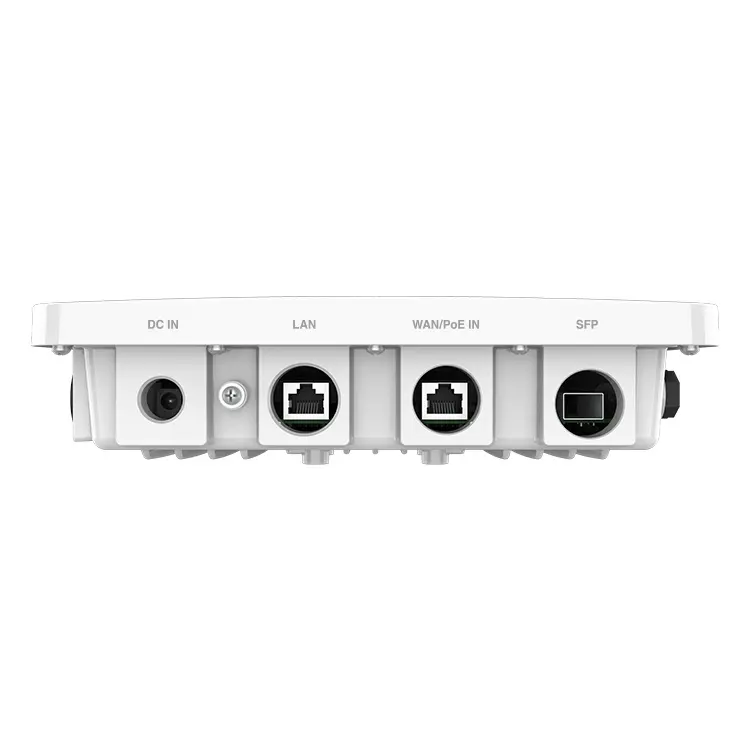

| WAN | 1× Gigabit, 24–48V PoE |
| LAN | 1× Gigabit |
| SFP | Optional Gigabit SFP |
| Power | 24V Passive PoE, DC 12V (802.3af optional) |
| Power Consumption | <15W |

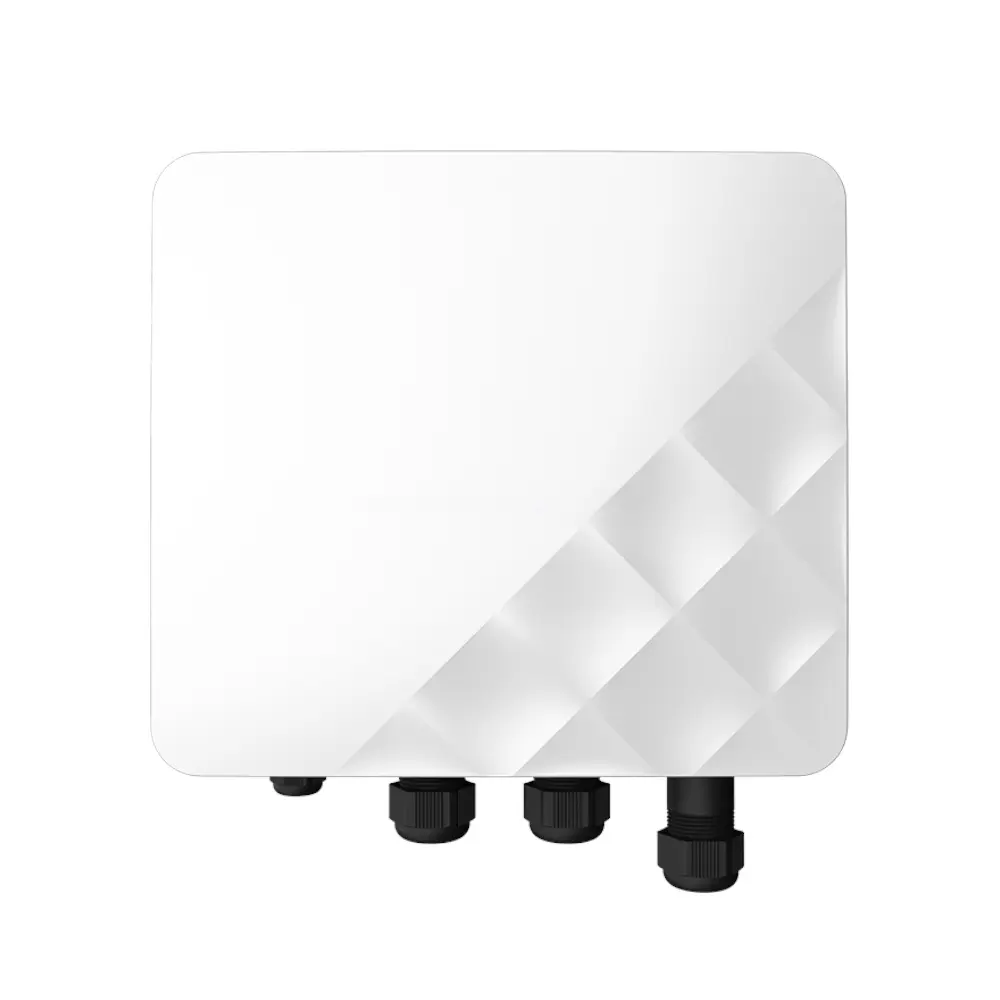

| Enclosure | IP67 All-Metal |
| Dimensions | 243 × 218 × 67 mm |
| Weight | 1.756 kg |
| Temperature | -40°C ~ +70°C |
Ordering & Customization
The WB5ACH6-29 ships factory-direct from Shenzhen with full OEM/ODM support. Three customization levels are available depending on your order quantity:
Logo & Packaging (OEM)
From 100 units
- Your logo on the enclosure
- Branded box, labels & user manual
- Zero MossLink branding on final product
Custom Firmware (Software)
From 500 units
- Custom web UI & boot screen
- Default configuration & feature tuning
- Regional and regulatory presets
Custom Hardware (ODM)
From 1,000 units
- Enclosure & antenna modifications
- Port and power-budget variations
- PCB-level customization
Learn more about our OEM/ODM process →
- Standard MOQ
- 100 units for standard products with no customization
- Samples
- 1–5 evaluation units at product cost plus shipping — sample fee credited toward your first bulk order
- Lead Time
- In-stock products: 3–5 business days · bulk production: 3–4 weeks · OEM/ODM orders: 4–8 weeks
- Payment Terms
- 30% deposit, 70% balance before shipment · T/T and L/C accepted, in USD
- Shipping
- DHL / FedEx / UPS express, air and sea freight · DDP, FOB Shenzhen, or CIF terms
- Packaging
- Each unit individually boxed with protective foam; palletized export cartons for freight — carton specs available on request
- Quality Control
- 100% inspection and 24-hour burn-in testing; a signed QC report ships with every order
- Certifications
- CE, FCC, and RoHS standard · additional market certifications (IC, TELEC, NCC, etc.) available via ODM
Frequently Asked Questions
What makes the WB5acH6-29 suitable for industrial deployments?
The WB5acH6-29 features an IP67 all-metal enclosure, -40°C to +70°C operating temperature range, and ATPC (Automatic Transmit Power Control) for reliable performance in industrial parks, mining sites, oil fields, and coastal environments where standard consumer-grade equipment fails.
Does the WB5acH6-29 support fiber connectivity?
Yes. An optional Gigabit SFP port is available for direct fiber backhaul connection, enabling hybrid copper and fiber network topologies. This is especially useful when fiber backbone runs to the tower or rooftop but the final link requires wireless.
Is OEM/ODM customization available for this product?
Yes. MossLink offers full OEM and ODM services including custom firmware, enclosure branding, private-label packaging, and SFP configuration options. Contact us to discuss your project requirements.
What is the MOQ for the WB5ACH6-29?
Standard WB5ACH6-29 orders start at 100 units. Logo and packaging customization (OEM) also starts at 100 units, custom firmware at 500 units, and custom hardware (ODM) at 1,000 units. Contact sales with your target quantity for a formal quotation.
Can I get a sample of the WB5ACH6-29 before bulk ordering?
Yes. We supply 1–5 evaluation units at product cost plus shipping, and the sample fee is credited toward your first bulk order. Contact us via email or WhatsApp with the model number to arrange a sample.
What is the lead time for the WB5ACH6-29?
In-stock units ship within 3–5 business days. Bulk production orders typically require 3–4 weeks, and OEM/ODM orders with customization take 4–8 weeks depending on complexity. Rush production is available at additional cost.
Is the WB5ACH6-29 certified for my market?
The WB5ACH6-29 carries CE, FCC, and RoHS certification as standard. Additional certifications for specific markets (IC, TELEC, NCC, etc.) can be arranged through our ODM service.
How is product quality controlled before shipment?
Every unit undergoes 100% inspection and 24-hour burn-in testing before leaving the factory, and a signed QC report ships with every order — full traceability from component to delivery.
What payment terms do you accept?
Standard terms are a 30% deposit with order confirmation and the 70% balance before shipment, paid in USD via T/T. Letter of credit and flexible terms are available for established partners.
