WB5acDish-Pro 5GHz 867Mbps Outdoor Bridge, 30KM
WB5ACDISH-PRO
Type Outdoor Point-to-Point Wireless Bridge
Standard IEEE 802.11 a/n/ac (5GHz)
Antenna 25dBi Integrated High-Gain Dish
Max Speed 867Mbps
CPU QCA9563 + QCA9882 + QCA8334
5 Years Warranty
Overview
- Up to 30km point-to-point range with 25dBi integrated high-gain dish antenna
- 867Mbps 5GHz 802.11ac with Advanced TDMA3 Dynamic Protocol
- Dual power: 802.3af 48V PoE and DC 12–24V input

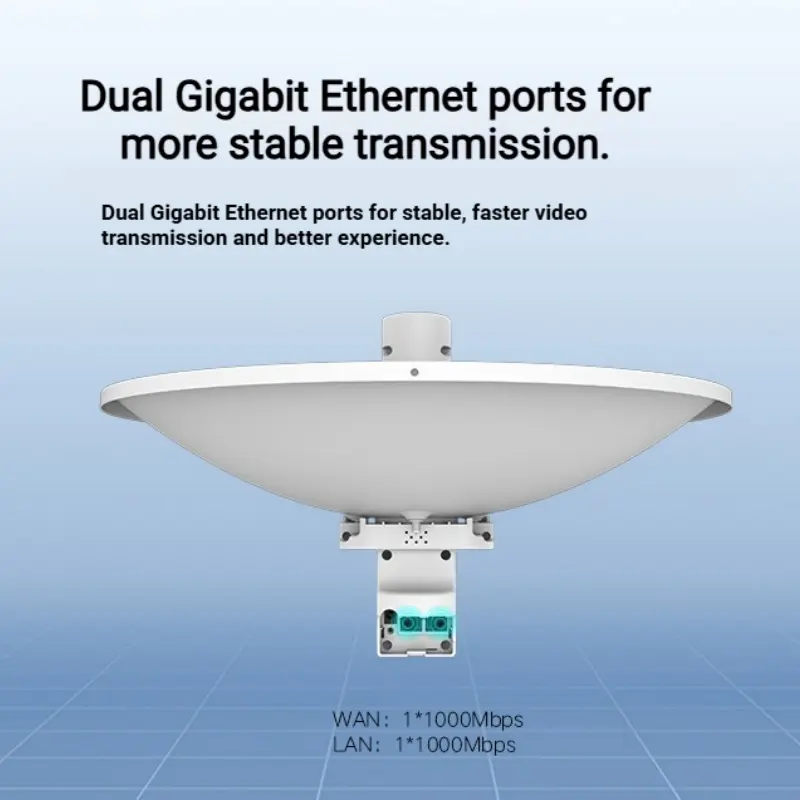

- Gigabit WAN and LAN ports for full-speed backhaul
- IP65 weatherproof rugged outdoor enclosure
- Cloud and app management for remote monitoring
- Plug-and-play pairing for fast field deployment
The WB5acDish-Pro is a high-performance 5GHz outdoor wireless bridge with a 25dBi integrated high-gain dish antenna, delivering stable point-to-point links up to 30km. Running 802.11ac at 867Mbps with Advanced TDMA3 dynamic protocol, dual gigabit Ethernet ports, and dual PoE/DC power input, it is designed for long-distance backhaul, CCTV transmission, rural internet delivery, and ISP last-mile deployments in harsh outdoor environments.
Ideal For
- Long-distance point-to-point wireless backhaul between remote sites
- Rural broadband delivery from tower to village or building
- IP camera and CCTV video transmission over 10–30km
- ISP last-mile wireless links and WISP backbone connections
- Cross-mountain, cross-river, or cross-bay wireless networking
Deployment Advantages
The 25dBi high-gain dish antenna focuses signal into a narrow beam for maximum range and interference rejection in open outdoor environments. TDMA3 Dynamic Protocol improves throughput efficiency and stability compared to standard CSMA-based wireless, particularly at long distances where latency and retransmissions degrade performance.
Dual power input (802.3af PoE and DC 12–24V) provides flexibility in tower and rooftop deployments where PoE switches or DC adapters may be the available power source. IP65 weatherproofing ensures reliable operation across seasons and climates.
OEM/ODM Ready
MossLink offers OEM and ODM customization for this product including custom firmware, enclosure branding, labels, and custom packaging. A fully white-labeled cloud platform is not a standard feature of this bridge; any cloud program must be separately scoped on an eligible platform. Volume pricing is available for WISPs, ISPs, surveillance integrators, and wireless distributors.
Specifications
| Type | Outdoor Point-to-Point Wireless Bridge |
| Standard | IEEE 802.11 a/n/ac (5GHz) |
| Antenna | 25dBi Integrated High-Gain Dish |
| Max Speed | 867Mbps |
| CPU | QCA9563 + QCA9882 + QCA8334 |
| Range | Up to 30km (LoS) |
| WAN | 1× Gigabit, 802.3af 48V PoE |
| LAN | 1× Gigabit |
| Power | 802.3af 48V PoE, DC 12–24V |
| Power Consumption | <12W |
| Enclosure | IP65 |
| Dimensions | Φ466 × 274 mm |
| Weight | 2.2 kg |
| Temperature | -30°C ~ +55°C |
Ordering & Customization
The WB5ACDISH-PRO ships factory-direct from Shenzhen with full OEM/ODM support. Three customization levels are available depending on your order quantity:
Logo & Packaging (OEM)
From 100 units
- Your logo on the enclosure
- Branded box, labels & user manual
- Zero MossLink branding on final product
Custom Firmware (Software)
From 500 units
- Custom web UI & boot screen
- Default configuration & feature tuning
- Regional and regulatory presets
Custom Hardware (ODM)
From 1,000 units
- Enclosure & antenna modifications
- Port and power-budget variations
- PCB-level customization
Learn more about our OEM/ODM process →
- Standard MOQ
- 100 units for standard products with no customization
- Samples
- 1–5 evaluation units at product cost plus shipping — sample fee credited toward your first bulk order
- Lead Time
- In-stock products: 3–5 business days · bulk production: 3–4 weeks · OEM/ODM orders: 4–8 weeks
- Payment Terms
- 30% deposit, 70% balance before shipment · T/T and L/C accepted, in USD
- Shipping
- DHL / FedEx / UPS express, air and sea freight · DDP, FOB Shenzhen, or CIF terms
- Packaging
- Each unit individually boxed with protective foam; palletized export cartons for freight — carton specs available on request
- Quality Control
- 100% inspection and 24-hour burn-in testing; a signed QC report ships with every order
- Certifications
- CE, FCC, and RoHS standard · additional market certifications (IC, TELEC, NCC, etc.) available via ODM
Downloads
Frequently Asked Questions
What is the real-world transmission distance of the WB5acDish-Pro?
Under clear line-of-sight conditions, the WB5acDish-Pro achieves stable 30km point-to-point links using its 25dBi integrated dish antenna and Advanced TDMA3 protocol. Real-world performance depends on terrain, obstructions, and environmental interference. For heavily obstructed paths, shorter deployments of 10–20km are more typical.
Is OEM/ODM customization available for this product?
Yes. MossLink offers full OEM and ODM services including custom firmware, hardware modifications, enclosure branding, and private-label packaging. Minimum order quantities apply. Contact us to discuss your project requirements.
What is the MOQ for the WB5ACDISH-PRO?
Standard WB5ACDISH-PRO orders start at 100 units. Logo and packaging customization (OEM) also starts at 100 units, custom firmware at 500 units, and custom hardware (ODM) at 1,000 units. Contact sales with your target quantity for a formal quotation.
Can I get a sample of the WB5ACDISH-PRO before bulk ordering?
Yes. We supply 1–5 evaluation units at product cost plus shipping, and the sample fee is credited toward your first bulk order. Contact us via email or WhatsApp with the model number to arrange a sample.
What is the lead time for the WB5ACDISH-PRO?
In-stock units ship within 3–5 business days. Bulk production orders typically require 3–4 weeks, and OEM/ODM orders with customization take 4–8 weeks depending on complexity. Rush production is available at additional cost.
Is the WB5ACDISH-PRO certified for my market?
The WB5ACDISH-PRO carries CE, FCC, and RoHS certification as standard. Additional certifications for specific markets (IC, TELEC, NCC, etc.) can be arranged through our ODM service.
How is product quality controlled before shipment?
Every unit undergoes 100% inspection and 24-hour burn-in testing before leaving the factory, and a signed QC report ships with every order — full traceability from component to delivery.
What payment terms do you accept?
Standard terms are a 30% deposit with order confirmation and the 70% balance before shipment, paid in USD via T/T. Letter of credit and flexible terms are available for established partners.
