YA796 AC1200 MU-MIMO Outdoor Access Point, IP65
YA796
Standard Wi-Fi 5 (802.11ac)
Band Dual-Band (2.4GHz + 5GHz)
Max Speed AC1200 (300 + 866 Mbps)
CPU MT7628DAN + MT7613BEN
RAM 64MB DDR2
5 Years Warranty
Overview
- Dual-band AC1200 — 300Mbps @ 2.4GHz + 866Mbps @ 5GHz
- IP65-rated weatherproof housing for outdoor deployment
- Low power consumption — < 7W for cost-effective operation

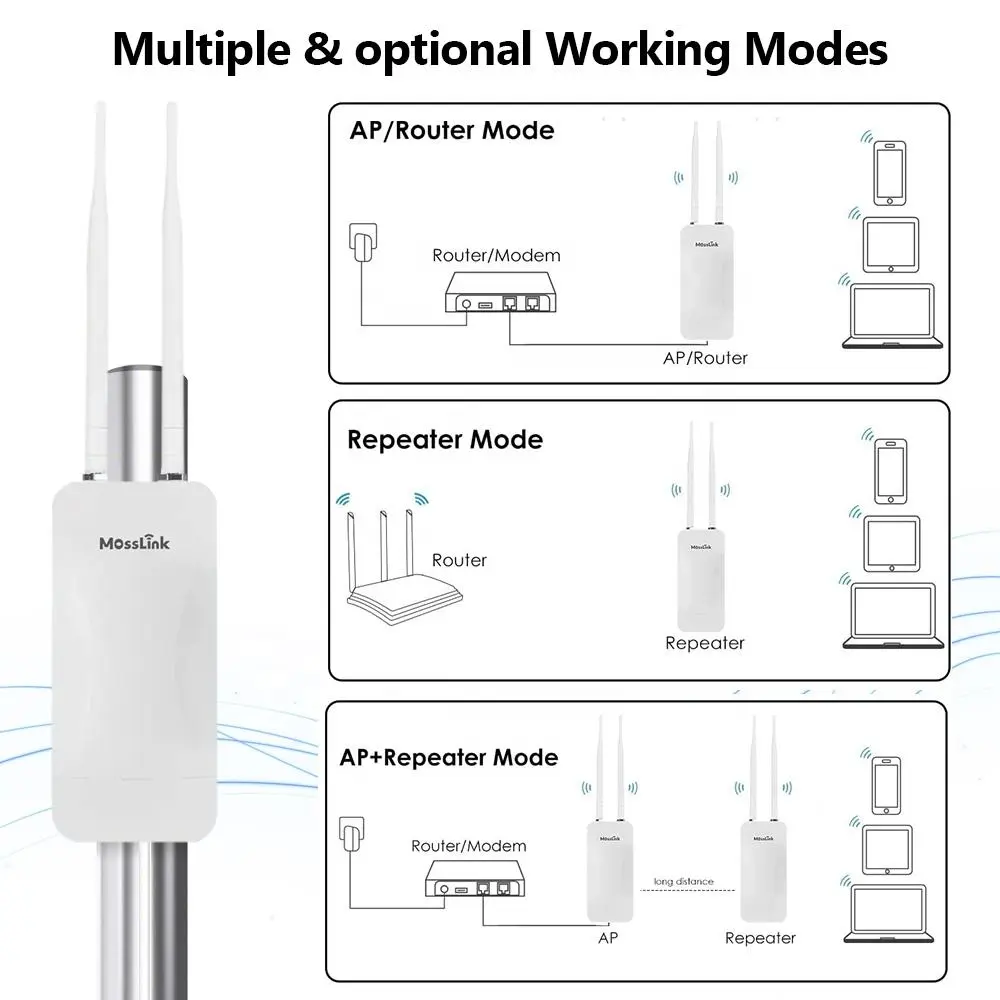

- Multiple modes: Gateway, AP, Repeater, WISP
- Seamless roaming (802.11kvr), multi-SSID, and 5G priority
- WPA/WPA2-PSK, 802.1x, MAC filtering, and client isolation
- Supports 24V PoE and 12V DC power input
- Wi-Fi scheduling for energy management
The YA796 is a dual-band AC1200 outdoor access point with IP65-rated weatherproof housing, 2×5dBi external antennas, and support for Gateway, AP, Repeater, and WISP operating modes. Featuring 802.11kvr seamless roaming, enterprise-grade security, and under 7W power consumption, it delivers a cost-effective and flexible solution for hotels, campuses, warehouses, factories, and ISP outdoor deployments.
Ideal For
- Hotels and resorts requiring outdoor Wi-Fi coverage
- University and school perimeter access points
- Factory yards and warehouse outdoor networks
- Rural community ISP outdoor hotspot deployments
- Public outdoor areas requiring seamless roaming
Deployment Advantages
The YA796 stands out in the AC1200 outdoor category with its full enterprise security stack: 802.1x authentication, WPA/WPA2-PSK, MAC filtering, and client isolation provide the access control features that hotel and campus deployments require. The 802.11kvr seamless roaming standard ensures users maintain uninterrupted connections while moving between multiple access points.

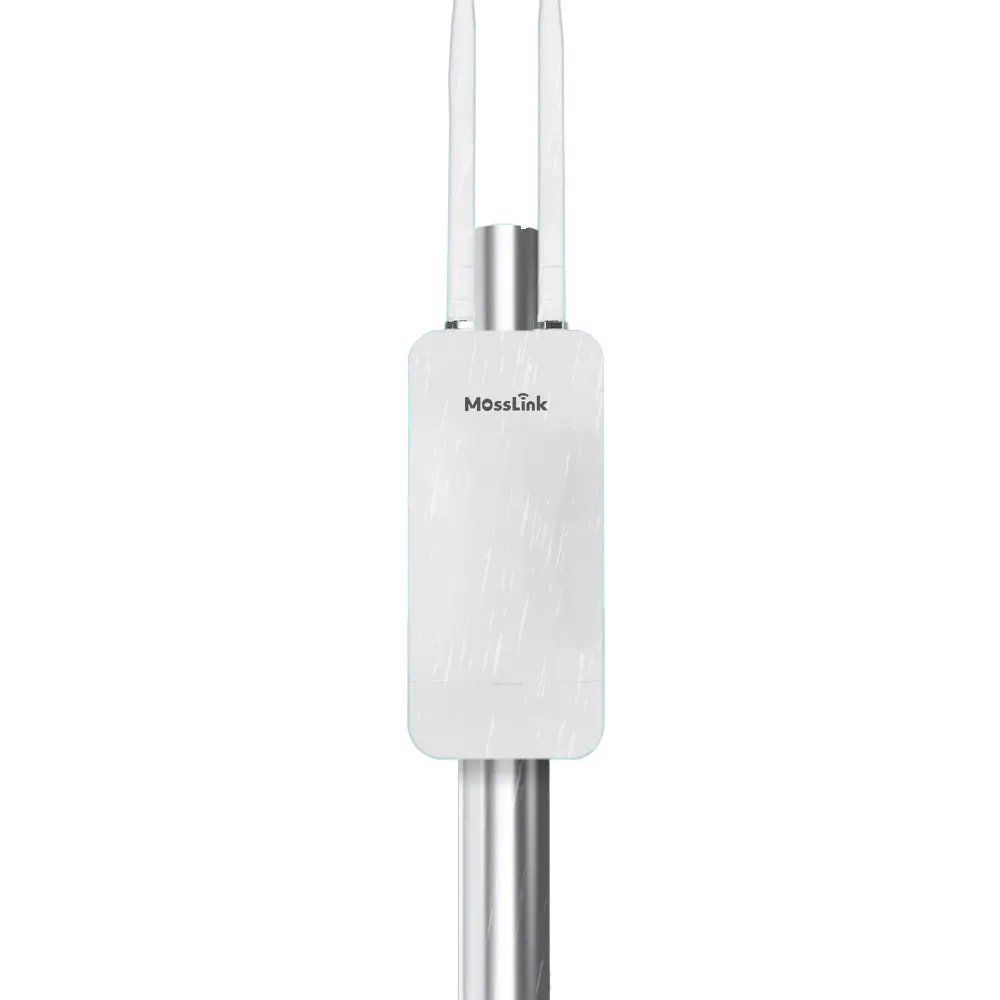

With less than 7W power consumption, PoE 24V support, and wall/pole mounting options, the YA796 is economical to operate at scale. Wi-Fi scheduling enables automatic on/off timing to reduce energy use during off-peak hours, further lowering operating costs for large outdoor deployments.
OEM/ODM Ready
MossLink offers OEM and ODM customization for this product, including custom firmware, antenna configurations, enclosure branding, and private-label packaging. Volume pricing is available for system integrators, ISPs, and hotel/hospitality technology suppliers. MossLink runs an access point ODM factory for white-label production with MOQs from 100 units. Contact us to discuss your project requirements.
Specifications
| Standard | Wi-Fi 5 (802.11ac) |
| Band | Dual-Band (2.4GHz + 5GHz) |
| Max Speed | AC1200 (300 + 866 Mbps) |
| CPU | MT7628DAN + MT7613BEN |
| RAM | 64MB DDR2 |
| Flash | 8MB |
| Antenna | 2× 5dBi External Dual-Band |

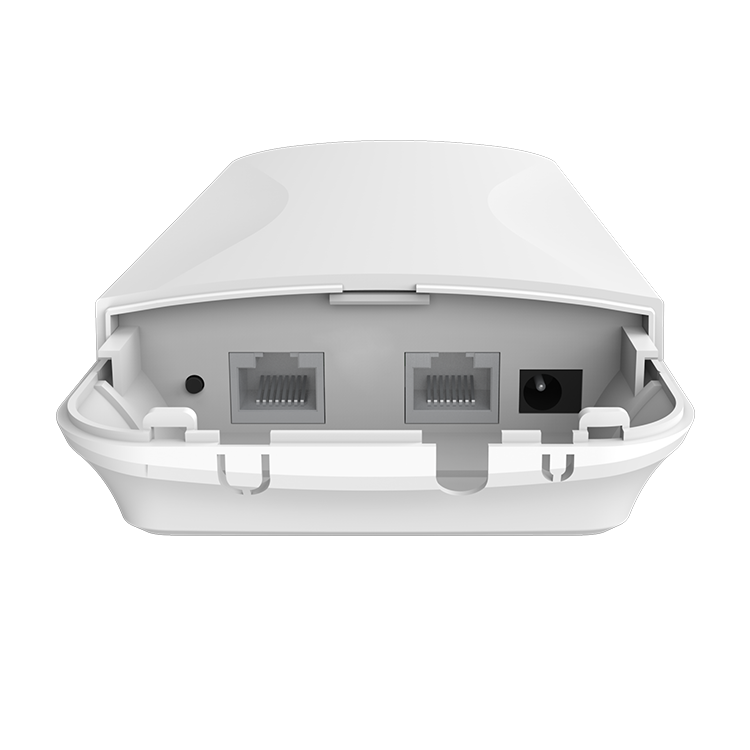

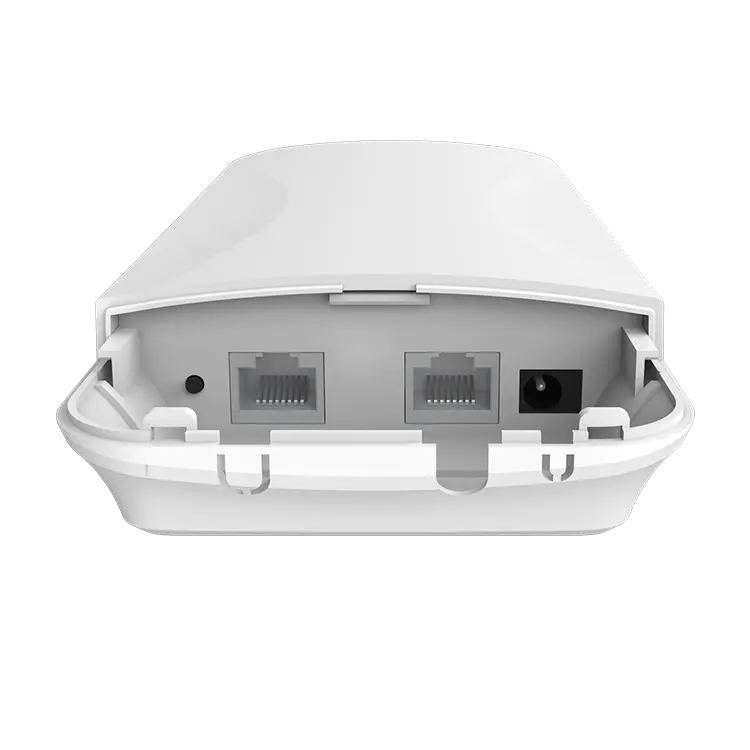

| Ethernet | 1× 100Mbps WAN + 1× 100Mbps LAN |
| PoE | 24V PoE / 12V DC 1A |
| Max Clients | Recommended 64 per band |
| Enclosure | IP65 Weatherproof |
| Operating Mode | Gateway / AP / Repeater / WISP |
| Power Consumption | < 7W |
| Temperature | -30°C ~ +55°C |
Ordering & Customization
The YA796 ships factory-direct from Shenzhen with full OEM/ODM support. Three customization levels are available depending on your order quantity:
Logo & Packaging (OEM)
From 100 units
- Your logo on the enclosure
- Branded box, labels & user manual
- Zero MossLink branding on final product
Custom Firmware (Software)
From 500 units
- Custom web UI & boot screen
- Default configuration & feature tuning
- Regional and regulatory presets
Custom Hardware (ODM)
From 1,000 units
- Enclosure & antenna modifications
- Port and power-budget variations
- PCB-level customization
Learn more about our OEM/ODM process →
- Standard MOQ
- 100 units for standard products with no customization
- Samples
- 1–5 evaluation units at product cost plus shipping — sample fee credited toward your first bulk order
- Lead Time
- In-stock products: 3–5 business days · bulk production: 3–4 weeks · OEM/ODM orders: 4–8 weeks
- Payment Terms
- 30% deposit, 70% balance before shipment · T/T and L/C accepted, in USD
- Shipping
- DHL / FedEx / UPS express, air and sea freight · DDP, FOB Shenzhen, or CIF terms
- Packaging
- Each unit individually boxed with protective foam; palletized export cartons for freight — carton specs available on request
- Quality Control
- 100% inspection and 24-hour burn-in testing; a signed QC report ships with every order
- Certifications
- CE, FCC, and RoHS standard · additional market certifications (IC, TELEC, NCC, etc.) available via ODM
Downloads
Frequently Asked Questions
What operating modes does the YA796 support?
The YA796 supports Gateway, AP, Repeater, and WISP modes. Gateway mode provides full routing capability, AP mode extends an existing wired network wirelessly, Repeater mode extends Wi-Fi coverage, and WISP mode converts a wireless upstream into a local wired/wireless network — covering most outdoor deployment scenarios.
How does seamless roaming work on the YA796?
The YA796 supports 802.11kvr seamless roaming, enabling clients to automatically switch to the strongest AP signal without dropping their connection as they move through the coverage area. This is particularly useful for hotels, campuses, and warehouses with multiple AP installations.
Is the YA796 suitable for hotel and campus outdoor deployments?
Yes. The combination of IP65 weatherproofing, multiple SSID support, 802.1x enterprise authentication, client isolation, and seamless roaming makes the YA796 well suited for hotel outdoor areas, campus perimeter networks, factory yards, and rural community ISP deployments.
Is OEM/ODM customization available for this product?
Yes. MossLink offers full OEM and ODM services for this product, including custom firmware features, hardware modifications, enclosure branding, and private-label packaging. Minimum order quantities apply. Contact us to discuss your project requirements.
What is the MOQ for the YA796?
Standard YA796 orders start at 100 units. Logo and packaging customization (OEM) also starts at 100 units, custom firmware at 500 units, and custom hardware (ODM) at 1,000 units. Contact sales with your target quantity for a formal quotation.
Can I get a sample of the YA796 before bulk ordering?
Yes. We supply 1–5 evaluation units at product cost plus shipping, and the sample fee is credited toward your first bulk order. Contact us via email or WhatsApp with the model number to arrange a sample.
What is the lead time for the YA796?
In-stock units ship within 3–5 business days. Bulk production orders typically require 3–4 weeks, and OEM/ODM orders with customization take 4–8 weeks depending on complexity. Rush production is available at additional cost.
Is the YA796 certified for my market?
The YA796 carries CE, FCC, and RoHS certification as standard. Additional certifications for specific markets (IC, TELEC, NCC, etc.) can be arranged through our ODM service.
How is product quality controlled before shipment?
Every unit undergoes 100% inspection and 24-hour burn-in testing before leaving the factory, and a signed QC report ships with every order — full traceability from component to delivery.
What payment terms do you accept?
Standard terms are a 30% deposit with order confirmation and the 70% balance before shipment, paid in USD via T/T. Letter of credit and flexible terms are available for established partners.
