1 / 10
CE FCC RoHS
WB610H 5.8GHz 900Mbps Outdoor Bridge, 5KM, Hotspot
WB610H
MOQ 100 units Lead time 3–4 weeks Samples 1–5 units 5 Years warranty
Type 5.8GHz Outdoor PtP/PtMP Wireless Bridge
Chipset MTK7620
Standard IEEE 802.11a/n/ac (5.8GHz)
Antenna 16dBi Built-in Directional
Max Speed 900Mbps
Overview

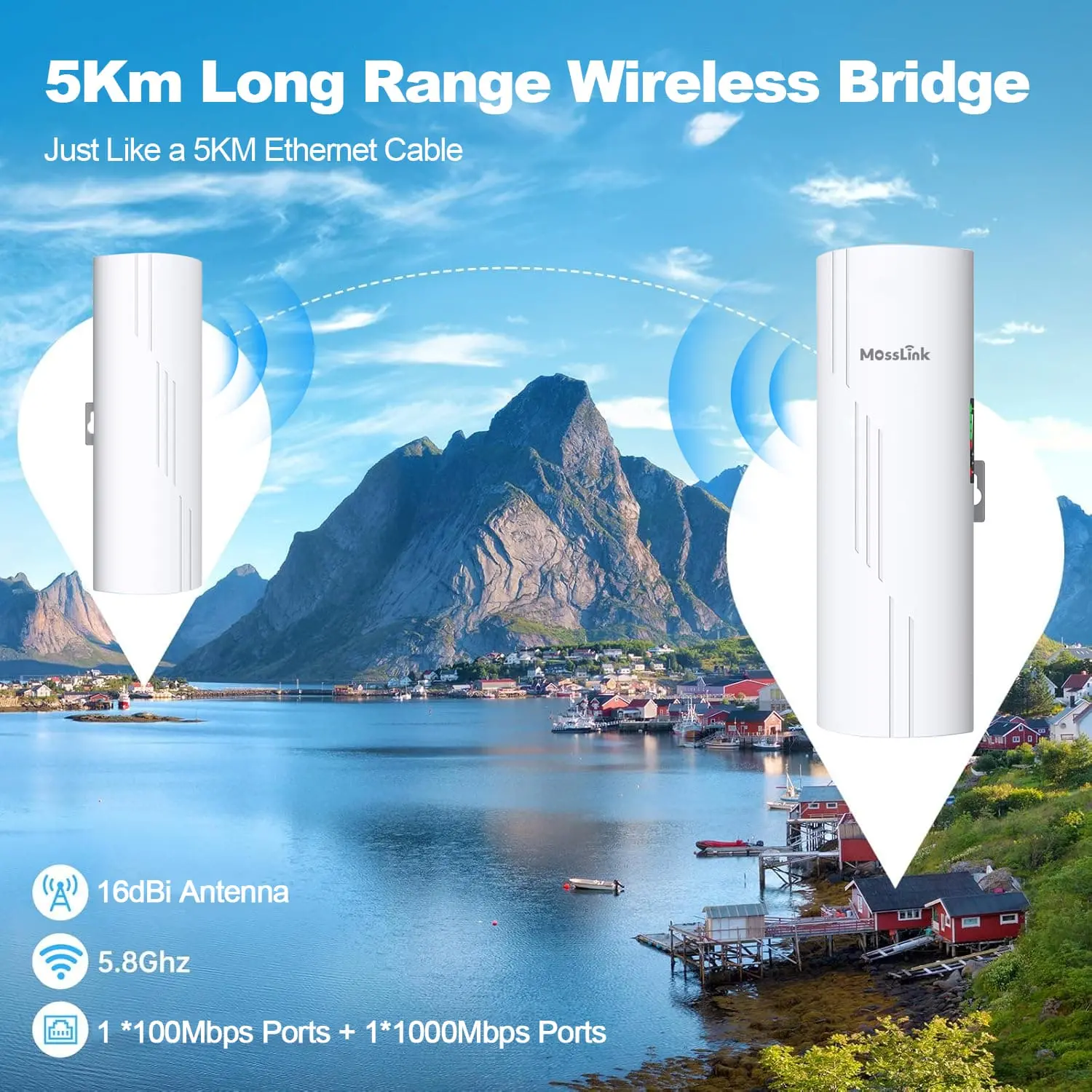

- 900Mbps 5.8GHz 802.11ac for high-throughput 5km point-to-point links
- Both A and B units support hotspot (Wi-Fi AP) mode for local wireless access

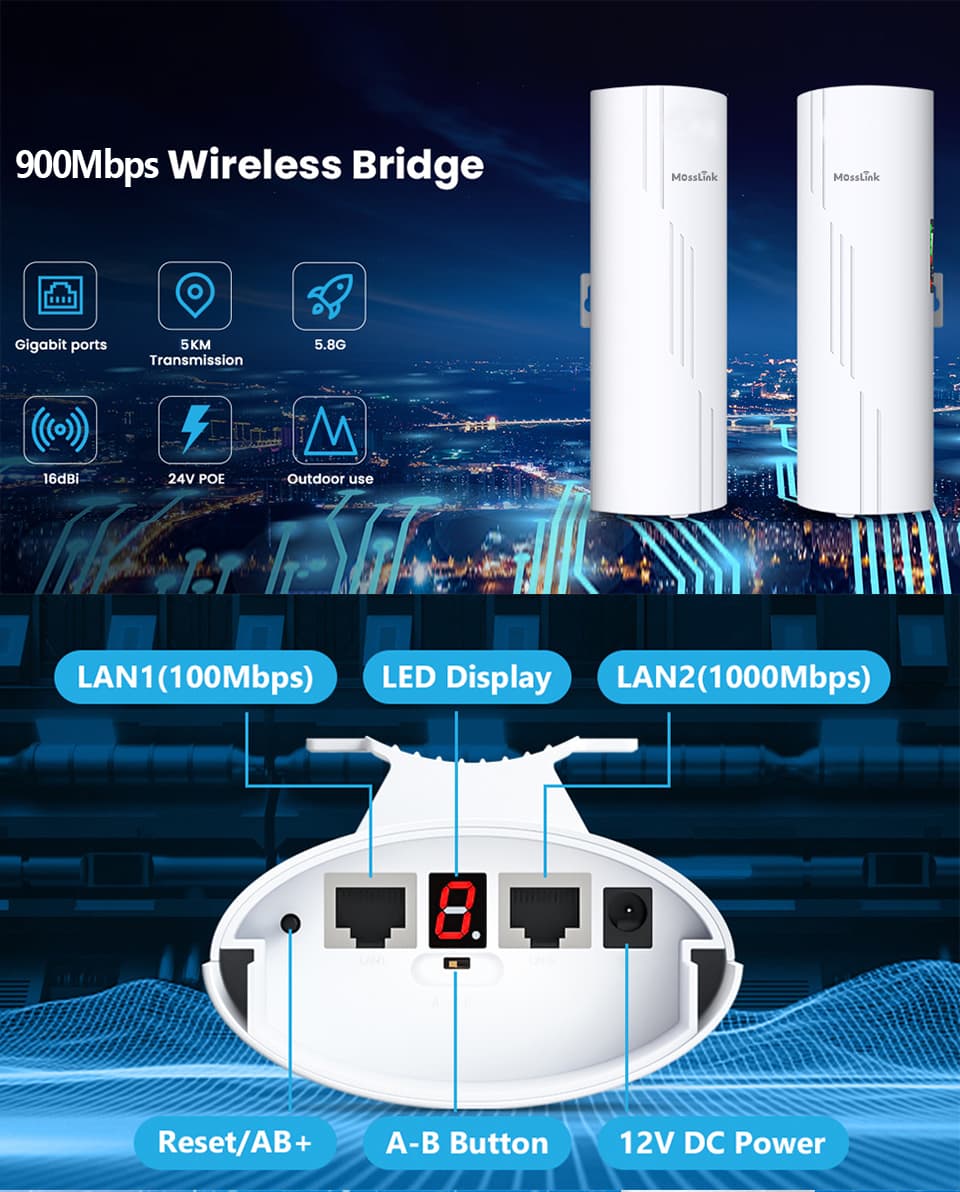

- Gigabit PoE IN/OUT on both ends — powers IP cameras or connects to PoE switches
- 12V–55V wide-voltage PoE input, compatible with passive and active PoE systems

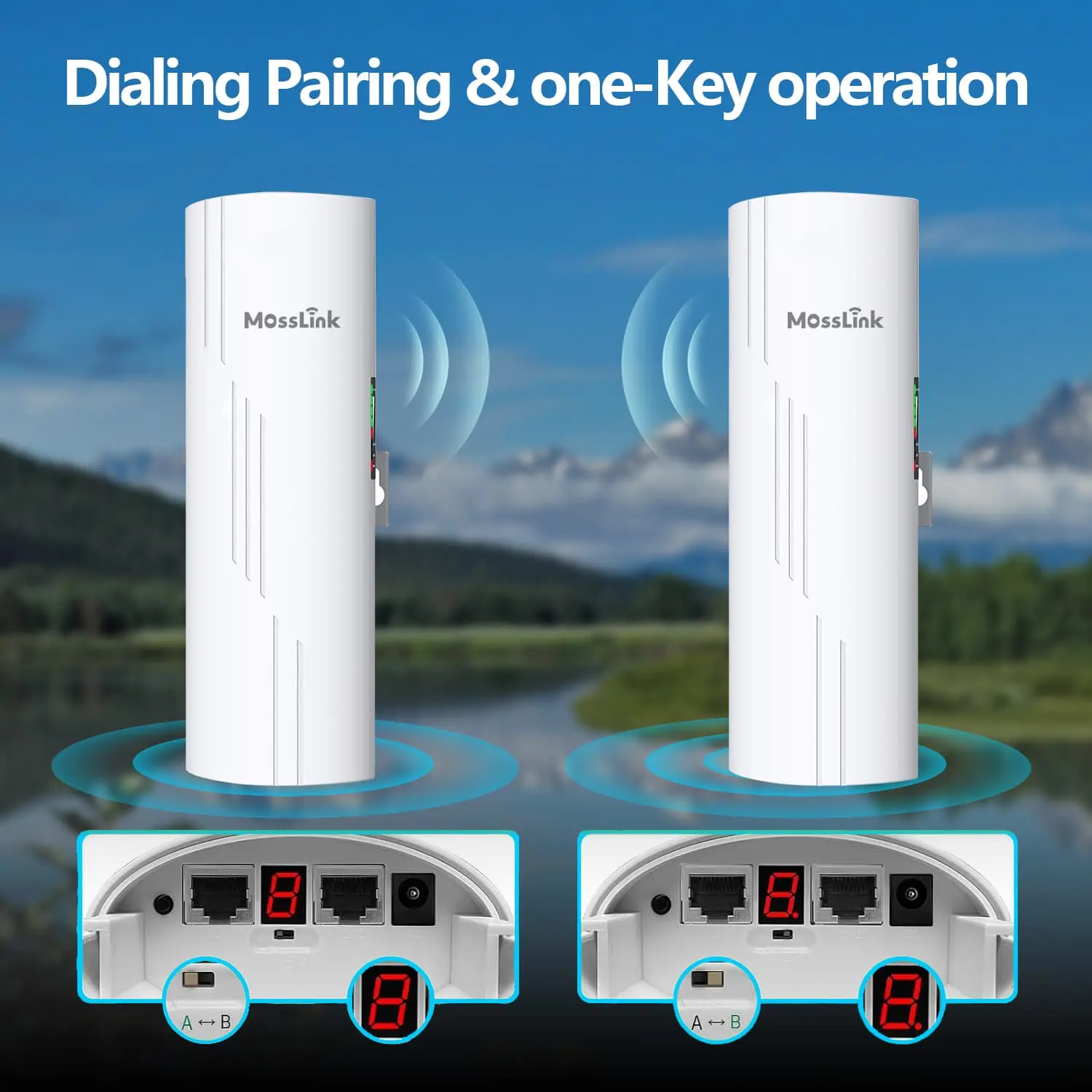

- AB dial pairing with LED display for fast plug-and-play setup

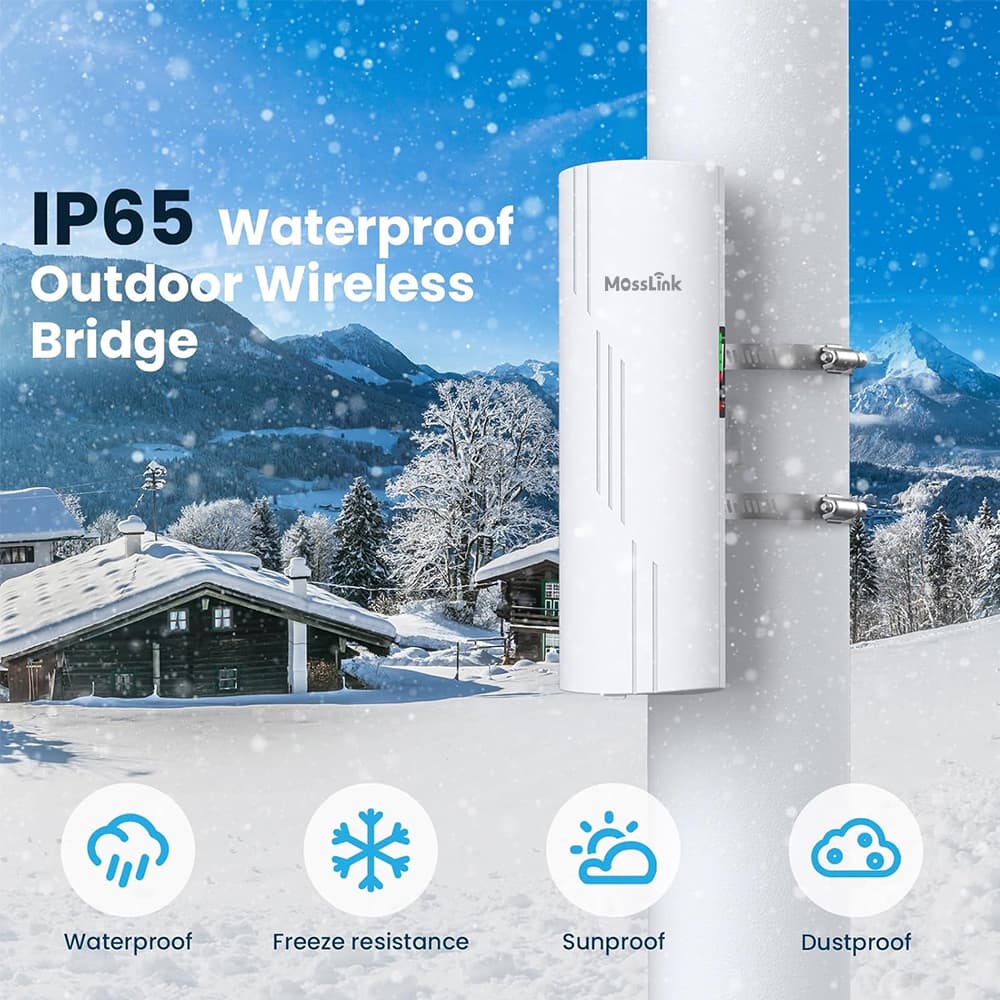

- IP65 weatherproof housing rated -30°C to +65°C
- OEM-ready with DFS and radar channel adaptation for regional compliance
The WB610H is a 5.8GHz outdoor wireless bridge delivering 900Mbps over 5km with a 16dBi built-in directional antenna. Its key differentiator is hotspot (Wi-Fi AP) mode support on both A and B units, enabling local wireless access at both ends of the bridge link simultaneously. With Gigabit PoE IN/OUT on both ends, 12V–55V wide-voltage PoE compatibility, AB dial pairing with LED display, and IP65 weatherproofing, it is designed for CCTV backhaul, warehouse networking, rural Wi-Fi, and Starlink extension deployments.
Ideal For

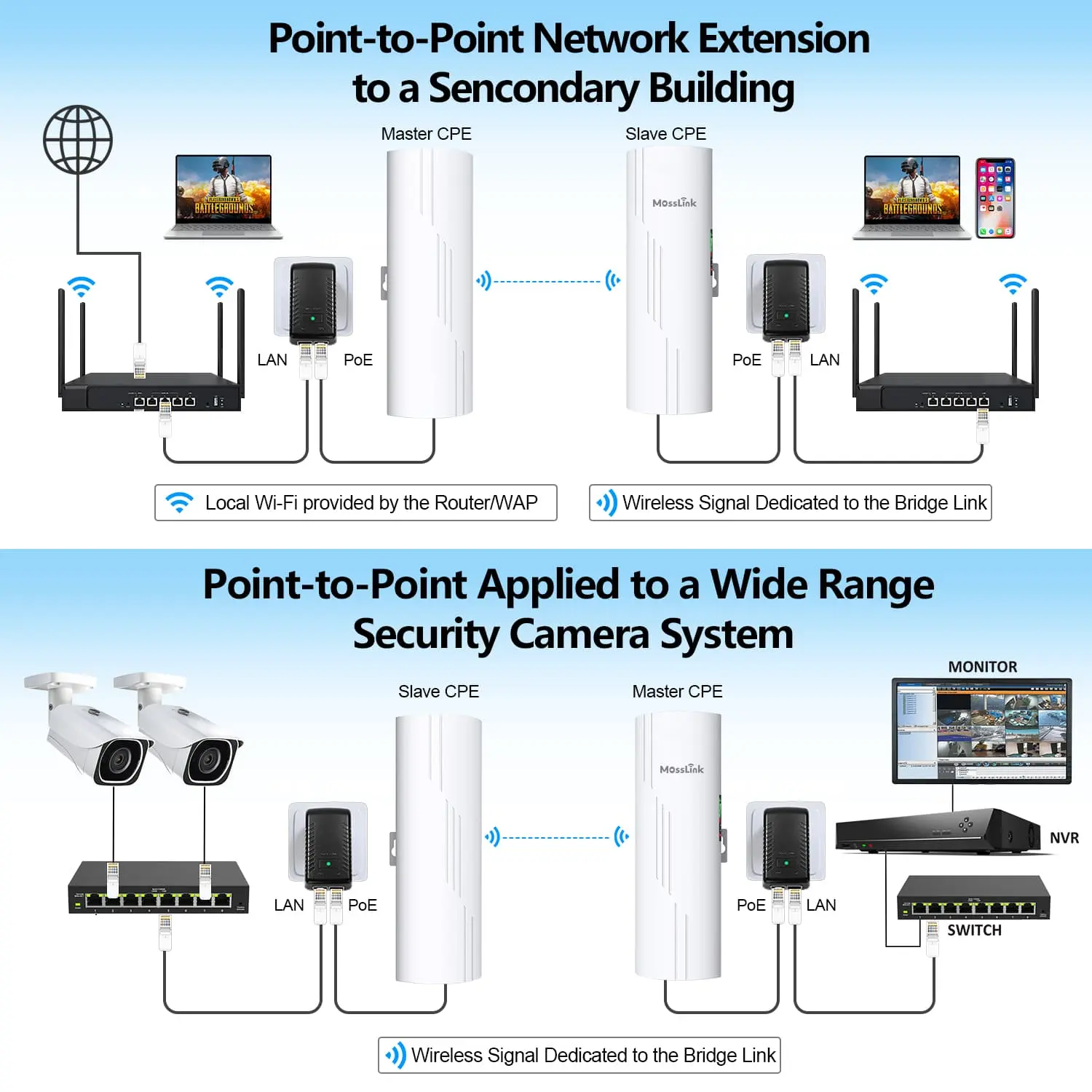

- CCTV backhaul where both bridge ends also need to serve local Wi-Fi clients
- Warehouse-to-office building wireless networking with local AP coverage at each end
- Rural community broadband distribution with Wi-Fi hotspot at remote site
- Starlink internet extension to secondary buildings with local Wi-Fi served from each unit
- Construction sites requiring both long-range backhaul and local wireless access
Deployment Advantages
The dual hotspot capability eliminates the need for a separate Wi-Fi AP at the remote end of a bridge link — a single WB610H unit both bridges the long-range link and serves local wireless clients, reducing equipment cost and installation complexity. The wide-voltage 12V–55V PoE input ensures compatibility with existing power infrastructure without adapter replacement.
AB dial pairing and LED display reduce configuration time to minutes in the field without laptop or smartphone access. DFS and radar channel adaptation support ensures regional regulatory compliance for deployments in DFS frequency bands.
OEM/ODM Ready
MossLink offers OEM and ODM customization for this product including DFS-adaptive firmware, private-label software, logo branding, and custom packaging. Volume pricing is available for ISPs, wireless equipment distributors, and system integrators. Contact us to discuss your project requirements.
Specifications
| Type | 5.8GHz Outdoor PtP/PtMP Wireless Bridge |
| Chipset | MTK7620 |
| Standard | IEEE 802.11a/n/ac (5.8GHz) |
| Antenna | 16dBi Built-in Directional |
| Max Speed | 900Mbps |
| Range | Up to 5km (LoS) |
| Ethernet | 1× Gigabit (PoE IN/OUT on both A and B ends) |
| Hotspot Mode | Supported on both A and B units |
| Power | 12V–55V Wide-Voltage PoE |
| Enclosure | IP65 |
| Temperature | -30°C ~ +65°C |
Ordering & Customization
The WB610H ships factory-direct from Shenzhen with full OEM/ODM support. Three customization levels are available depending on your order quantity:
Logo & Packaging (OEM)
From 100 units- Your logo on the enclosure
- Branded box, labels & user manual
- Zero MossLink branding on final product
Custom Firmware (Software)
From 500 units- Custom web UI & boot screen
- Default configuration & feature tuning
- Regional and regulatory presets
Custom Hardware (ODM)
From 1,000 units- Enclosure & antenna modifications
- Port and power-budget variations
- PCB-level customization
Learn more about our OEM/ODM process →
- Standard MOQ
- 100 units for standard products with no customization
- Samples
- 1–5 evaluation units at product cost plus shipping — sample fee credited toward your first bulk order
- Lead Time
- In-stock products: 3–5 business days · bulk production: 3–4 weeks · OEM/ODM orders: 4–8 weeks
- Payment Terms
- 30% deposit, 70% balance before shipment · T/T and L/C accepted, in USD
- Shipping
- DHL / FedEx / UPS express, air and sea freight · DDP, FOB Shenzhen, or CIF terms
- Packaging
- Each unit individually boxed with protective foam; palletized export cartons for freight — carton specs available on request
- Quality Control
- 100% inspection and 24-hour burn-in testing; a signed QC report ships with every order
- Certifications
- CE, FCC, and RoHS standard · additional market certifications (IC, TELEC, NCC, etc.) available via ODM
Downloads
Frequently Asked Questions
What does hotspot mode on both ends mean for deployment?
Both the A unit and the B unit of the WB610H pair can independently broadcast a local Wi-Fi hotspot (AP) to serve wireless clients near each end of the bridge. This enables wireless device access on both sides of the link simultaneously — for example, providing local Wi-Fi at a remote camera cluster while the bridge transmits data back to the main network.
What PoE standards is the WB610H compatible with?
The WB610H accepts 12V–55V wide-voltage PoE input, making it compatible with passive 24V PoE adapters (the most common standard for outdoor CPE), passive 48V injectors, and active 802.3at (48V) PoE switches. This broad compatibility reduces constraints in mixed-equipment deployments.
Is OEM/ODM customization available for this product?
Yes. MossLink offers full OEM and ODM services including DFS/radar channel adaptation for regional regulatory compliance, firmware customization, enclosure branding, and private-label packaging. Contact us to discuss your project requirements.
What is the MOQ for the WB610H?
Standard WB610H orders start at 100 units. Logo and packaging customization (OEM) also starts at 100 units, custom firmware at 500 units, and custom hardware (ODM) at 1,000 units. Contact sales with your target quantity for a formal quotation.
Can I get a sample of the WB610H before bulk ordering?
Yes. We supply 1–5 evaluation units at product cost plus shipping, and the sample fee is credited toward your first bulk order. Contact us via email or WhatsApp with the model number to arrange a sample.
What is the lead time for the WB610H?
In-stock units ship within 3–5 business days. Bulk production orders typically require 3–4 weeks, and OEM/ODM orders with customization take 4–8 weeks depending on complexity. Rush production is available at additional cost.
Is the WB610H certified for my market?
The WB610H carries CE, FCC, and RoHS certification as standard. Additional certifications for specific markets (IC, TELEC, NCC, etc.) can be arranged through our ODM service.
How is product quality controlled before shipment?
Every unit undergoes 100% inspection and 24-hour burn-in testing before leaving the factory, and a signed QC report ships with every order — full traceability from component to delivery.
What payment terms do you accept?
Standard terms are a 30% deposit with order confirmation and the 70% balance before shipment, paid in USD via T/T. Letter of credit and flexible terms are available for established partners.
