WB620H 5.8GHz 1200Mbps Outdoor Bridge, 5KM, Dual GbE
WB620H
Type 5.8GHz Outdoor PtP/PtMP Wireless Bridge
CPU MTK7621, DDR2 64MB, Flash 8MB
Standard IEEE 802.11a/n/ac (5.8GHz)
Antenna 2× 16dBi Dual-Polarized Directional
Max Speed 1200Mbps (750Mbps actual)
5 Years Warranty
Overview
- 1200Mbps 5.8GHz 802.11ac with 750Mbps actual throughput for high-bandwidth backhaul
- Dual 2×16dBi directional antennas for strong 5km signal stability
- 2× Gigabit Ethernet ports for full-speed wired connections on both ports
- MTK7621 chipset for high-performance stable wireless processing

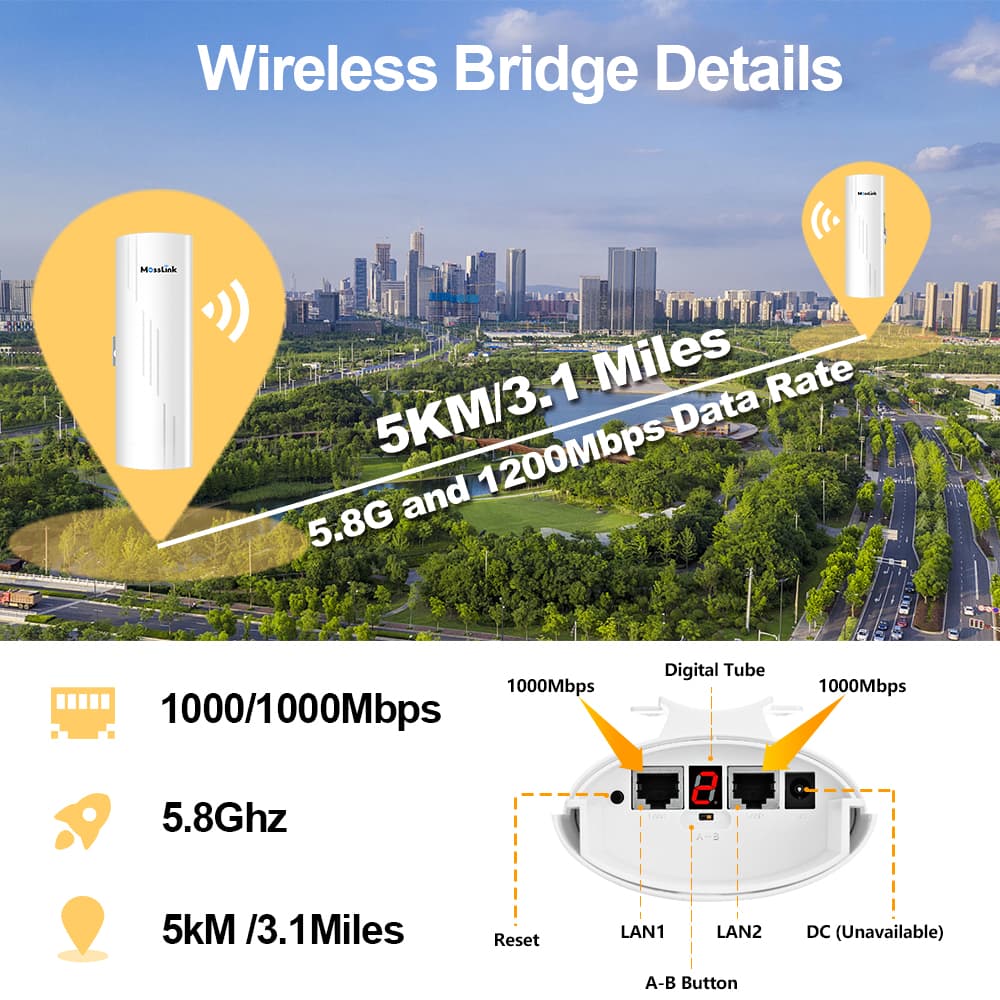

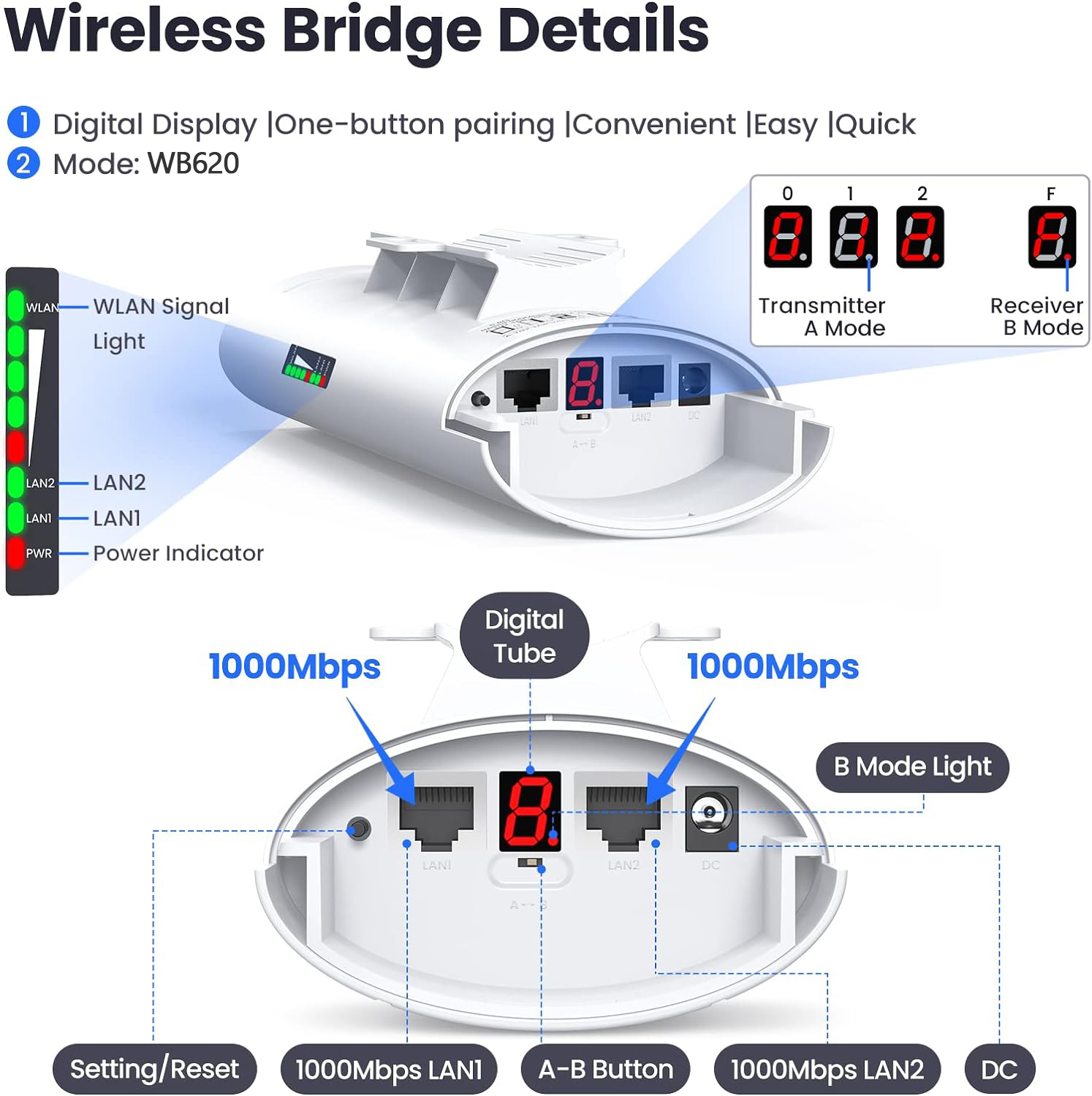

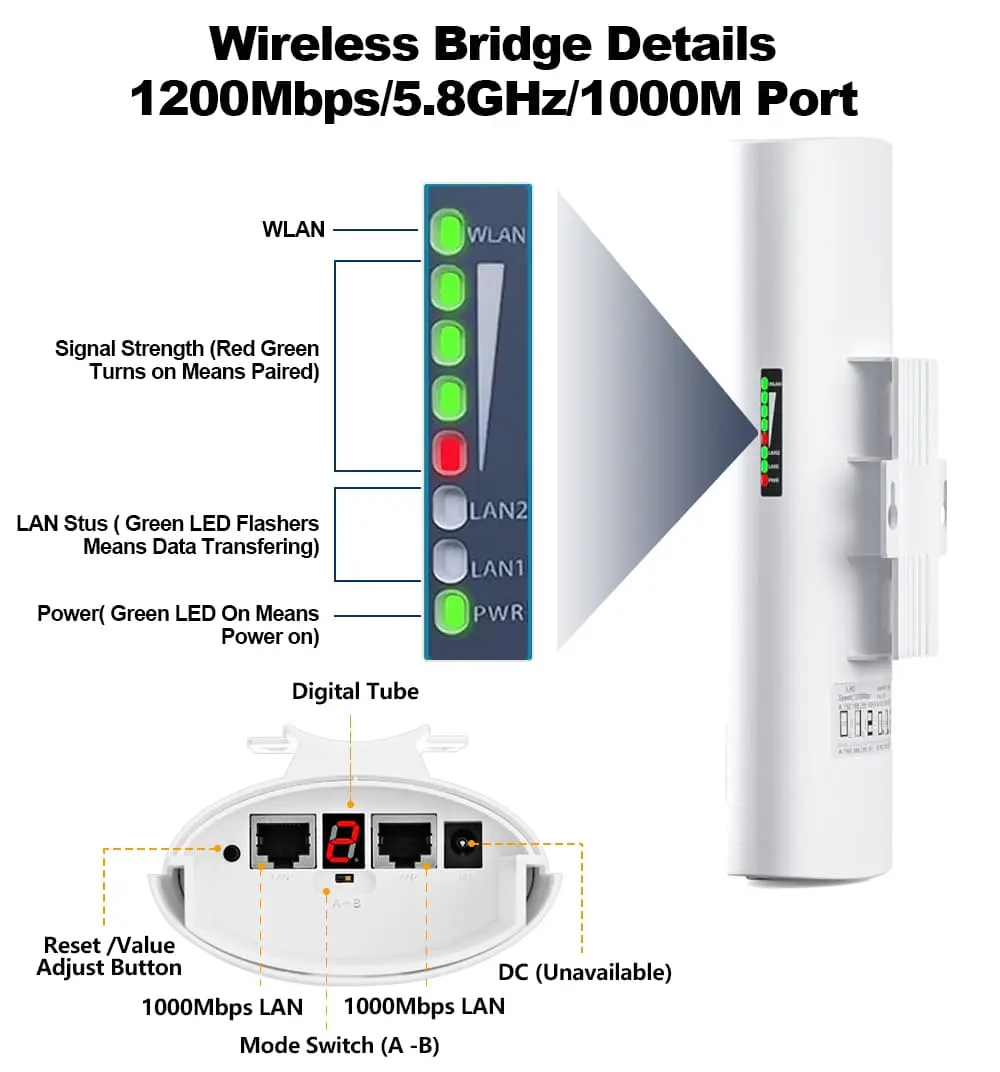

- LED display and dial-pairing for fast PtP/PtMP configuration

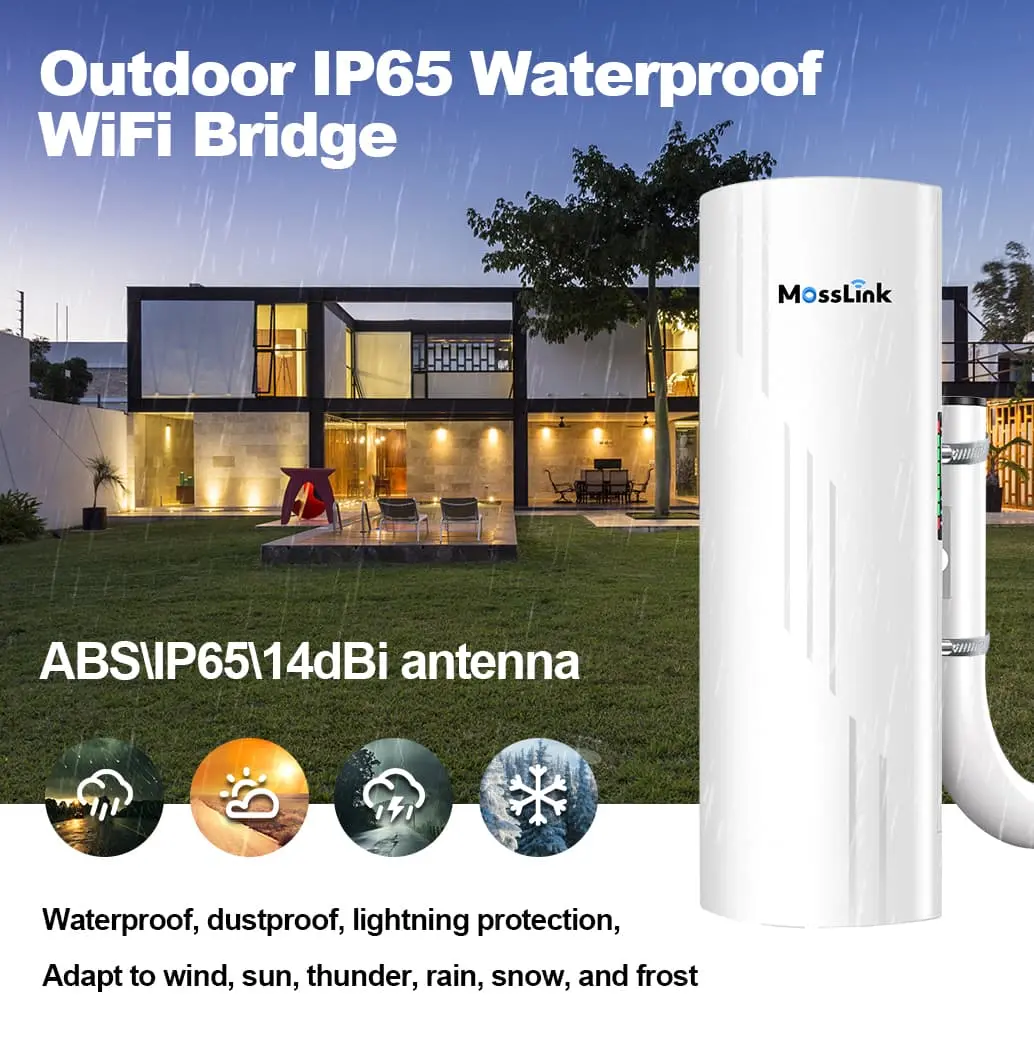

- IP65 weatherproof housing rated -30°C to +65°C
- Compatible with Starlink and 4G/5G routers for internet extension
The WB620H is a high-performance 5.8GHz outdoor wireless bridge delivering 1200Mbps (750Mbps actual) over 5km point-to-point links. Powered by MTK7621 with dual 2×16dBi directional antennas, 2× Gigabit Ethernet ports, LED display dial-pairing, IP65 weatherproofing, and full OEM/ODM support, it is designed for HD video surveillance backhaul, factory and warehouse networking, Starlink internet extension, and enterprise building-to-building connectivity.
Ideal For
- HD and 4K IP camera CCTV backhaul requiring high throughput over 5km
- Factory, warehouse, and industrial site building-to-building gigabit links
- Starlink and 4G/5G router internet extension to secondary buildings or zones
- Rural community broadband distribution over medium-distance wireless
- Enterprise campus cross-building connectivity without fiber trenching
Deployment Advantages

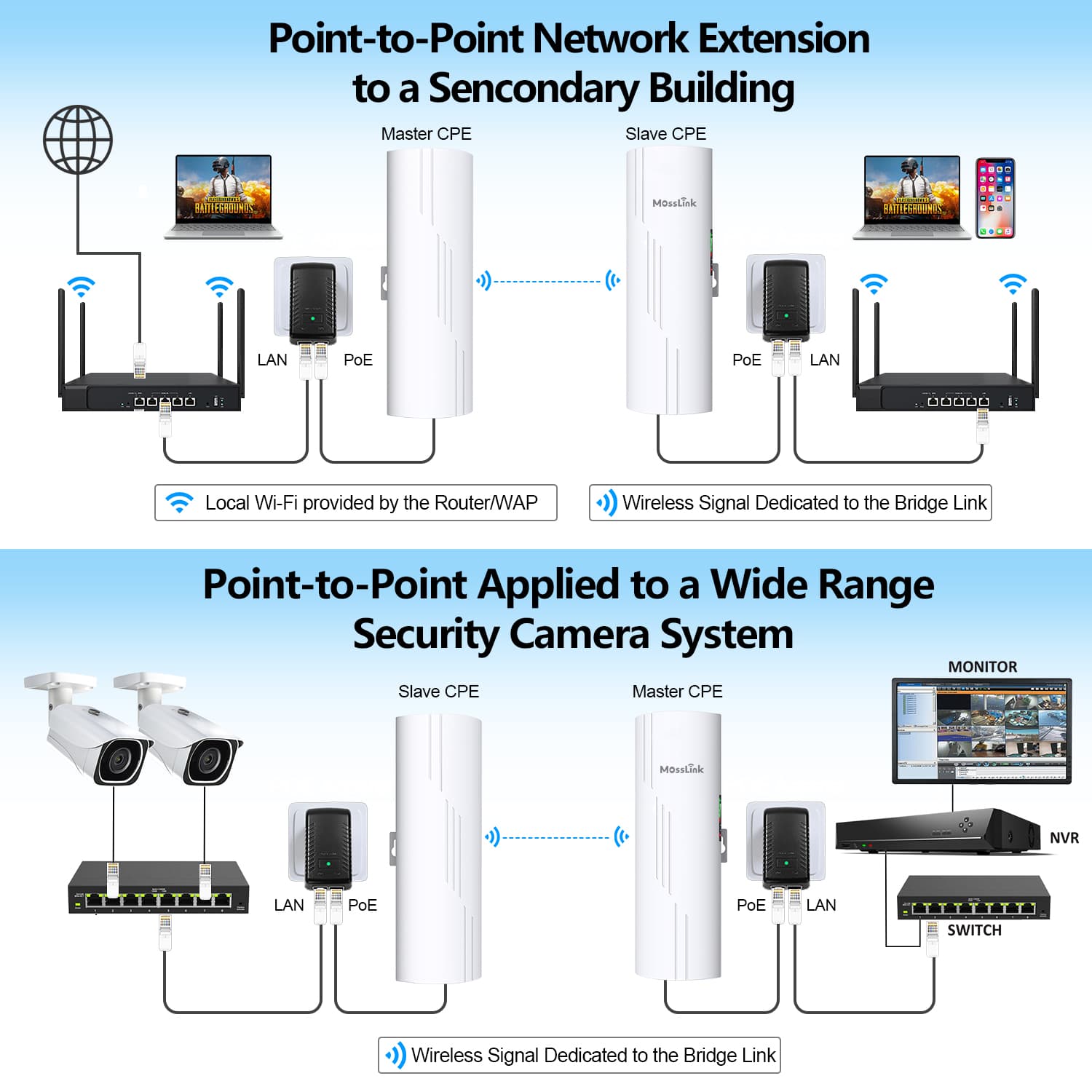

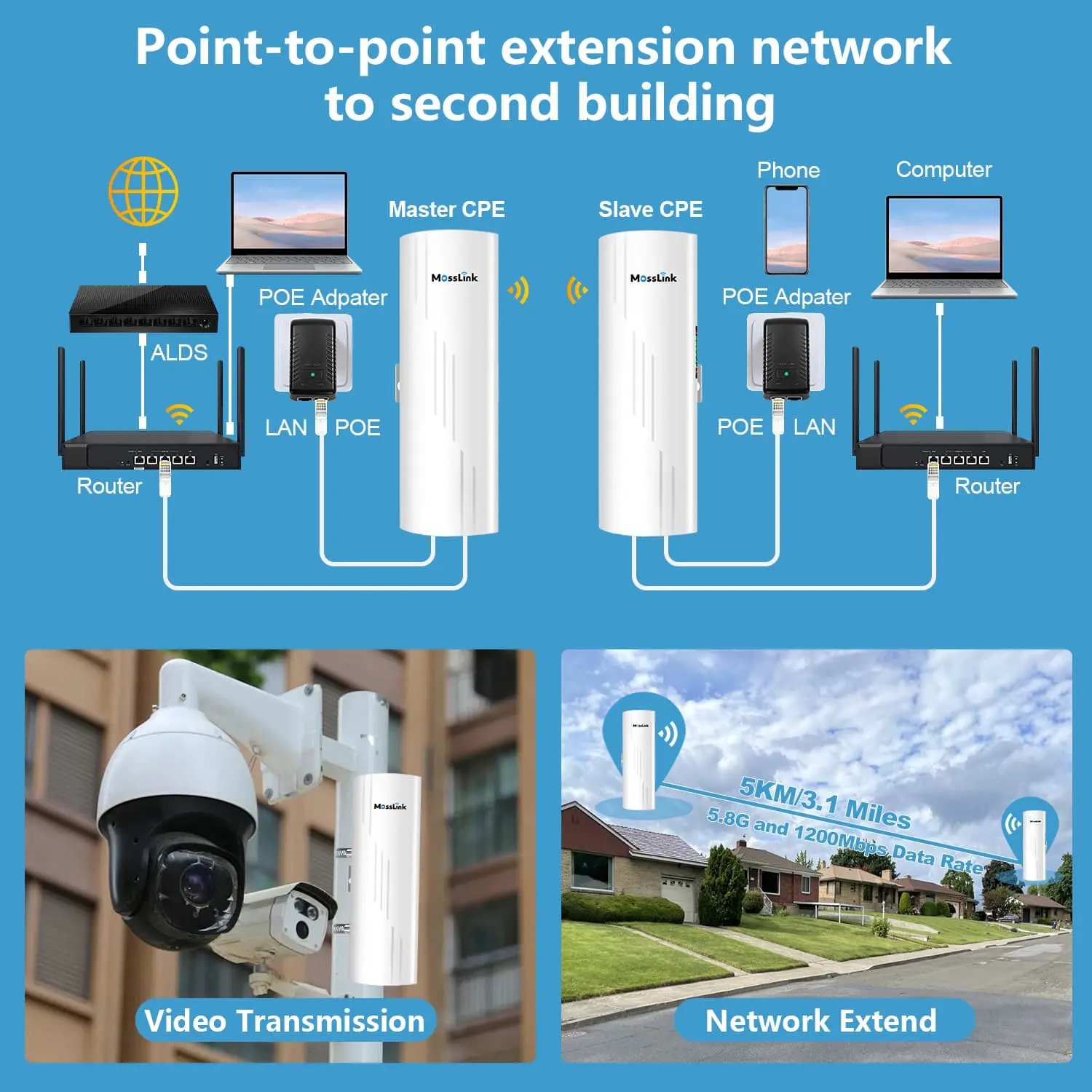

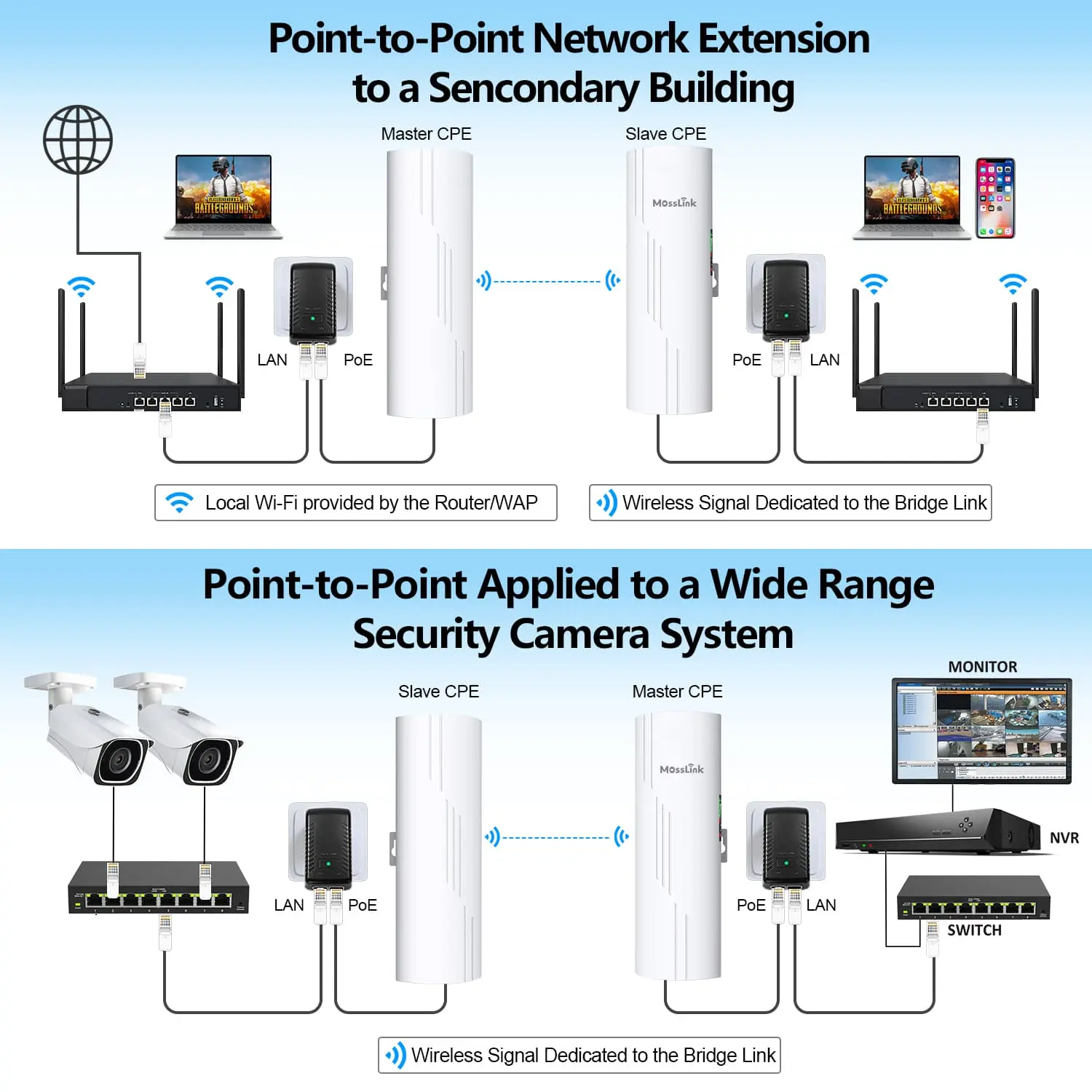

Dual Gigabit Ethernet ports enable simultaneous upstream switch connection and downstream device connection at both ends of the bridge link, eliminating the need for a separate switch in simple installations. The 1200Mbps 802.11ac link with 750Mbps actual throughput handles multiple simultaneous 4K camera streams or enterprise data traffic without congestion.
LED display and dial-pairing simplify PtP/PtMP configuration in the field without web UI access, reducing deployment time for multi-site installations. Full OEM support including firmware customization, logo branding, and packaging makes the WB620H suitable for distributors and private-label product lines.
OEM/ODM Ready
MossLink offers OEM and ODM customization for this product including custom firmware features, local web UI branding, logo printing, labels, and packaging design. A fully white-labeled cloud platform is not a standard feature of this bridge. Volume pricing is available for ISPs, surveillance integrators, and wireless equipment distributors.
Specifications
| Type | 5.8GHz Outdoor PtP/PtMP Wireless Bridge |
| CPU | MTK7621, DDR2 64MB, Flash 8MB |
| Standard | IEEE 802.11a/n/ac (5.8GHz) |
| Antenna | 2× 16dBi Dual-Polarized Directional |
| Max Speed | 1200Mbps (750Mbps actual) |
| Range | Up to 5km (LoS) |
| Ethernet | 2× 10/100/1000Mbps Gigabit RJ45 |
| Power | 24V 1A PoE Adapter |
| Power Consumption | <3W |
| Enclosure | IP65 |
| Weight | 1.5 kg |
| Temperature | -30°C ~ +55°C |
Ordering & Customization
The WB620H ships factory-direct from Shenzhen with full OEM/ODM support. Three customization levels are available depending on your order quantity:
Logo & Packaging (OEM)
From 100 units
- Your logo on the enclosure
- Branded box, labels & user manual
- Zero MossLink branding on final product
Custom Firmware (Software)
From 500 units
- Custom web UI & boot screen
- Default configuration & feature tuning
- Regional and regulatory presets
Custom Hardware (ODM)
From 1,000 units
- Enclosure & antenna modifications
- Port and power-budget variations
- PCB-level customization
Learn more about our OEM/ODM process →
- Standard MOQ
- 100 units for standard products with no customization
- Samples
- 1–5 evaluation units at product cost plus shipping — sample fee credited toward your first bulk order
- Lead Time
- In-stock products: 3–5 business days · bulk production: 3–4 weeks · OEM/ODM orders: 4–8 weeks
- Payment Terms
- 30% deposit, 70% balance before shipment · T/T and L/C accepted, in USD
- Shipping
- DHL / FedEx / UPS express, air and sea freight · DDP, FOB Shenzhen, or CIF terms
- Packaging
- Each unit individually boxed with protective foam; palletized export cartons for freight — carton specs available on request
- Quality Control
- 100% inspection and 24-hour burn-in testing; a signed QC report ships with every order
- Certifications
- CE, FCC, and RoHS standard · additional market certifications (IC, TELEC, NCC, etc.) available via ODM
Downloads
Frequently Asked Questions
What actual throughput does the WB620H achieve in practice?
The WB620H achieves approximately 750Mbps actual PtP data throughput under clear line-of-sight conditions at optimal channel settings. The 1200Mbps figure is the 802.11ac PHY rate. Actual throughput varies with distance, RF conditions, and channel bandwidth selection.
Why does the WB620H have two Gigabit ports instead of one?
Dual Gigabit ports allow simultaneous connection to an upstream switch and a downstream device (such as an NVR, IP camera cluster switch, or secondary router) without additional switching equipment at the remote end. This reduces component count and simplifies wiring in field deployments.
Is OEM/ODM customization available for this product?
Yes. MossLink offers full OEM and ODM services including custom firmware, enclosure branding, logo printing, and private-label packaging. Contact us to discuss your project requirements.
What is the MOQ for the WB620H?
Standard WB620H orders start at 100 units. Logo and packaging customization (OEM) also starts at 100 units, custom firmware at 500 units, and custom hardware (ODM) at 1,000 units. Contact sales with your target quantity for a formal quotation.
Can I get a sample of the WB620H before bulk ordering?
Yes. We supply 1–5 evaluation units at product cost plus shipping, and the sample fee is credited toward your first bulk order. Contact us via email or WhatsApp with the model number to arrange a sample.
What is the lead time for the WB620H?
In-stock units ship within 3–5 business days. Bulk production orders typically require 3–4 weeks, and OEM/ODM orders with customization take 4–8 weeks depending on complexity. Rush production is available at additional cost.
Is the WB620H certified for my market?
The WB620H carries CE, FCC, and RoHS certification as standard. Additional certifications for specific markets (IC, TELEC, NCC, etc.) can be arranged through our ODM service.
How is product quality controlled before shipment?
Every unit undergoes 100% inspection and 24-hour burn-in testing before leaving the factory, and a signed QC report ships with every order — full traceability from component to delivery.
What payment terms do you accept?
Standard terms are a 30% deposit with order confirmation and the 70% balance before shipment, paid in USD via T/T. Letter of credit and flexible terms are available for established partners.
