1 / 7
CE FCC RoHS
WB2500 5.8GHz Outdoor Wireless Bridge, 26dBi, 15KM
WB2500
Type Outdoor PtP / PtMP Wireless Bridge
CPU MT7621AT + MT7612EN, 128MB DDR2, 8MB Flash
Standard IEEE 802.11ac, 802.11a/n (5.8GHz)
Antenna 26dBi Dual-Polarized Parabolic Radar Antenna
Max Speed 866Mbps
5 Years Warranty
Overview
- 26dBi dual-polarized radar-style parabolic antenna for 15km gigabit backhaul
- MT7621AT + MT7612EN chipset delivering up to 866Mbps 5.8GHz throughput

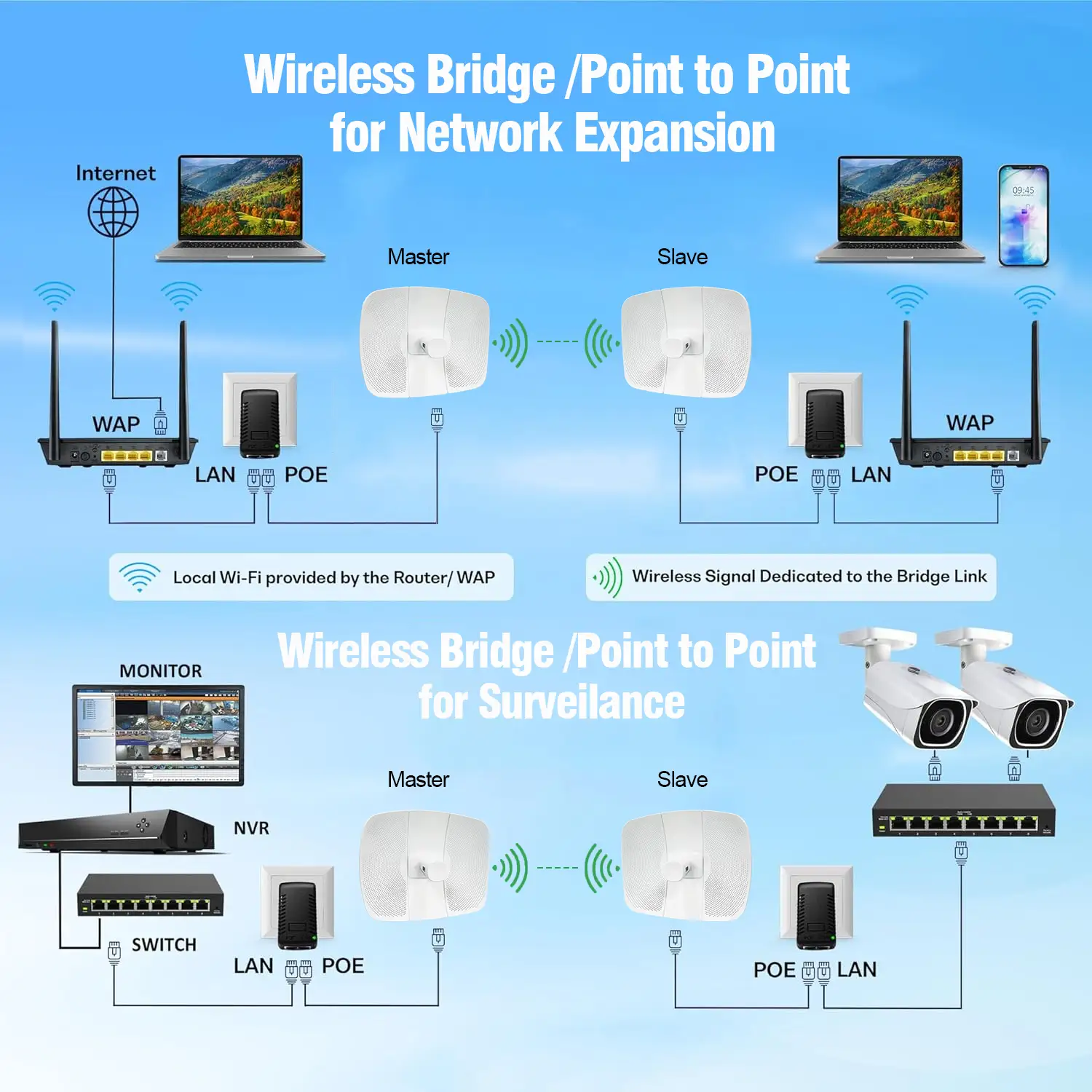

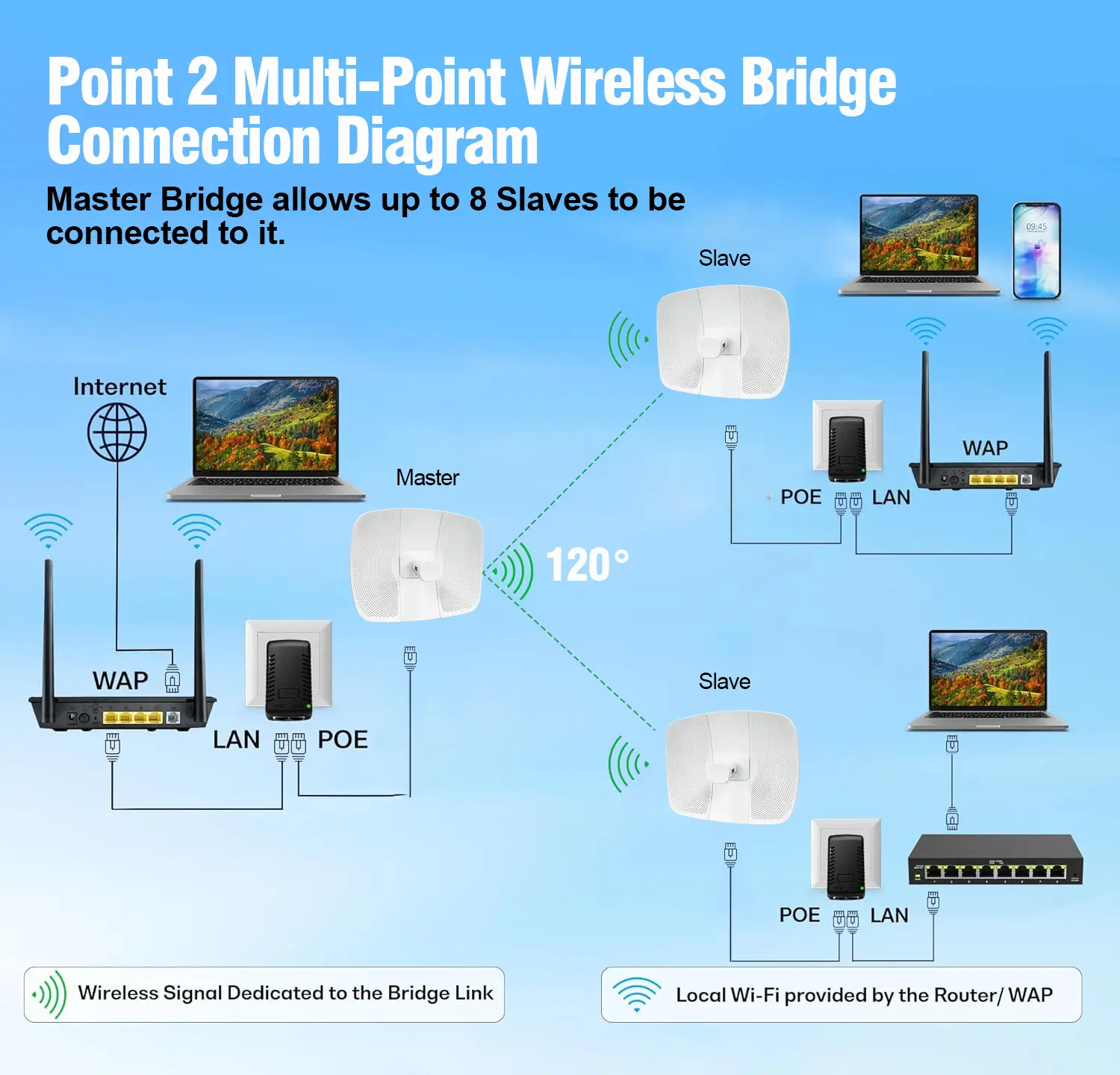

- Supports Bridge, AP, Router, Station, and Relay modes for flexible deployment
- IP65 weatherproof housing with 2kV lightning protection
- Plug-and-play PtP/PtMP pairing without PC or complex configuration
- 24V PoE single-cable installation up to 70m from power source
The WB2500 is a professional-grade 5.8GHz outdoor wireless CPE with a 26dBi dual-polarized radar-style parabolic antenna for gigabit backhaul up to 15km. Powered by MT7621AT + MT7612EN with 866Mbps throughput, IP65 weatherproof housing, 2kV lightning protection, and plug-and-play PtP/PtMP pairing, it is designed for CCTV surveillance backhaul, rural internet extension, industrial networking, and IoT infrastructure deployments.
Ideal For
- CCTV and IP camera video backhaul over 5–15km without fiber
- Rural community and village broadband extension from tower
- Industrial warehouse, factory, and construction site wireless links
- IoT and smart city infrastructure backhaul connections
- Enterprise and campus cross-building gigabit wireless networking
Deployment Advantages
The radar-style 26dBi parabolic antenna provides high-gain directional coverage in a compact form factor with dual-polarization for improved link stability in multipath environments. The MT7621AT platform delivers 866Mbps 802.11ac performance with robust multi-mode operation — a single unit can be re-configured between Bridge, Router, AP, Station, and Relay modes without hardware changes.
24V PoE support enables remote installation up to 70m from the PoE injector, covering most pole and rooftop scenarios without requiring AC outlets at the mount point. Plug-and-play PtP pairing reduces installer configuration time significantly compared to web-UI-only devices.
OEM/ODM Ready
MossLink offers OEM and ODM customization for this product including custom firmware, private-label packaging, enclosure branding, and antenna variant configurations. Volume pricing is available for surveillance integrators, WISPs, and wireless equipment distributors. Contact us to discuss your project requirements.
Specifications
| Type | Outdoor PtP / PtMP Wireless Bridge |
| CPU | MT7621AT + MT7612EN, 128MB DDR2, 8MB Flash |
| Standard | IEEE 802.11ac, 802.11a/n (5.8GHz) |
| Antenna | 26dBi Dual-Polarized Parabolic Radar Antenna |
| Max Speed | 866Mbps |
| TX Power | 27dBm ±2dBm (up to 29dBm PA) |

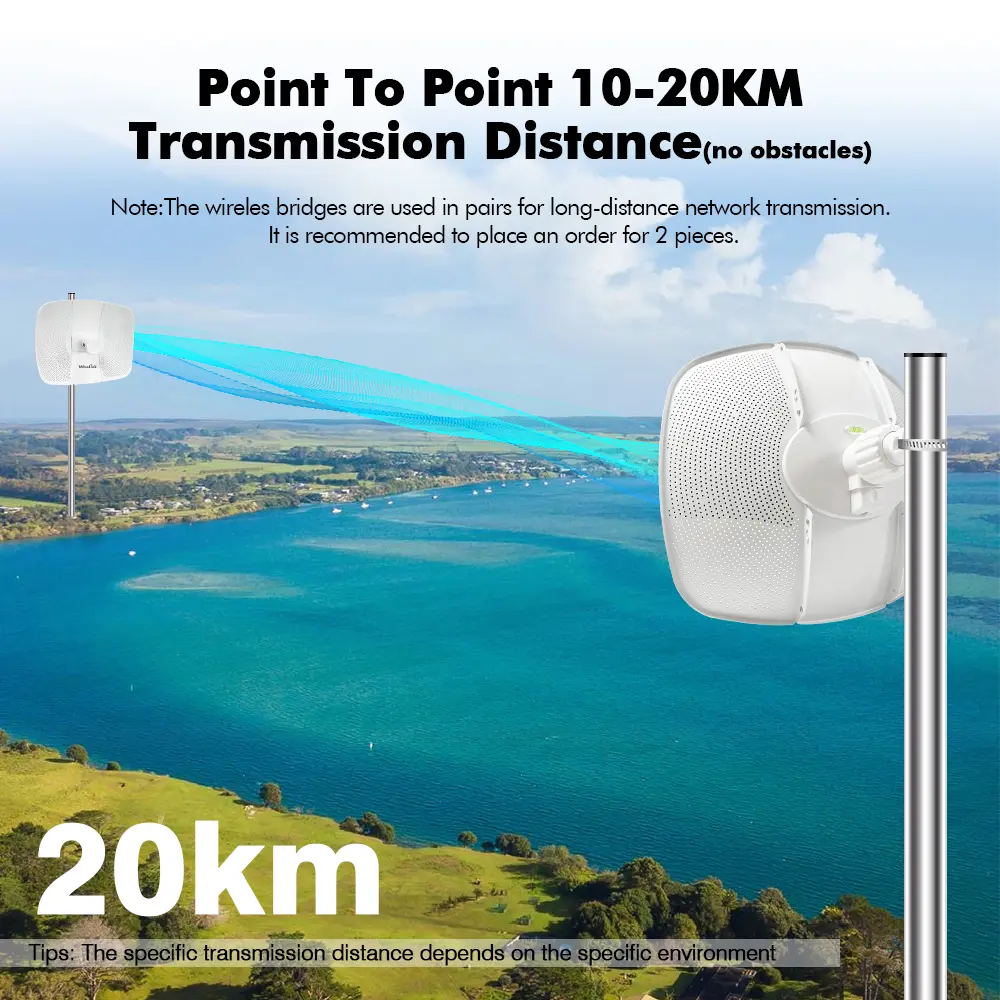

| Range | Up to 15km (LoS) |
| Ethernet | 1× Gigabit (24V PoE IN) |
| Power | 24V PoE (Adapter: 24V 1A) |
| Power Consumption | <15W |
| Link Distance | 0–15km |
| Enclosure | IP65, 2kV Lightning Protection |
| Dimensions | 400 × 280 × 250 mm |
| Weight | <2 kg |
Ordering & Customization
The WB2500 ships factory-direct from Shenzhen with full OEM/ODM support. Three customization levels are available depending on your order quantity:
Logo & Packaging (OEM)
From 100 units
- Your logo on the enclosure
- Branded box, labels & user manual
- Zero MossLink branding on final product
Custom Firmware (Software)
From 500 units
- Custom web UI & boot screen
- Default configuration & feature tuning
- Regional and regulatory presets
Custom Hardware (ODM)
From 1,000 units
- Enclosure & antenna modifications
- Port and power-budget variations
- PCB-level customization
Learn more about our OEM/ODM process →
- Standard MOQ
- 100 units for standard products with no customization
- Samples
- 1–5 evaluation units at product cost plus shipping — sample fee credited toward your first bulk order
- Lead Time
- In-stock products: 3–5 business days · bulk production: 3–4 weeks · OEM/ODM orders: 4–8 weeks
- Payment Terms
- 30% deposit, 70% balance before shipment · T/T and L/C accepted, in USD
- Shipping
- DHL / FedEx / UPS express, air and sea freight · DDP, FOB Shenzhen, or CIF terms

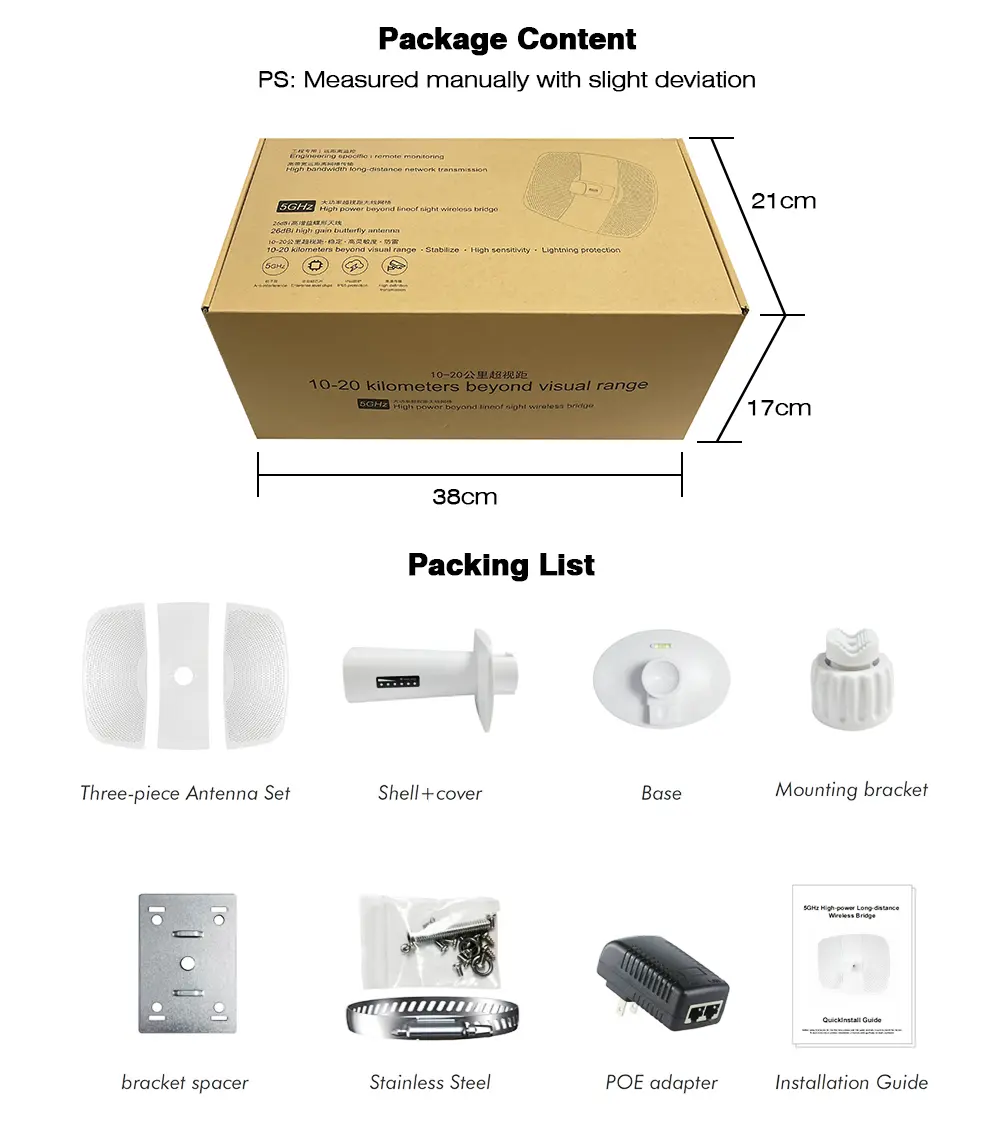

- Packaging
- Each unit individually boxed with protective foam; palletized export cartons for freight — carton specs available on request
- Quality Control
- 100% inspection and 24-hour burn-in testing; a signed QC report ships with every order
- Certifications
- CE, FCC, and RoHS standard · additional market certifications (IC, TELEC, NCC, etc.) available via ODM
Downloads
Frequently Asked Questions
What work modes does the WB2500 support?
The WB2500 supports Wireless Bridge, AP, Router, Station, and Relay modes. Bridge mode is the most common for PtP and PtMP links. AP mode provides local wireless access near the unit. Router mode allows WISP-style internet sharing from a wireless uplink. Station and Relay extend coverage in multi-hop network scenarios.
Is OEM/ODM customization available for this product?
Yes. MossLink offers full OEM and ODM services including custom firmware, enclosure branding, and private-label packaging. Contact us to discuss your project requirements.
What is the MOQ for the WB2500?
Standard WB2500 orders start at 100 units. Logo and packaging customization (OEM) also starts at 100 units, custom firmware at 500 units, and custom hardware (ODM) at 1,000 units. Contact sales with your target quantity for a formal quotation.
Can I get a sample of the WB2500 before bulk ordering?
Yes. We supply 1–5 evaluation units at product cost plus shipping, and the sample fee is credited toward your first bulk order. Contact us via email or WhatsApp with the model number to arrange a sample.
What is the lead time for the WB2500?
In-stock units ship within 3–5 business days. Bulk production orders typically require 3–4 weeks, and OEM/ODM orders with customization take 4–8 weeks depending on complexity. Rush production is available at additional cost.
Is the WB2500 certified for my market?
The WB2500 carries CE, FCC, and RoHS certification as standard. Additional certifications for specific markets (IC, TELEC, NCC, etc.) can be arranged through our ODM service.
How is product quality controlled before shipment?
Every unit undergoes 100% inspection and 24-hour burn-in testing before leaving the factory, and a signed QC report ships with every order — full traceability from component to delivery.
What payment terms do you accept?
Standard terms are a 30% deposit with order confirmation and the 70% balance before shipment, paid in USD via T/T. Letter of credit and flexible terms are available for established partners.
