1 / 6
CE FCC RoHS
WB451H 5.8GHz 450Mbps Outdoor Bridge, 2KM, PoE Out
WB451H
Type Outdoor PtP Wireless Bridge with PoE Output
CPU MTK7621 2E, DDR2 64MB, Flash 8MB
Standard IEEE 802.11a/n/ac (5.8GHz)
Antenna 2× 12dBi Directional Panel Antennas
Max Speed 450Mbps
5 Years Warranty
Overview
- 450Mbps 5.8GHz for smooth HD IP camera backhaul over 2km
- Built-in PoE output port powers a single IP camera directly — no separate injector
- 2× 12dBi dual-polarized directional panel antennas for stable focused signal

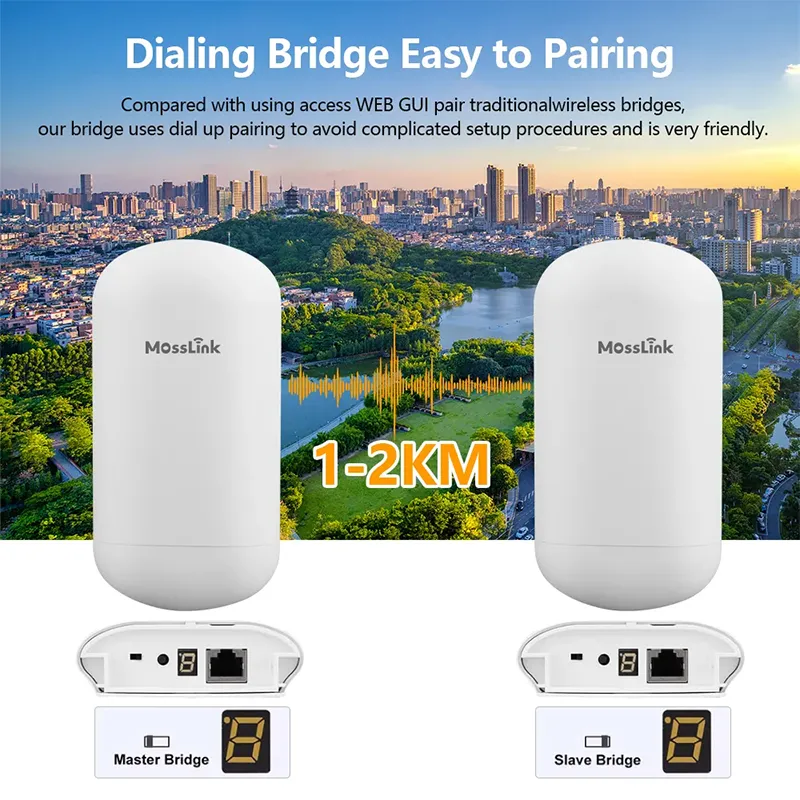

- Auto plug-and-play pairing — no technical configuration required

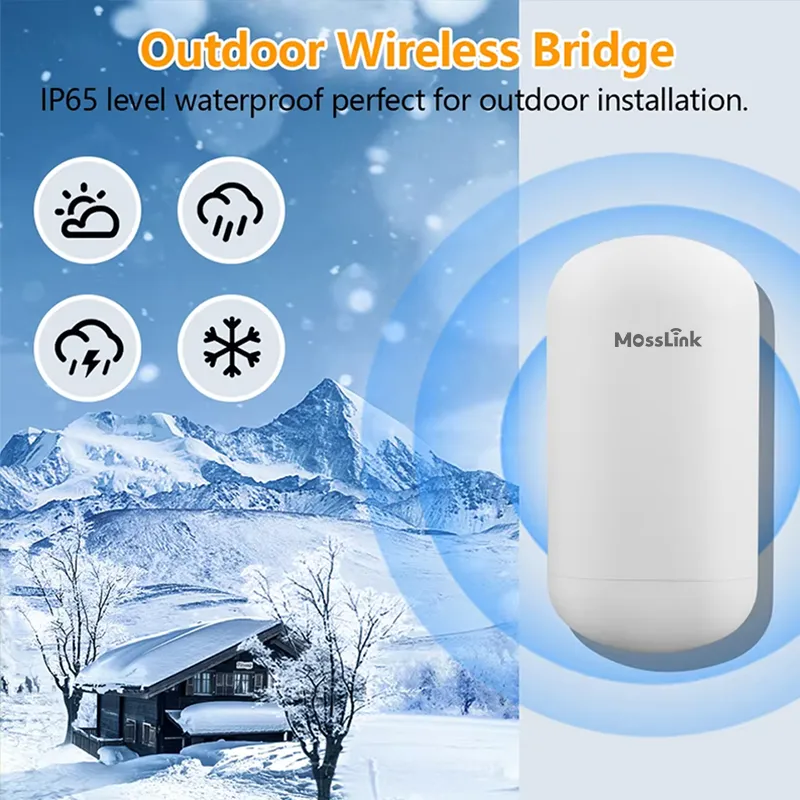

- IP65 weatherproof outdoor enclosure for harsh environments
- Supports Bridge, Access Point, Router, and Repeater modes
- 24V PoE single-cable installation — no AC outlet required at mount point
The WB451H is a 5.8GHz outdoor point-to-point wireless bridge with 2× 12dBi directional panel antennas for 2km links at 450Mbps. Its built-in PoE output port directly powers a single IP camera without a separate injector, making it ideal for surveillance and elevator monitoring. With auto-pairing, IP65 weatherproofing, multi-mode support (Bridge, AP, Router, Repeater), and 24V PoE power, it is designed for CCTV backhaul, farm-to-house connectivity, Starlink extension, and building-to-building wireless networking.
Ideal For

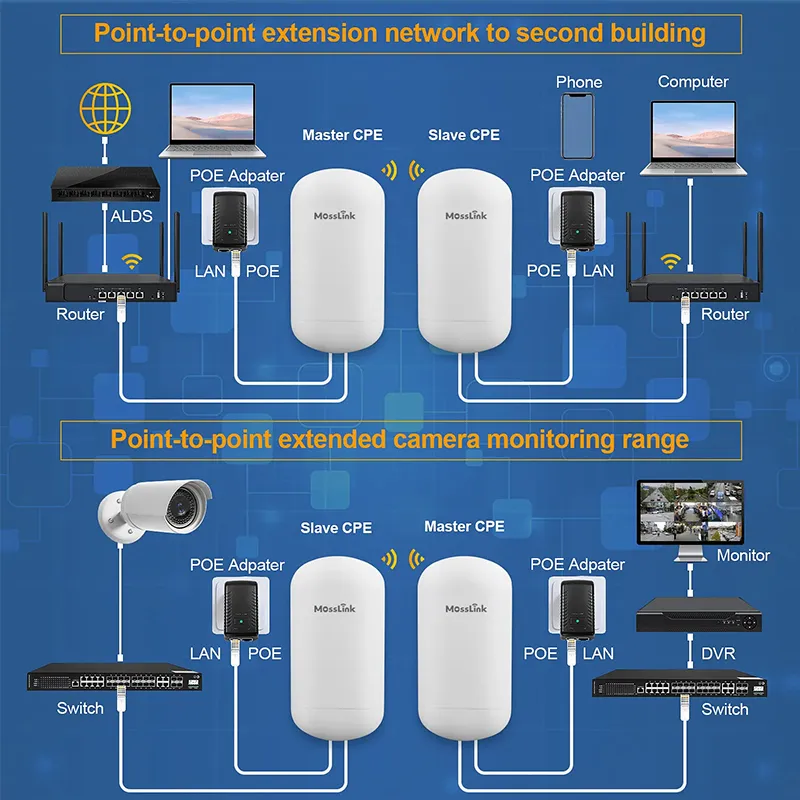

- IP camera CCTV backhaul with direct PoE power output to the camera
- Elevator and shaft monitoring where cable routing is impractical
- Farm, barn, and rural building wireless connectivity over 1–2km
- Warehouse and factory cross-building wireless LAN extension
- Starlink internet extension to secondary buildings up to 2km
Deployment Advantages
The integrated PoE output port is the WB451H’s key differentiator — it eliminates a component (PoE injector) and simplifies wiring at the camera end of a bridge link. A single cable from the WB451H carries both data and power to the camera, reducing installation time and potential failure points in remote surveillance deployments.
Auto plug-and-play pairing means the two-unit kit ships pre-configured and pairs without any web UI access, which is practical for installers working on rooftops, poles, or elevator machine rooms where laptop access is inconvenient.
OEM/ODM Ready
MossLink offers OEM and ODM customization for this product including custom firmware, enclosure branding, and private-label packaging. Volume pricing is available for CCTV installers, surveillance integrators, and wireless equipment distributors. Contact us to discuss your project requirements.
Specifications
| Type | Outdoor PtP Wireless Bridge with PoE Output |
| CPU | MTK7621 2E, DDR2 64MB, Flash 8MB |
| Standard | IEEE 802.11a/n/ac (5.8GHz) |
| Antenna | 2× 12dBi Directional Panel Antennas |
| Max Speed | 450Mbps |
| Range | 1–2km (LoS) |
| Ethernet | 1× 10/100Mbps RJ45 (PoE In) |
| PoE Output | Yes — powers one IP camera directly |
| Power | 24V 1A PoE Adapter |
| Power Consumption | <3W |
| Enclosure | IP65 |
| Weight | 1 kg |
| Temperature | -30°C ~ +55°C |
Ordering & Customization
The WB451H ships factory-direct from Shenzhen with full OEM/ODM support. Three customization levels are available depending on your order quantity:
Logo & Packaging (OEM)
From 100 units
- Your logo on the enclosure
- Branded box, labels & user manual
- Zero MossLink branding on final product
Custom Firmware (Software)
From 500 units
- Custom web UI & boot screen
- Default configuration & feature tuning
- Regional and regulatory presets
Custom Hardware (ODM)
From 1,000 units
- Enclosure & antenna modifications
- Port and power-budget variations
- PCB-level customization
Learn more about our OEM/ODM process →
- Standard MOQ
- 100 units for standard products with no customization
- Samples
- 1–5 evaluation units at product cost plus shipping — sample fee credited toward your first bulk order
- Lead Time
- In-stock products: 3–5 business days · bulk production: 3–4 weeks · OEM/ODM orders: 4–8 weeks
- Payment Terms
- 30% deposit, 70% balance before shipment · T/T and L/C accepted, in USD
- Shipping
- DHL / FedEx / UPS express, air and sea freight · DDP, FOB Shenzhen, or CIF terms
- Packaging
- Each unit individually boxed with protective foam; palletized export cartons for freight — carton specs available on request
- Quality Control
- 100% inspection and 24-hour burn-in testing; a signed QC report ships with every order
- Certifications
- CE, FCC, and RoHS standard · additional market certifications (IC, TELEC, NCC, etc.) available via ODM
Downloads
Frequently Asked Questions
Can the WB451H power an IP camera without a separate PoE injector?
Yes. The WB451H has a built-in PoE output port that directly powers a single IEEE 802.3af-compatible IP camera. This eliminates the need for a separate PoE injector at the camera location, simplifying wiring in elevator monitoring, warehouse surveillance, and construction site camera installations.
Does it support Starlink extension?
Yes. The WB451H is widely used to extend Starlink internet coverage up to 2km to secondary buildings, barns, or remote sections of a property where direct Starlink signal or wired ethernet is unavailable.
Is OEM/ODM customization available for this product?
Yes. MossLink offers full OEM and ODM services including custom firmware, enclosure branding, and private-label packaging. Contact us to discuss your project requirements.
What is the MOQ for the WB451H?
Standard WB451H orders start at 100 units. Logo and packaging customization (OEM) also starts at 100 units, custom firmware at 500 units, and custom hardware (ODM) at 1,000 units. Contact sales with your target quantity for a formal quotation.
Can I get a sample of the WB451H before bulk ordering?
Yes. We supply 1–5 evaluation units at product cost plus shipping, and the sample fee is credited toward your first bulk order. Contact us via email or WhatsApp with the model number to arrange a sample.
What is the lead time for the WB451H?
In-stock units ship within 3–5 business days. Bulk production orders typically require 3–4 weeks, and OEM/ODM orders with customization take 4–8 weeks depending on complexity. Rush production is available at additional cost.
Is the WB451H certified for my market?
The WB451H carries CE, FCC, and RoHS certification as standard. Additional certifications for specific markets (IC, TELEC, NCC, etc.) can be arranged through our ODM service.
How is product quality controlled before shipment?
Every unit undergoes 100% inspection and 24-hour burn-in testing before leaving the factory, and a signed QC report ships with every order — full traceability from component to delivery.
What payment terms do you accept?
Standard terms are a 30% deposit with order confirmation and the 70% balance before shipment, paid in USD via T/T. Letter of credit and flexible terms are available for established partners.
