1 / 6
CE FCC RoHS
WB2F01 2.4GHz Outdoor Wireless Bridge, 1.2KM, CCTV
WB2F01
Type 2.4GHz Outdoor Wireless Bridge
Standard IEEE 802.11b/g/n (2.4GHz)
Antenna Built-in 6dBi Omnidirectional ×2
Max Speed 300Mbps
CPU MT7628DAN
5 Years Warranty
Overview
- 2.4GHz signal for better wall and obstacle penetration than 5GHz
- 1.2km point-to-point range with 6dBi omnidirectional antennas

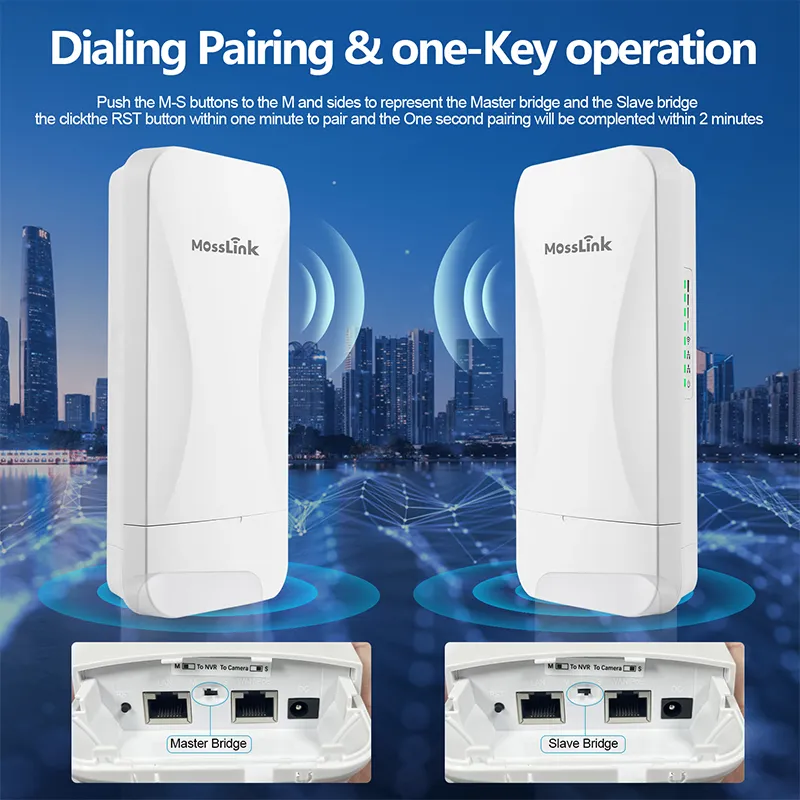

- One-click master/slave slide switch for instant pairing — no configuration needed
- 300Mbps for smooth HD CCTV and IP camera backhaul
- IP65 weatherproof for harsh outdoor and elevator shaft environments
- 12V PoE single-cable power and data installation
- Cloud platform and AC centralized management support
The WB2F01 is a 2.4GHz outdoor wireless bridge for CCTV backhaul and internet extension over 1.2km point-to-point links. With one-click master/slave slide switch pairing, 300Mbps throughput, 12V PoE single-cable installation, IP65 weatherproof housing, and cloud management support, it is designed for elevator shaft monitoring, building-to-building LAN bridging, rural internet extension, and IP camera deployments where 2.4GHz penetration advantage matters.
Ideal For
- Elevator cabin monitoring where cable routing is impractical

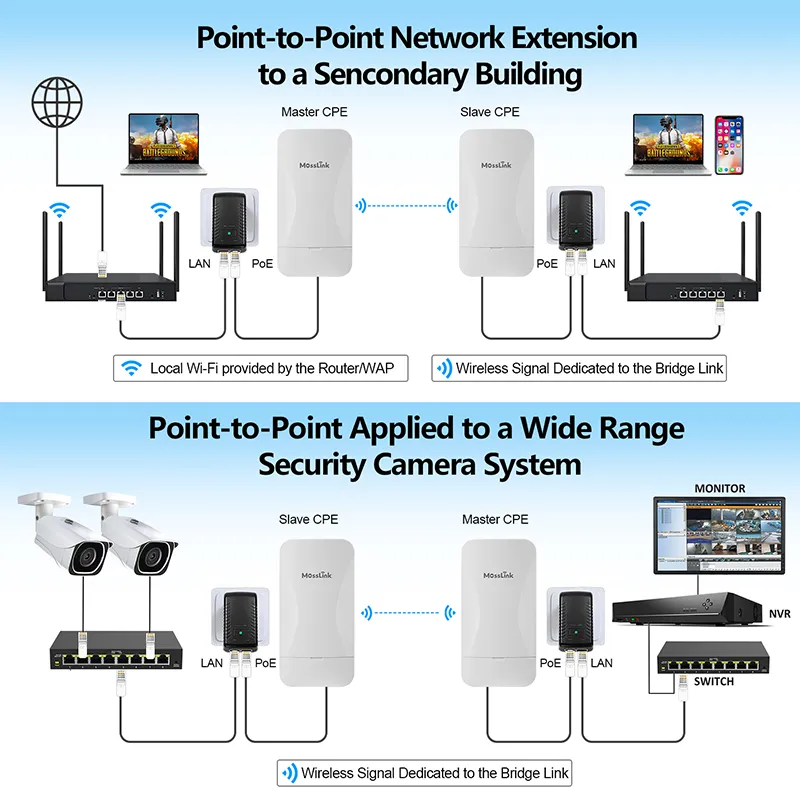

- Building-to-building LAN extension without fiber or cabling
- Remote IP camera CCTV backhaul to NVR over 500m–1.2km
- Rural farm and village internet extension to secondary buildings
- Rapid temporary deployments requiring plug-and-play setup
Deployment Advantages
The one-click slide switch sets the unit as master or slave instantly, enabling true plug-and-play pairing without web UI access — critical for installers working at height or in restricted access areas. 2.4GHz signal penetration through walls and foliage extends effective range in partially obstructed deployments where 5GHz CPEs underperform.
The compact 168×86×39mm form factor and 0.2kg weight simplify installation in tight spaces such as elevator machine rooms, junction boxes, and small pole mounts. Cloud and AC centralized management enables bulk deployment management across multiple WB2F01 units from a single interface.
OEM/ODM Ready
MossLink offers OEM and ODM customization for this product including custom firmware, enclosure branding, and private-label packaging. Volume pricing is available for surveillance integrators, elevator system suppliers, and wireless equipment distributors. Contact us to discuss your project requirements.
Specifications
| Type | 2.4GHz Outdoor Wireless Bridge |
| Standard | IEEE 802.11b/g/n (2.4GHz) |
| Antenna | Built-in 6dBi Omnidirectional ×2 |
| Max Speed | 300Mbps |
| CPU | MT7628DAN |
| TX Power | <20±2dBm |
| Range | Up to 1.2km (LoS) |
| WAN | 1× 10/100Mbps (12V PoE IN) |
| LAN | 1× 10/100Mbps |
| Power | PoE 12V, DC 12V |
| Power Consumption | <3W |
| Enclosure | IP65 |
| Dimensions | 168 × 86 × 39 mm |
| Weight | 0.2 kg |
| Temperature | -10°C ~ +55°C |
Ordering & Customization
The WB2F01 ships factory-direct from Shenzhen with full OEM/ODM support. Three customization levels are available depending on your order quantity:
Logo & Packaging (OEM)
From 100 units
- Your logo on the enclosure
- Branded box, labels & user manual
- Zero MossLink branding on final product
Custom Firmware (Software)
From 500 units
- Custom web UI & boot screen
- Default configuration & feature tuning
- Regional and regulatory presets
Custom Hardware (ODM)
From 1,000 units
- Enclosure & antenna modifications
- Port and power-budget variations
- PCB-level customization
Learn more about our OEM/ODM process →
- Standard MOQ
- 100 units for standard products with no customization
- Samples
- 1–5 evaluation units at product cost plus shipping — sample fee credited toward your first bulk order
- Lead Time
- In-stock products: 3–5 business days · bulk production: 3–4 weeks · OEM/ODM orders: 4–8 weeks
- Payment Terms
- 30% deposit, 70% balance before shipment · T/T and L/C accepted, in USD
- Shipping
- DHL / FedEx / UPS express, air and sea freight · DDP, FOB Shenzhen, or CIF terms
- Packaging
- Each unit individually boxed with protective foam; palletized export cartons for freight — carton specs available on request
- Quality Control
- 100% inspection and 24-hour burn-in testing; a signed QC report ships with every order
- Certifications
- CE, FCC, and RoHS standard · additional market certifications (IC, TELEC, NCC, etc.) available via ODM
Downloads
Frequently Asked Questions
Why use 2.4GHz instead of 5GHz for short-range deployments?
2.4GHz signals penetrate walls, floors, and obstacles more effectively than 5GHz, making the WB2F01 particularly well suited for elevator shafts, building interiors, areas with trees or foliage, and scenarios where the line-of-sight is partially obstructed. For clear outdoor LoS deployments under 1.2km, 2.4GHz also performs reliably with the included 6dBi omnidirectional antennas.
Is OEM/ODM customization available for this product?
Yes. MossLink offers full OEM and ODM services including custom firmware, enclosure branding, and private-label packaging. Contact us to discuss your project requirements.
What is the MOQ for the WB2F01?
Standard WB2F01 orders start at 100 units. Logo and packaging customization (OEM) also starts at 100 units, custom firmware at 500 units, and custom hardware (ODM) at 1,000 units. Contact sales with your target quantity for a formal quotation.
Can I get a sample of the WB2F01 before bulk ordering?
Yes. We supply 1–5 evaluation units at product cost plus shipping, and the sample fee is credited toward your first bulk order. Contact us via email or WhatsApp with the model number to arrange a sample.
What is the lead time for the WB2F01?
In-stock units ship within 3–5 business days. Bulk production orders typically require 3–4 weeks, and OEM/ODM orders with customization take 4–8 weeks depending on complexity. Rush production is available at additional cost.
Is the WB2F01 certified for my market?
The WB2F01 carries CE, FCC, and RoHS certification as standard. Additional certifications for specific markets (IC, TELEC, NCC, etc.) can be arranged through our ODM service.
How is product quality controlled before shipment?
Every unit undergoes 100% inspection and 24-hour burn-in testing before leaving the factory, and a signed QC report ships with every order — full traceability from component to delivery.
What payment terms do you accept?
Standard terms are a 30% deposit with order confirmation and the 70% balance before shipment, paid in USD via T/T. Letter of credit and flexible terms are available for established partners.
