WB100 2.4GHz Elevator Wireless Bridge, 300Mbps
WB100
Type 2.4GHz Elevator / Short-Range Wireless Bridge
Chipset MediaTek MTK7628 @ 580MHz
Standard IEEE 802.11b/g/n (2.4GHz) MIMO
Max Speed 300Mbps
Frequency 2.400–2.4835 GHz (ISM)
5 Years Warranty
Overview
- 2.4GHz 802.11b/g/n MIMO, up to 300Mbps for stable elevator video backhaul

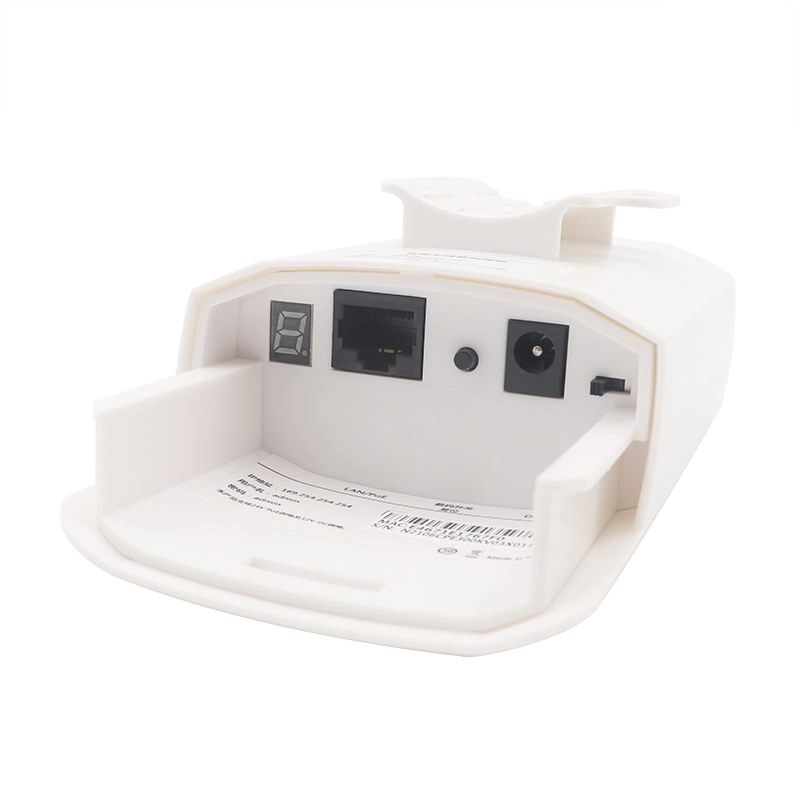

- Digital-tube pairing — PtP and PtMP (up to 8 nodes) with zero PC configuration
- Main AP / Second AP switch sets the Master/Slave role in seconds at height
- Built-in 5dBi directional plate antenna for fast, aligned installation
- Flexible power: 24V PoE single-cable or 12V DC local power, < 10W
- IP65 windproof, rainproof, dustproof, UV-resistant outdoor housing
- Purpose-built for elevator monitoring up to ~20 floors
- WEB remote management, DHCP or static IP
The WB100 is a high-performance, enterprise-class 2.4GHz elevator wireless bridge built on the MediaTek MTK7628 platform, delivering 802.11b/g/n MIMO at up to 300Mbps. Its digital-tube matching technology pairs units in the field with no computer — point-to-point or point-to-multipoint within 8 nodes — and a Main AP / Second AP switch sets the Master/Slave role in seconds. With a built-in 5dBi directional plate antenna, IP65 outdoor housing, and flexible 24V PoE or 12V DC power, it is purpose-built for elevator monitoring of up to roughly 20 floors.
Ideal For
- Elevator car monitoring where the Master must sit at the machine-room router
- Point-to-multipoint elevator banks (up to 8 nodes from one link)
- Cost-sensitive surveillance shafts needing reliable HD video backhaul
- Installers who need fast, PC-free pairing and role setup at height
Deployment Advantages
The digital-tube button directly addresses the most common elevator-bridge failure — an inverted Master that records video locally but has no Internet. Pairing and the Main AP / Second AP (Master/Slave) role are set on the unit itself with no laptop or web UI at height, and the PtMP-within-8-nodes capability covers multi-car installations from a single configuration. The 5dBi directional plate antenna and IP65 housing handle the vibration, dust, and temperature range (-30°C to +55°C operating) of building shafts while maintaining stable 300Mbps transmission.
Flexible powering — 24V passive PoE over a single cable (50–70m depending on cable) or 12V DC local supply at under 10W — simplifies wiring in machine rooms and car-top junction boxes.
OEM/ODM Ready
MossLink offers OEM and ODM customization for the WB100, including custom firmware behavior, fixed Master/Slave roles, enclosure branding, and private-label packaging. Volume pricing is available for elevator system suppliers, surveillance integrators, and wireless equipment distributors. Contact us to discuss your project requirements.
Specifications
| Type | 2.4GHz Elevator / Short-Range Wireless Bridge |
| Chipset | MediaTek MTK7628 @ 580MHz |
| Standard | IEEE 802.11b/g/n (2.4GHz) MIMO |
| Max Speed | 300Mbps |
| Frequency | 2.400–2.4835 GHz (ISM) |
| Antenna | Built-in 5dBi Directional Plate (90° H / 90° V) |

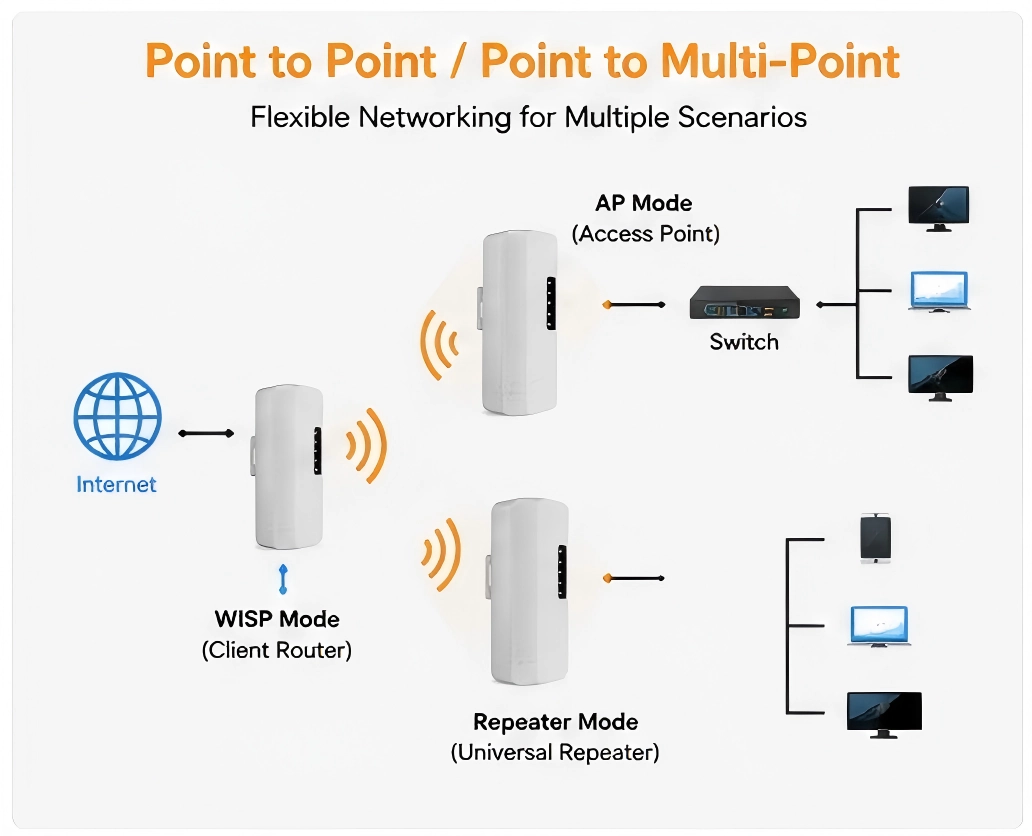

| Topology | PtP / PtMP (up to 8 nodes) |
| Pairing | Digital-Tube Button, No PC Required |
| Mode Switching | Main AP / Second AP (Master / Slave) |
| Ethernet | 1× 10/100Mbps Adaptive |
| Power | 24V 0.5A PoE or 12V 1A DC, < 10W |
| Enclosure | IP65 Outdoor (wind / rain / dust / UV) |
| Dimensions | 140 × 75 × 34 mm |
| Temperature | -30°C ~ +55°C (operating) |
Ordering & Customization
The WB100 ships factory-direct from Shenzhen with full OEM/ODM support. Three customization levels are available depending on your order quantity:
Logo & Packaging (OEM)
From 100 units
- Your logo on the enclosure
- Branded box, labels & user manual
- Zero MossLink branding on final product
Custom Firmware (Software)
From 500 units
- Custom web UI & boot screen
- Default configuration & feature tuning
- Regional and regulatory presets
Custom Hardware (ODM)
From 1,000 units
- Enclosure & antenna modifications
- Port and power-budget variations
- PCB-level customization
Learn more about our OEM/ODM process →
- Standard MOQ
- 100 units for standard products with no customization
- Samples
- 1–5 evaluation units at product cost plus shipping — sample fee credited toward your first bulk order
- Lead Time
- In-stock products: 3–5 business days · bulk production: 3–4 weeks · OEM/ODM orders: 4–8 weeks
- Payment Terms
- 30% deposit, 70% balance before shipment · T/T and L/C accepted, in USD
- Shipping
- DHL / FedEx / UPS express, air and sea freight · DDP, FOB Shenzhen, or CIF terms
- Packaging
- Each unit individually boxed with protective foam; palletized export cartons for freight — carton specs available on request
- Quality Control
- 100% inspection and 24-hour burn-in testing; a signed QC report ships with every order
- Certifications
- CE, FCC, and RoHS standard · additional market certifications (IC, TELEC, NCC, etc.) available via ODM
Downloads
Frequently Asked Questions
Which end should be the Master on the WB100 for elevator projects?
The WB100 uses a Main AP / Second AP switch — set the unit connected to the router with Internet access as the Main AP (Master), normally the fixed unit in the machine room or shaft base, not the unit riding in the elevator car. The car unit is the Second AP (Slave). See our elevator Master/Slave guide for the full explanation.
How does WB100 pairing work without a computer?
The WB100 uses digital-tube matching technology: a digital switch button with a segment display lets you pair units in the field with no PC. It supports point-to-point and point-to-multipoint links of up to 8 nodes, which suits multi-car or multi-stop elevator monitoring.
What power options does the WB100 support?
The WB100 accepts 24V 0.5A PoE over the network cable (50–70m depending on cable) or 12V 1A DC local power, with under 10W consumption. It is not a Mode A/Mode B dual-PoE device — confirm your switch outputs 24V passive PoE or use the bundled injector.
Is OEM/ODM customization available for this product?
Yes. MossLink offers full OEM and ODM services for the WB100, including custom firmware behavior, fixed Master/Slave roles, enclosure branding, and private-label packaging. Minimum order quantities apply. Contact us to discuss your project requirements.
What is the MOQ for the WB100?
Standard WB100 orders start at 100 units. Logo and packaging customization (OEM) also starts at 100 units, custom firmware at 500 units, and custom hardware (ODM) at 1,000 units. Contact sales with your target quantity for a formal quotation.
Can I get a sample of the WB100 before bulk ordering?
Yes. We supply 1–5 evaluation units at product cost plus shipping, and the sample fee is credited toward your first bulk order. Contact us via email or WhatsApp with the model number to arrange a sample.
What is the lead time for the WB100?
In-stock units ship within 3–5 business days. Bulk production orders typically require 3–4 weeks, and OEM/ODM orders with customization take 4–8 weeks depending on complexity. Rush production is available at additional cost.
Is the WB100 certified for my market?
The WB100 carries CE, FCC, and RoHS certification as standard. Additional certifications for specific markets (IC, TELEC, NCC, etc.) can be arranged through our ODM service.
How is product quality controlled before shipment?
Every unit undergoes 100% inspection and 24-hour burn-in testing before leaving the factory, and a signed QC report ships with every order — full traceability from component to delivery.
What payment terms do you accept?
Standard terms are a 30% deposit with order confirmation and the 70% balance before shipment, paid in USD via T/T. Letter of credit and flexible terms are available for established partners.
