OG530 5G Outdoor CPE, Sub-6GHz + LTE, 2.5G PoE
OG530
Type 5G Outdoor CPE (ODU), Sub-6GHz
Chipset OG530-M: MediaTek T750 · OG530-Q: Qualcomm X62
5G / LTE Standard 5G NR SA/NSA + LTE + WCDMA
5G NR Bands n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/n78 (OG530-M)
LTE Bands FDD B1/B3/B5/B7/B8/B20/B28/B32; TDD B38/B40/B41/B42/B43 (OG530-M)
5 Years Warranty
Overview
- 5G Sub-6GHz NR + LTE dual-mode CPE — automatic switching for reliable outdoor fixed wireless access
- Two chipset options: OG530-M (MediaTek T750, up to 4.67Gbps) or OG530-Q (Qualcomm X62, up to 2.4Gbps on 5G SA)
- 4×4 downlink MIMO with high-gain antenna for stronger signal capture at the window, wall, or pole
- 1× 2.5 Gigabit Ethernet with 48V 802.3af PoE — single-cable power and data
- Bluetooth signal-finder app for fast aiming and fine-tuning during install (OG530-Q)

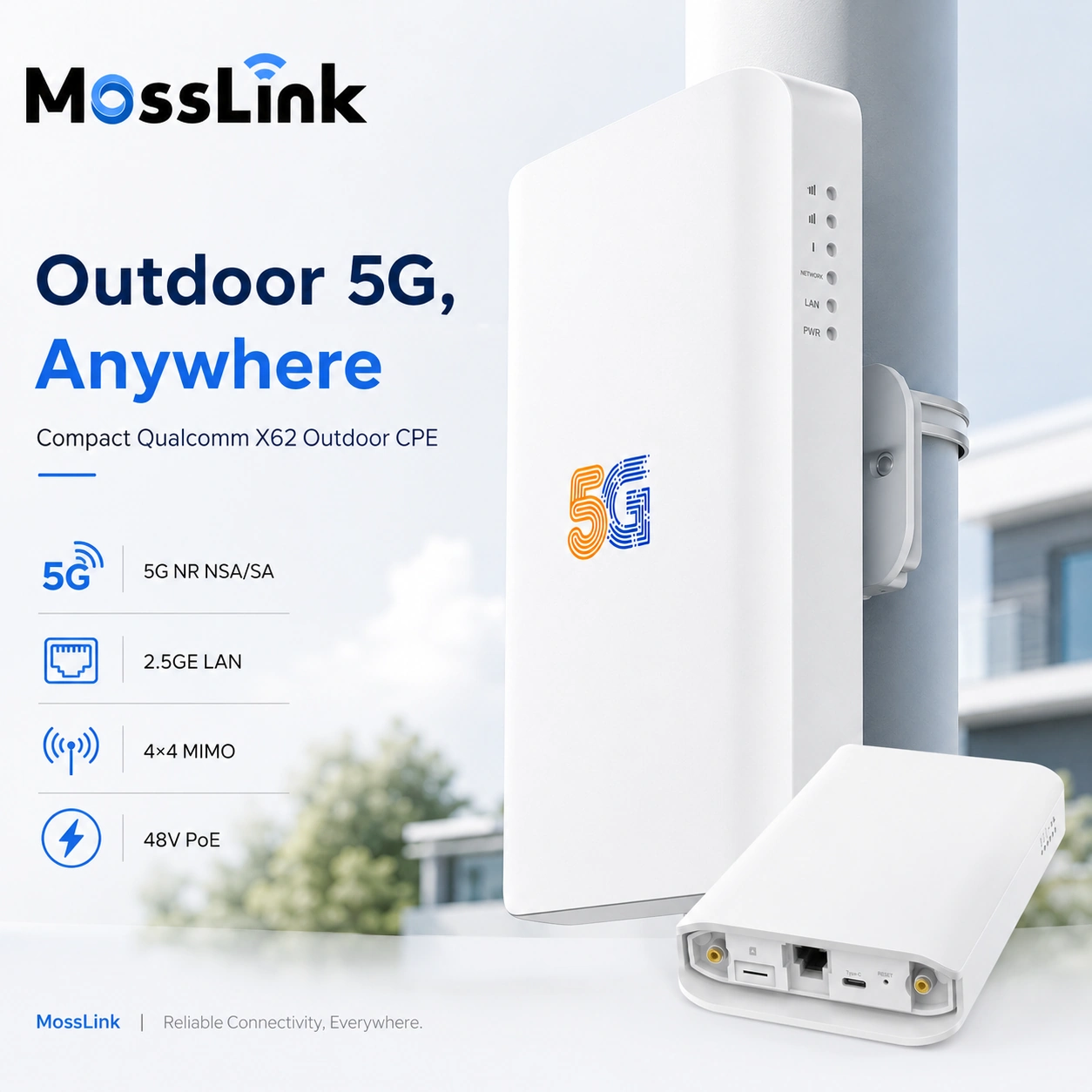

- IP65 outdoor housing with ±6kV surge protection — mount outside the window, wall, or pole
- TR-069 / TR-369 (USP) remote management with HTTPS web UI for zero-touch ISP provisioning

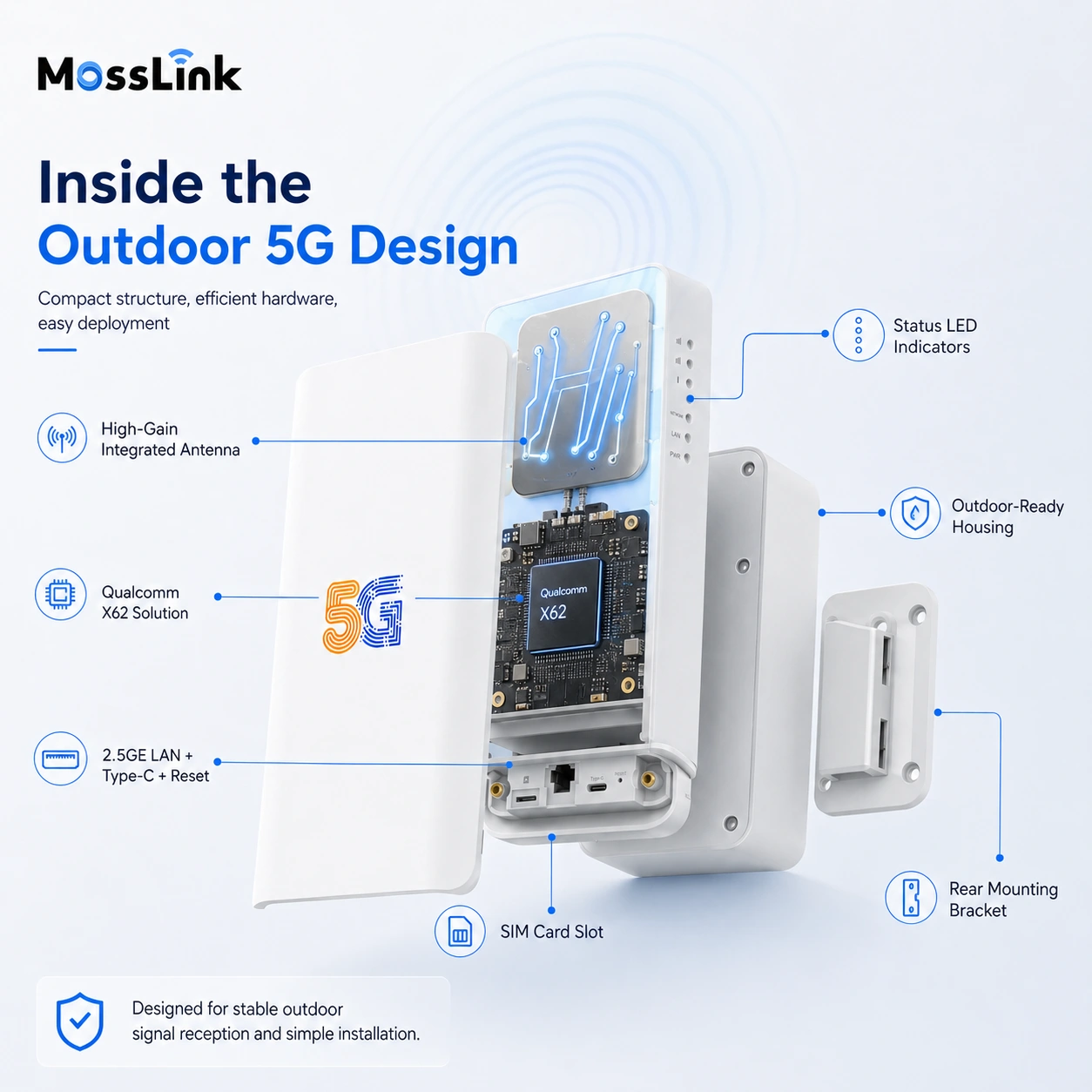

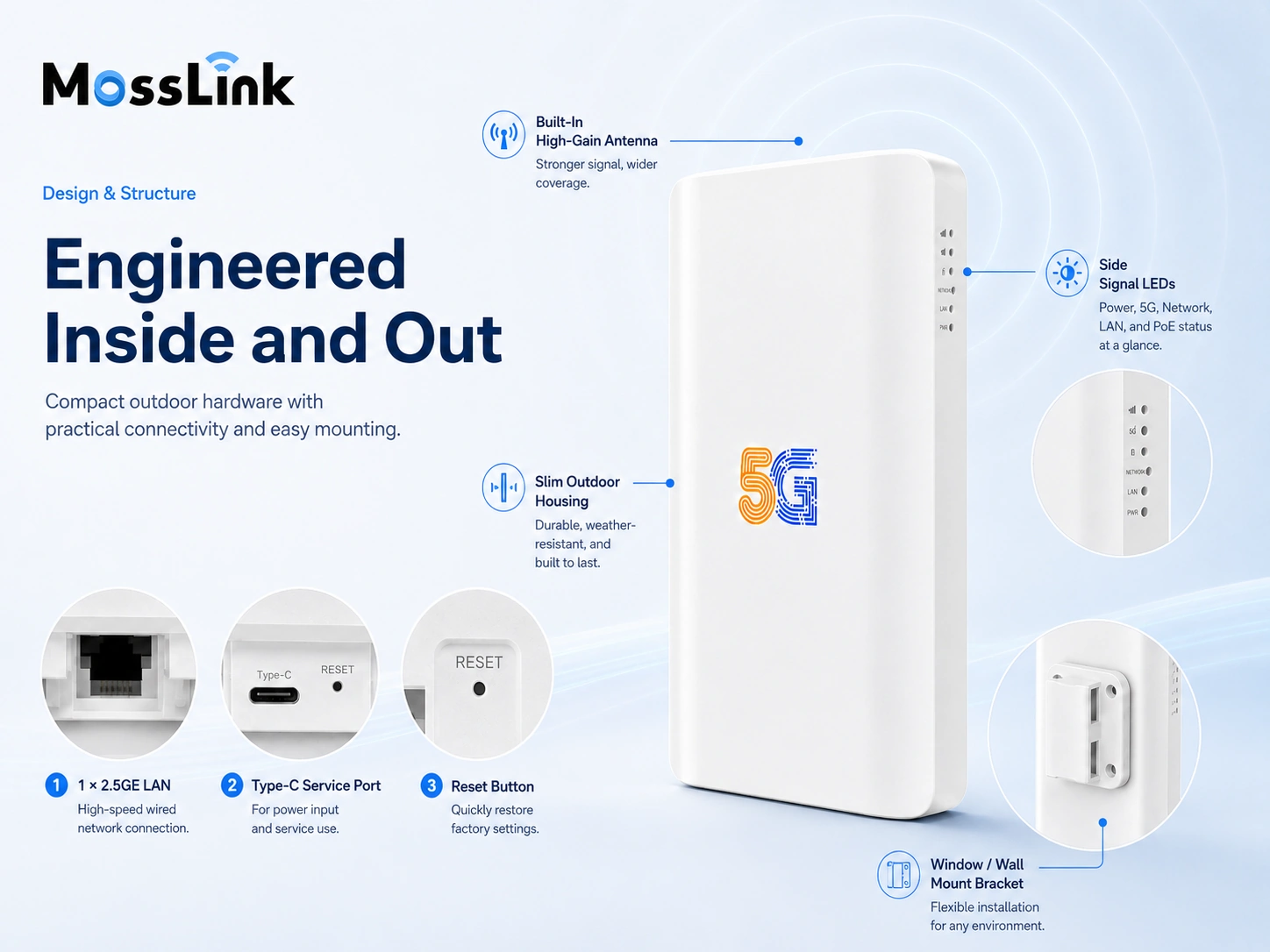

- Type-C service port, reset button, and side signal LEDs for quick field setup

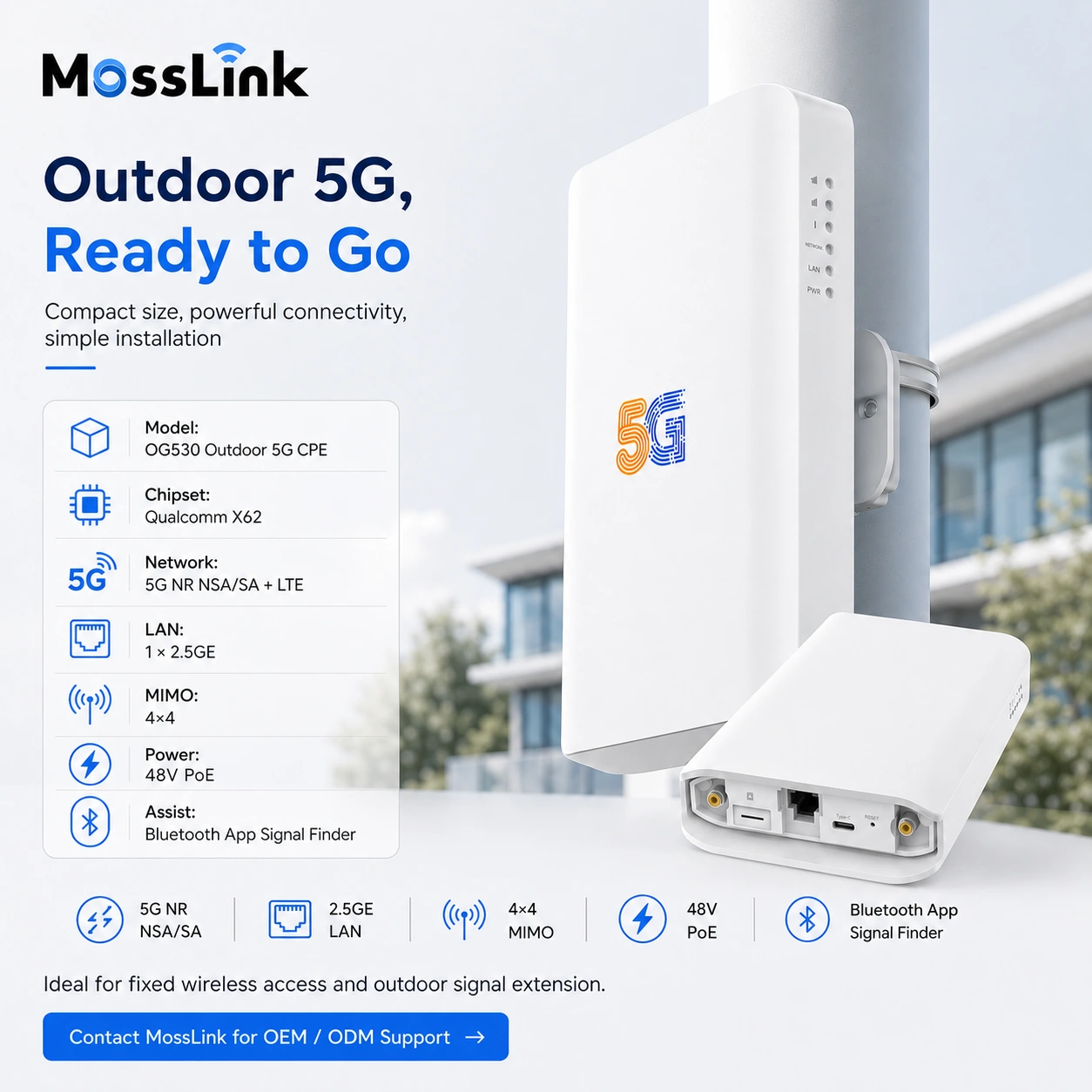

The OG530 is a 5G outdoor CPE (ODU) that mounts outside the window, on a wall, or on a pole to capture a stronger Sub-6GHz 5G signal and deliver it over a single 2.5 Gigabit PoE cable. It is offered in two chipset configurations — OG530-M on the MediaTek T750 (up to 4.67Gbps 5G SA) and OG530-Q on the Qualcomm X62 (up to 2.4Gbps 5G SA) — both with 4×4 downlink MIMO, a high-gain antenna, and an outdoor housing. A Bluetooth signal-finder app makes aiming and setup fast for homes, villas, small businesses, and remote sites alike.
Ideal For
- Home, villa, and apartment 5G broadband where the indoor signal is weak
- Small office, shop, and business fixed wireless access (FWA)
- ISP 5G last-mile and FWA rollouts with managed CPE
- Rural and remote-site internet without fixed broadband
- Outdoor surveillance and IP camera backhaul over high-bandwidth 5G
Two Chipset Options: OG530-M and OG530-Q

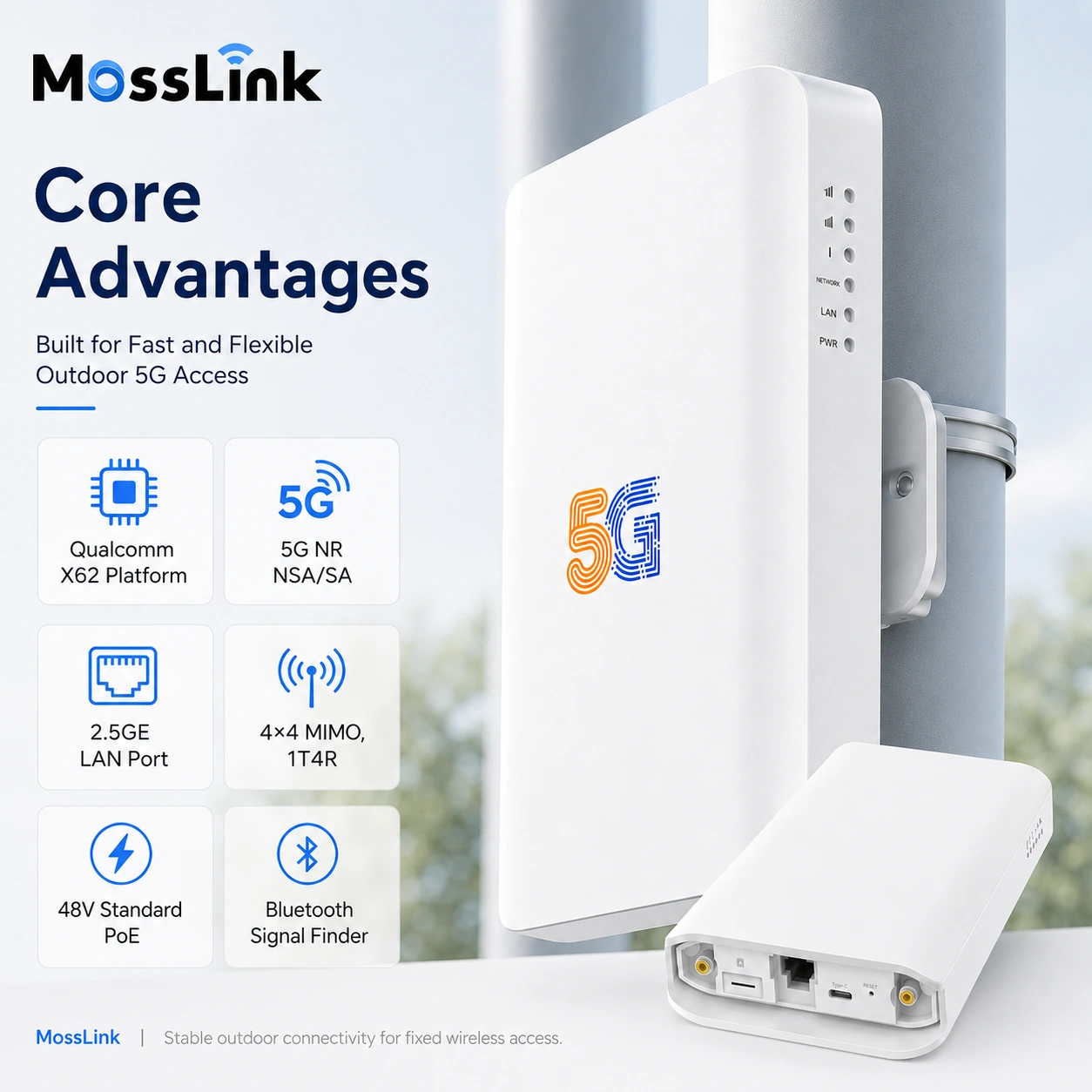

The OG530 shares one outdoor design across two platform variants. The OG530-M runs on the MediaTek T750 and peaks at 4.67Gbps down / 2.5Gbps up on 5G SA Sub-6GHz. The OG530-Q runs on the Qualcomm X62 and peaks at 2.4Gbps down / 900Mbps up on 5G SA (3.4Gbps / 550Mbps on NSA); it also adds a Bluetooth signal-finder app and a Type-C service port. Both variants use 4×4 downlink MIMO and a high-gain antenna, and the installation, 2.5G PoE cabling, and mounting are identical.
Choose the variant based on operator approval, regional band certification, target throughput, and supply preference. Physical, band, temperature, and enclosure figures on this page reference the documented OG530-M datasheet — contact us for the full OG530-Q specification and certification status for your market.

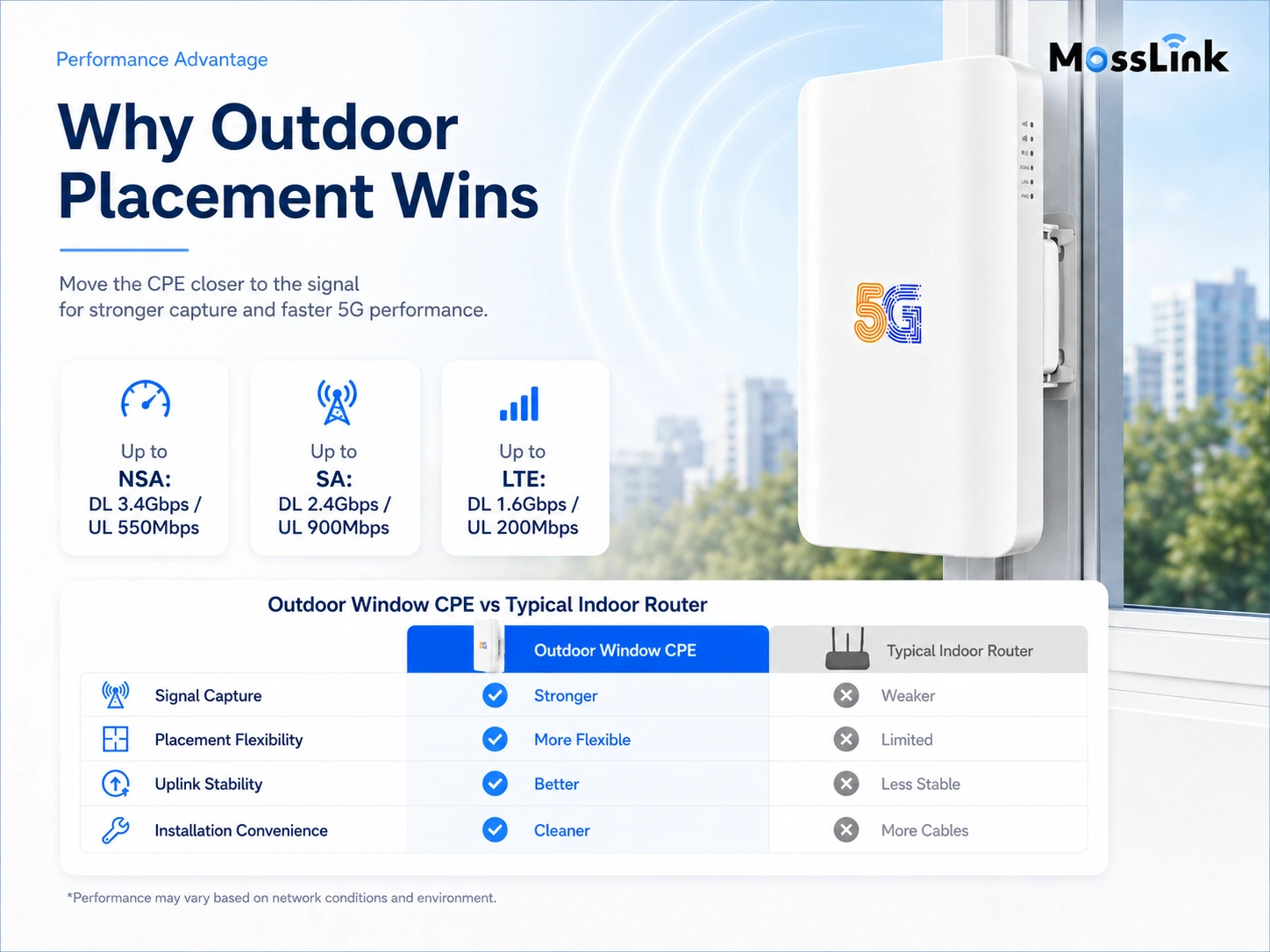

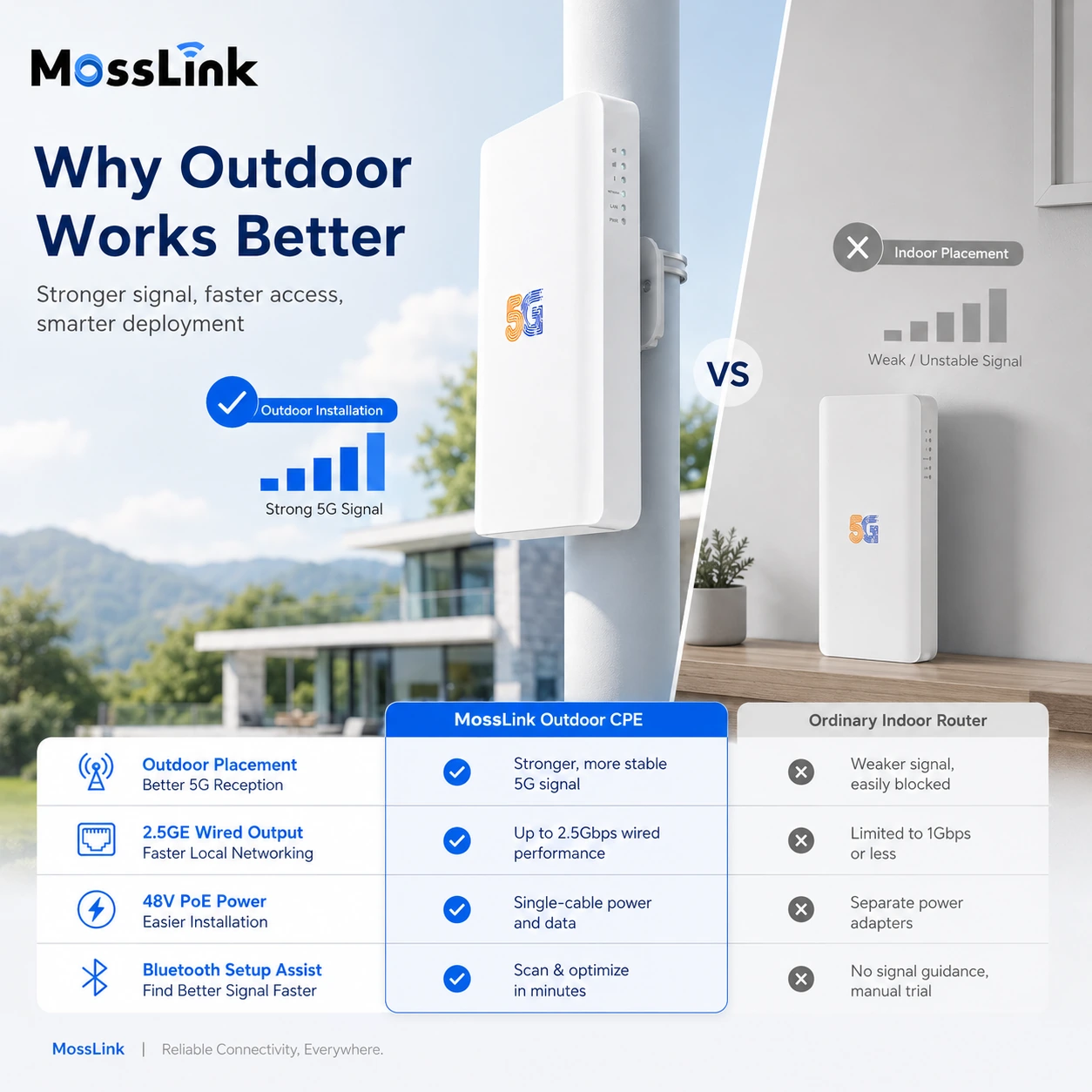

Why Outdoor Placement Wins

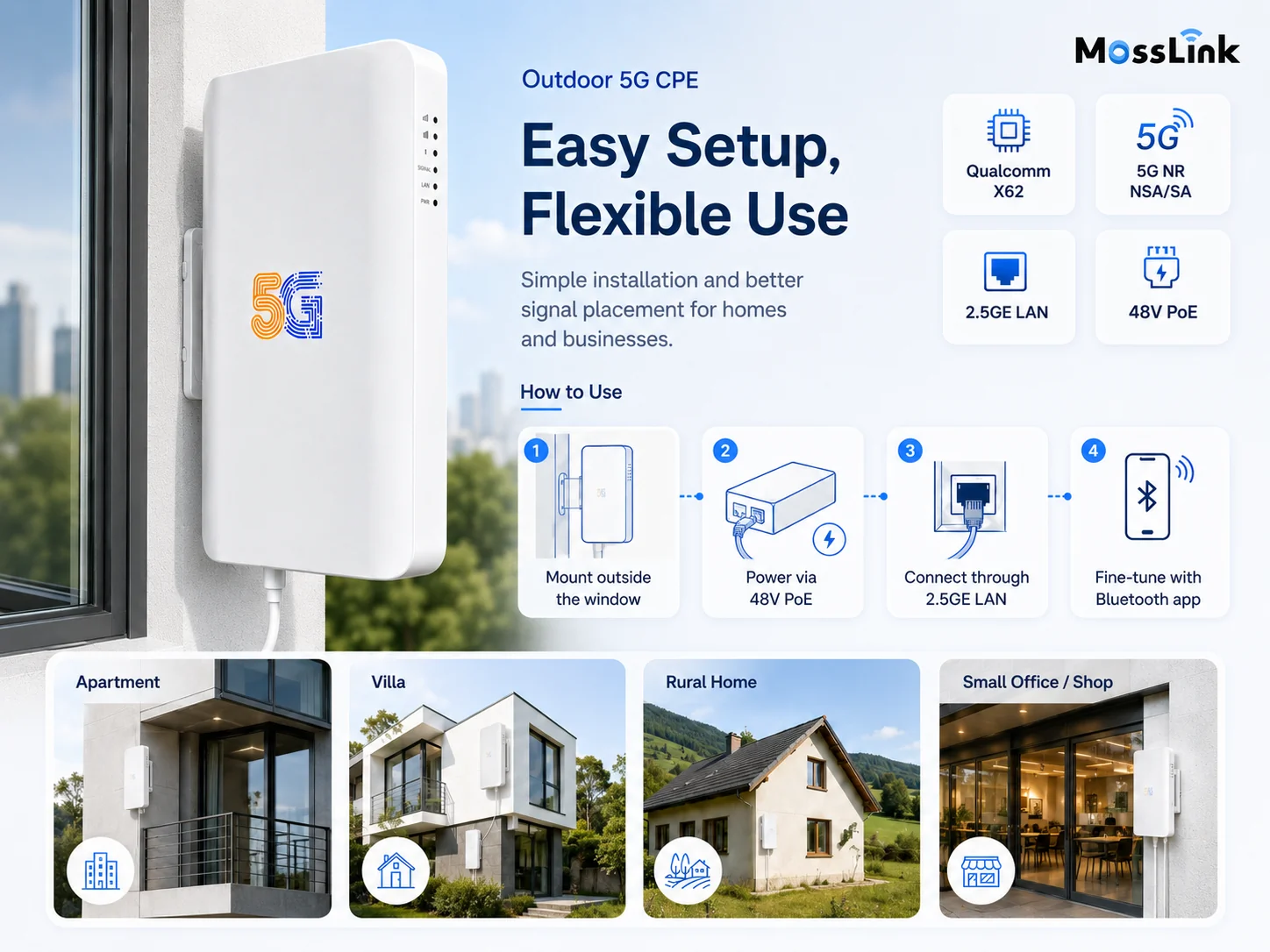

Moving the CPE outside the window or onto a wall puts the high-gain antenna closer to the 5G signal, improving capture, uplink stability, and real-world throughput versus a typical indoor router behind glass and walls. The slim housing, window/wall mount bracket, and single-cable 48V PoE keep installation clean — power and data run over one Ethernet cable to the indoor 2.5GbE port, with no separate power outlet at the mount point.
Carrier-Grade Management
Standards-based TR-069, TR-181, and TR-369 (USP) remote management enable zero-touch provisioning, over-the-air firmware upgrades, and centralized monitoring across large CPE fleets, while a multi-language HTTPS web interface handles local setup. USIM/PLMN locking, cell locking, multiple APNs, and router/bridge mode switching give ISPs the control needed to deploy the OG530 as managed customer premises equipment.
OEM/ODM Ready
MossLink offers OEM and ODM customization for the OG530 — including chipset selection (MediaTek T750 or Qualcomm X62), custom firmware, band configuration, enclosure branding, and private-label packaging. Volume pricing is available for ISPs, integrators, and surveillance equipment resellers. Contact us to discuss your project requirements.
Specifications
| Type | 5G Outdoor CPE (ODU), Sub-6GHz |
| Chipset | OG530-M: MediaTek T750 · OG530-Q: Qualcomm X62 |
| 5G / LTE Standard | 5G NR SA/NSA + LTE + WCDMA |
| 5G NR Bands | n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/n78 (OG530-M) |
| LTE Bands | FDD B1/B3/B5/B7/B8/B20/B28/B32; TDD B38/B40/B41/B42/B43 (OG530-M) |
| Max Downlink (5G SA) | OG530-M: 4.67Gbps · OG530-Q: 2.4Gbps |
| Max Uplink (5G SA) | OG530-M: 2.5Gbps · OG530-Q: 900Mbps |
| MIMO | DL 4×4 MIMO |
| Antenna | OG530-M: external 3–7dBi · OG530-Q: built-in high-gain |
| Ethernet | 1× 2.5GbE (802.3af PoE in) |
| SIM | 2FF SIM slot |
| Management | TR-069 / TR-369 (USP) / HTTPS Web |
| Enclosure | IP65, ±6kV surge protection (OG530-M) |
| Power | 48V PoE, < 10W |
| Temperature | -30°C ~ +75°C (OG530-M) |
| Dimensions | 338 × 250 × 85 mm, < 2.5 kg (OG530-M) |
Ordering & Customization
The OG530 ships factory-direct from Shenzhen with full OEM/ODM support. Three customization levels are available depending on your order quantity:
Logo & Packaging (OEM)
From 100 units
- Your logo on the enclosure
- Branded box, labels & user manual
- Zero MossLink branding on final product
Custom Firmware (Software)
From 500 units
- Custom web UI & boot screen
- Default configuration & feature tuning
- Regional and regulatory presets
Custom Hardware (ODM)
From 1,000 units
- Enclosure & antenna modifications
- Port and power-budget variations
- PCB-level customization
Learn more about our OEM/ODM process →
- Standard MOQ
- 100 units for standard products with no customization
- Samples
- 1–5 evaluation units at product cost plus shipping — sample fee credited toward your first bulk order
- Lead Time
- In-stock products: 3–5 business days · bulk production: 3–4 weeks · OEM/ODM orders: 4–8 weeks
- Payment Terms
- 30% deposit, 70% balance before shipment · T/T and L/C accepted, in USD
- Shipping
- DHL / FedEx / UPS express, air and sea freight · DDP, FOB Shenzhen, or CIF terms
- Packaging
- Each unit individually boxed with protective foam; palletized export cartons for freight — carton specs available on request
- Quality Control
- 100% inspection and 24-hour burn-in testing; a signed QC report ships with every order
- Certifications
- CE, FCC, and RoHS standard · additional market certifications (IC, TELEC, NCC, etc.) available via ODM
Frequently Asked Questions
What is the difference between the OG530-M and OG530-Q?
The OG530 shares one outdoor design across two chipset configurations. The OG530-M runs on the MediaTek T750 and peaks at 4.67Gbps down / 2.5Gbps up on 5G SA Sub-6GHz. The OG530-Q runs on the Qualcomm X62 and peaks at 2.4Gbps down / 900Mbps up on 5G SA (3.4Gbps / 550Mbps on NSA), and adds a Bluetooth signal-finder app and Type-C service port. Choose the variant based on operator approval, regional band certification, target throughput, and supply preference — contact us for the full OG530-Q specification for your market.
What 5G and LTE bands does the OG530 support?
The documented OG530-M supports 5G NR SA and NSA on n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/n78, LTE FDD B1/B3/B5/B7/B8/B20/B28/B32, LTE TDD B38/B40/B41/B42/B43, and WCDMA B1/B5/B8 — broad Sub-6GHz coverage for operators across Asia, Europe, and the Middle East. Band lists can be tuned per project for OEM orders; contact us for the OG530-Q band list.
How is the OG530 powered and installed?

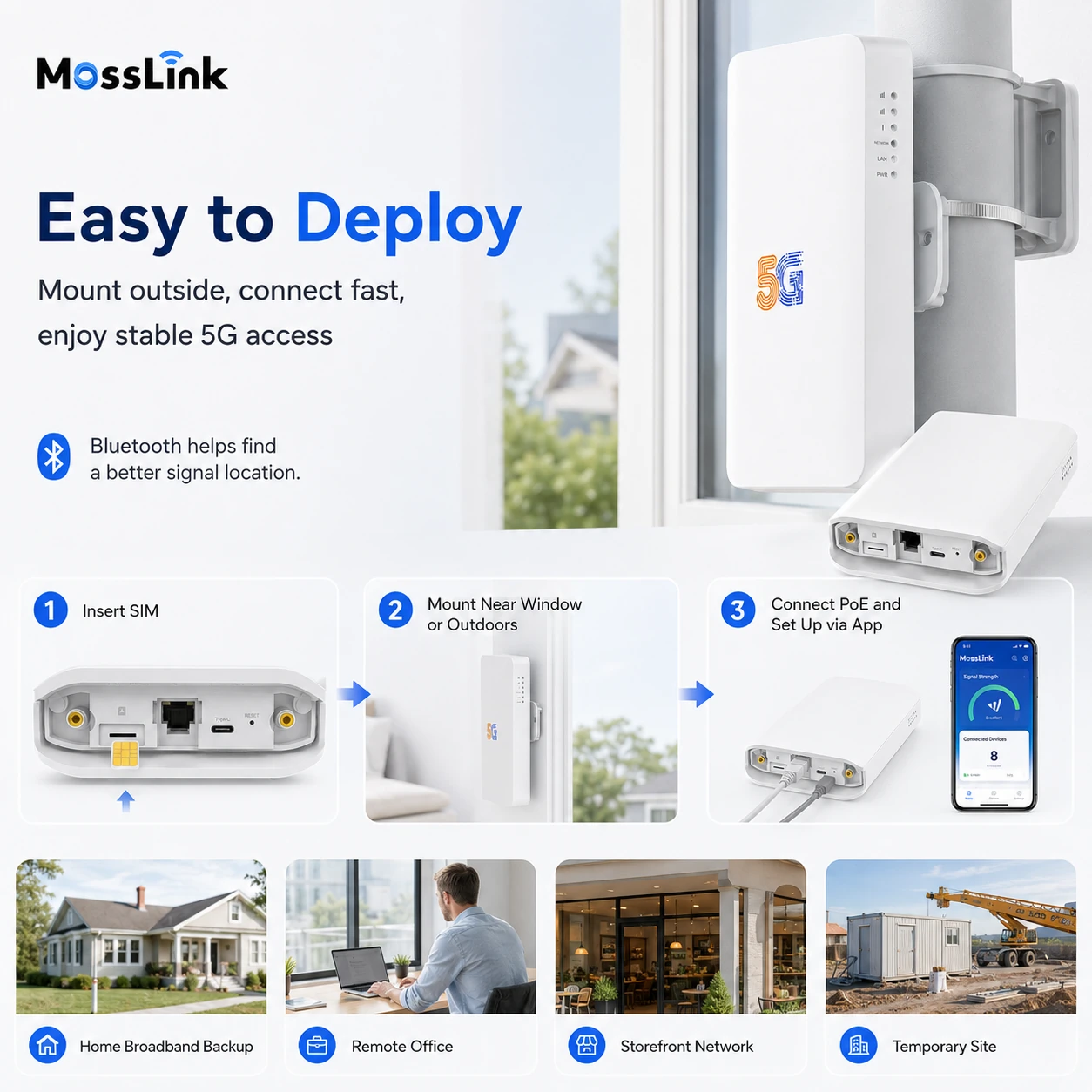

The OG530 is powered by 48V PoE (IEEE 802.3af) over its single 2.5 Gigabit Ethernet port, so one cable carries both power and data from the indoor side to the unit. It mounts outside the window, on a wall, or on a pole with the included bracket, and the OG530-Q's Bluetooth signal-finder app helps aim the antenna for the strongest 5G signal during setup.
Is OEM/ODM customization available for this product?
Yes. MossLink offers full OEM and ODM services for this product, including custom firmware features, hardware modifications, enclosure branding, and private-label packaging. Minimum order quantities apply. Contact us to discuss your project requirements.
What is the MOQ for the OG530?
Standard OG530 orders start at 100 units. Logo and packaging customization (OEM) also starts at 100 units, custom firmware at 500 units, and custom hardware (ODM) at 1,000 units. Contact sales with your target quantity for a formal quotation.
Can I get a sample of the OG530 before bulk ordering?
Yes. We supply 1–5 evaluation units at product cost plus shipping, and the sample fee is credited toward your first bulk order. Contact us via email or WhatsApp with the model number to arrange a sample.
What is the lead time for the OG530?
In-stock units ship within 3–5 business days. Bulk production orders typically require 3–4 weeks, and OEM/ODM orders with customization take 4–8 weeks depending on complexity. Rush production is available at additional cost.
Is the OG530 certified for my market?
The OG530 carries CE, FCC, and RoHS certification as standard. Additional certifications for specific markets (IC, TELEC, NCC, etc.) can be arranged through our ODM service.
How is product quality controlled before shipment?
Every unit undergoes 100% inspection and 24-hour burn-in testing before leaving the factory, and a signed QC report ships with every order — full traceability from component to delivery.
What payment terms do you accept?
Standard terms are a 30% deposit with order confirmation and the 70% balance before shipment, paid in USD via T/T. Letter of credit and flexible terms are available for established partners.
