1 / 7
CE FCC RoHS

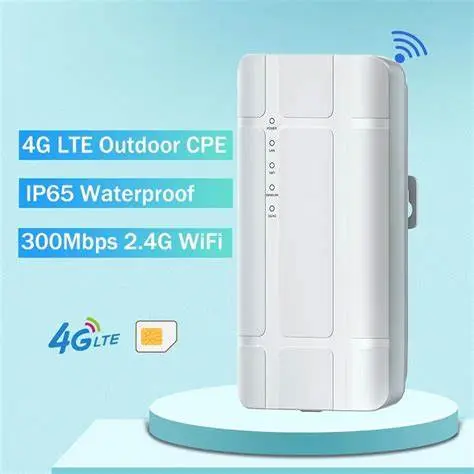

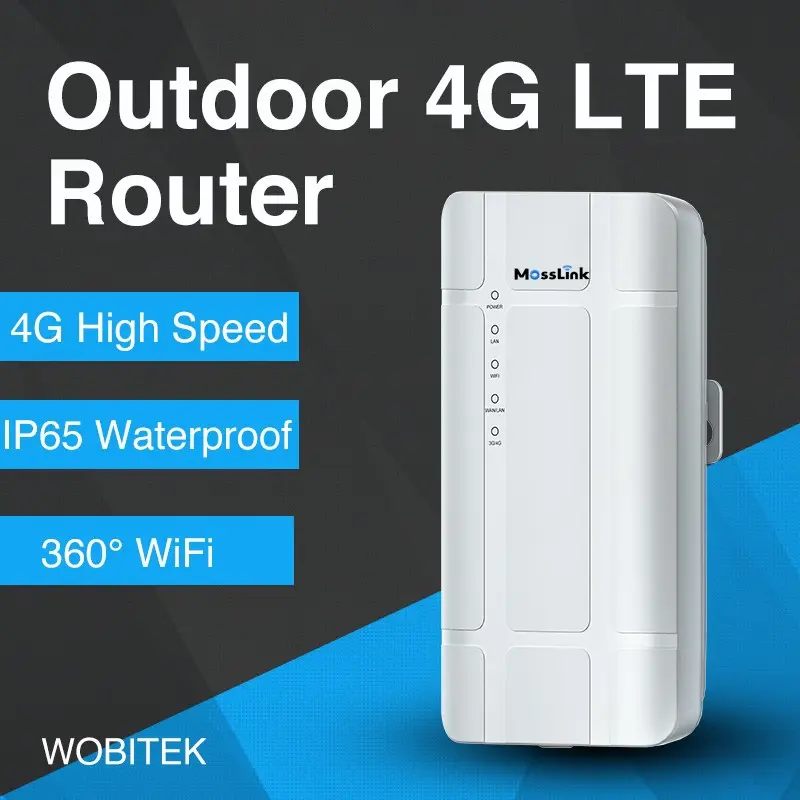

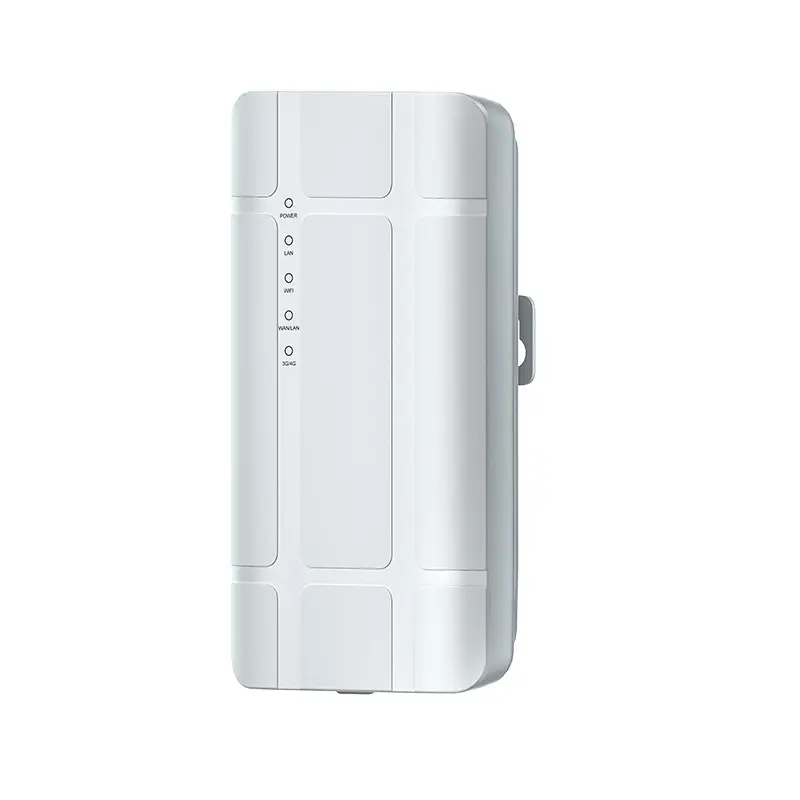

YC801 Outdoor 4G LTE Wi-Fi Router, 300Mbps, PoE, SIM Card
YC801
Type Outdoor 4G LTE CPE / Wi-Fi Router
Chipset MTK7628KN, 580MHz
WiFi Standard IEEE 802.11b/g/n (2.4GHz)
WiFi Speed 300Mbps
4G Bands (Asia) LTE-FDD B1/B3/B5/B8; LTE-TDD B34/B38/B39/B40/B41
5 Years Warranty
Overview
- Outdoor 4G LTE CPE — converts SIM to WiFi and wired LAN in rugged housing
- Dual Asia/EU 4G band variants for broad operator compatibility
- 2×2 MIMO antennas for both 4G and WiFi for improved signal stability
- 24V PoE and 12V DC dual power input for flexible outdoor installation
- 1× WAN + 1× LAN Ethernet for IP camera, NVR, or switch connections
- Nano SIM slot — automatic 4G/3G/2G network selection

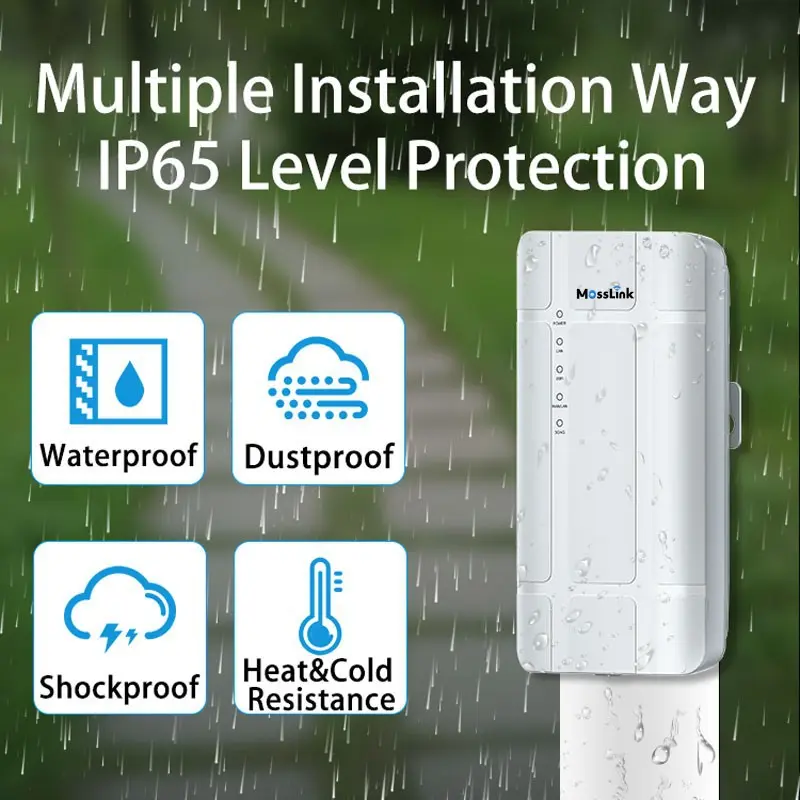

- Weather-resistant outdoor enclosure with LED status indicators
- Web-based configuration for easy remote deployment management
The YC801 is an outdoor 4G LTE Wi-Fi router/CPE delivering 300Mbps 2.4GHz wireless connectivity via Nano SIM card in a rugged weather-resistant enclosure. Featuring 24V PoE and 12V DC dual power input, 2×2 MIMO antennas for both 4G and WiFi, and a 1× WAN + 1× LAN Ethernet configuration, it is designed for outdoor hotspots, surveillance camera backhaul, rural broadband, and any deployment requiring reliable 4G internet without fixed-line infrastructure.
Ideal For
- Outdoor surveillance and IP camera backhaul via 4G LTE
- Rural hotspots, farms, and community outdoor wireless coverage
- Construction sites and temporary outdoor network deployments
- Outdoor Wi-Fi for parks, tourist areas, and public spaces
- ISP outdoor CPE for 4G last-mile connectivity
Deployment Advantages
The dual-power design — 24V PoE or 12V DC — gives installers flexibility at every site. PoE is particularly valuable for pole-top mounting where running separate power cables is expensive or impractical; a single CAT5 cable carries both power and network connectivity. The weather-resistant outdoor enclosure and LED status indicators allow easy on-site health assessment without connecting a laptop.
Separate 2×2 MIMO antenna arrays for 4G and WiFi ensure the router maintains strong cellular signal reception and wireless coverage simultaneously — even in areas with weak LTE signal where 2T2R MIMO provides a meaningful SNR improvement over single-antenna designs.
OEM/ODM Ready
MossLink offers OEM and ODM customization for this product, including custom firmware, Asia/EU band selection, enclosure branding, and private-label packaging. Volume pricing is available for ISPs, surveillance integrators, and outdoor network operators. Contact us to discuss your project requirements.
Specifications
| Type | Outdoor 4G LTE CPE / Wi-Fi Router |
| Chipset | MTK7628KN, 580MHz |
| WiFi Standard | IEEE 802.11b/g/n (2.4GHz) |
| WiFi Speed | 300Mbps |
| 4G Bands (Asia) | LTE-FDD B1/B3/B5/B8; LTE-TDD B34/B38/B39/B40/B41 |
| 4G Bands (EU) | LTE-FDD B1/B3/B7/B8/B20/B28; LTE-TDD B38/B40/B41 |
| Ethernet | 1× 100Mbps WAN + 1× 100Mbps LAN |
| SIM | Nano SIM |
| Antenna | 2× 4G MIMO 5dBi + 2× WiFi 2.4G MIMO 5dBi |
| Power | DC 12V/1A or 24V PoE 0.5A |
| Temperature | -10°C ~ +50°C |
| Power Consumption | < 10W |
Ordering & Customization
The YC801 ships factory-direct from Shenzhen with full OEM/ODM support. Three customization levels are available depending on your order quantity:
Logo & Packaging (OEM)
From 100 units
- Your logo on the enclosure
- Branded box, labels & user manual
- Zero MossLink branding on final product
Custom Firmware (Software)
From 500 units
- Custom web UI & boot screen
- Default configuration & feature tuning
- Regional and regulatory presets
Custom Hardware (ODM)
From 1,000 units
- Enclosure & antenna modifications
- Port and power-budget variations
- PCB-level customization
Learn more about our OEM/ODM process →
- Standard MOQ
- 100 units for standard products with no customization
- Samples
- 1–5 evaluation units at product cost plus shipping — sample fee credited toward your first bulk order
- Lead Time
- In-stock products: 3–5 business days · bulk production: 3–4 weeks · OEM/ODM orders: 4–8 weeks
- Payment Terms
- 30% deposit, 70% balance before shipment · T/T and L/C accepted, in USD
- Shipping
- DHL / FedEx / UPS express, air and sea freight · DDP, FOB Shenzhen, or CIF terms
- Packaging
- Each unit individually boxed with protective foam; palletized export cartons for freight — carton specs available on request
- Quality Control
- 100% inspection and 24-hour burn-in testing; a signed QC report ships with every order
- Certifications
- CE, FCC, and RoHS standard · additional market certifications (IC, TELEC, NCC, etc.) available via ODM
Downloads
Frequently Asked Questions
What is the difference between the YC801 Asia and EU band versions?
The YC801 Asia version supports LTE-FDD B1/B3/B5/B8 and LTE-TDD B34/B38/B39/B40/B41, covering major bands in China, Southeast Asia, and the Middle East. The EU version supports LTE-FDD B1/B3/B7/B8/B20/B28 and LTE-TDD B38/B40/B41, covering European operators. Both versions support WCDMA and GSM for 3G/2G fallback.
How does 24V PoE benefit outdoor installation?
24V PoE allows both power and data to be delivered over a single Ethernet cable, eliminating the need for separate power cabling at the mounting point. This significantly simplifies pole-top or wall-mount installations at remote locations such as surveillance sites, farms, or rural hotspots where running separate power cables is impractical.
Can the YC801 support surveillance camera networks?
Yes. The YC801 is specifically designed for outdoor surveillance and camera backhaul applications. The 1× WAN + 1× LAN Ethernet configuration allows the LAN port to connect to an IP camera, NVR, or PoE switch directly, while the 4G uplink provides connectivity to the monitoring center.
Is OEM/ODM customization available for this product?
Yes. MossLink offers full OEM and ODM services for this product, including custom firmware features, hardware modifications, enclosure branding, and private-label packaging. Minimum order quantities apply. Contact us to discuss your project requirements.
What is the MOQ for the YC801?
Standard YC801 orders start at 100 units. Logo and packaging customization (OEM) also starts at 100 units, custom firmware at 500 units, and custom hardware (ODM) at 1,000 units. Contact sales with your target quantity for a formal quotation.
Can I get a sample of the YC801 before bulk ordering?
Yes. We supply 1–5 evaluation units at product cost plus shipping, and the sample fee is credited toward your first bulk order. Contact us via email or WhatsApp with the model number to arrange a sample.
What is the lead time for the YC801?
In-stock units ship within 3–5 business days. Bulk production orders typically require 3–4 weeks, and OEM/ODM orders with customization take 4–8 weeks depending on complexity. Rush production is available at additional cost.
Is the YC801 certified for my market?
The YC801 carries CE, FCC, and RoHS certification as standard. Additional certifications for specific markets (IC, TELEC, NCC, etc.) can be arranged through our ODM service.
How is product quality controlled before shipment?
Every unit undergoes 100% inspection and 24-hour burn-in testing before leaving the factory, and a signed QC report ships with every order — full traceability from component to delivery.
What payment terms do you accept?
Standard terms are a 30% deposit with order confirmation and the 70% balance before shipment, paid in USD via T/T. Letter of credit and flexible terms are available for established partners.
