CPE920 Outdoor 4G LTE Router with SIM Slot, 300Mbps
CPE920
Type Outdoor 4G LTE CPE Router
4G Module CAT4, DL 150Mbps / UL 50Mbps
4G Bands FDD B1/B3/B5/B7/B8/B20/B28; TDD B38/B40/B41
WiFi Standard 802.11b/g/n (2.4GHz)
WiFi Speed Up to 72Mbps
5 Years Warranty
Overview
- 4G LTE CAT4 SIM-to-WiFi conversion — plug-and-play outdoor CPE
- Supports EU/Asia 4G bands: FDD B1/B3/B5/B7/B8/B20/B28 + TDD B38/B40/B41
- Built-in 2.4GHz 802.11b/g/n WiFi for local device connectivity
- 1× 10/100Mbps LAN port for wired IP cameras or PCs
- Compact ABS outdoor enclosure with wall and pole mount brackets
- WPA2 encryption and DHCP/firewall configuration via web UI
- Ideal for surveillance camera backhaul and remote site internet
- Low-cost CPE solution for ISPs in developing markets
The CPE920 is an outdoor 4G LTE CPE router that converts a SIM card’s cellular signal into 2.4GHz WiFi and a wired LAN connection. Supporting EU/Asia 4G bands (FDD/TDD), CAT4 download speeds up to 150Mbps, and pole or wall mount options, it is designed for surveillance camera backhaul, rural WiFi coverage, temporary site internet, and low-cost ISP CPE deployments.
Ideal For
- Surveillance and IP camera backhaul at remote or outdoor sites
- Rural and agricultural broadband access via 4G LTE
- Temporary construction site internet and mobile office setups
- Low-cost CPE for ISPs serving developing markets
- Vehicle and mobile internet applications
Deployment Advantages
The CPE920 eliminates the need for fixed-line infrastructure — insert a SIM, mount the unit on a pole or wall, and connectivity is established immediately. The built-in 2.4GHz WiFi serves local wireless devices while the LAN port provides a wired connection for IP cameras, NVRs, or industrial computers.
The compact ABS enclosure and standard mounting hardware make installation fast and straightforward in any outdoor location. Web UI configuration (default 192.168.1.1) requires no specialist knowledge, and WPA2 encryption protects the WiFi network from unauthorized access.
OEM/ODM Ready
MossLink offers OEM and ODM customization for this product, including custom firmware, band configuration, enclosure branding, and private-label packaging. Volume pricing is available for ISPs, integrators, and surveillance equipment resellers. Contact us to discuss your project requirements.
Specifications
| Type | Outdoor 4G LTE CPE Router |
| 4G Module | CAT4, DL 150Mbps / UL 50Mbps |
| 4G Bands | FDD B1/B3/B5/B7/B8/B20/B28; TDD B38/B40/B41 |
| WiFi Standard | 802.11b/g/n (2.4GHz) |
| WiFi Speed | Up to 72Mbps |
| Ethernet | 1× 10/100Mbps LAN |

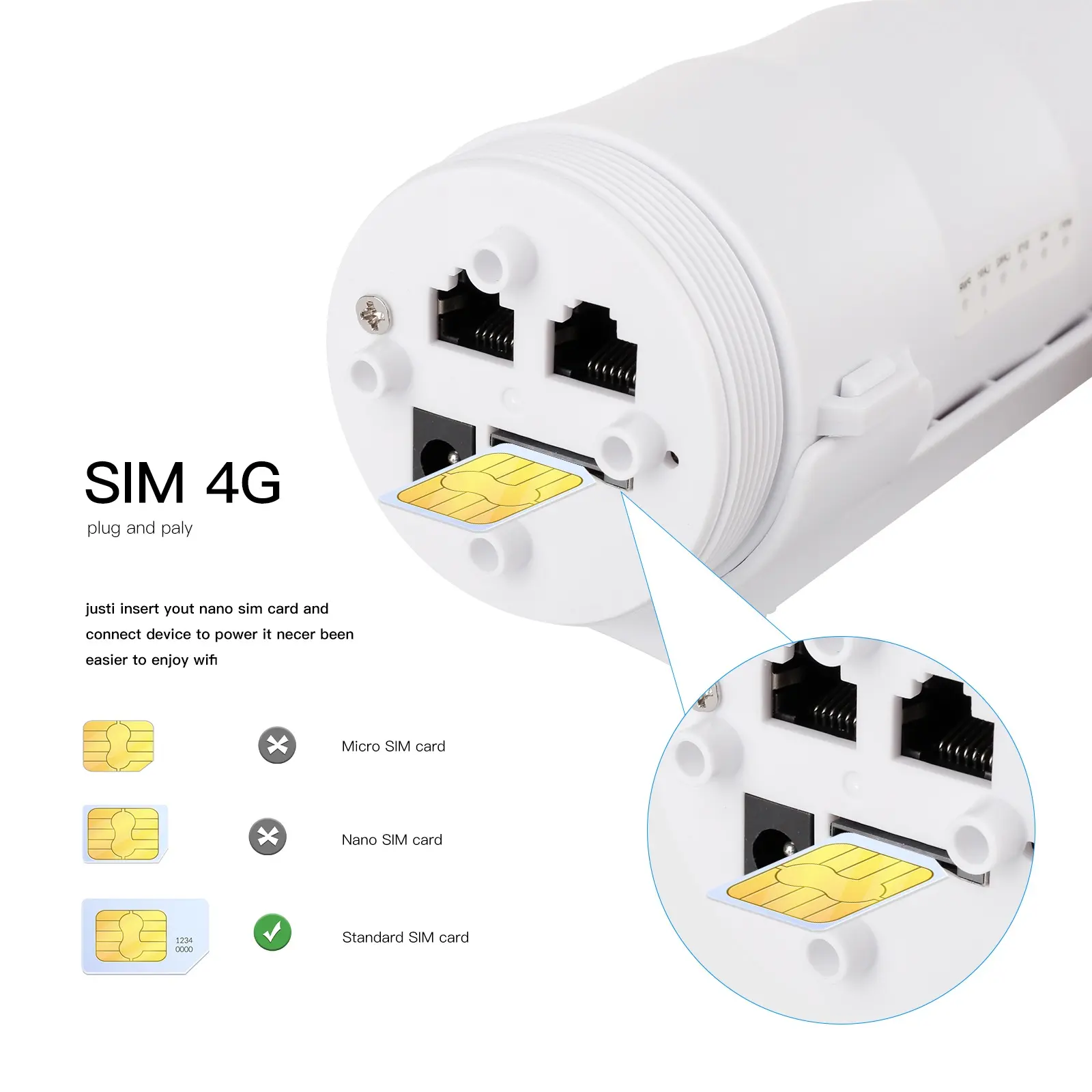

| SIM | Mini SIM (2FF) |
| Antenna | 1× Built-in 2.4G + 2× External 4G |
| Power | DC 12V |

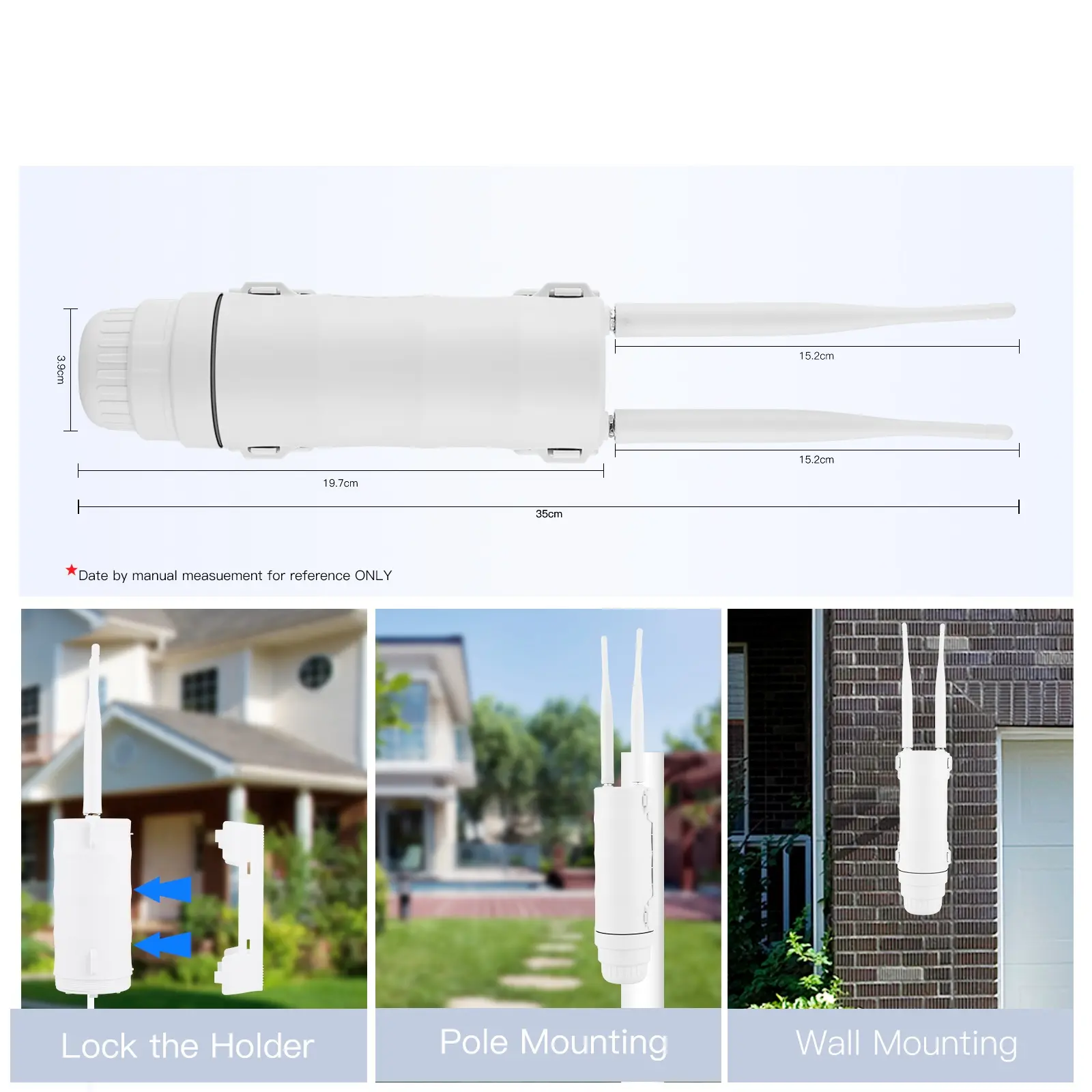

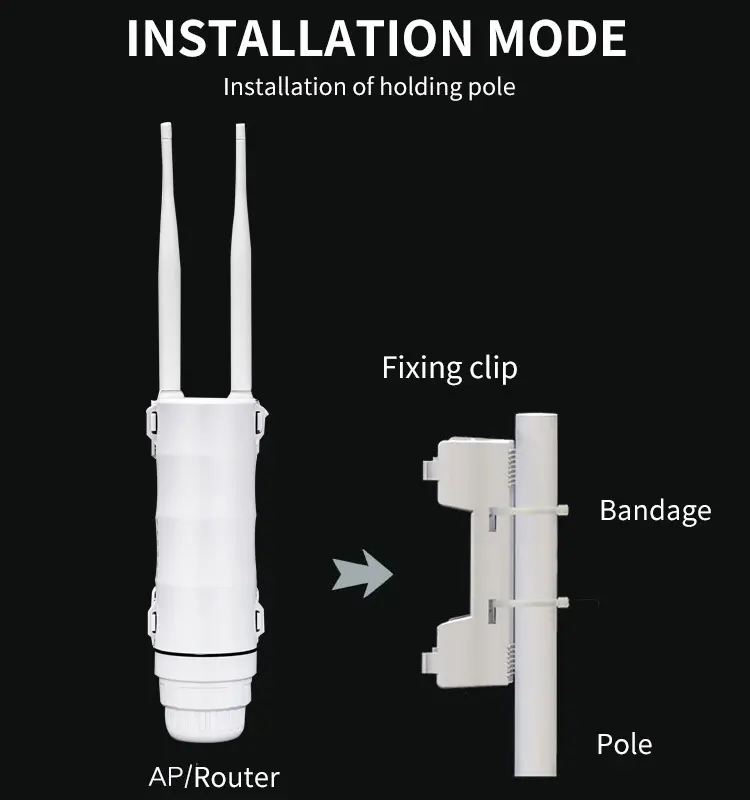

| Mounting | Wall / Pole Mount |
| Dimensions | 202 × 68 × 68 mm |
| Temperature | 0°C ~ +55°C |
Ordering & Customization
The CPE920 ships factory-direct from Shenzhen with full OEM/ODM support. Three customization levels are available depending on your order quantity:
Logo & Packaging (OEM)
From 100 units
- Your logo on the enclosure
- Branded box, labels & user manual
- Zero MossLink branding on final product
Custom Firmware (Software)
From 500 units
- Custom web UI & boot screen
- Default configuration & feature tuning
- Regional and regulatory presets
Custom Hardware (ODM)
From 1,000 units
- Enclosure & antenna modifications
- Port and power-budget variations
- PCB-level customization
Learn more about our OEM/ODM process →
- Standard MOQ
- 100 units for standard products with no customization
- Samples
- 1–5 evaluation units at product cost plus shipping — sample fee credited toward your first bulk order
- Lead Time
- In-stock products: 3–5 business days · bulk production: 3–4 weeks · OEM/ODM orders: 4–8 weeks
- Payment Terms
- 30% deposit, 70% balance before shipment · T/T and L/C accepted, in USD
- Shipping
- DHL / FedEx / UPS express, air and sea freight · DDP, FOB Shenzhen, or CIF terms
- Packaging
- Each unit individually boxed with protective foam; palletized export cartons for freight — carton specs available on request
- Quality Control
- 100% inspection and 24-hour burn-in testing; a signed QC report ships with every order
- Certifications
- CE, FCC, and RoHS standard · additional market certifications (IC, TELEC, NCC, etc.) available via ODM
Frequently Asked Questions
What 4G bands does the CPE920 support?
The CPE920 supports FDD bands B1, B3, B5, B7, B8, B20, B28 and TDD bands B38, B40, B41, covering major 4G LTE frequencies across Europe and Asia. This makes it compatible with most mobile operators in these regions without SIM-lock restrictions.
Can the CPE920 be used for surveillance camera backhaul?
Yes. The CPE920 is purpose-designed for IP camera and remote site deployments. Its 1× LAN port connects directly to a camera or NVR, while the 4G LTE uplink provides backhaul to the cloud or monitoring center — ideal for sites without wired broadband.
How is the CPE920 powered and mounted?
The CPE920 operates on DC 12V input and includes both wall mount and pole mount brackets for flexible outdoor installation. Its compact ABS enclosure is suitable for pole-top or wall-side mounting at camera sites, construction areas, or remote field locations.
Is OEM/ODM customization available for this product?
Yes. MossLink offers full OEM and ODM services for this product, including custom firmware features, hardware modifications, enclosure branding, and private-label packaging. Minimum order quantities apply. Contact us to discuss your project requirements.
What is the MOQ for the CPE920?
Standard CPE920 orders start at 100 units. Logo and packaging customization (OEM) also starts at 100 units, custom firmware at 500 units, and custom hardware (ODM) at 1,000 units. Contact sales with your target quantity for a formal quotation.
Can I get a sample of the CPE920 before bulk ordering?
Yes. We supply 1–5 evaluation units at product cost plus shipping, and the sample fee is credited toward your first bulk order. Contact us via email or WhatsApp with the model number to arrange a sample.
What is the lead time for the CPE920?
In-stock units ship within 3–5 business days. Bulk production orders typically require 3–4 weeks, and OEM/ODM orders with customization take 4–8 weeks depending on complexity. Rush production is available at additional cost.
Is the CPE920 certified for my market?
The CPE920 carries CE, FCC, and RoHS certification as standard. Additional certifications for specific markets (IC, TELEC, NCC, etc.) can be arranged through our ODM service.
How is product quality controlled before shipment?
Every unit undergoes 100% inspection and 24-hour burn-in testing before leaving the factory, and a signed QC report ships with every order — full traceability from component to delivery.
What payment terms do you accept?
Standard terms are a 30% deposit with order confirmation and the 70% balance before shipment, paid in USD via T/T. Letter of credit and flexible terms are available for established partners.
