X303 Cloud-Managed AX3000 Wi-Fi 6 Outdoor AP, IP67

The X303 is a cloud-managed Wi-Fi 6 AX3000 outdoor access point built on the Qualcomm IPQ5018 + QCN6102 + QCA8337 enterprise platform with 512MB DDR3L memory. Concurrent dual-band 802.11ax delivers 573.5Mbps @ 2.4GHz and 2402Mbps @ 5.8GHz to bandwidth-intensive clients, while four internal 7dBi high-gain antennas and an IP67 sealed enclosure provide reliable 150m coverage in a compact, weatherproof body — remotely managed from a web dashboard or mobile app.

Cloud Platform Management — Web and Mobile App

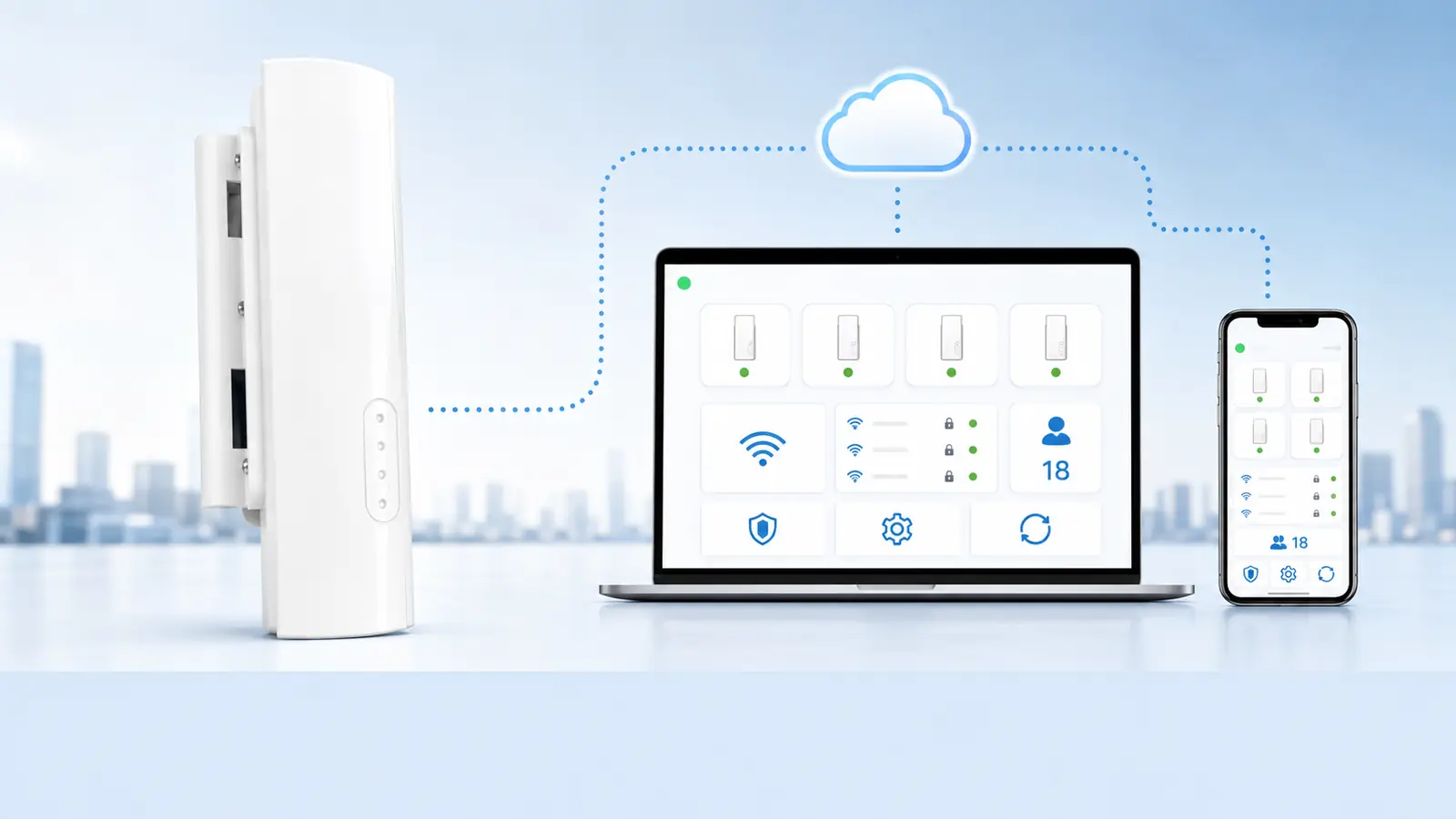

Cloud management is the defining capability of the X303. Every unit is cloud-ready: power it over PoE, bring it online, and it registers with the cloud platform so operators can monitor, configure, and troubleshoot from anywhere — no on-site engineer, no manual IP setup. From the dashboard, push SSID and VLAN changes across one AP or an entire fleet, schedule OTA firmware upgrades during off-hours, watch real-time per-client throughput, and receive alerts the moment a unit drops offline.

Management is available on both a web dashboard and a mobile app, so field technicians can commission and diagnose pole-mounted units from a smartphone where connecting a laptop is impractical. For teams that prefer on-premise control, the same firmware also supports local Web GUI and AC-controller management — switchable without reflashing — so customers can migrate management models as deployments scale. If you are weighing remote-management options for a distributed network, see our guide on how to manage all APs remotely from one place.

Ideal For

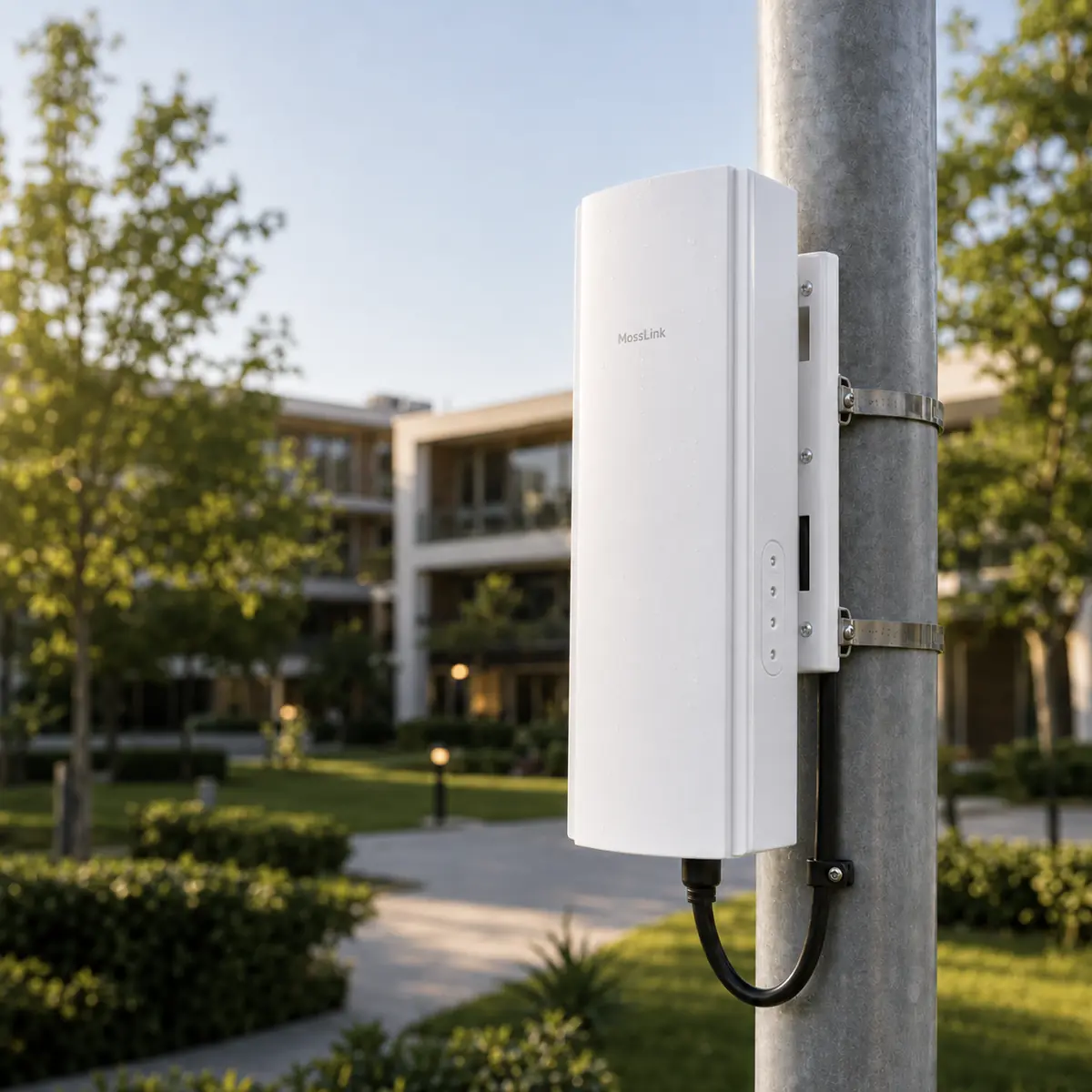

• ISP and public outdoor hotspots — pole-mounted coverage managed centrally from the cloud
• Hospitality and campus courtyards — hotels, resorts, schools, and pedestrian areas needing app-based control
• Distributed multi-site fleets — chain retail, community Wi-Fi, and operators managing many APs from one dashboard
• Compact installs where external antennas are undesirable — clean, low-profile mounts exposed to weather or tampering
• Starlink and rural last-metre coverage — a single cloud-manageable AP behind a satellite or bridge uplink
• Temporary event and show networks — sealed, no-antenna units on masts and truss behind a 5G uplink (reference design)

Compact Internal-Antenna Design, Built for Outdoors

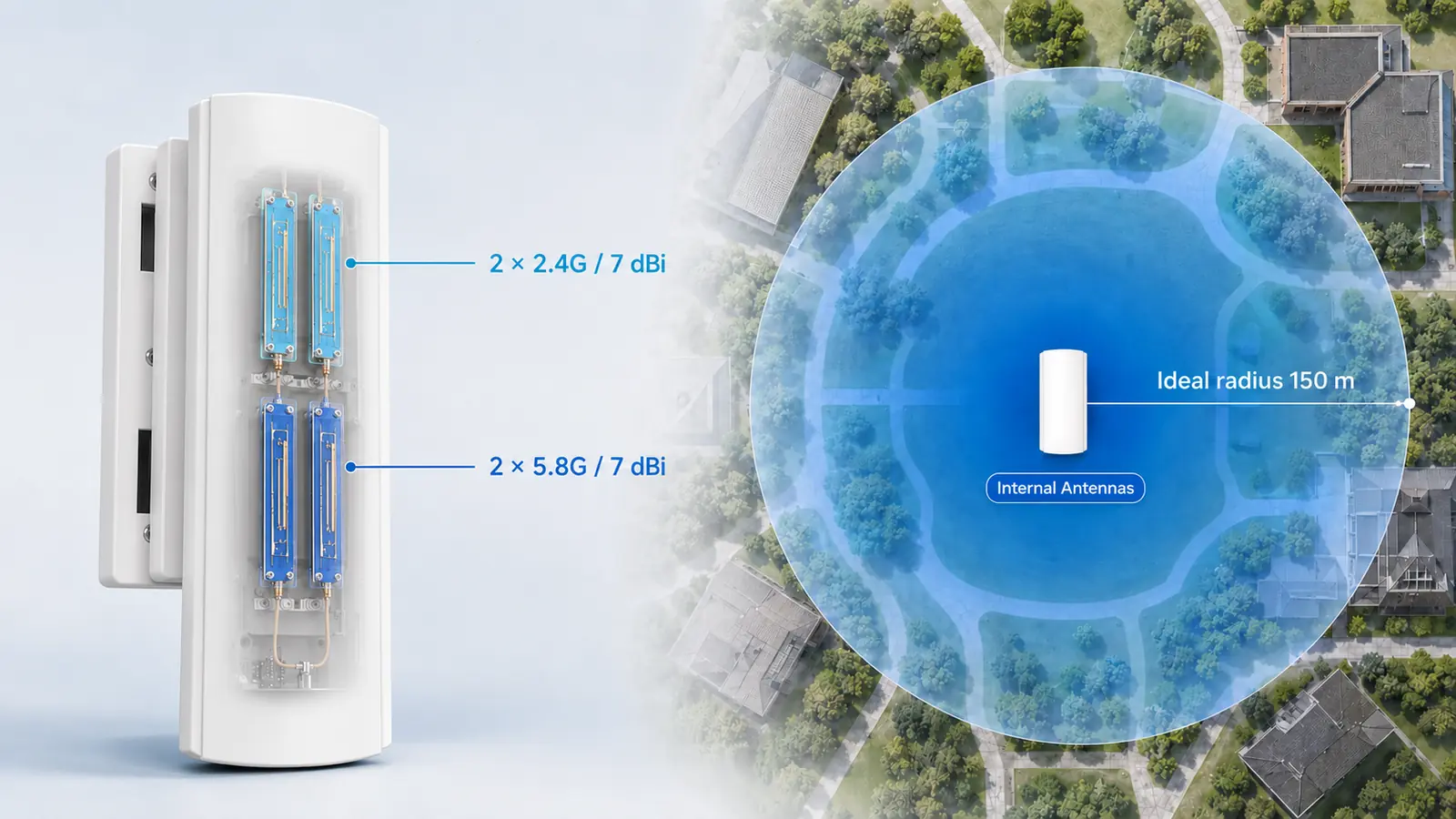

Where external-antenna APs expose connectors and rods to weather and damage, the X303 integrates four high-gain 7dBi antennas (2× 2.4G + 2× 5.8G) inside a sealed enclosure that measures just 231.5 × 100.7 × 51.3 mm and weighs 600 g. The IP67 rating is fully dust-tight and sealed against temporary water immersion — a step above the IP65 common in this class — and the -30°C to +60°C operating range covers rain, dust, and heat across most outdoor climates. For a broader overview of how to spec an outdoor AP for harsh environments, see our outdoor AP buying guide.

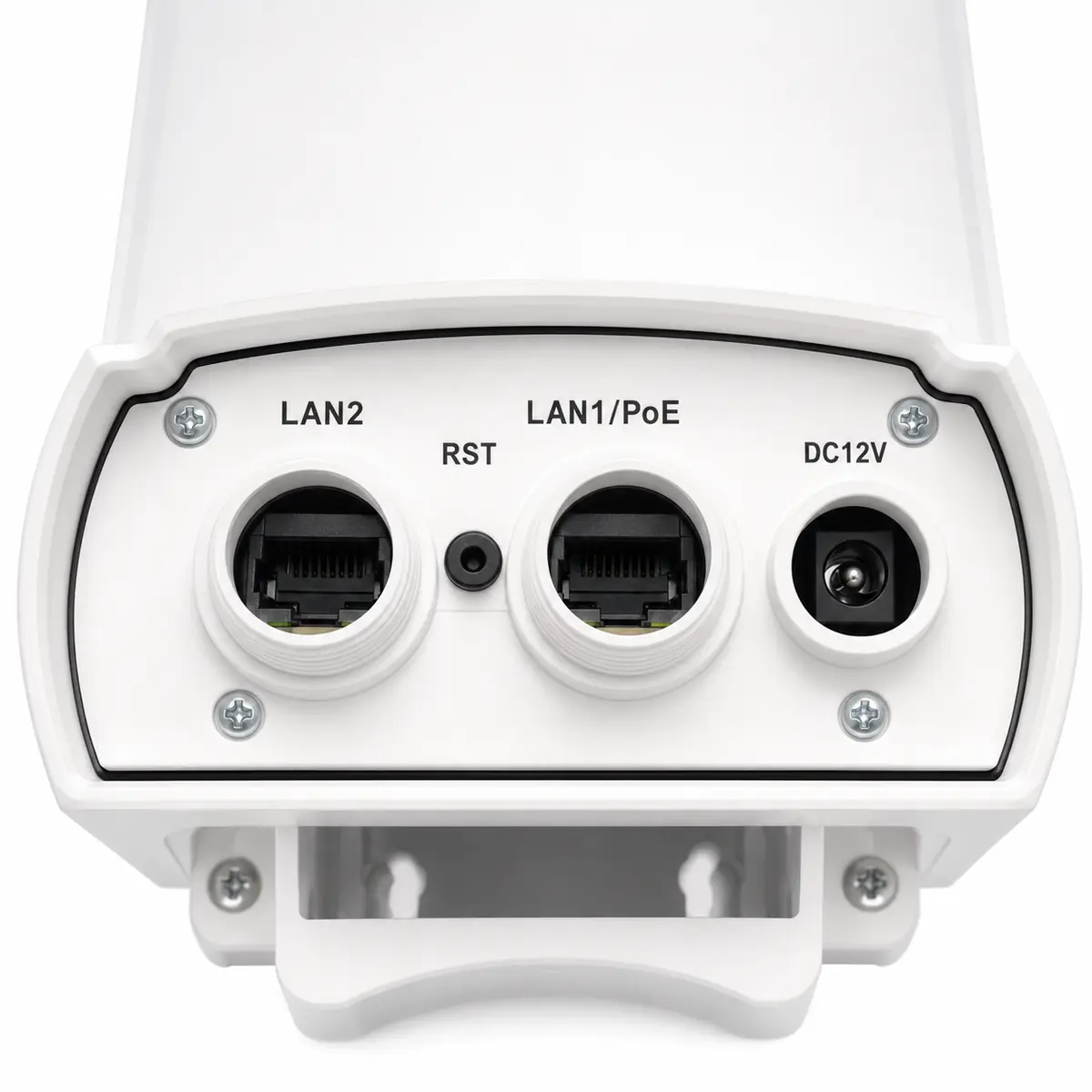

Two Gigabit ports add deployment flexibility: LAN1 with PoE In carries both power and data over a single cable up to the mount, while LAN2 can daisy-chain a second device — an IP camera, a second AP, or an IoT gateway — from one pole run. Total power draw stays under 18W.

Qualcomm IPQ5018 Enterprise Platform

The X303 runs the same Qualcomm IPQ5018 + QCN6102 Wi-Fi 6 radio SoC and QCA8337 Gigabit switch found in Tier-1 enterprise APs, clocked at Quad-Core 1GHz with 512MB DDR3L (notably larger than the 256MB typical of this class) and 128MB NAND flash. That headroom supports up to 256 concurrent clients (128 recommended) alongside advanced firmware: AP Mesh, 802.11k/v/r seamless roaming, beamforming, auto channel selection, and 160MHz channel width. Security is comprehensive — WEP/WPA/WPA2/WPA3, firewall, MAC/IP/Port/URL filtering, per-user and per-SSID speed limits, time scheduling, and anti-DoS/ARP protection — with extras like Bluetooth and Night Mode (LED light control) for discreet installs.

Where the X303 Fits

In the MossLink cloud-managed outdoor Wi-Fi 6 lineup, the X303 is the compact internal-antenna option. The APH6-AX3000 shares the same Qualcomm platform but adds four external dual-band antennas and a Gigabit SFP fiber uplink for ISP and campus edges where fiber and copper coexist. The APM6-AX3000 targets long-range coverage with 5× 8dBi antennas and 300–500m line-of-sight reach for Starlink sharing and rural WISP work. The X303 is chosen where integrators want enterprise Qualcomm silicon and cloud plus mobile-app management in a small, sealed, no-external-antenna body. For broader outdoor design patterns, see the outdoor AP solution overview.

OEM / ODM Ready

MossLink offers OEM and ODM customization for the X303, including custom firmware defaults, SSID and web-login branding, enclosure colour and silkscreen variants, and private-label packaging, subject to order quantity. A fully white-labeled cloud platform is available only as a separately scoped OEM program, with a one-time deployment setup fee and committed-volume MOQ; it is not a default feature of every order. MossLink is an outdoor access point OEM manufacturer running white-label programs for ISPs, integrators, and resellers. Contact us with your target quantity, market, and management requirements to get a quote.
