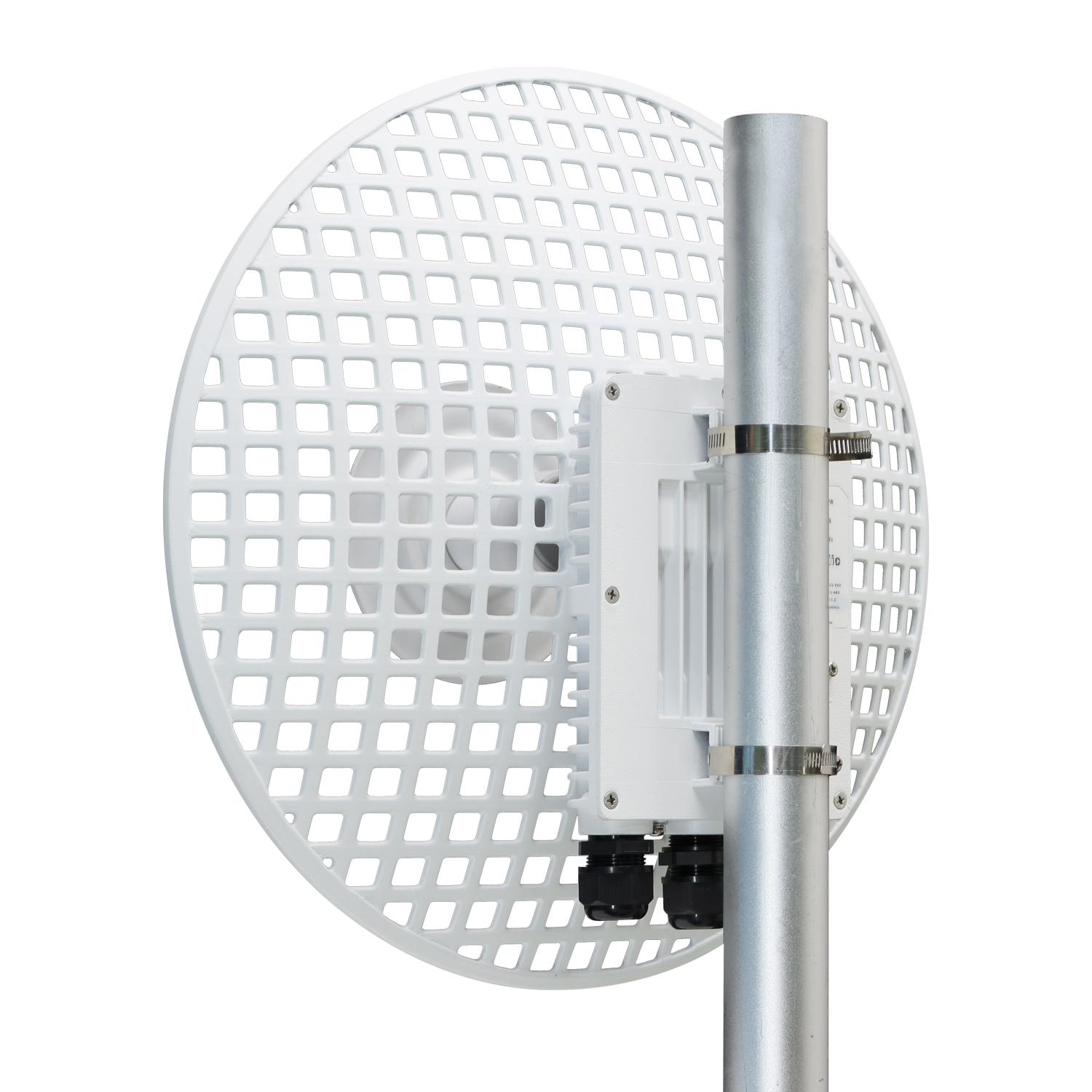

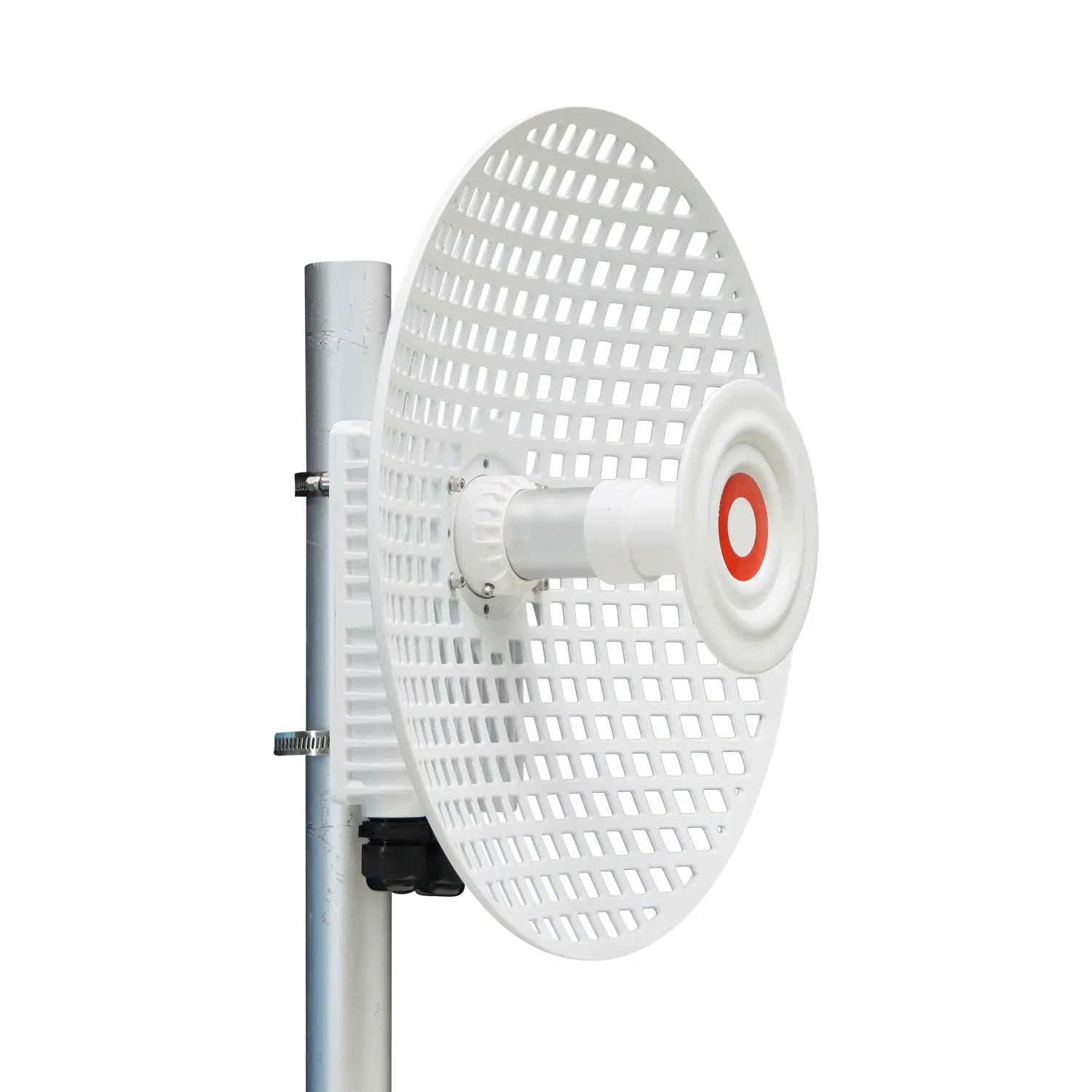

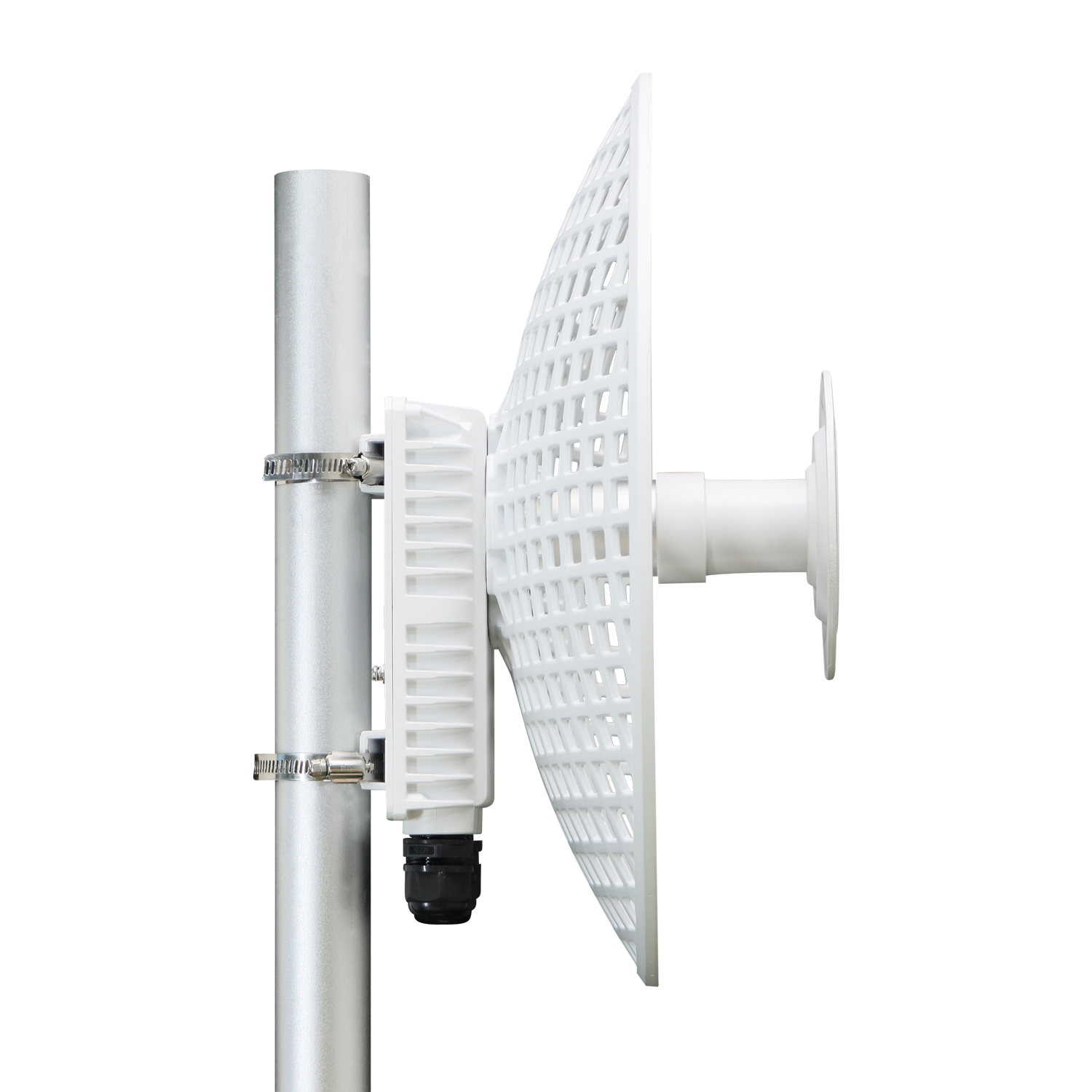

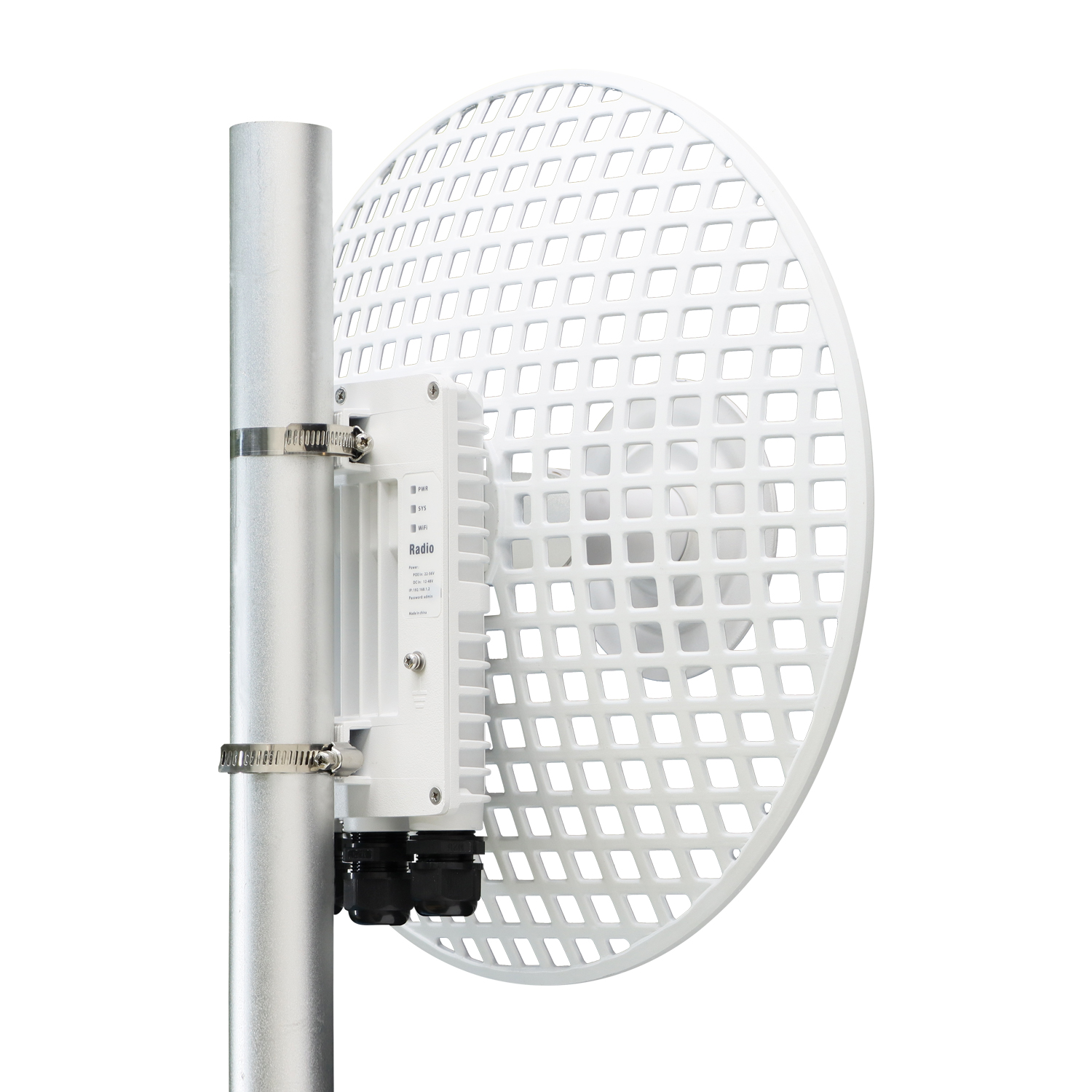

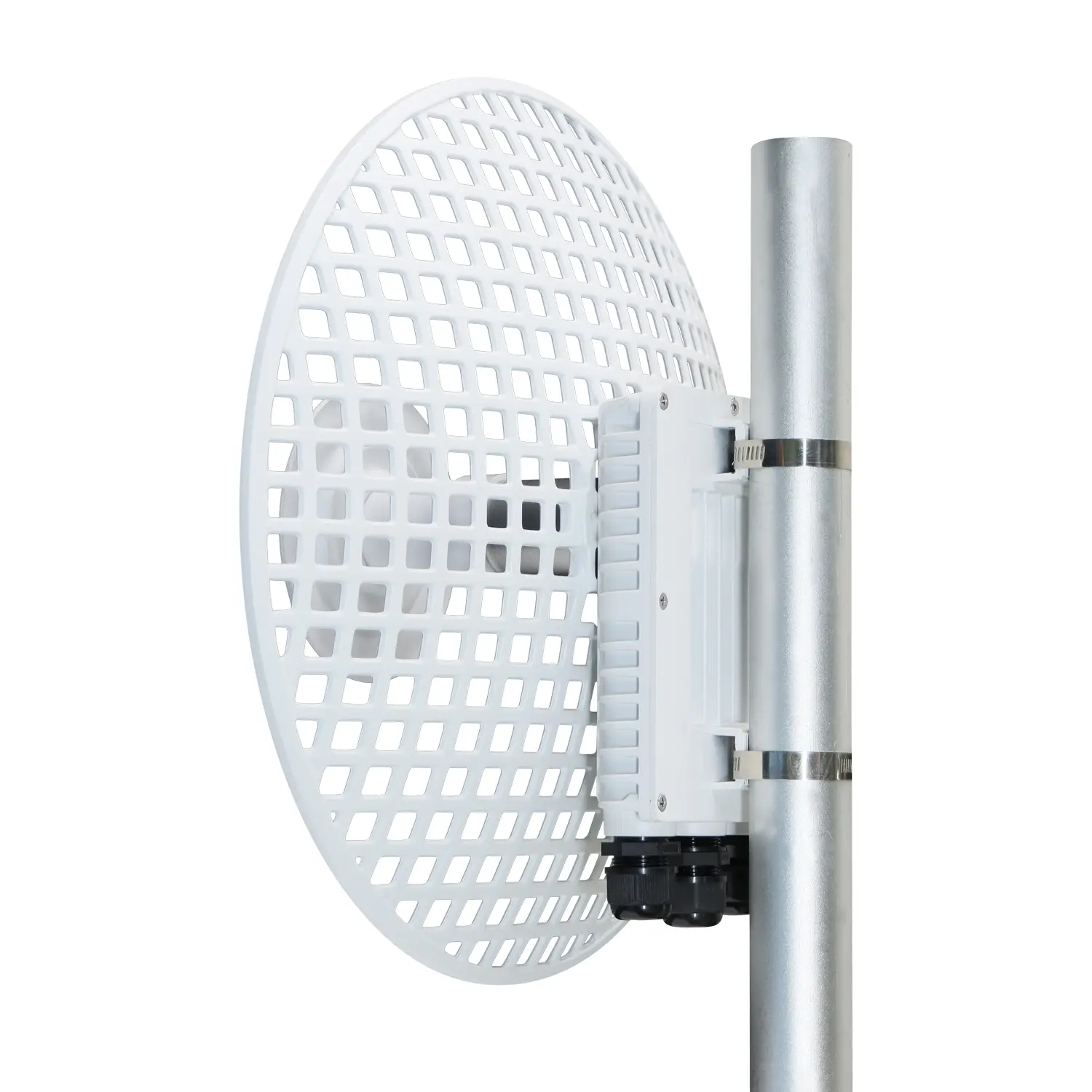

X5-G25 Wi-Fi 6 Outdoor Bridge, 25dBi Grid, 2.5Gbps
X5-G25
Type Outdoor Long-Range PtP Wireless Bridge
Standard Wi-Fi 6 (802.11ax), 5.1–5.8GHz
CPU Dual-core ARM Cortex-A53 @ 1.0GHz
Antenna 25dBi Grid Antenna, 11° Beamwidth, Φ42cm
Channel Bandwidth 20/40/80/160MHz
5 Years Warranty
Overview
- 25dBi dual-linear grid antenna with 11° beamwidth for long-range directional PtP links
- Wi-Fi 6 (802.11ax) with 160MHz channel bandwidth for high-throughput backhaul
- 1× 2.5Gbps + 1× Gigabit Ethernet ports for high-bandwidth wired connections
- Die-cast aluminum IP67 enclosure with 8kV surge protection
- Wide PoE input range 22–56V supports diverse power source deployments
- WPA3-SAE security and VLAN 802.1Q with 802.1p priority
- SNMP v1/v2/v3, TR069, SSH, HTTPS enterprise management
The X5-G25 is a professional outdoor Wi-Fi 6 point-to-point wireless bridge with a 25dBi dual-linear grid antenna and 11° beamwidth for long-range directional links. Built on a dual-core ARM Cortex-A53 platform with 160MHz channel support, 1×2.5Gbps and 1×Gigabit Ethernet, die-cast aluminum IP67 enclosure, 8kV surge protection, and enterprise management (SNMP, TR069, SSH), it is designed for WISP backhaul, CCTV transmission, rural broadband, and ISP last-mile wireless connectivity.
Ideal For
- PtP wireless backhaul links for WISPs, ISPs, and rural broadband providers
- High-definition IP camera and CCTV video transmission over 5–20km
- Farm, mine, oilfield, and remote facility broadband connectivity
- Building-to-building enterprise network links without fiber trenching
- Starlink and satellite internet extension to secondary buildings or sites
Deployment Advantages
The 25dBi grid antenna provides a high link budget in a compact Φ42cm die-cast aluminum dish that is lighter and easier to handle than larger 30dBi counterparts, while still covering most practical long-distance deployment scenarios. The 160MHz channel option with Wi-Fi 6 OFDMA support delivers throughput comparable to legacy licensed microwave links at a fraction of the cost.
The 2.5Gbps Ethernet port future-proofs the installation for bandwidth growth without requiring hardware replacement. Wide PoE input range (22–56V) accepts both passive PoE adapters and active 802.3at/bt switches, reducing constraints on power sourcing in tower and rooftop installations.
OEM/ODM Ready
MossLink offers OEM and ODM customization for this product including custom firmware, enclosure branding, labels, and custom packaging. A fully white-labeled cloud platform is not a standard feature of this bridge. Volume pricing is available for WISPs, ISPs, and wireless equipment distributors.
Specifications
| Type | Outdoor Long-Range PtP Wireless Bridge |
| Standard | Wi-Fi 6 (802.11ax), 5.1–5.8GHz |
| CPU | Dual-core ARM Cortex-A53 @ 1.0GHz |
| Antenna | 25dBi Grid Antenna, 11° Beamwidth, Φ42cm |
| Channel Bandwidth | 20/40/80/160MHz |
| Max TX Power | 29dBm @20MHz, 27dBm @40/80MHz |
| Ethernet | 1× 2.5Gbps + 1× Gigabit |
| Power | PoE 22–56V or DC 12V |
| Power Consumption | <15W |
| Surge Protection | 8kV |
| Enclosure | IP67, Die-cast Aluminum |
| Dish Diameter | Φ42 cm |
| Weight | 6.8 kg |
| Temperature | -30°C ~ +60°C |
Ordering & Customization
The X5-G25 ships factory-direct from Shenzhen with full OEM/ODM support. Three customization levels are available depending on your order quantity:
Logo & Packaging (OEM)
From 100 units
- Your logo on the enclosure
- Branded box, labels & user manual
- Zero MossLink branding on final product
Custom Firmware (Software)
From 500 units
- Custom web UI & boot screen
- Default configuration & feature tuning
- Regional and regulatory presets
Custom Hardware (ODM)
From 1,000 units
- Enclosure & antenna modifications
- Port and power-budget variations
- PCB-level customization
Learn more about our OEM/ODM process →
- Standard MOQ
- 100 units for standard products with no customization
- Samples
- 1–5 evaluation units at product cost plus shipping — sample fee credited toward your first bulk order
- Lead Time
- In-stock products: 3–5 business days · bulk production: 3–4 weeks · OEM/ODM orders: 4–8 weeks
- Payment Terms
- 30% deposit, 70% balance before shipment · T/T and L/C accepted, in USD
- Shipping
- DHL / FedEx / UPS express, air and sea freight · DDP, FOB Shenzhen, or CIF terms
- Packaging
- Each unit individually boxed with protective foam; palletized export cartons for freight — carton specs available on request
- Quality Control
- 100% inspection and 24-hour burn-in testing; a signed QC report ships with every order
- Certifications
- CE, FCC, and RoHS standard · additional market certifications (IC, TELEC, NCC, etc.) available via ODM
Frequently Asked Questions
What is the difference between the X5-G25 and X5-G30?
Both are Wi-Fi 6 grid antenna bridges with identical electronics. The X5-G30 has a 30dBi antenna (larger aperture, higher gain, narrower 11° beamwidth) for maximum range applications. The X5-G25 uses a 25dBi antenna in a more compact Φ42cm form factor. For most PtP deployments under 20km, the X5-G25 provides sufficient link budget with easier handling and installation.
Is OEM/ODM customization available for this product?
Yes. MossLink offers full OEM and ODM services including custom firmware, enclosure branding, and private-label packaging. Contact us to discuss your project requirements.
What is the MOQ for the X5-G25?
Standard X5-G25 orders start at 100 units. Logo and packaging customization (OEM) also starts at 100 units, custom firmware at 500 units, and custom hardware (ODM) at 1,000 units. Contact sales with your target quantity for a formal quotation.
Can I get a sample of the X5-G25 before bulk ordering?
Yes. We supply 1–5 evaluation units at product cost plus shipping, and the sample fee is credited toward your first bulk order. Contact us via email or WhatsApp with the model number to arrange a sample.
What is the lead time for the X5-G25?
In-stock units ship within 3–5 business days. Bulk production orders typically require 3–4 weeks, and OEM/ODM orders with customization take 4–8 weeks depending on complexity. Rush production is available at additional cost.
Is the X5-G25 certified for my market?
The X5-G25 carries CE, FCC, and RoHS certification as standard. Additional certifications for specific markets (IC, TELEC, NCC, etc.) can be arranged through our ODM service.
How is product quality controlled before shipment?
Every unit undergoes 100% inspection and 24-hour burn-in testing before leaving the factory, and a signed QC report ships with every order — full traceability from component to delivery.
What payment terms do you accept?
Standard terms are a 30% deposit with order confirmation and the 70% balance before shipment, paid in USD via T/T. Letter of credit and flexible terms are available for established partners.
