WB530 5.8GHz 300Mbps Outdoor Bridge, 4KM, Round Dish
WB530
Type 5.8GHz Outdoor PtP Wireless Bridge
CPU Qualcomm AR9344, 64MB DDR, 4MB Flash
Standard IEEE 802.11a/n (5.8GHz)
Antenna Built-in 14dBi Dual-Polarized Directional Dish
Max Speed 300Mbps
5 Years Warranty
Overview
- 300Mbps 5.8GHz with Qualcomm AR9344 for stable 4km point-to-point links

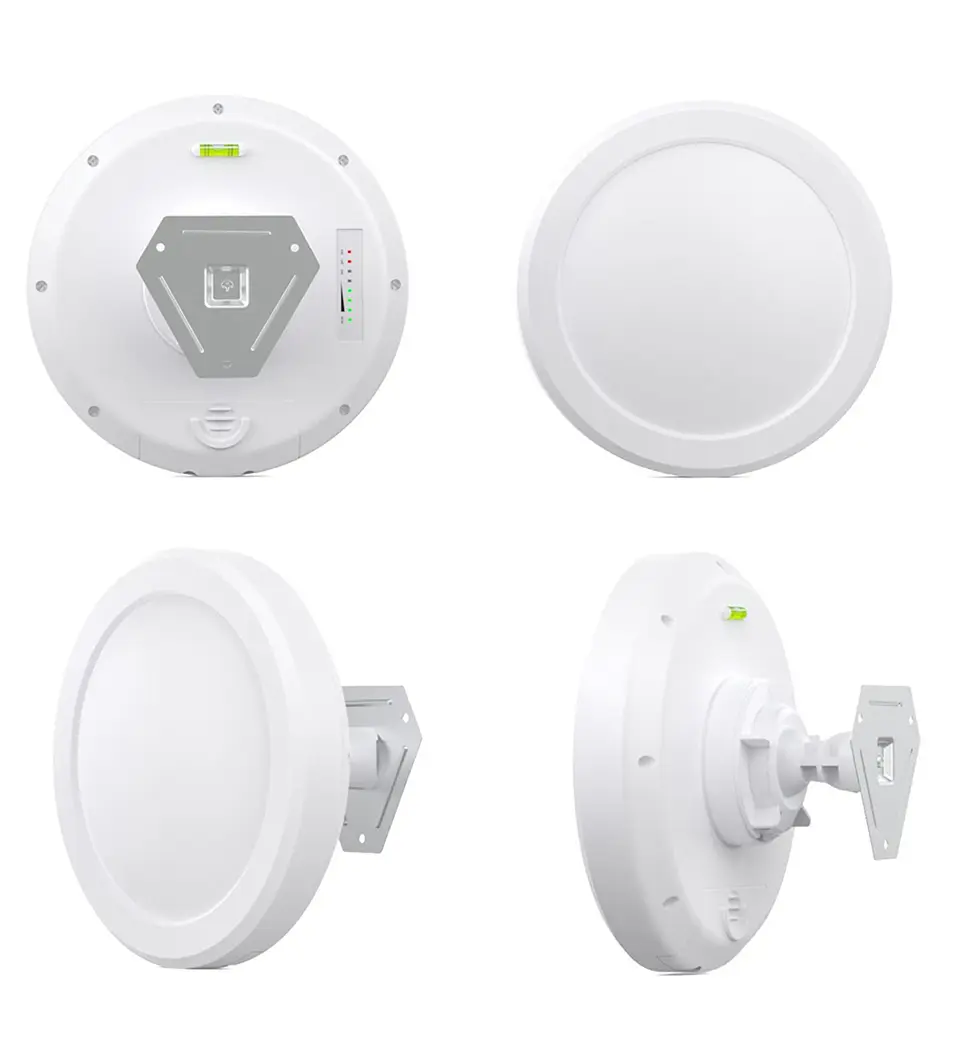

- Round circular housing optimized for improved antenna performance and extended range
- 14dBi dual-polarized directional dish antenna for strong focused signal
- 16-channel LED digital display for one-key field channel pairing
- Supports up to 15 IP camera channels without lag
- IP65 weatherproof housing with 2kV lightning protection
- Dual power: 12V DC or 24V PoE for flexible installation
The WB530 is a 5.8GHz outdoor point-to-point wireless bridge in a distinctive round circular housing with a built-in 14dBi dual-polarized directional dish antenna for 4km links at 300Mbps. Powered by Qualcomm AR9344, featuring 16-channel LED digital display for one-key pairing, dual 10/100Mbps Ethernet ports, IP65 weatherproofing with 2kV lightning protection, and 15-channel IP camera support, it is designed for CCTV backhaul, community surveillance, and IoT data links requiring reliable outdoor wireless performance.
Ideal For

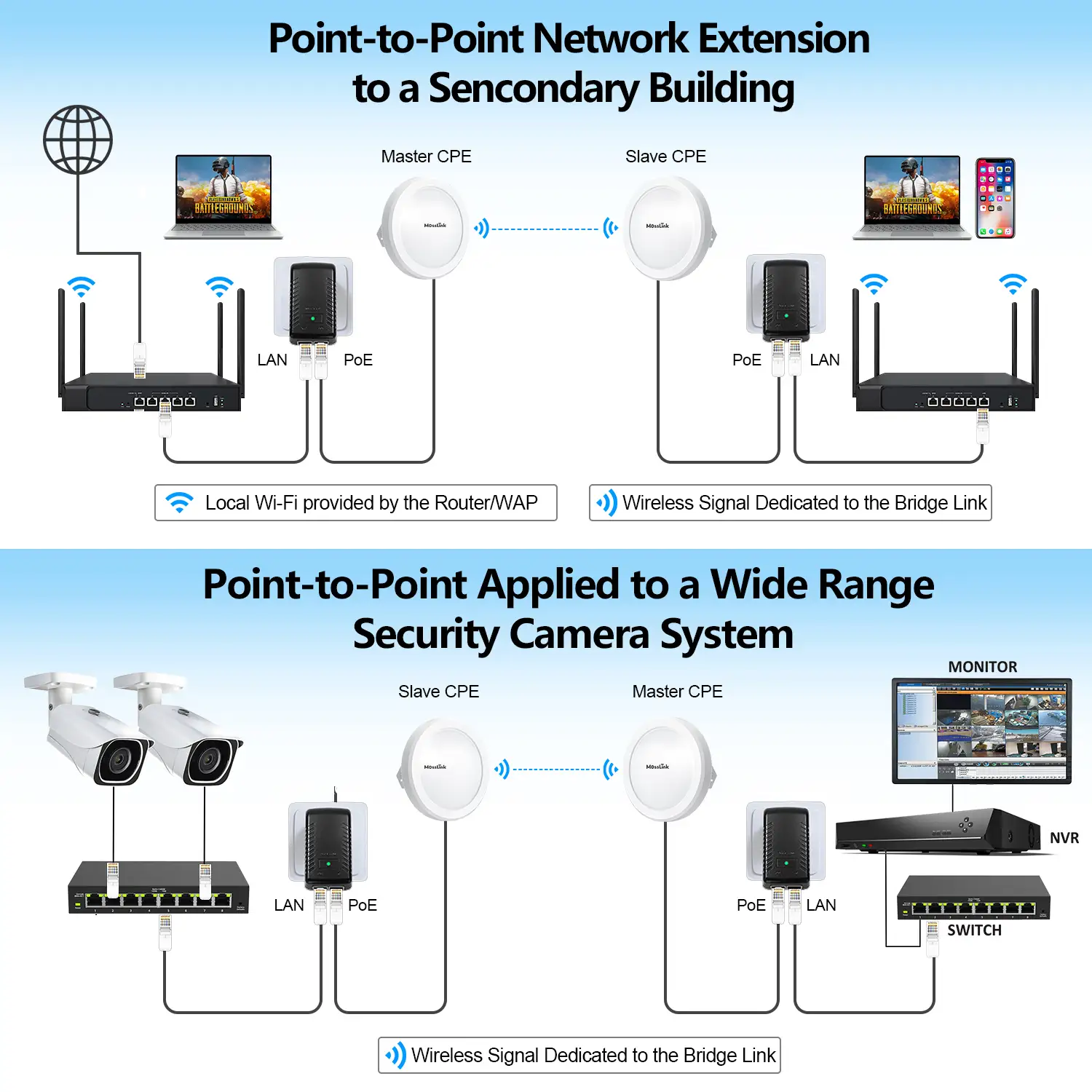

- CCTV and NVR IP camera backhaul over 1–4km with up to 15 channels
- Community and residential area perimeter surveillance wireless links
- Industrial facility and construction site cross-zone networking
- Rural broadband and smart metering data collection over wireless
- Building-to-building LAN extension for offices and schools
Deployment Advantages
The round circular enclosure’s dish geometry provides more efficient signal focusing compared to flat-panel designs at the same aperture size, contributing to the WB530’s 4km rated range versus 3km typical for flat-panel CPEs with the same antenna gain rating.
The Qualcomm AR9344 platform delivers proven long-term stability with under 6W power consumption — a WB530 pair runs on a standard 24V 1A PoE adapter indefinitely with minimal thermal concerns even in direct sunlight at elevated ambient temperatures.
OEM/ODM Ready
MossLink offers OEM and ODM customization for this product including custom firmware, enclosure branding, and private-label packaging. Volume pricing is available for CCTV integrators, ISPs, and wireless equipment distributors. Contact us to discuss your project requirements.
Specifications
| Type | 5.8GHz Outdoor PtP Wireless Bridge |
| CPU | Qualcomm AR9344, 64MB DDR, 4MB Flash |
| Standard | IEEE 802.11a/n (5.8GHz) |
| Antenna | Built-in 14dBi Dual-Polarized Directional Dish |
| Max Speed | 300Mbps |
| TX Power | 23dBm ±2dBm |
| Range | 0–4km (LoS) |
| Ethernet | 2× 10/100Mbps (24V PoE) |
| Power | DC 12V or 24V PoE |
| Power Consumption | <6W |
| Digital Display | 16-channel LED (0–9, A–F) |
| Enclosure | IP65, 2kV Lightning Protection, Round Housing |
| Dimensions | Φ200 × 131 mm |
| Weight | <1kg |
| Temperature | -20°C ~ +55°C |
Ordering & Customization
The WB530 ships factory-direct from Shenzhen with full OEM/ODM support. Three customization levels are available depending on your order quantity:
Logo & Packaging (OEM)
From 100 units
- Your logo on the enclosure
- Branded box, labels & user manual
- Zero MossLink branding on final product
Custom Firmware (Software)
From 500 units
- Custom web UI & boot screen
- Default configuration & feature tuning
- Regional and regulatory presets
Custom Hardware (ODM)
From 1,000 units
- Enclosure & antenna modifications
- Port and power-budget variations
- PCB-level customization
Learn more about our OEM/ODM process →
- Standard MOQ
- 100 units for standard products with no customization
- Samples
- 1–5 evaluation units at product cost plus shipping — sample fee credited toward your first bulk order
- Lead Time
- In-stock products: 3–5 business days · bulk production: 3–4 weeks · OEM/ODM orders: 4–8 weeks
- Payment Terms
- 30% deposit, 70% balance before shipment · T/T and L/C accepted, in USD
- Shipping
- DHL / FedEx / UPS express, air and sea freight · DDP, FOB Shenzhen, or CIF terms
- Packaging
- Each unit individually boxed with protective foam; palletized export cartons for freight — carton specs available on request
- Quality Control
- 100% inspection and 24-hour burn-in testing; a signed QC report ships with every order
- Certifications
- CE, FCC, and RoHS standard · additional market certifications (IC, TELEC, NCC, etc.) available via ODM
Frequently Asked Questions
What is the advantage of the round housing design on the WB530?
The circular round enclosure houses the 14dBi dish antenna in an optimized parabolic geometry that improves antenna efficiency and reduces edge diffraction losses compared to rectangular housings. This results in a slightly extended effective range and improved signal uniformity across the antenna aperture, which is particularly beneficial at the 3–4km distances where link margin is tighter.
Is OEM/ODM customization available for this product?
Yes. MossLink offers full OEM and ODM services including custom firmware, enclosure branding, and private-label packaging. Contact us to discuss your project requirements.
What is the MOQ for the WB530?
Standard WB530 orders start at 100 units. Logo and packaging customization (OEM) also starts at 100 units, custom firmware at 500 units, and custom hardware (ODM) at 1,000 units. Contact sales with your target quantity for a formal quotation.
Can I get a sample of the WB530 before bulk ordering?
Yes. We supply 1–5 evaluation units at product cost plus shipping, and the sample fee is credited toward your first bulk order. Contact us via email or WhatsApp with the model number to arrange a sample.
What is the lead time for the WB530?
In-stock units ship within 3–5 business days. Bulk production orders typically require 3–4 weeks, and OEM/ODM orders with customization take 4–8 weeks depending on complexity. Rush production is available at additional cost.
Is the WB530 certified for my market?
The WB530 carries CE, FCC, and RoHS certification as standard. Additional certifications for specific markets (IC, TELEC, NCC, etc.) can be arranged through our ODM service.
How is product quality controlled before shipment?
Every unit undergoes 100% inspection and 24-hour burn-in testing before leaving the factory, and a signed QC report ships with every order — full traceability from component to delivery.
What payment terms do you accept?
Standard terms are a 30% deposit with order confirmation and the 70% balance before shipment, paid in USD via T/T. Letter of credit and flexible terms are available for established partners.
