XD301 Cloud Managed AX3000 Wi-Fi 6 Ceiling Access Point
XD301
Type Indoor Ceiling Mount Access Point
Standard Wi-Fi 6 (802.11ax)
Band Dual-Band (2.4GHz + 5.8GHz)
Max Speed AX3000 (574 + 2402 Mbps)
Max Clients 256 (recommended 128)
5 Years Warranty
Overview
- Wi-Fi 6 AX3000 dual-band — 574Mbps on 2.4GHz and 2402Mbps on 5GHz with HE160 channel width
- Qualcomm IPQ5018 + QCN6102 enterprise platform — quad-core 1GHz, 512MB DDR3L, 128MB NAND
- Native cloud management via web and mobile APP — remote monitoring, configuration and troubleshooting
- Up to 256 concurrent clients (128 recommended) with MU-MIMO and Beamforming
- 27dBm max transmit power per band with 4× internal 5dBi antennas — up to 100m coverage radius
- Single-cable 802.3at PoE (48V) or DC 12V/1.5A power — flexible ceiling installation
- Dual Gigabit ports — LAN1 with PoE input plus LAN2 for daisy-chaining wired devices
- WPA3 and 802.1x Enterprise security, guest SSIDs with isolation, schedule and speed limits
- 802.11k/v/r fast roaming and Device Mesh for seamless multi-AP deployments
- AP mode and Router mode in one firmware — DHCP server, PPPoE, IPv6 dual stack

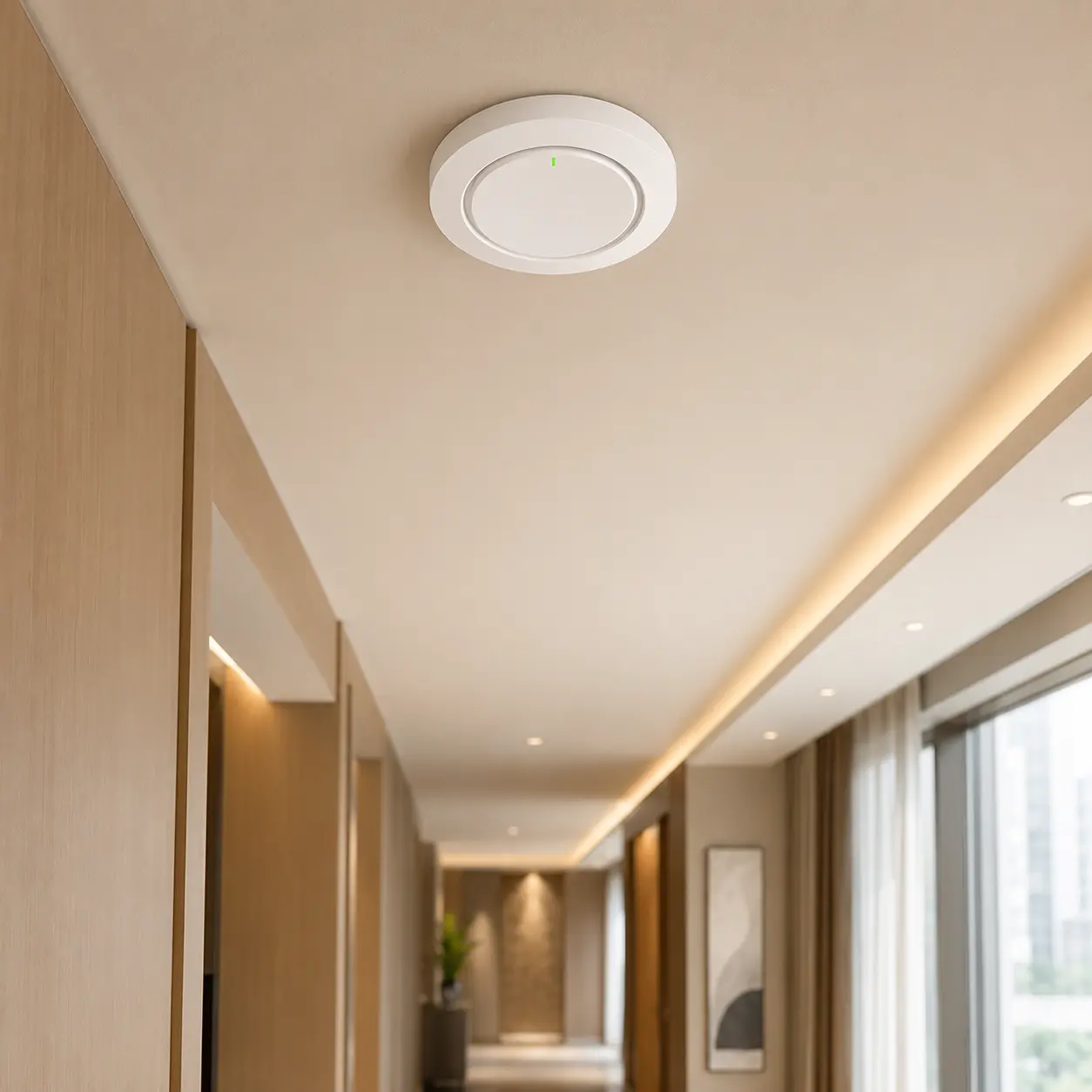

The XD301 is a cloud managed dual-band Wi-Fi 6 ceiling access point built on the Qualcomm IPQ5018 + QCN6102 enterprise platform with a quad-core 1GHz CPU, 512MB DDR3L, and 128MB NAND flash. It delivers AX3000 performance — 574Mbps on 2.4GHz and 2402Mbps on 5GHz with HE160 channel width — and supports up to 256 concurrent clients with MU-MIMO and Beamforming. Powered by a single 802.3at PoE cable or a DC 12V/1.5A adapter, its slim 200 × 200 × 40.5 mm round housing mounts flush on ceilings in hotels, offices, classrooms, and retail spaces.

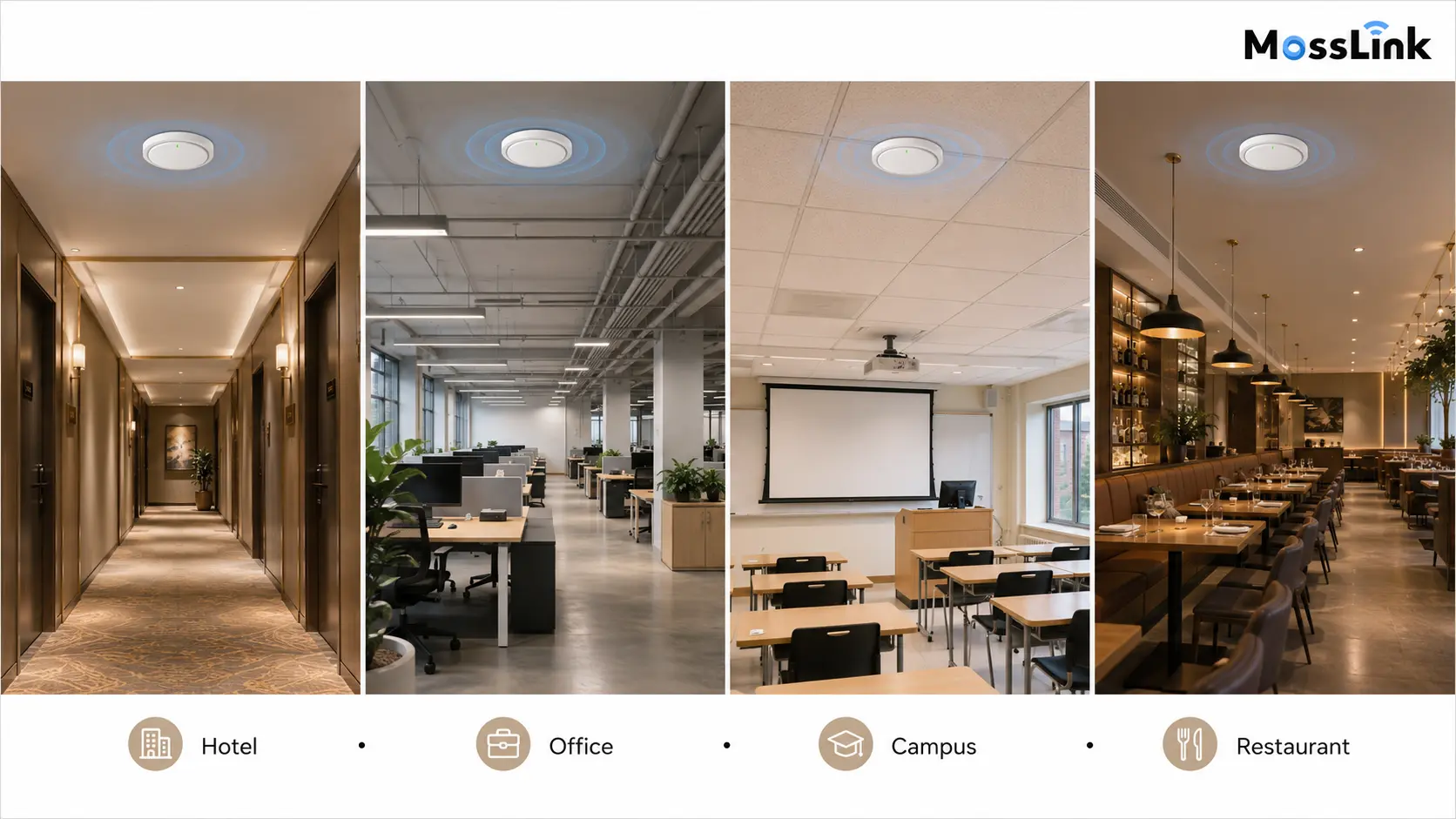

Ideal For
- Hotel guest rooms and corridors requiring even, per-floor Wi-Fi 6 coverage
- Offices, conference rooms, and open-plan areas with dense concurrent users
- Schools, classrooms, and dormitories with large numbers of student devices
- Restaurants, shopping malls, and hospitality venues with guest Wi-Fi
- Managed service providers running multi-site networks from one cloud dashboard

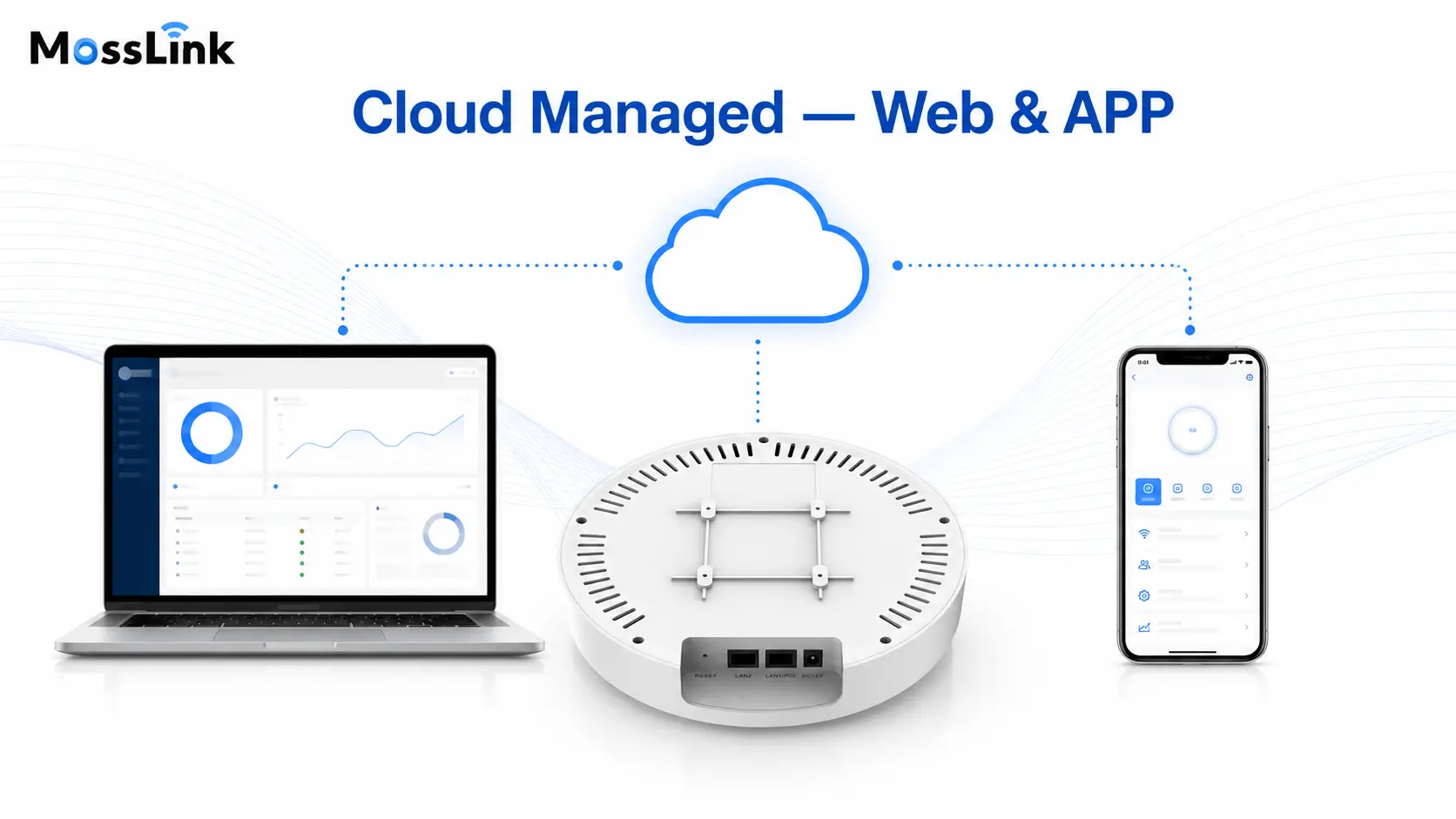

Cloud Management Built In
Unlike controller-dependent thin APs, the XD301 connects directly to a cloud platform managed from any web browser or the mobile APP. Integrators can zero-touch provision new sites, monitor client counts and RF health, push SSID and security changes, and upgrade firmware across an entire estate remotely — cutting truck rolls for routine maintenance. For standalone or air-gapped sites, the local Web GUI, SSH, and SNMP remain fully available.
Deployment Advantages

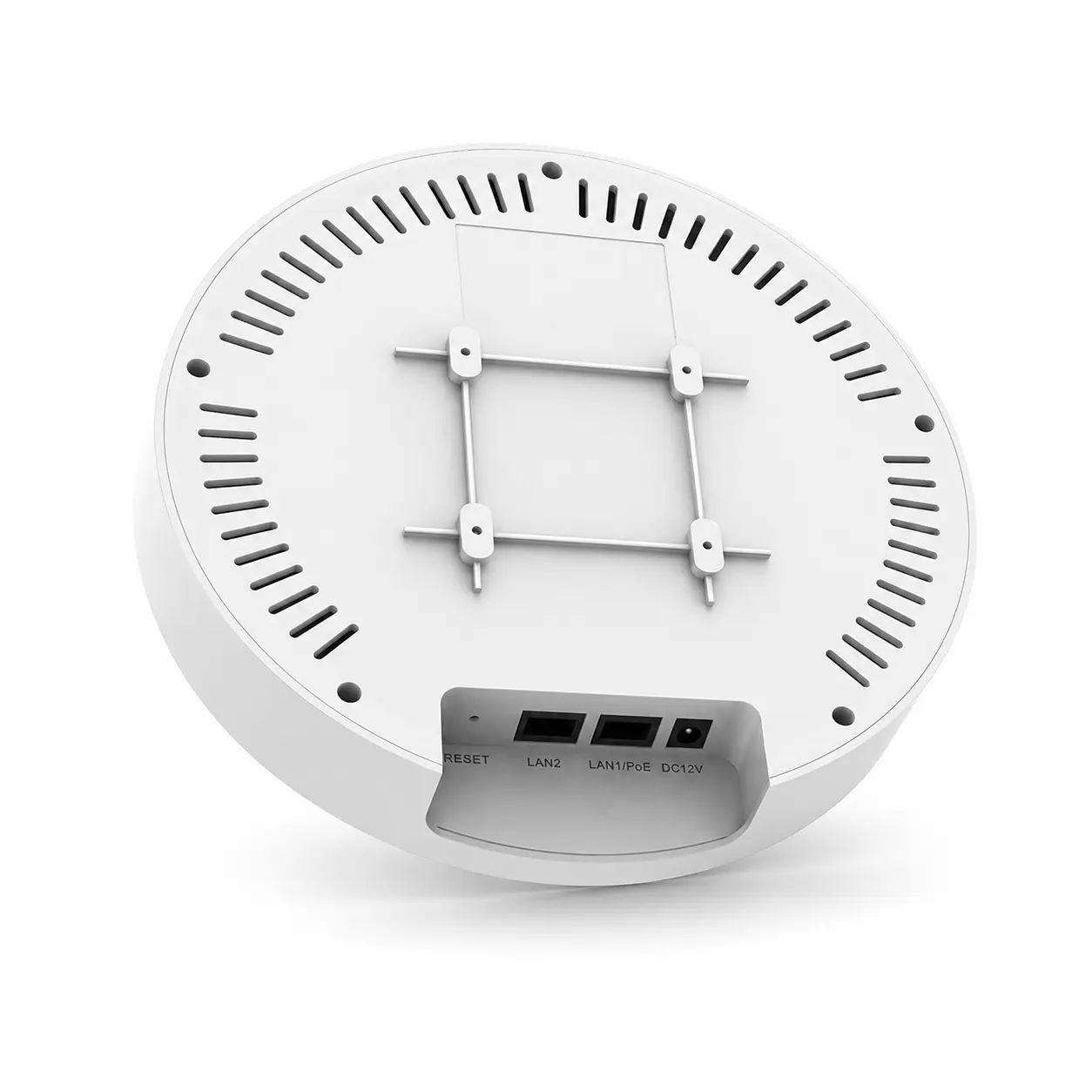

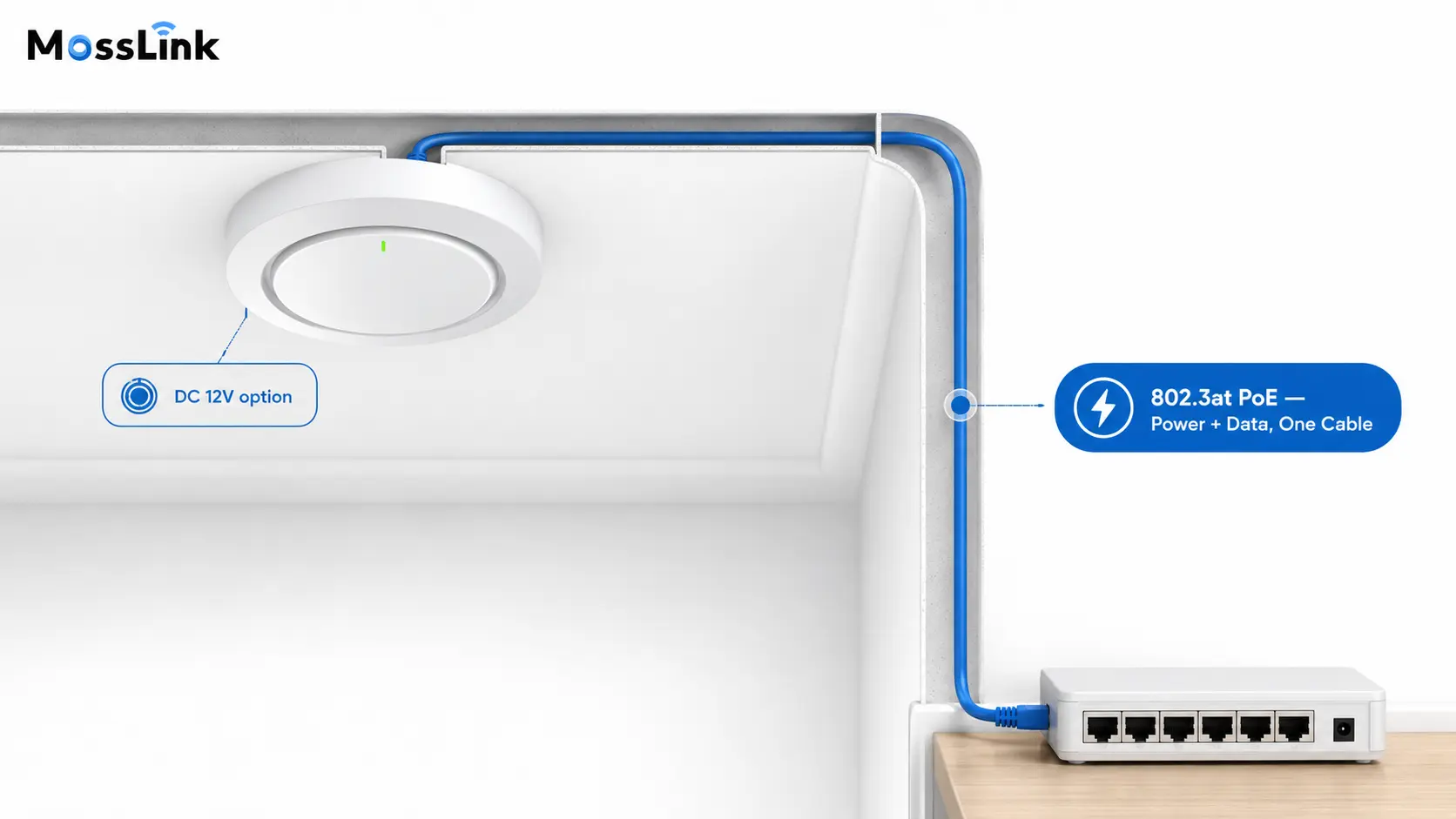

The single-cable 802.3at PoE connection simplifies ceiling installation — no separate power outlet is required, though a DC 12V/1.5A input is available where PoE is not. A second Gigabit LAN port lets installers daisy-chain a wired device such as an IPTV box or desk phone from the same ceiling drop.

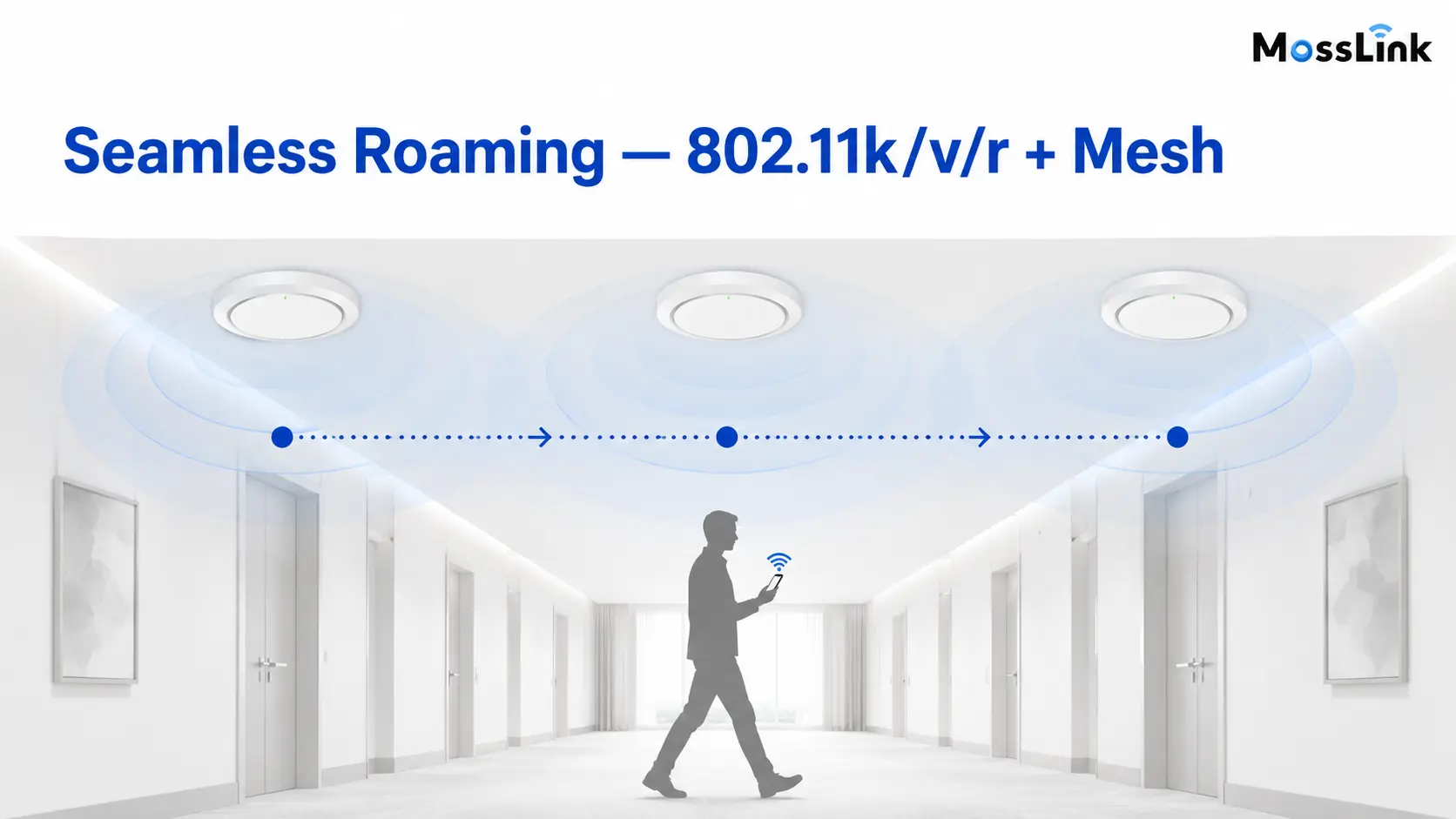

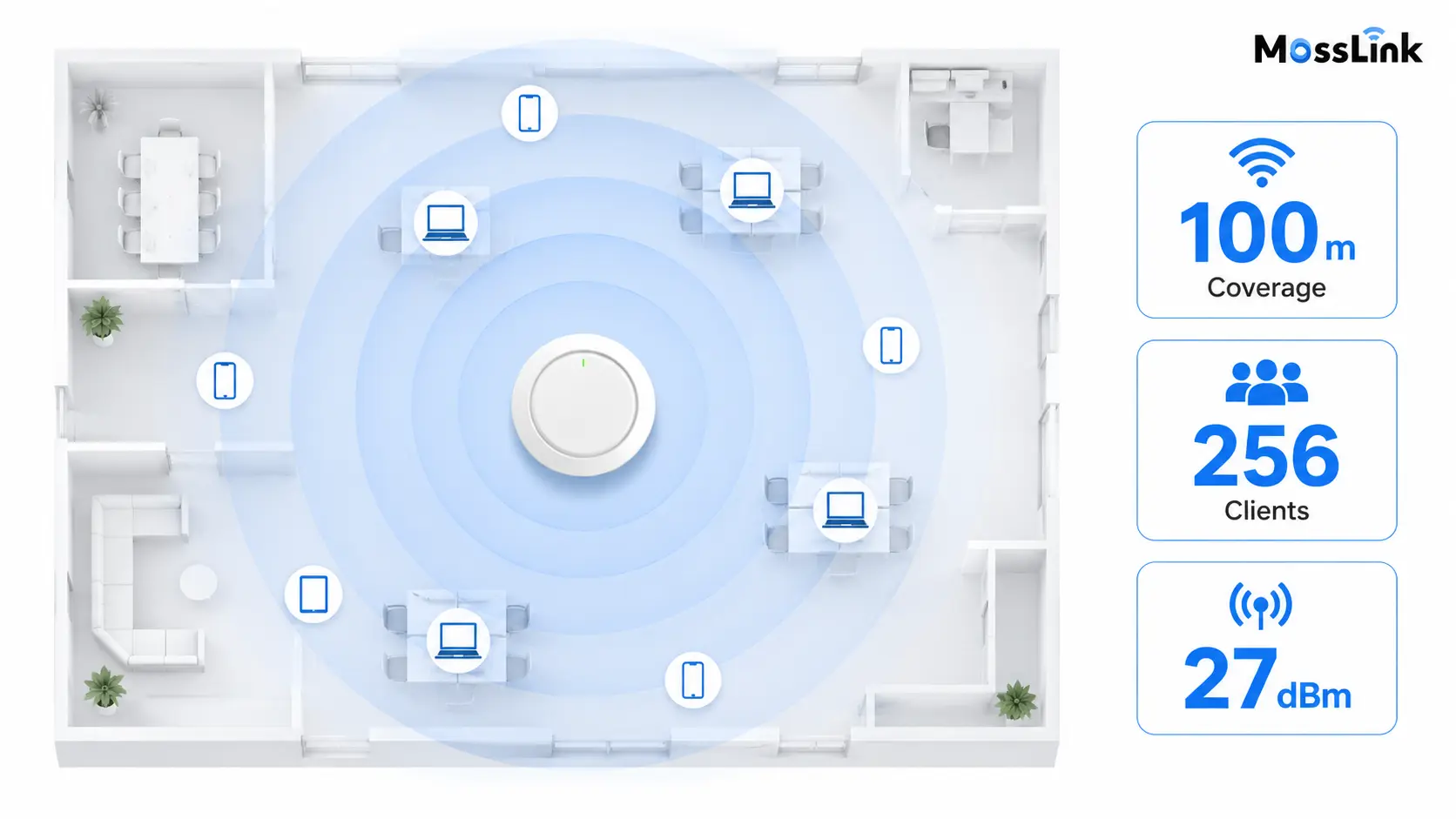

With 27dBm maximum transmit power per band and four internal 5dBi antennas, a single XD301 covers up to a 100m radius in open line-of-sight conditions, reducing the number of APs needed per floor. 802.11k/v/r fast roaming and Device Mesh keep clients connected as they move between APs, while up to 160MHz channel width on 5GHz sustains 2402Mbps for bandwidth-hungry applications. Multi-SSID with WiFi VLAN tagging, guest isolation, per-SSID schedules and speed limits, WPA3, and 802.1x Enterprise security protect tenant and guest traffic on shared infrastructure. For projects that need Wi-Fi 7 headroom and multi-gig backhaul, the BE361 Wi-Fi 7 ceiling AP offers the same cloud-managed round form factor with dual 2.5G ports.
OEM/ODM Ready
MossLink offers OEM and ODM customization for the XD301, including custom firmware and cloud platform branding, enclosure silkscreen, and private-label packaging. Volume pricing is available for hotels, IT integrators, and enterprise wireless resellers. MossLink is the access point ODM partner for brands building white-label indoor Wi-Fi lines. Contact us to discuss your project requirements.
Specifications
| Type | Indoor Ceiling Mount Access Point |
| Standard | Wi-Fi 6 (802.11ax) |
| Band | Dual-Band (2.4GHz + 5.8GHz) |
| Max Speed | AX3000 (574 + 2402 Mbps) |
| Max Clients | 256 (recommended 128) |
| Chipset | Qualcomm IPQ5018 + QCN6102 + QCA8337 |
| CPU | Quad-Core 1GHz |
| Memory | 512MB DDR3L / 128MB NAND Flash |
| Antennas | 2.4G 5dBi ×2 + 5.8G 5dBi ×2 (internal) |
| Ports | 1× Gigabit LAN1 (PoE In) + 1× Gigabit LAN2 |
| Power | 802.3at PoE or DC 12V/1.5A |
| Power Consumption | ≤18W |
| Max TX Power | 27dBm per band |
| Channel Width | Up to 160MHz (HE160, 2402Mbps @ 5GHz) |
| Wireless Tech | Beamforming · MU-MIMO · 1024-QAM · 802.11k/v/r |
| Security | WEP / WPA / WPA2 / WPA3, 802.1x Enterprise |
| Management | Cloud platform (Web + Mobile APP), Web GUI, SSH, SNMP |
| Working Mode | AP Mode / Router Mode |
| Networking | Device Mesh · Multi-SSID · WiFi VLAN · IPv4/IPv6 |
| Coverage | Up to 100m radius (line of sight) |
| Dimensions | 200.2 × 200.2 × 40.5 mm |
| Weight | 491g |
| Operating Temp | 0°C ~ +40°C |
| Humidity | 5% ~ 95% non-condensing |
Ordering & Customization
The XD301 ships factory-direct from Shenzhen with full OEM/ODM support. Three customization levels are available depending on your order quantity:
Logo & Packaging (OEM)
From 100 units
- Your logo on the enclosure
- Branded box, labels & user manual
- Zero MossLink branding on final product
Custom Firmware (Software)
From 500 units
- Custom web UI & boot screen
- Default configuration & feature tuning
- Regional and regulatory presets
Custom Hardware (ODM)
From 1,000 units
- Enclosure & antenna modifications
- Port and power-budget variations
- PCB-level customization
Learn more about our OEM/ODM process →
- Standard MOQ
- 100 units for standard products with no customization
- Samples
- 1–5 evaluation units at product cost plus shipping — sample fee credited toward your first bulk order
- Lead Time
- In-stock products: 3–5 business days · bulk production: 3–4 weeks · OEM/ODM orders: 4–8 weeks
- Payment Terms
- 30% deposit, 70% balance before shipment · T/T and L/C accepted, in USD
- Shipping
- DHL / FedEx / UPS express, air and sea freight · DDP, FOB Shenzhen, or CIF terms
- Packaging
- Each unit individually boxed with protective foam; palletized export cartons for freight — carton specs available on request
- Quality Control
- 100% inspection and 24-hour burn-in testing; a signed QC report ships with every order
- Certifications
- CE, FCC, and RoHS standard · additional market certifications (IC, TELEC, NCC, etc.) available via ODM
Downloads
Frequently Asked Questions
How is the XD301 managed remotely?
The XD301 has a built-in cloud management platform accessible from a web browser or mobile APP. Operators can monitor status, push configuration, upgrade firmware, and troubleshoot every AP remotely — no on-site controller hardware is required. A local Web GUI, SSH, and SNMP are also available for standalone or NMS-integrated deployments.
How many clients can the XD301 ceiling AP support simultaneously?
The XD301 supports up to 256 concurrent wireless clients, with 128 recommended for optimal per-user throughput. The Qualcomm quad-core platform with MU-MIMO and Beamforming keeps performance stable under high-density loads in hotels, offices, classrooms, and restaurants.
What power options does the XD301 support?
The XD301 is powered via IEEE 802.3at PoE (48V) over a single Ethernet cable into the LAN1 port, or by a DC 12V/1.5A adapter. Power consumption stays at or below 18W. PoE delivers both power and data over one cable run, eliminating the need for a power outlet at the ceiling.
Does the XD301 support 160MHz channel width?
Yes. The 5GHz radio supports HE160 (160MHz) channel width for up to 2402Mbps, along with HE80 at 1201Mbps and 1024-QAM modulation. Combined with 574Mbps on 2.4GHz HE40, the XD301 delivers a full AX3000-class wireless experience.
Can the XD301 work as a router instead of a pure access point?
Yes. The firmware includes both AP mode and Router mode. In Router mode it supports Static/DHCP/PPPoE WAN connections, a DHCP server, IPv4/IPv6 dual stack, virtual server/DMZ, and URL filtering — useful for small sites where one device must handle both routing and Wi-Fi.
Is OEM/ODM customization available for this product?
Yes. MossLink offers full OEM and ODM services for the XD301, including custom firmware and cloud branding, enclosure silkscreen, and private-label packaging. Minimum order quantities apply. Contact us to discuss your project requirements.
What is the MOQ for the XD301?
Standard XD301 orders start at 100 units. Logo and packaging customization (OEM) also starts at 100 units, custom firmware at 500 units, and custom hardware (ODM) at 1,000 units. Contact sales with your target quantity for a formal quotation.
Can I get a sample of the XD301 before bulk ordering?
Yes. We supply 1–5 evaluation units at product cost plus shipping, and the sample fee is credited toward your first bulk order. Contact us via email or WhatsApp with the model number to arrange a sample.
What is the lead time for the XD301?
In-stock units ship within 3–5 business days. Bulk production orders typically require 3–4 weeks, and OEM/ODM orders with customization take 4–8 weeks depending on complexity. Rush production is available at additional cost.
Is the XD301 certified for my market?
The XD301 carries CE, FCC, and RoHS certification as standard. Additional certifications for specific markets (IC, TELEC, NCC, etc.) can be arranged through our ODM service.
How is product quality controlled before shipment?
Every unit undergoes 100% inspection and 24-hour burn-in testing before leaving the factory, and a signed QC report ships with every order — full traceability from component to delivery.
What payment terms do you accept?
Standard terms are a 30% deposit with order confirmation and the 70% balance before shipment, paid in USD via T/T. Letter of credit and flexible terms are available for established partners.
