WB501C 5.8GHz 450Mbps Outdoor Bridge, 3KM, LED Pairing
WB501C
Type 5.8GHz Outdoor CPE Wireless Bridge
Chipset MTK7628KN
Flash 2MB
DDR 8MB
Standard IEEE 802.11a/n/ac (5.15–5.85GHz)
5 Years Warranty
Overview
- 3km range with 14dBi built-in directional antenna and 450Mbps throughput
- LED digital display and one-key M/S mode switch for instant pairing
- Dual 10/100Mbps Ethernet ports for versatile connectivity
- IP65 weatherproof ABS housing for long-term outdoor durability
- Dual power: 24V Passive PoE or 12V DC for flexible installation
- Web UI management with AP, Bridge, and Repeater mode support
- WPA/WPA2-PSK, WPA2 Enterprise, and Captive Portal security
The WB501C is a 5.8GHz outdoor CPE wireless bridge with a 14dBi built-in directional antenna, LED digital display, and one-key M/S mode switch for instant field pairing. Delivering 450Mbps over 3km with dual 10/100Mbps Ethernet ports, IP65 weatherproof housing, dual PoE/DC power input, and web UI management supporting AP, Bridge, and Repeater modes, it is designed for CCTV backhaul, building-to-building networking, rural internet extension, and IoT infrastructure.
Ideal For

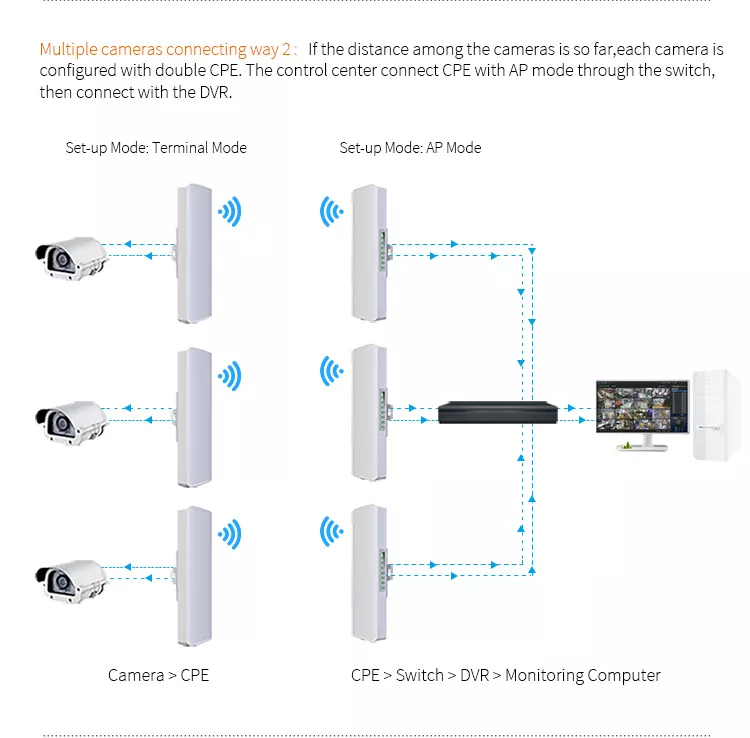

- IP camera CCTV backhaul over 1–3km without fiber or cable
- Building-to-building wireless LAN extension for offices or factories
- Rural community and farm internet extension
- IoT device data collection over medium-range outdoor wireless links
- Security systems requiring multiple wireless bridge segments
Deployment Advantages
The LED digital display eliminates the need for a laptop or phone at the installation site for channel verification — an installer on a ladder or rooftop can confirm channel alignment and pairing status by reading the display directly from the unit. Combined with the one-key M/S switch, this makes the WB501C one of the fastest CPE bridge products to deploy in the field.

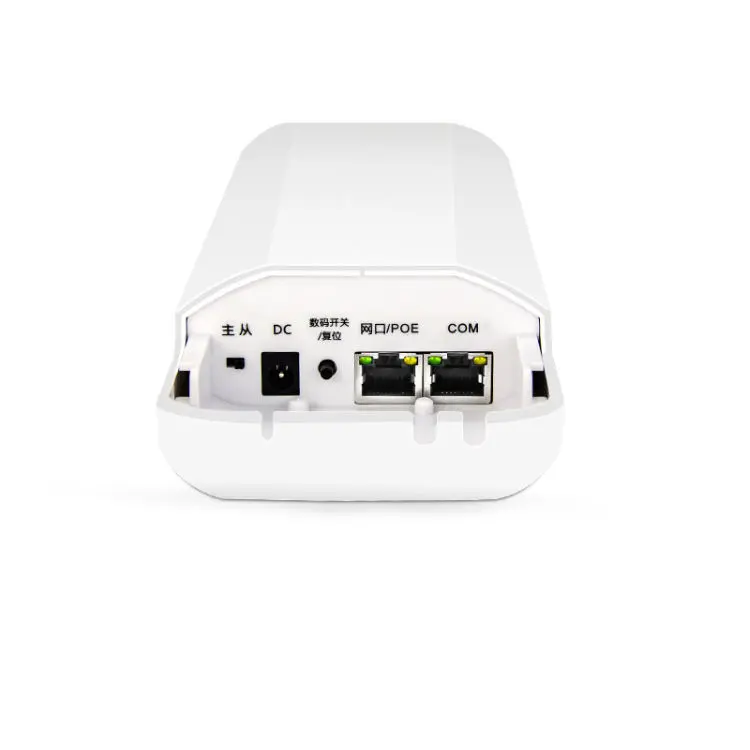

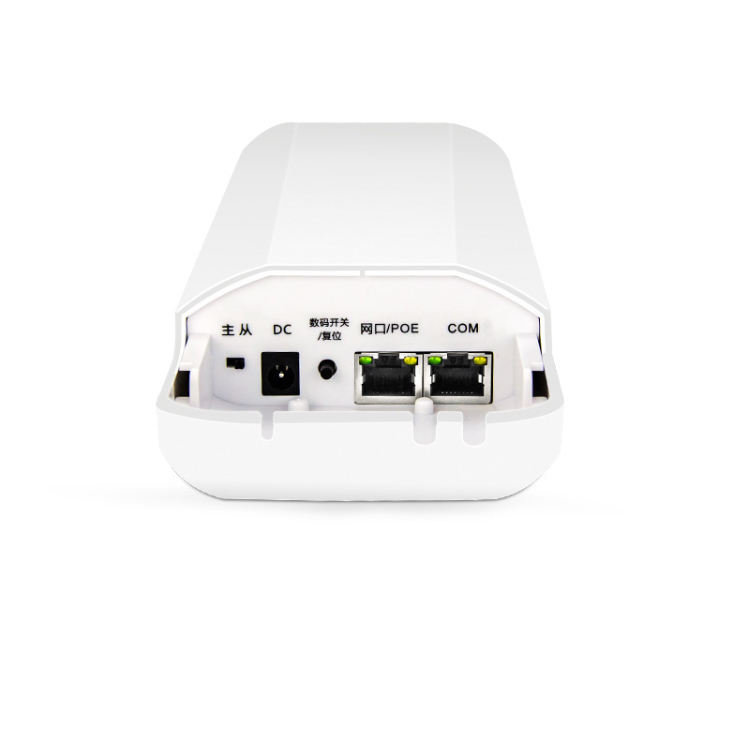

Dual 10/100Mbps Ethernet ports allow the bridge to simultaneously connect to an upstream switch and a downstream device such as an IP camera or NVR without additional switching hardware at the remote end.
OEM/ODM Ready
MossLink offers OEM and ODM customization for this product including custom firmware, enclosure branding, and private-label packaging. Volume pricing is available for surveillance integrators, wireless distributors, and ISPs. Contact us to discuss your project requirements.
Specifications
| Type | 5.8GHz Outdoor CPE Wireless Bridge |
| Chipset | MTK7628KN |
| Flash | 2MB |
| DDR | 8MB |
| Standard | IEEE 802.11a/n/ac (5.15–5.85GHz) |
| Antenna | Built-in 14dBi Directional |
| Max Speed | 450Mbps |
| TX Power | ≤19dBm |
| Range | Up to 3km (LoS) |
| Ethernet | 2× 10/100Mbps RJ45 |
| Power | 24V Passive PoE Adapter |
| Power Consumption | ≤8W |
| Enclosure | IP65 |
| Dimensions | 279 × 265 × 89 mm |
| Weight | 1.21 kg |
| Temperature | -30°C ~ +55°C |
Ordering & Customization
The WB501C ships factory-direct from Shenzhen with full OEM/ODM support. Three customization levels are available depending on your order quantity:
Logo & Packaging (OEM)
From 100 units
- Your logo on the enclosure
- Branded box, labels & user manual
- Zero MossLink branding on final product
Custom Firmware (Software)
From 500 units
- Custom web UI & boot screen
- Default configuration & feature tuning
- Regional and regulatory presets
Custom Hardware (ODM)
From 1,000 units
- Enclosure & antenna modifications
- Port and power-budget variations
- PCB-level customization
Learn more about our OEM/ODM process →
- Standard MOQ
- 100 units for standard products with no customization
- Samples
- 1–5 evaluation units at product cost plus shipping — sample fee credited toward your first bulk order
- Lead Time
- In-stock products: 3–5 business days · bulk production: 3–4 weeks · OEM/ODM orders: 4–8 weeks
- Payment Terms
- 30% deposit, 70% balance before shipment · T/T and L/C accepted, in USD
- Shipping
- DHL / FedEx / UPS express, air and sea freight · DDP, FOB Shenzhen, or CIF terms
- Packaging
- Each unit individually boxed with protective foam; palletized export cartons for freight — carton specs available on request
- Quality Control
- 100% inspection and 24-hour burn-in testing; a signed QC report ships with every order
- Certifications
- CE, FCC, and RoHS standard · additional market certifications (IC, TELEC, NCC, etc.) available via ODM
Downloads
Frequently Asked Questions
What is the LED digital display used for on the WB501C?

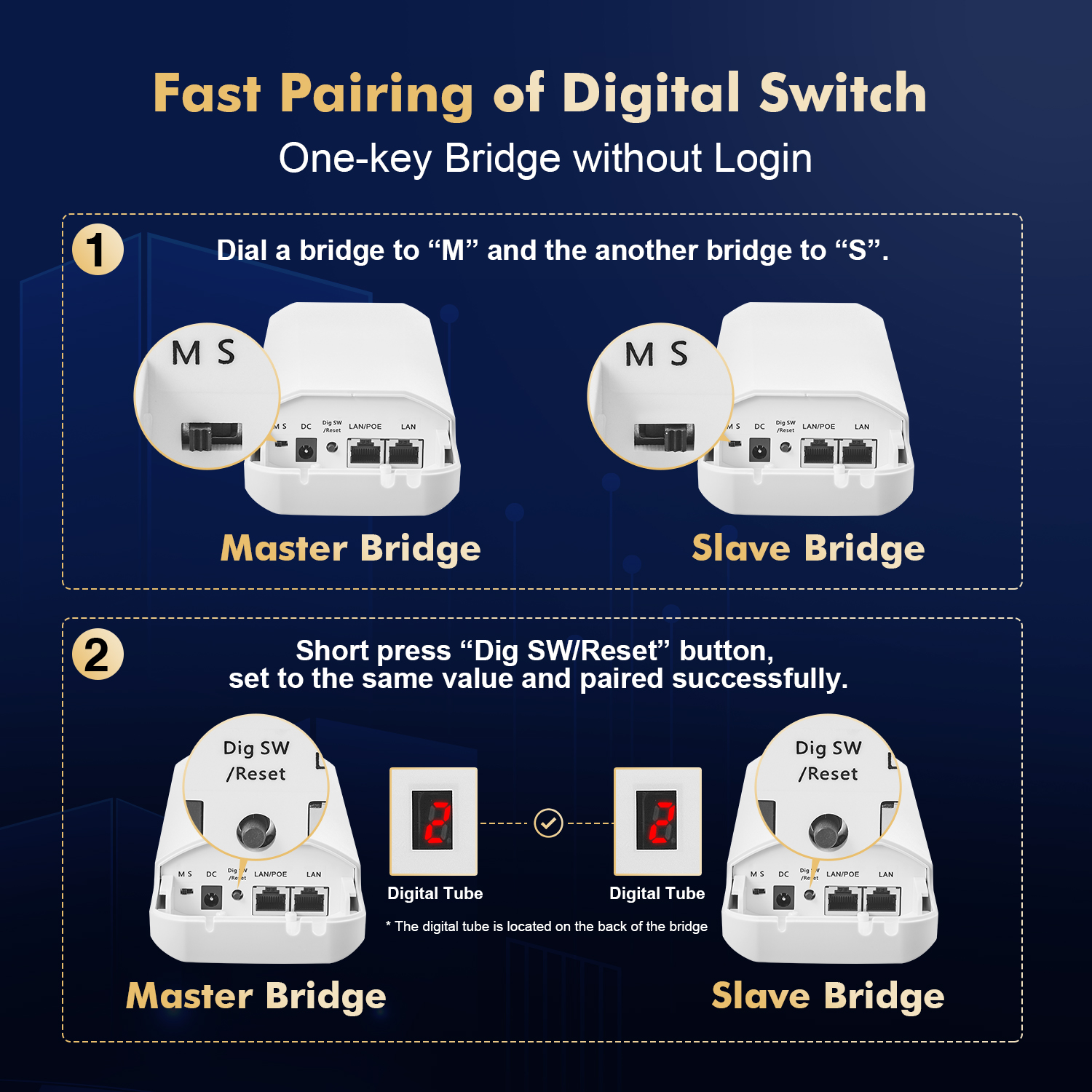

The LED digital display shows the current channel number (0–9, A–F in hexadecimal) allowing installers to visually confirm that paired units are set to the same channel without connecting to the web interface. The one-key M/S switch designates master or slave mode, enabling instant pairing directly from the unit's hardware interface.
Is OEM/ODM customization available for this product?
Yes. MossLink offers full OEM and ODM services including custom firmware, enclosure branding, and private-label packaging. Contact us to discuss your project requirements.
What is the MOQ for the WB501C?
Standard WB501C orders start at 100 units. Logo and packaging customization (OEM) also starts at 100 units, custom firmware at 500 units, and custom hardware (ODM) at 1,000 units. Contact sales with your target quantity for a formal quotation.
Can I get a sample of the WB501C before bulk ordering?
Yes. We supply 1–5 evaluation units at product cost plus shipping, and the sample fee is credited toward your first bulk order. Contact us via email or WhatsApp with the model number to arrange a sample.
What is the lead time for the WB501C?
In-stock units ship within 3–5 business days. Bulk production orders typically require 3–4 weeks, and OEM/ODM orders with customization take 4–8 weeks depending on complexity. Rush production is available at additional cost.
Is the WB501C certified for my market?
The WB501C carries CE, FCC, and RoHS certification as standard. Additional certifications for specific markets (IC, TELEC, NCC, etc.) can be arranged through our ODM service.
How is product quality controlled before shipment?
Every unit undergoes 100% inspection and 24-hour burn-in testing before leaving the factory, and a signed QC report ships with every order — full traceability from component to delivery.
What payment terms do you accept?
Standard terms are a 30% deposit with order confirmation and the 70% balance before shipment, paid in USD via T/T. Letter of credit and flexible terms are available for established partners.
