S8021F 8-Port PoE Switch, 96W, 2 Gigabit Uplink + SFP, 250m Extend
S8021F
Type Unmanaged Smart PoE Switch
PoE Ports 8× 10/100Mbps (IEEE 802.3af/at)
Uplink Ports 2× 10/100/1000Mbps RJ45 + 1× 1000M SFP
PoE Per Port Up to 30W (802.3at)
Total PoE Budget 96W (Built-in AC 100~240V)
5 Years Warranty
Overview

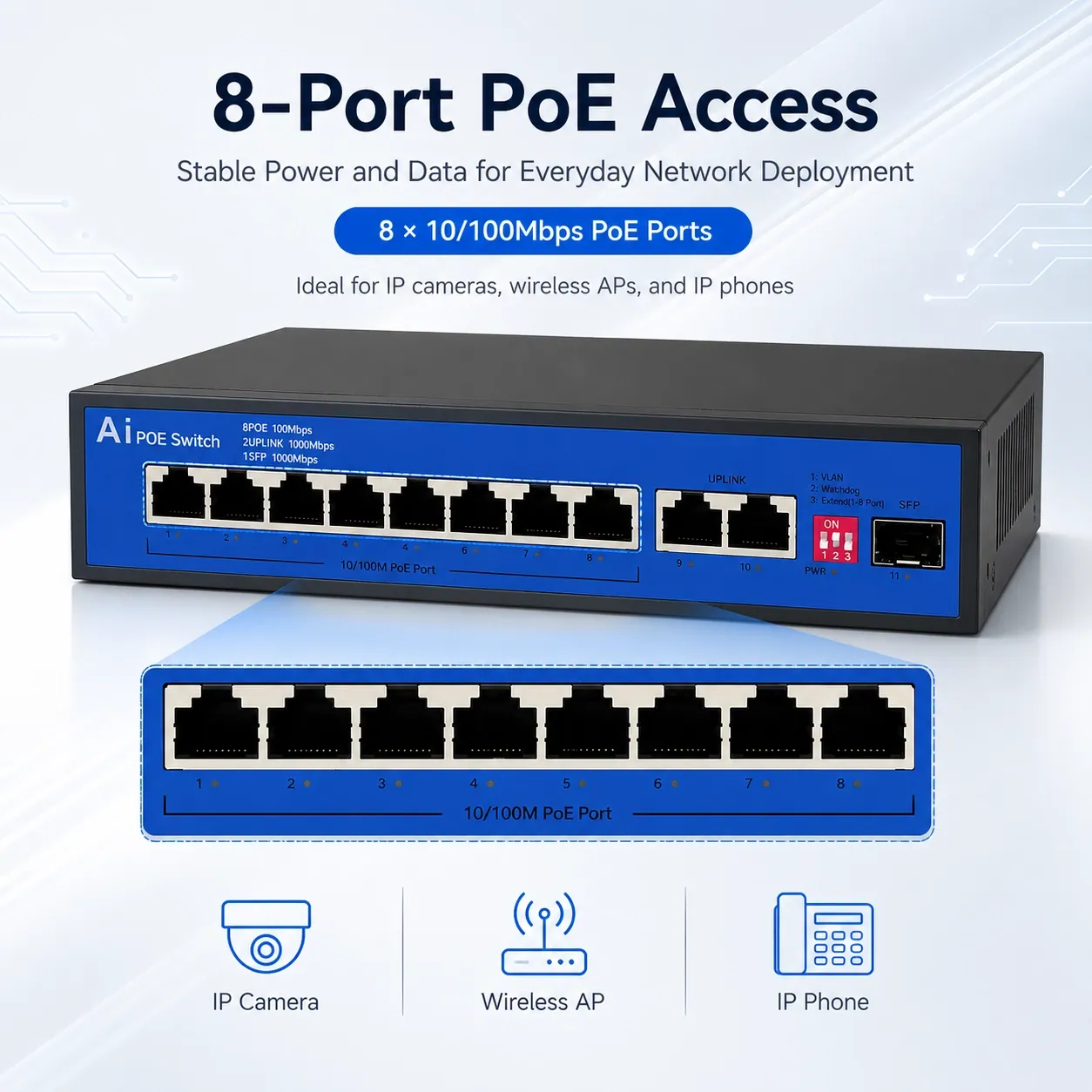

- 8× PoE ports (802.3af/at) — up to 30W per port, 96W total budget

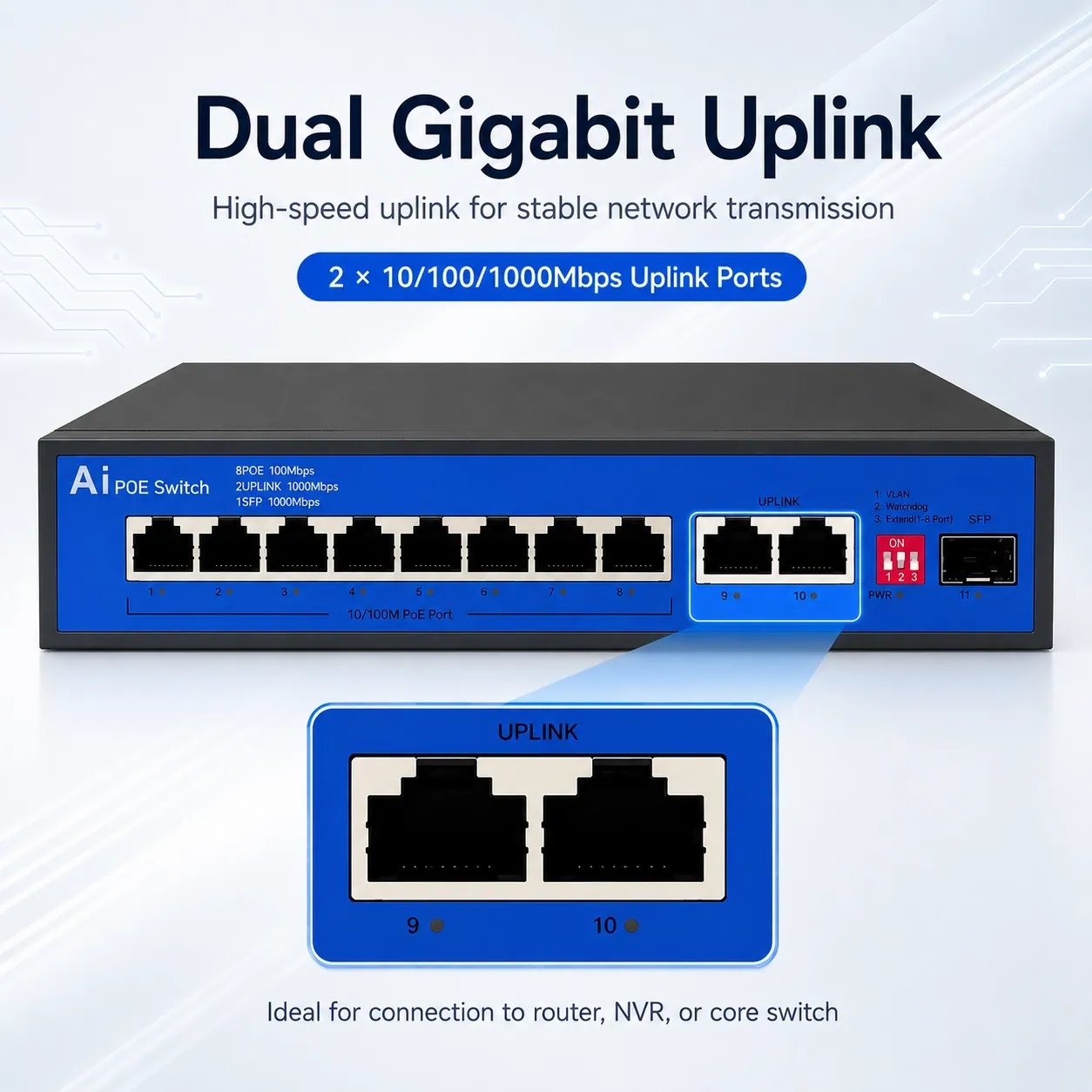

- 2× Gigabit RJ45 uplinks + 1× Gigabit SFP fiber slot for fiber backhaul

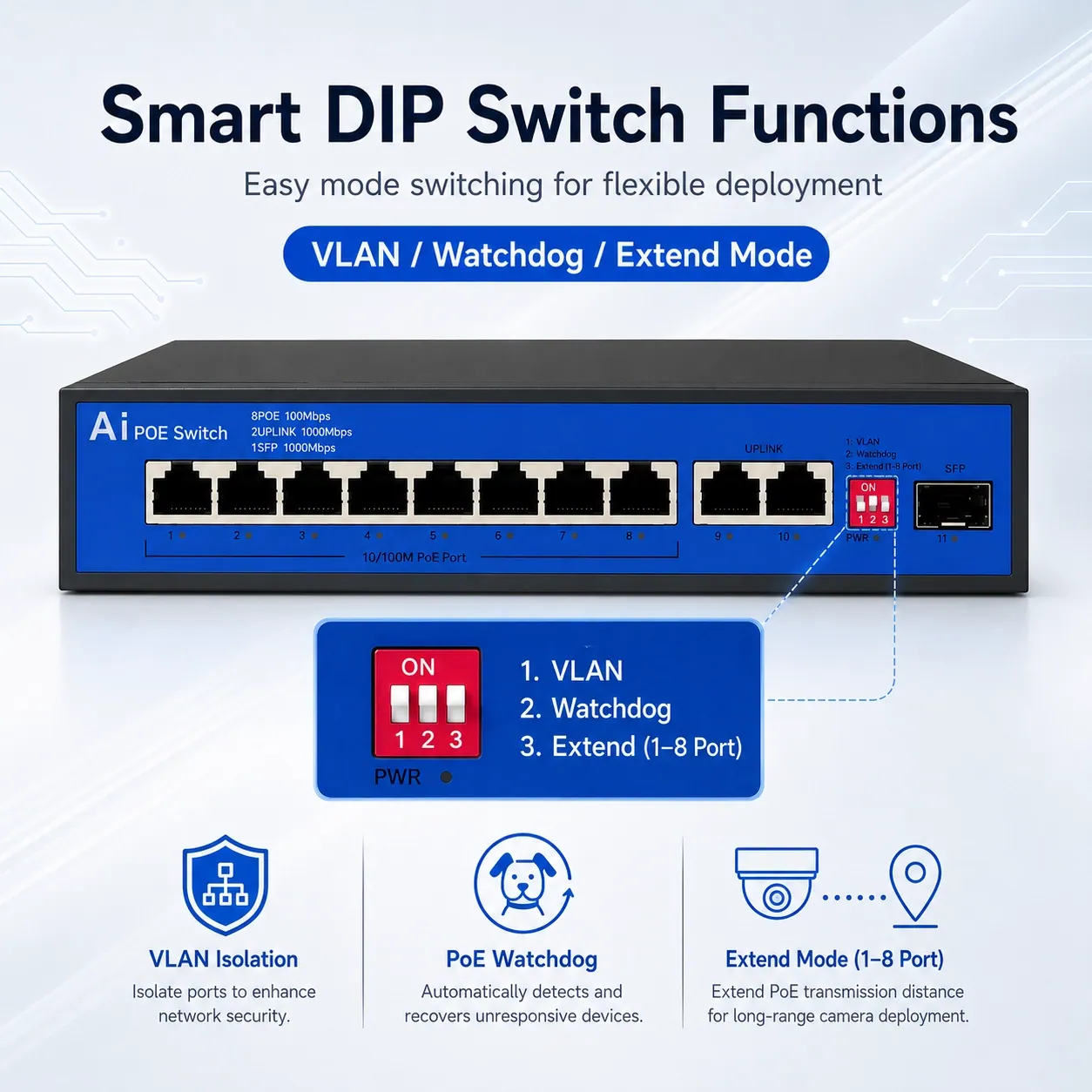

- AI Extend mode — one-key 250m long-distance PoE on Ports 1–8
- PoE Watchdog auto-reboots unresponsive cameras and APs (Ports 1–8)
- Port VLAN isolation via DIP switch to suppress broadcast storms
- Built-in AC 100~240V power supply — no external power bricks needed
- Gigabit copper + fiber uplink keeps camera backhaul congestion-free
- 4kV surge protection and steel fanless enclosure — desktop or wall mount
The S8021F is an 11-port unmanaged smart PoE switch with 8× 802.3af/at PoE ports (30W each, 96W total), 2× Gigabit RJ45 uplinks, and 1× Gigabit SFP fiber slot, powered by a built-in AC 100–240V supply. With one-key 250m EXTEND mode, PoE Watchdog auto-recovery, port VLAN isolation, and 4kV surge protection in a fanless steel enclosure, it delivers a cost-effective 8-camera switch with the option of a Gigabit fiber backhaul.

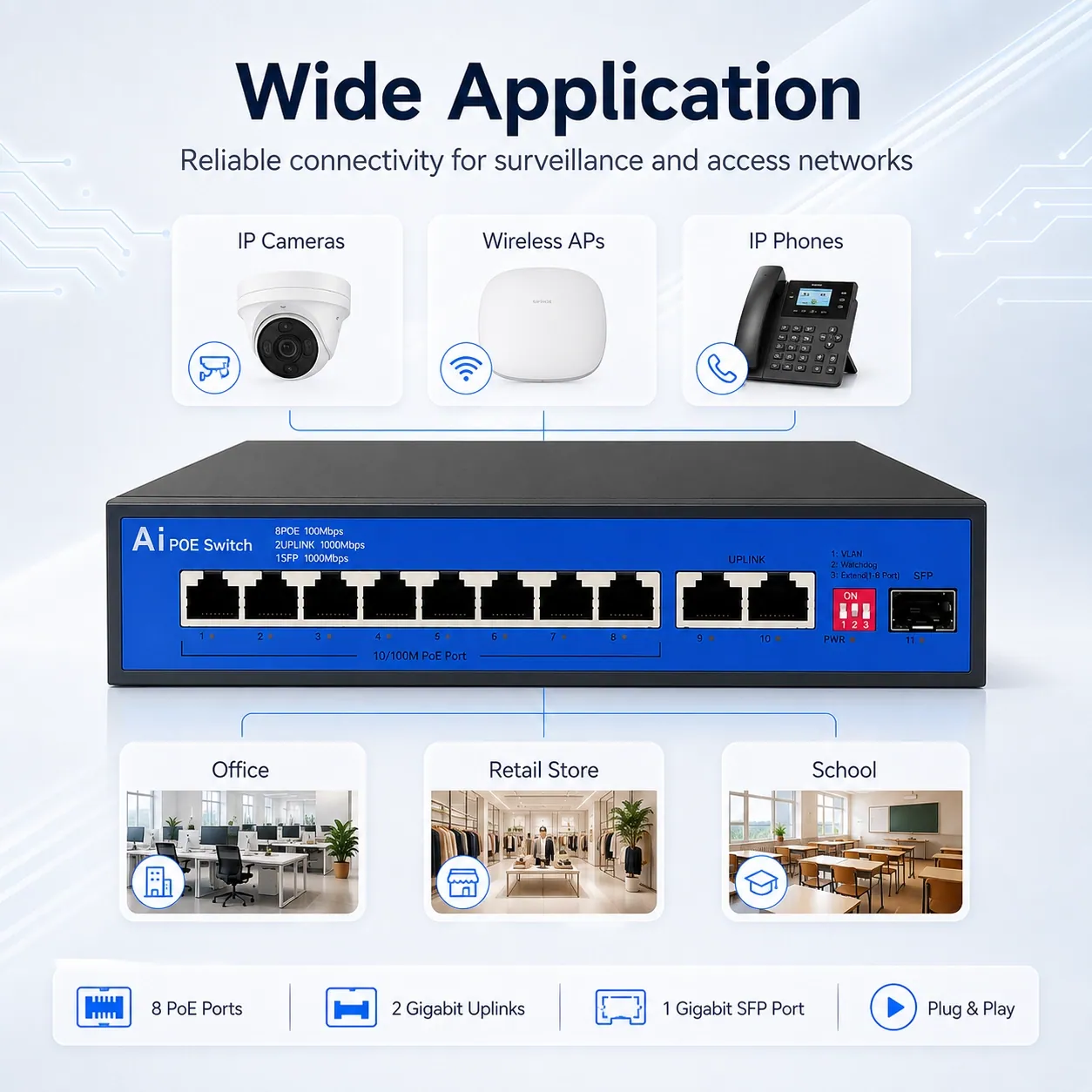

Ideal For
- Small IP camera and NVR networks in shops, offices, and dormitories
- Wireless access point PoE power delivery in compact deployments
- Sites that need an affordable switch with a fiber (SFP) uplink option
- VoIP phone networks requiring reliable uninterrupted PoE
- Plug-and-play installations by integrators and non-technical staff
Deployment Advantages
The built-in 96W AC power supply eliminates external PoE injectors and keeps installation simple. Two Gigabit RJ45 uplinks plus a Gigabit SFP slot give you copper or fiber backhaul, so camera traffic reaches the NVR without the bottleneck of a 100M uplink — a common weakness in budget PoE switches.
One-key 250m EXTEND mode on Ports 1–8 supports long cable runs to remote cameras and APs, while VLAN isolation prevents broadcast storms. PoE Watchdog automatically power-cycles unresponsive devices, keeping cameras and APs online between maintenance visits.
OEM/ODM Ready
MossLink offers OEM and ODM customization for this product, including custom port configurations, power budget variations, enclosure branding, and private-label packaging. Volume pricing is available for surveillance integrators, IT distributors, and enterprise resellers. Contact us to discuss your project requirements.
Specifications
| Type | Unmanaged Smart PoE Switch |
| PoE Ports | 8× 10/100Mbps (IEEE 802.3af/at) |
| Uplink Ports | 2× 10/100/1000Mbps RJ45 + 1× 1000M SFP |
| PoE Per Port | Up to 30W (802.3at) |
| Total PoE Budget | 96W (Built-in AC 100~240V) |
| Switching Capacity | 7.6Gbps |
| Forwarding Rate | 5.654Mpps |
| MAC Address Table | 2K |
| Extend Mode | Up to 250m @ 10Mbps (Ports 1–8) |
| PoE Watchdog | Ports 1–8 |
| Surge Protection | 4kV (8/20μs) per-port lightning protection |
| Enclosure | IP30 Steel, Fanless |
| Dimensions | 202 × 140 × 44 mm |
| Temperature | -20°C ~ +55°C |
Ordering & Customization
The S8021F ships factory-direct from Shenzhen with full OEM/ODM support. Three customization levels are available depending on your order quantity:
Logo & Packaging (OEM)
From 100 units
- Your logo on the enclosure
- Branded box, labels & user manual
- Zero MossLink branding on final product
Custom Firmware (Software)
From 500 units
- Custom web UI & boot screen
- Default configuration & feature tuning
- Regional and regulatory presets
Custom Hardware (ODM)
From 1,000 units
- Enclosure & antenna modifications
- Port and power-budget variations
- PCB-level customization
Learn more about our OEM/ODM process →
- Standard MOQ
- 100 units for standard products with no customization
- Samples
- 1–5 evaluation units at product cost plus shipping — sample fee credited toward your first bulk order
- Lead Time
- In-stock products: 3–5 business days · bulk production: 3–4 weeks · OEM/ODM orders: 4–8 weeks
- Payment Terms
- 30% deposit, 70% balance before shipment · T/T and L/C accepted, in USD
- Shipping
- DHL / FedEx / UPS express, air and sea freight · DDP, FOB Shenzhen, or CIF terms
- Packaging
- Each unit individually boxed with protective foam; palletized export cartons for freight — carton specs available on request
- Quality Control
- 100% inspection and 24-hour burn-in testing; a signed QC report ships with every order
- Certifications
- CE, FCC, and RoHS standard · additional market certifications (IC, TELEC, NCC, etc.) available via ODM
Downloads
Frequently Asked Questions
What is the difference between the S8021F and the S821G?
Both are 8-port PoE switches with two Gigabit RJ45 uplinks and a Gigabit SFP slot. The key difference is the PoE ports: the S8021F's 8 PoE ports are 10/100Mbps with a 96W budget — ideal for standard IP cameras and APs at typical 8-camera sites. The S821G upgrades to 8 full-Gigabit PoE ports with a 120W budget and a larger switching fabric, for Gigabit cameras, Wi-Fi 6 APs, or higher-draw deployments.
Can I connect the S8021F to my network over fiber?

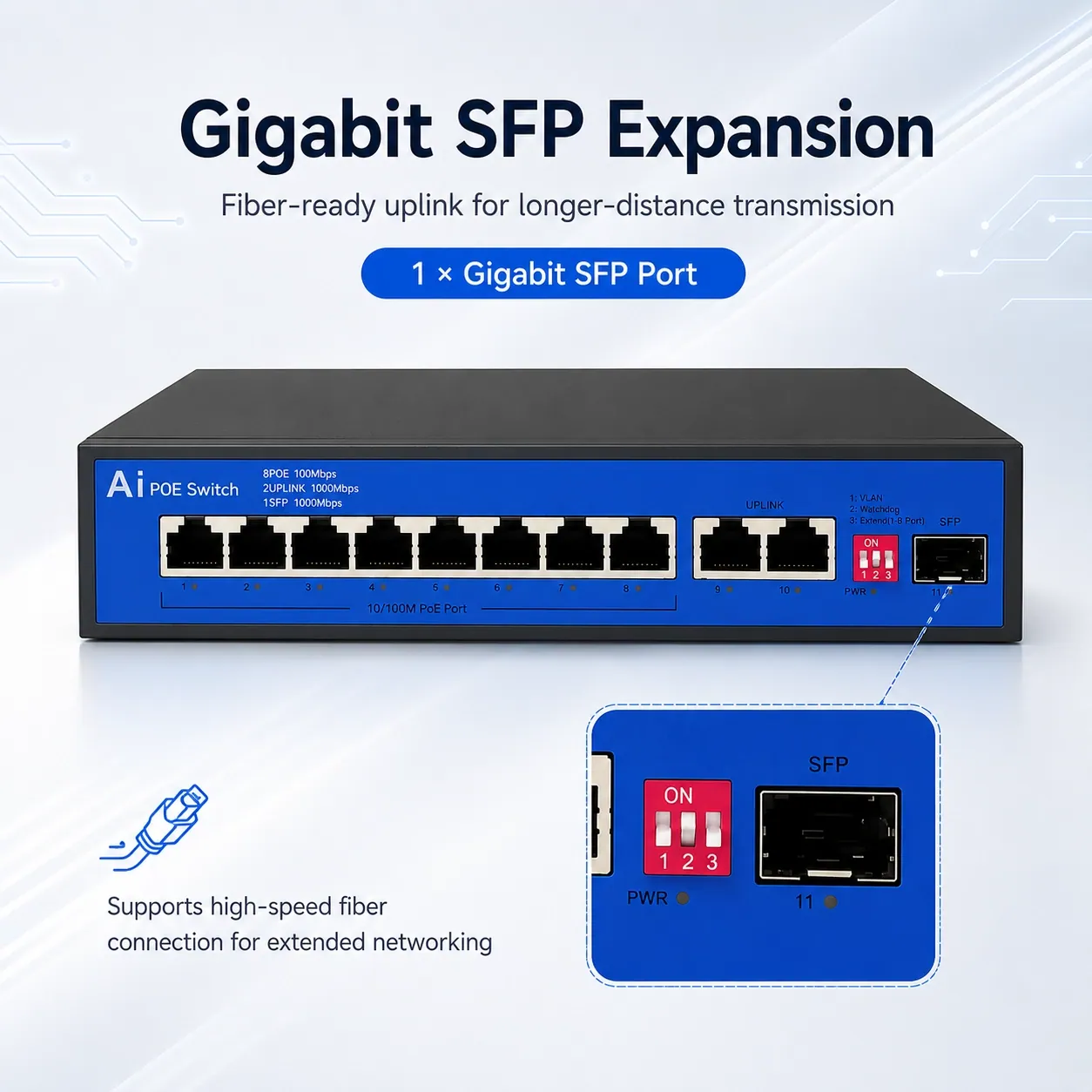

Yes. The Gigabit SFP slot accepts a 1.25G optical module (single-mode up to 120km or multimode up to 550m, sold separately) so you can run a fiber uplink to a distant building or core switch. The two Gigabit RJ45 uplinks remain available for copper cascading at the same time.
How far can the S8021F deliver PoE?
Standard PoE reaches 100 metres. With the one-key Extend DIP switch enabled, Ports 1–8 drop to 10Mbps and deliver PoE power and data up to 250 metres — enough to cover perimeter cameras and remote APs without mid-span injectors.
Is OEM/ODM customization available for this product?
Yes. MossLink offers full OEM and ODM services for this product, including custom firmware features, hardware modifications, enclosure branding, and private-label packaging. Minimum order quantities apply. Contact us to discuss your project requirements.
What is the MOQ for the S8021F?
Standard S8021F orders start at 100 units. Logo and packaging customization (OEM) also starts at 100 units, custom firmware at 500 units, and custom hardware (ODM) at 1,000 units. Contact sales with your target quantity for a formal quotation.
Can I get a sample of the S8021F before bulk ordering?
Yes. We supply 1–5 evaluation units at product cost plus shipping, and the sample fee is credited toward your first bulk order. Contact us via email or WhatsApp with the model number to arrange a sample.
What is the lead time for the S8021F?
In-stock units ship within 3–5 business days. Bulk production orders typically require 3–4 weeks, and OEM/ODM orders with customization take 4–8 weeks depending on complexity. Rush production is available at additional cost.
Is the S8021F certified for my market?
The S8021F carries CE, FCC, and RoHS certification as standard. Additional certifications for specific markets (IC, TELEC, NCC, etc.) can be arranged through our ODM service.
How is product quality controlled before shipment?
Every unit undergoes 100% inspection and 24-hour burn-in testing before leaving the factory, and a signed QC report ships with every order — full traceability from component to delivery.
What payment terms do you accept?
Standard terms are a 30% deposit with order confirmation and the 70% balance before shipment, paid in USD via T/T. Letter of credit and flexible terms are available for established partners.
