S1621G 16-Port Gigabit PoE Switch, 300W, 2 Uplink + SFP, Rackmount
S1621G
Type Unmanaged Smart Gigabit PoE Switch
PoE Ports 16× 10/100/1000Mbps (IEEE 802.3af/at)
Uplink Ports 2× 10/100/1000Mbps RJ45 + 1× 1000M SFP
PoE Per Port Up to 30W (802.3at)
Total PoE Budget 300W (Built-in AC 100~240V)
5 Years Warranty
Overview
- 16× full-Gigabit PoE ports (802.3af/at) — up to 30W per port, 300W total budget

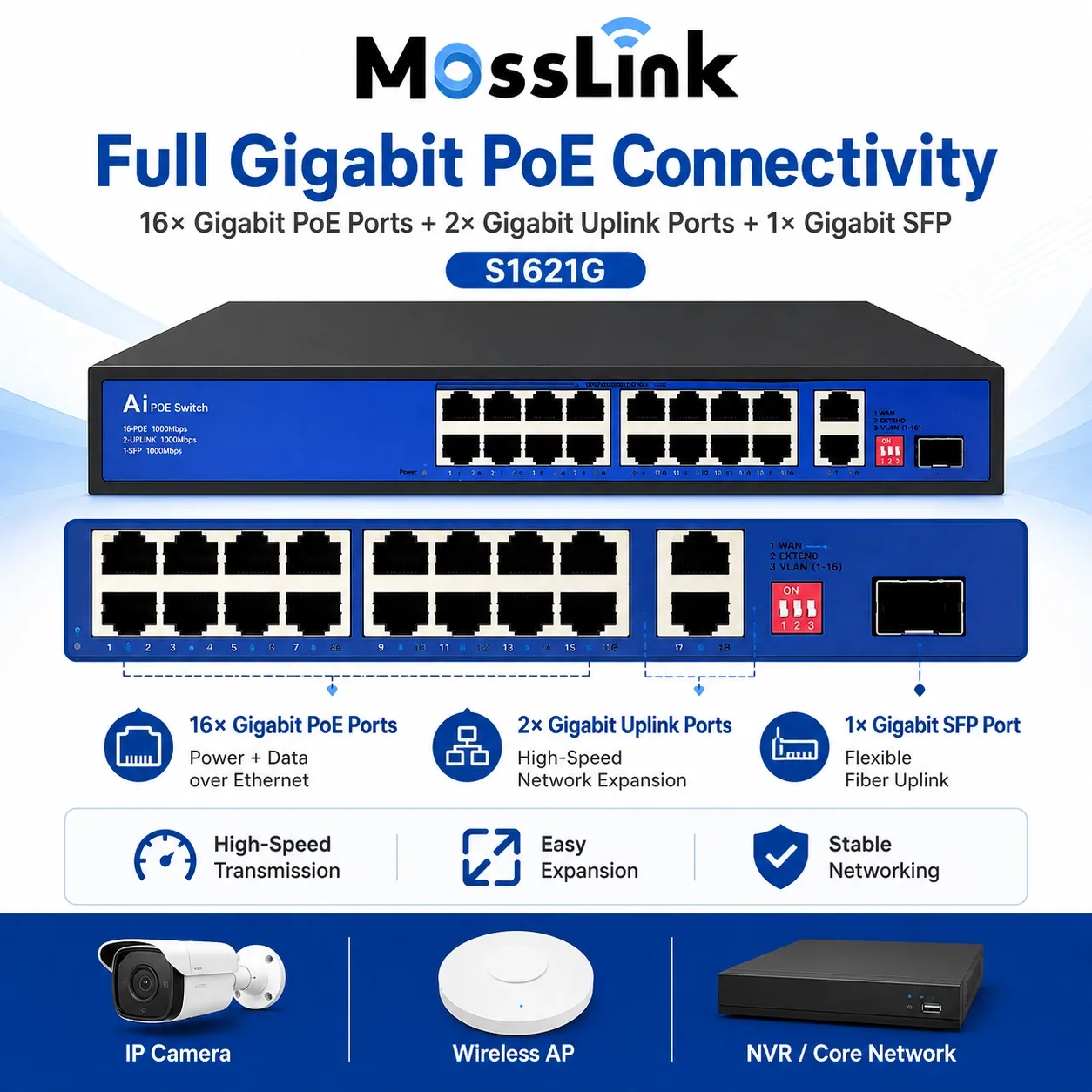

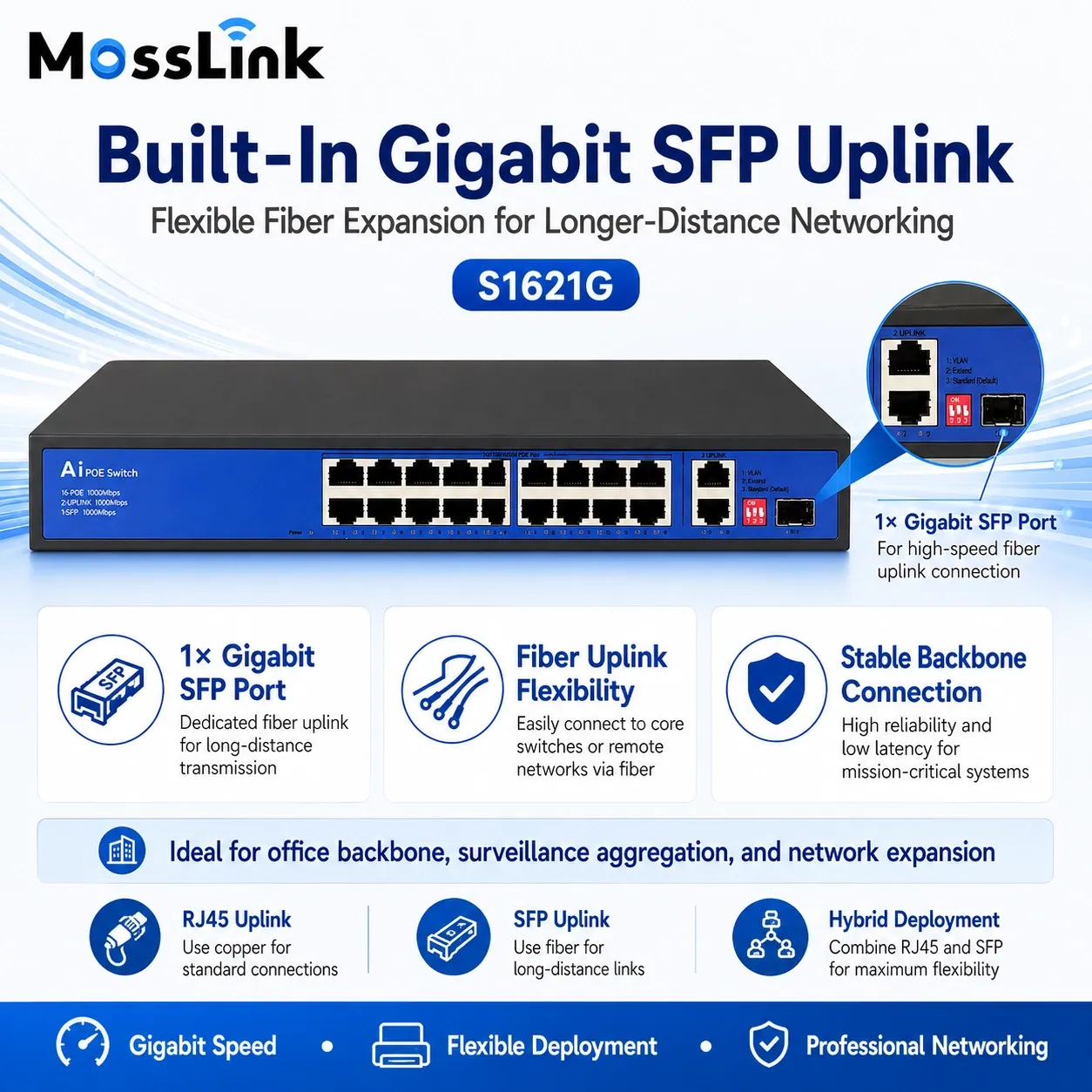

- 2× Gigabit RJ45 uplinks + 1× Gigabit SFP fiber slot for backhaul
- PoE Watchdog auto-reboots unresponsive cameras and APs (Ports 1–16)
- AI Extend mode — 250m long-distance PoE on Ports 1–8

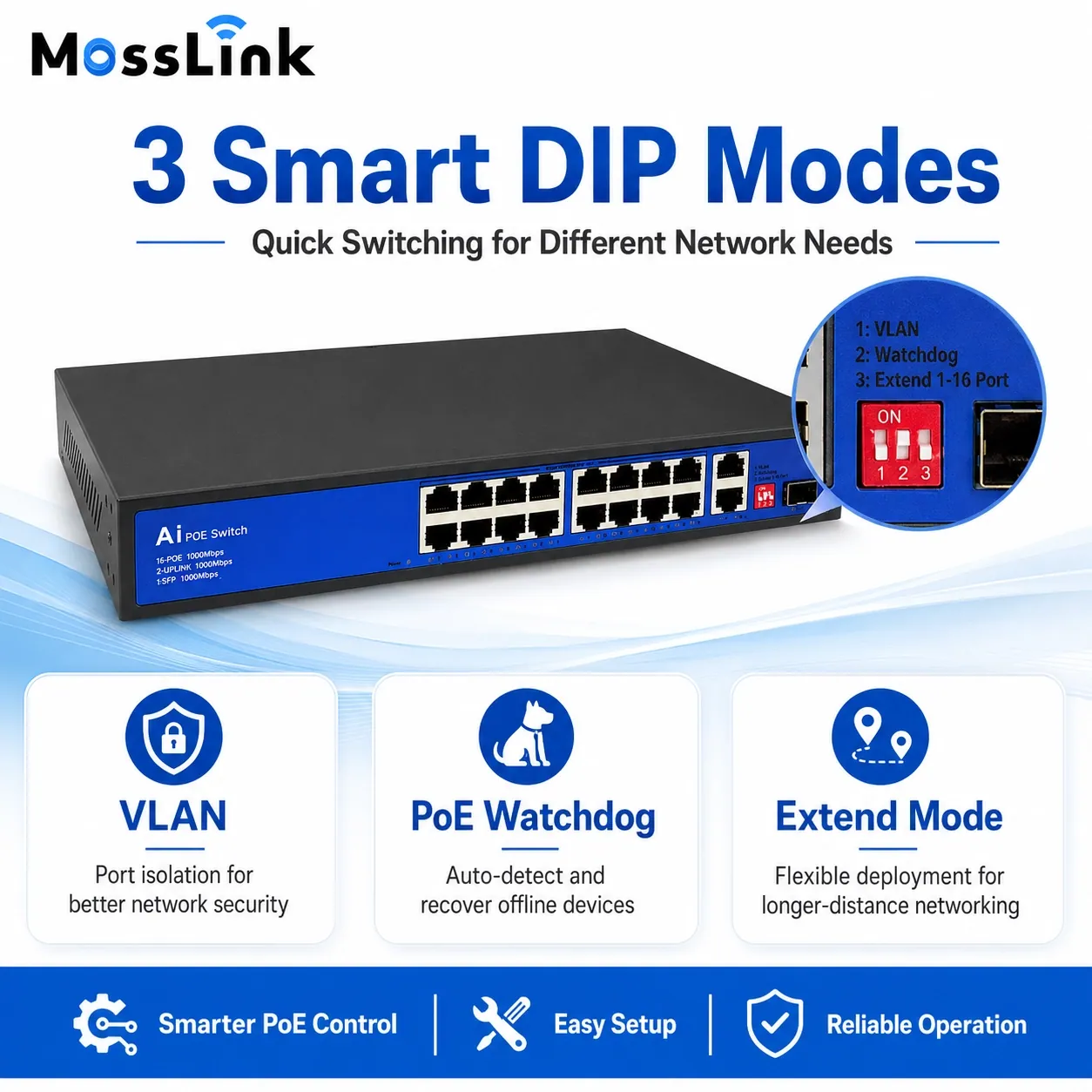

- Port VLAN isolation via DIP switch to suppress broadcast storms
- Built-in AC 100~240V power supply — no external power bricks needed
- 52Gbps switching capacity with 8K MAC address table

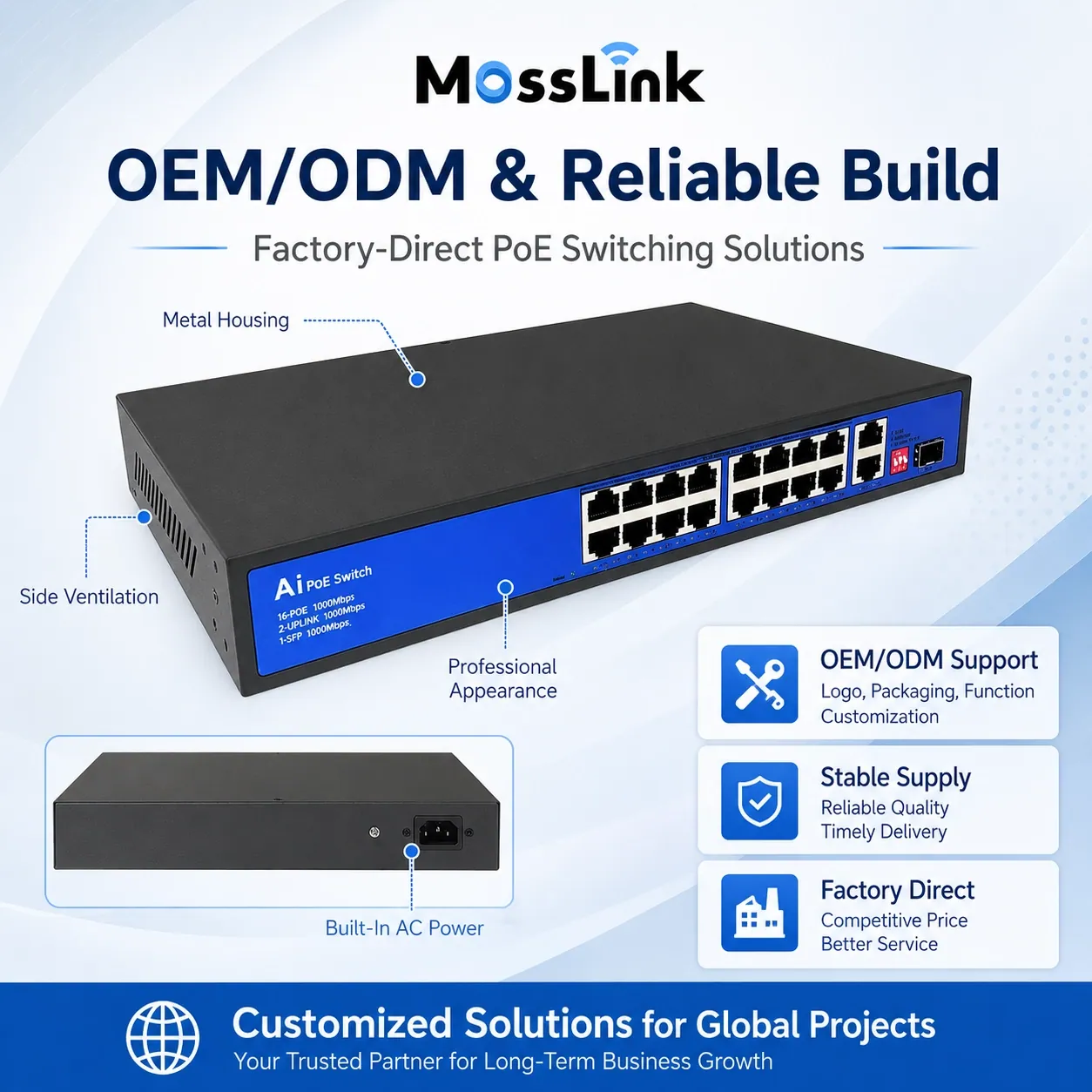

- 4kV surge protection, fanless steel chassis — desktop or 1U rack mount
The S1621G is a 19-port unmanaged smart Gigabit PoE switch with 16× full-Gigabit 802.3af/at PoE ports (30W each, 300W total), 2× Gigabit RJ45 uplinks, and 1× Gigabit SFP fiber slot, powered by a built-in AC 100–240V supply. With PoE Watchdog auto-recovery across all 16 ports, 250m EXTEND mode on Ports 1–8, port VLAN isolation, a 52Gbps switching fabric, and 4kV surge protection in a fanless 1U steel chassis, it is built for mid-size IP camera systems and multi-AP networks in hotels, campuses, and enterprises.
Ideal For
- Mid-size IP camera and NVR networks in hotels, campuses, and factories
- Multi-floor wireless access point PoE power delivery
- Surveillance and network cabinets requiring 1U rack mounting
- Deployments needing a Gigabit fiber (SFP) uplink to a core switch
- Growing small-business LANs consolidating onto a single PoE switch
Deployment Advantages
The built-in 300W AC power supply powers a full 16-port camera or AP deployment without external injectors, while the 1U fanless steel chassis mounts cleanly in a 19-inch rack. Two Gigabit RJ45 uplinks plus a Gigabit SFP slot provide copper or fiber backhaul, keeping aggregated camera traffic congestion-free.
PoE Watchdog auto-recovery covers all 16 ports, power-cycling devices that stop responding so unmanned sites stay online. The 250m EXTEND mode on Ports 1–8 reaches remote cameras and APs, and VLAN isolation suppresses the broadcast storms common in dense camera networks.
OEM/ODM Ready
MossLink offers OEM and ODM customization for this product, including custom port configurations, power budget variations, enclosure branding, and private-label packaging. Volume pricing is available for surveillance integrators, IT distributors, and enterprise resellers. Contact us to discuss your project requirements.
Specifications
| Type | Unmanaged Smart Gigabit PoE Switch |
| PoE Ports | 16× 10/100/1000Mbps (IEEE 802.3af/at) |
| Uplink Ports | 2× 10/100/1000Mbps RJ45 + 1× 1000M SFP |
| PoE Per Port | Up to 30W (802.3at) |
| Total PoE Budget | 300W (Built-in AC 100~240V) |
| Switching Capacity | 52Gbps |
| Forwarding Rate | 28.27Mpps |
| MAC Address Table | 8K |
| Extend Mode | Up to 250m @ 10Mbps (Ports 1–8) |
| PoE Watchdog | Ports 1–16 |
| Surge Protection | 4kV (8/20μs) per-port lightning protection |
| Enclosure | IP30 Steel, Fanless, 1U Rackmount |
| Dimensions | 310 × 205 × 44 mm |
| Temperature | -20°C ~ +55°C |
Ordering & Customization
The S1621G ships factory-direct from Shenzhen with full OEM/ODM support. Three customization levels are available depending on your order quantity:
Logo & Packaging (OEM)
From 100 units
- Your logo on the enclosure
- Branded box, labels & user manual
- Zero MossLink branding on final product
Custom Firmware (Software)
From 500 units
- Custom web UI & boot screen
- Default configuration & feature tuning
- Regional and regulatory presets
Custom Hardware (ODM)
From 1,000 units
- Enclosure & antenna modifications
- Port and power-budget variations
- PCB-level customization
Learn more about our OEM/ODM process →
- Standard MOQ
- 100 units for standard products with no customization
- Samples
- 1–5 evaluation units at product cost plus shipping — sample fee credited toward your first bulk order
- Lead Time
- In-stock products: 3–5 business days · bulk production: 3–4 weeks · OEM/ODM orders: 4–8 weeks
- Payment Terms
- 30% deposit, 70% balance before shipment · T/T and L/C accepted, in USD
- Shipping
- DHL / FedEx / UPS express, air and sea freight · DDP, FOB Shenzhen, or CIF terms
- Packaging
- Each unit individually boxed with protective foam; palletized export cartons for freight — carton specs available on request
- Quality Control
- 100% inspection and 24-hour burn-in testing; a signed QC report ships with every order
- Certifications
- CE, FCC, and RoHS standard · additional market certifications (IC, TELEC, NCC, etc.) available via ODM
Downloads
Frequently Asked Questions
What is the total PoE power budget of the S1621G?
The S1621G delivers a 300W total PoE power budget from a built-in AC 100–240V supply across its 16 PoE ports, each supporting up to 30W (802.3at). That comfortably powers 16 standard cameras or APs, or a smaller number of high-draw PTZ cameras, without any external injectors.
Can the S1621G be rack-mounted?
Yes. The S1621G uses a 1U 310×205×44mm steel chassis and supports both desktop placement and standard 19-inch rack mounting, making it a clean fit for surveillance cabinets and network racks. It is fanless for silent, dust-resistant operation.
Are all ports on the S1621G full Gigabit?
Yes. All 16 PoE ports are 10/100/1000Mbps, plus 2 Gigabit RJ45 uplinks and a Gigabit SFP slot — every port is Gigabit-capable. This suits Gigabit IP cameras, Wi-Fi 6 access points, and NVR backhaul that need full 1000Mbps throughput across the whole switch.
Is OEM/ODM customization available for this product?
Yes. MossLink offers full OEM and ODM services for this product, including custom firmware features, hardware modifications, enclosure branding, and private-label packaging. Minimum order quantities apply. Contact us to discuss your project requirements.
What is the MOQ for the S1621G?
Standard S1621G orders start at 100 units. Logo and packaging customization (OEM) also starts at 100 units, custom firmware at 500 units, and custom hardware (ODM) at 1,000 units. Contact sales with your target quantity for a formal quotation.
Can I get a sample of the S1621G before bulk ordering?
Yes. We supply 1–5 evaluation units at product cost plus shipping, and the sample fee is credited toward your first bulk order. Contact us via email or WhatsApp with the model number to arrange a sample.
What is the lead time for the S1621G?
In-stock units ship within 3–5 business days. Bulk production orders typically require 3–4 weeks, and OEM/ODM orders with customization take 4–8 weeks depending on complexity. Rush production is available at additional cost.
Is the S1621G certified for my market?
The S1621G carries CE, FCC, and RoHS certification as standard. Additional certifications for specific markets (IC, TELEC, NCC, etc.) can be arranged through our ODM service.
How is product quality controlled before shipment?
Every unit undergoes 100% inspection and 24-hour burn-in testing before leaving the factory, and a signed QC report ships with every order — full traceability from component to delivery.
What payment terms do you accept?
Standard terms are a 30% deposit with order confirmation and the 70% balance before shipment, paid in USD via T/T. Letter of credit and flexible terms are available for established partners.
