WB510C 5.8GHz 900Mbps Outdoor Bridge Kit, 5KM, Gigabit
WB510C
MOQ 100 units Lead time 3–4 weeks Samples 1–5 units 5 Years warranty
Type 5.8GHz Outdoor CPE Wireless Bridge (2-Pack Kit)
CPU MTK7620 + MT7612E, 64MB DDR2, 8MB Flash
Standard IEEE 802.11a/n/ac (4.9–5.85GHz)
Antenna Built-in 16dBi Dual-Polarized Directional
Max Speed 900Mbps
Overview
- 900Mbps 5.8GHz 802.11ac for stable point-to-point links up to 5km
- Built-in 16dBi dual-polarized directional antenna with narrow-beam anti-interference
- Gigabit Ethernet port for full-speed wired backhaul without bottleneck
- PoE output powers an attached IP camera directly — no extra adapter at the pole
- Complete 2-pack kit: bridges, PoE adapters, cables, and hose clamps included
- Bridge, AP, Router, and Repeater modes with signal-strength LEDs for alignment
- ≤3W consumption with 24V Passive PoE single-cable installation
The WB510C is a 5.8GHz outdoor CPE wireless bridge kit delivering 900Mbps over point-to-point links up to 5km. Built on the MTK7620 + MT7612E platform with a 16dBi dual-polarized directional antenna, a Gigabit Ethernet port plus a second PoE-output port that powers an attached IP camera, and Bridge/AP/Router/Repeater modes, it ships as a complete 2-pack kit with PoE adapters, cables, and mounting clamps — everything needed to install a working long-range link out of one box.
Ideal For
- IP camera CCTV backhaul over 1–5km with the camera powered directly from the bridge

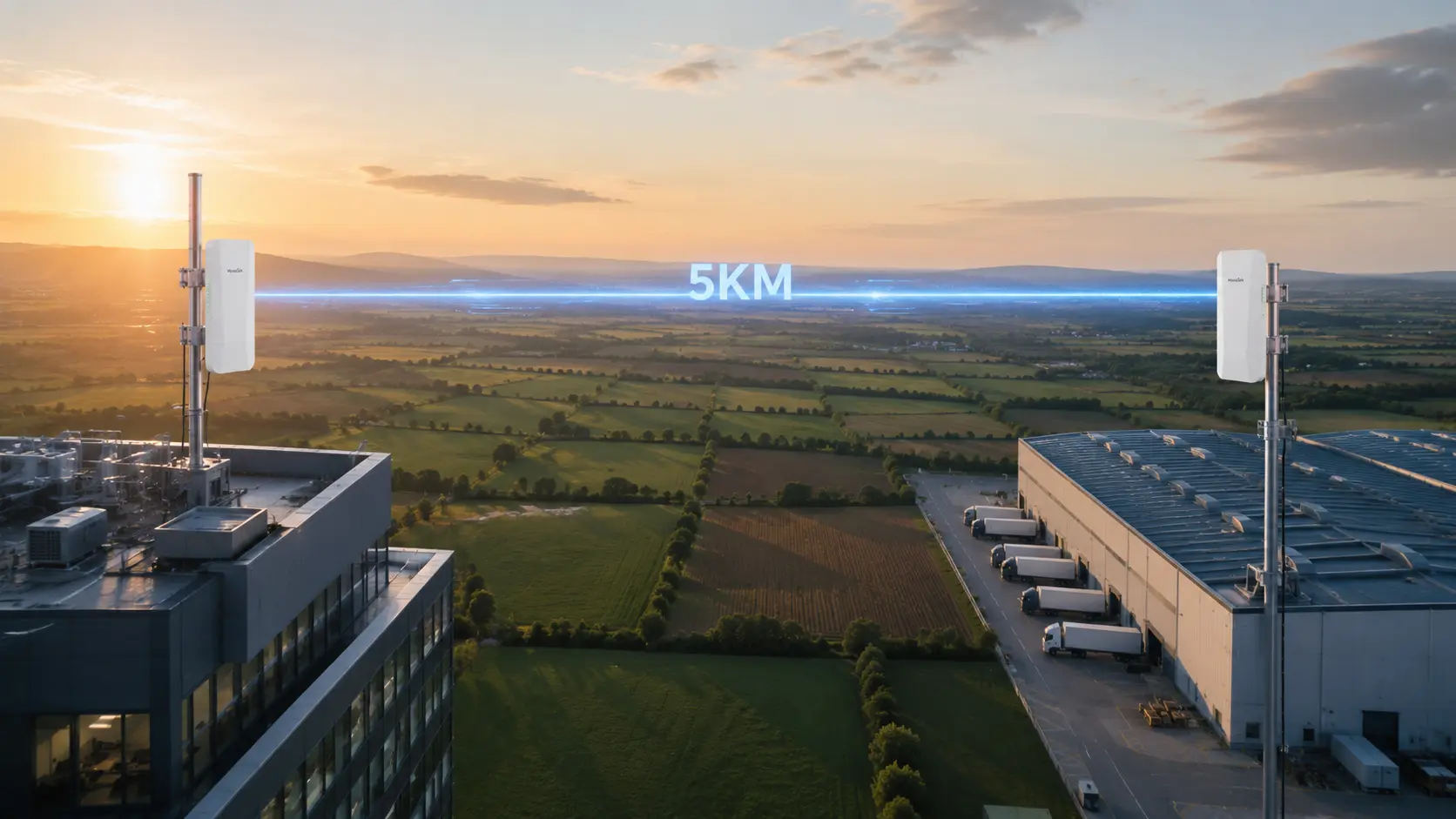

- Building-to-building wireless LAN extension for offices, warehouses, and farms
- Starlink and rural broadband relay to secondary buildings up to 5km away
- Elevator monitoring and complicated environments where cabling is impractical
- Distributors and installers who need a ready-to-sell boxed kit, not loose units
What’s in the Kit

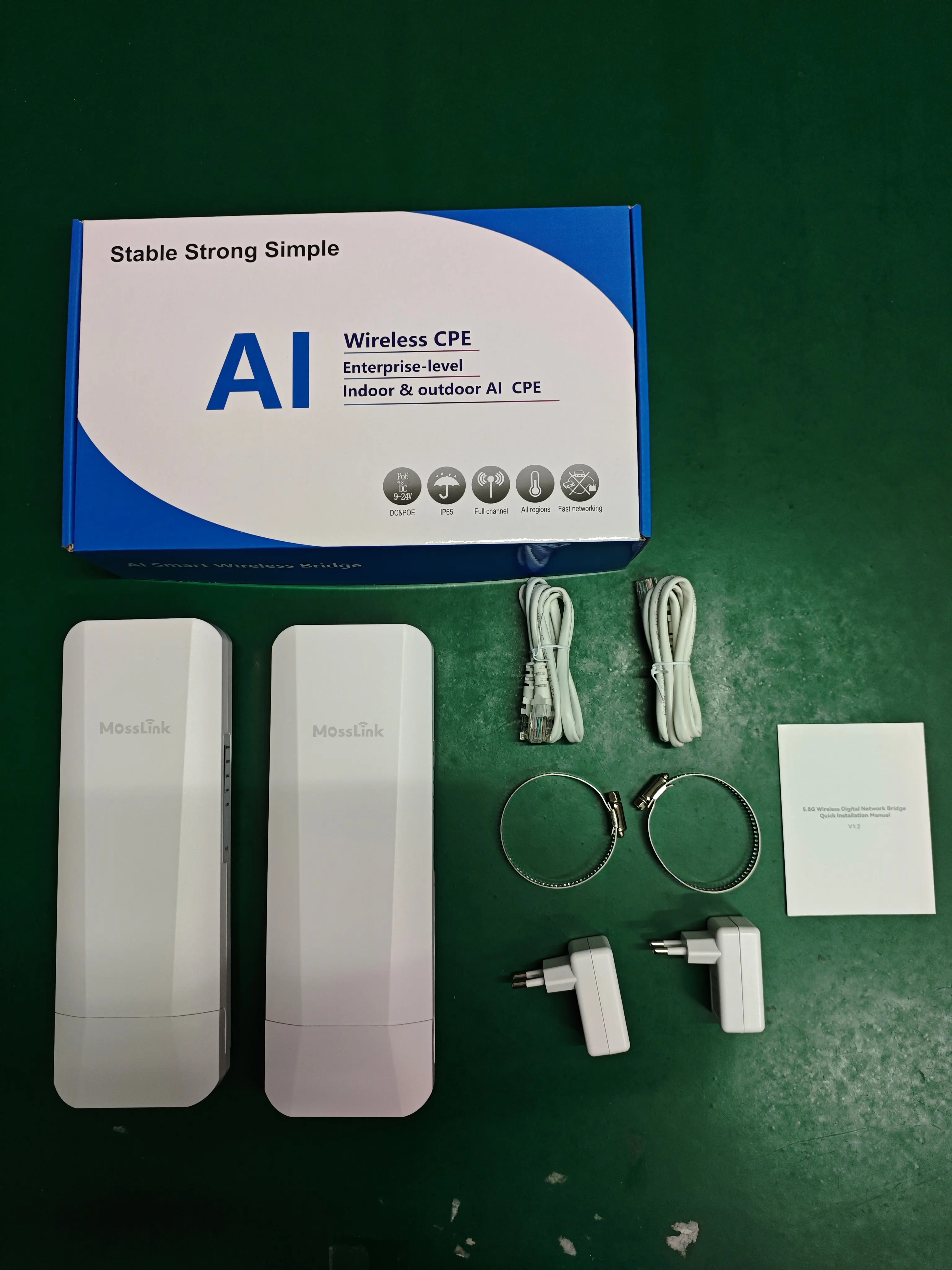

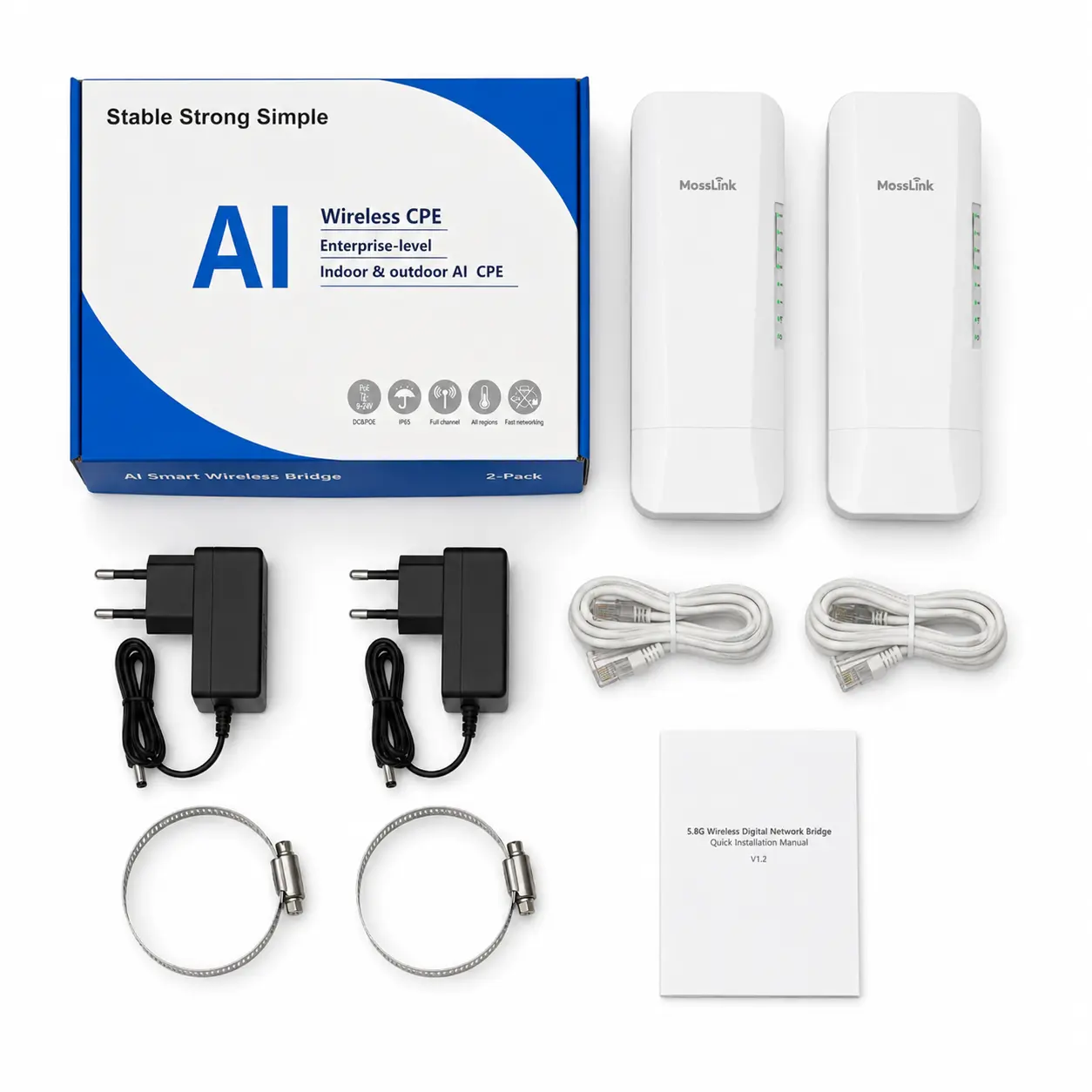

Each WB510C package contains two wireless bridges, two 24V 1A PoE adapters, two network cables, two hose clamps for pole mounting, and an installation guide. An installer can complete a full point-to-point link from a single box, with signal-strength LEDs on each unit providing visual alignment feedback in Bridge mode — no laptop required at the mast.
Deployment Advantages

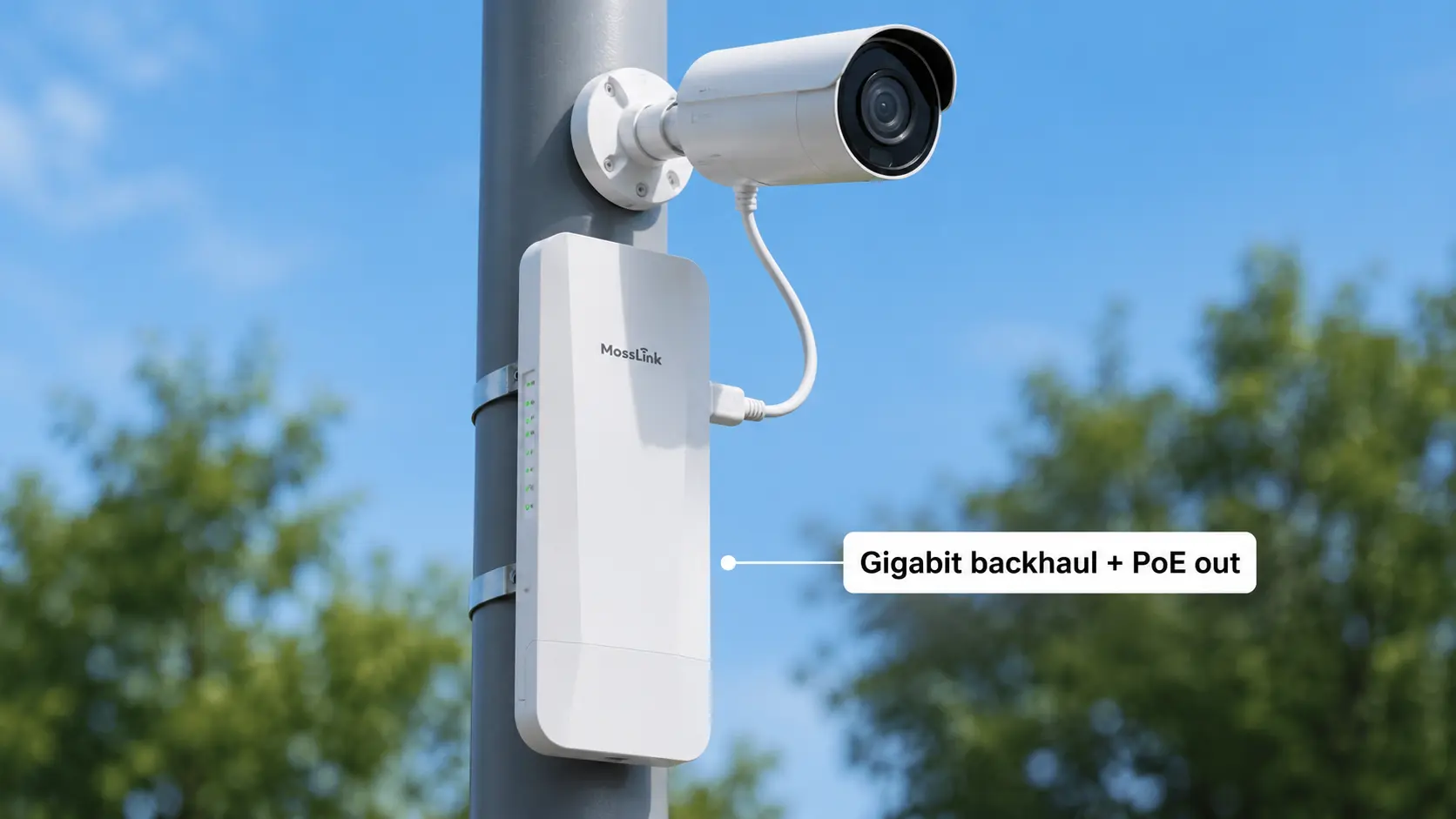

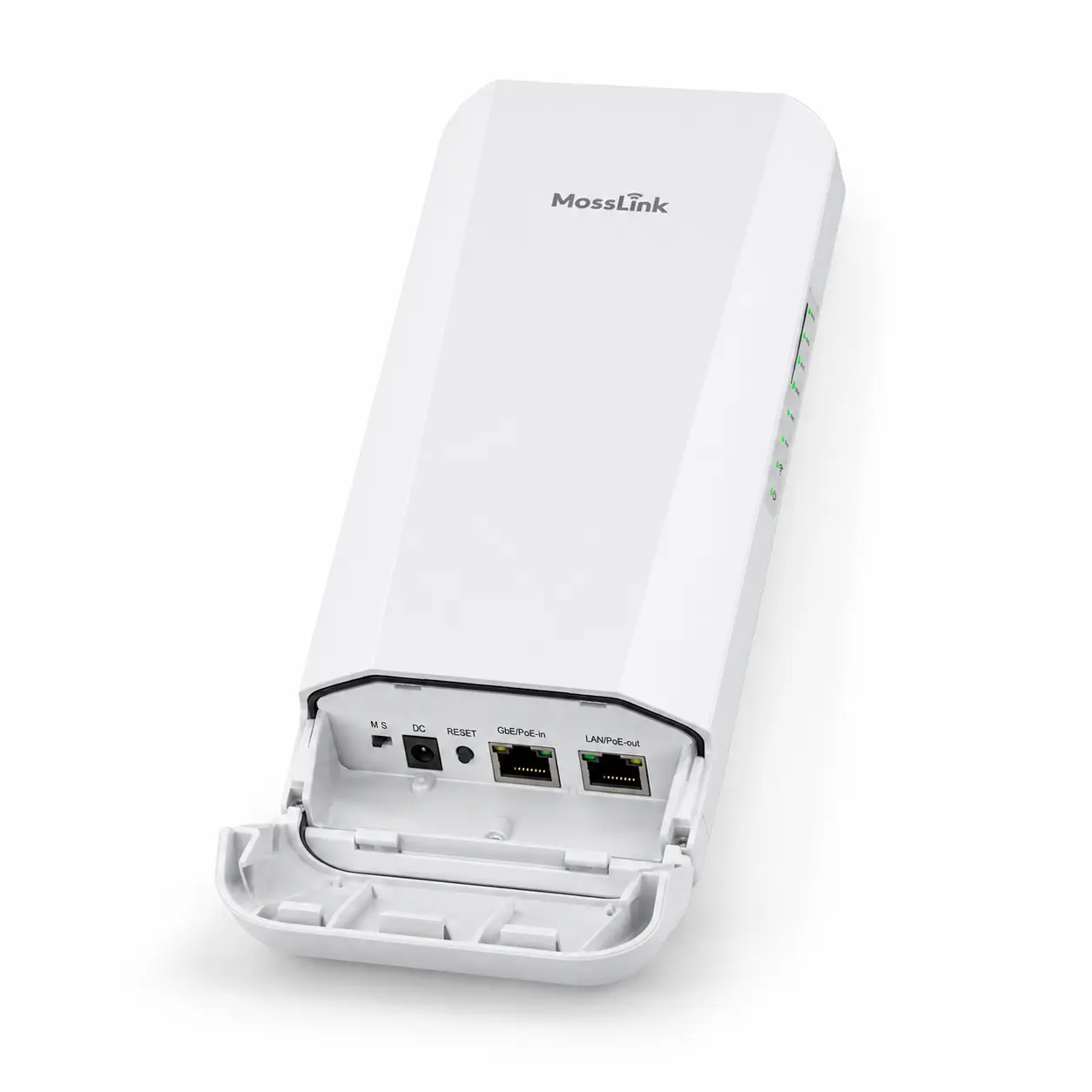

The dual-port design solves the most common remote-end problem in surveillance deployments: the Gigabit port carries full-speed backhaul to an NVR or switch, while the second port supplies PoE to an attached IP camera. A camera pole needs only the bridge, the camera, and one cable run — no outlet, no extra midspan, no weatherproof power box.
At ≤3W per unit with 24V Passive PoE, power budgeting stays trivial even in multi-link installations, and the slim 250 × 85 × 25 mm housing keeps wind load minimal on poles and masts. The narrow beam of the 16dBi dual-polarized antenna limits interference pickup in congested 5.8GHz environments, holding throughput stable at the 4–5km distances where link margin matters most.
OEM/ODM Ready
The WB510C is one of MossLink’s strongest and most proven OEM products, already shipping under multiple international partner brands. We offer full software customization — firmware features, web UI branding, default configurations, regional frequency and TX power settings — and full hardware customization — enclosure logo and color, antenna gain options, port configuration, and private-label kit packaging. Volume pricing is available for CCTV integrators, security distributors, and wireless equipment brands. Contact us to discuss your project requirements.
Specifications
| Type | 5.8GHz Outdoor CPE Wireless Bridge (2-Pack Kit) |
| CPU | MTK7620 + MT7612E, 64MB DDR2, 8MB Flash |
| Standard | IEEE 802.11a/n/ac (4.9–5.85GHz) |
| Antenna | Built-in 16dBi Dual-Polarized Directional |
| Max Speed | 900Mbps |
| Range | Up to 5km (LoS) |
| Ethernet | 1× Gigabit + 1× 10/100Mbps RJ45 |
| PoE Output | Powers one attached IP camera from the CPE |

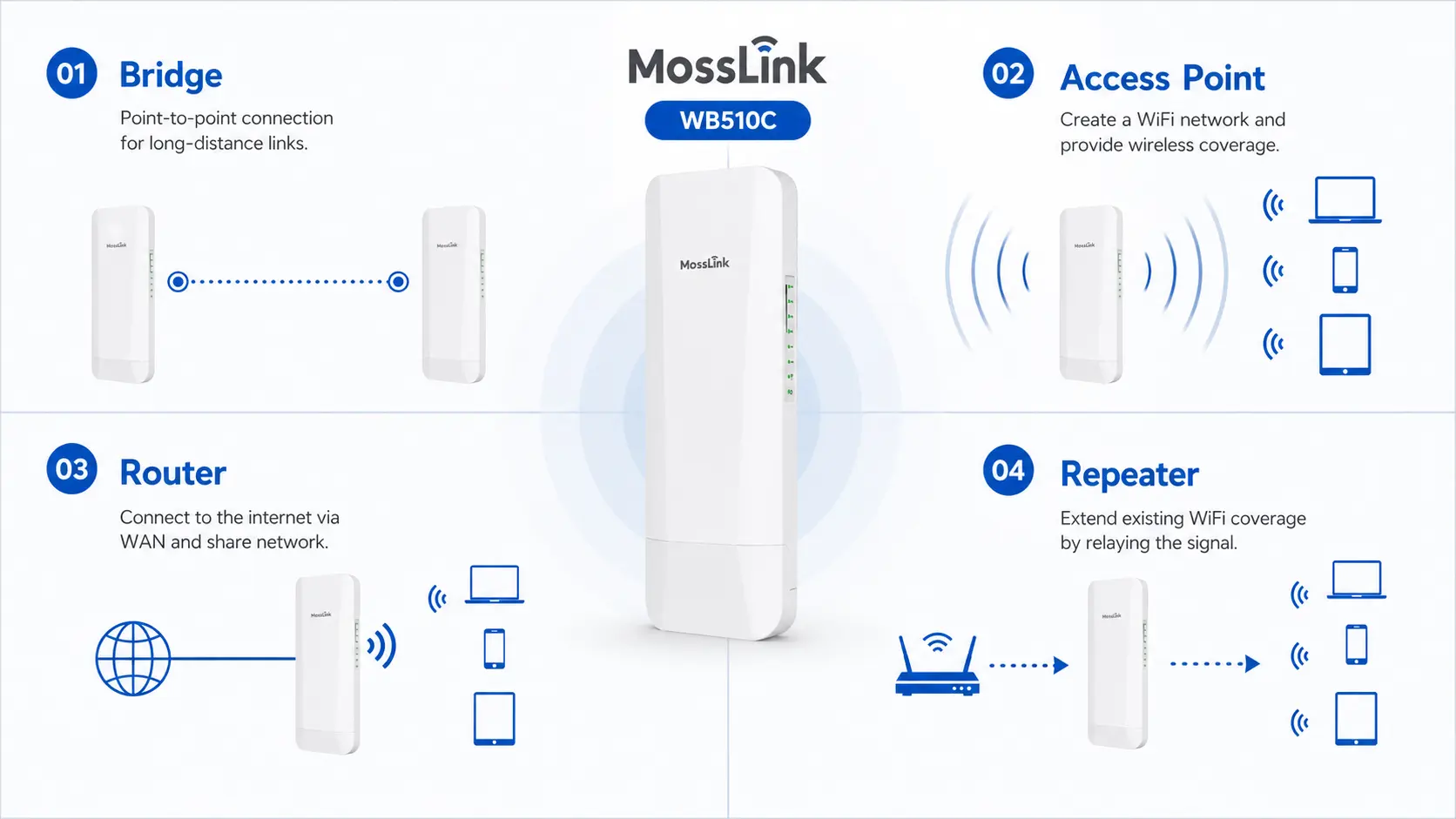

| Operating Modes | Bridge, AP, Router, Repeater |
| Power | 24V 1A Passive PoE Adapter (2× included) |
| Power Consumption | ≤3W |
| LED Indicators | Power / WAN / LAN / Wi-Fi Signal Strength |
| Enclosure | Weatherproof Outdoor ABS, Pole/Wall/Rack Mount |
| Dimensions | 250 × 85 × 25 mm |
| Package | 2-Pack Kit, 30 × 30 × 9 cm, 1.5 kg |

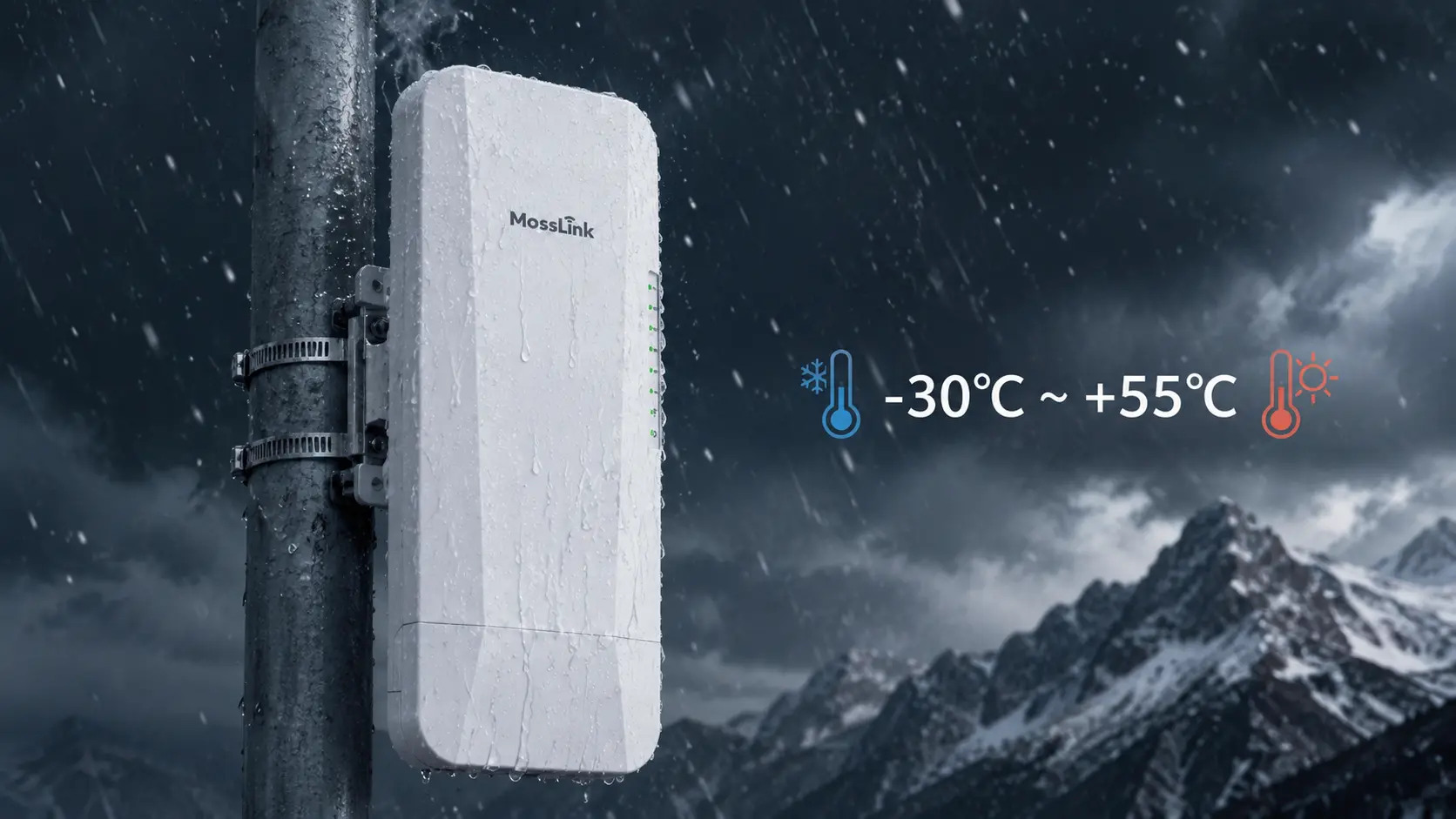

| Temperature | -30°C ~ +55°C (storage -40°C ~ +70°C) |
Ordering & Customization
The WB510C ships factory-direct from Shenzhen with full OEM/ODM support. Three customization levels are available depending on your order quantity:
Logo & Packaging (OEM)
From 100 units- Your logo on the enclosure
- Branded box, labels & user manual
- Zero MossLink branding on final product
Custom Firmware (Software)
From 500 units- Custom web UI & boot screen
- Default configuration & feature tuning
- Regional and regulatory presets
Custom Hardware (ODM)
From 1,000 units- Enclosure & antenna modifications
- Port and power-budget variations
- PCB-level customization
Learn more about our OEM/ODM process →
- Standard MOQ
- 100 units for standard products with no customization
- Samples
- 1–5 evaluation units at product cost plus shipping — sample fee credited toward your first bulk order
- Lead Time
- In-stock products: 3–5 business days · bulk production: 3–4 weeks · OEM/ODM orders: 4–8 weeks
- Payment Terms
- 30% deposit, 70% balance before shipment · T/T and L/C accepted, in USD
- Shipping
- DHL / FedEx / UPS express, air and sea freight · DDP, FOB Shenzhen, or CIF terms
- Packaging
- Each unit individually boxed with protective foam; palletized export cartons for freight — carton specs available on request
- Quality Control
- 100% inspection and 24-hour burn-in testing; a signed QC report ships with every order
- Certifications
- CE, FCC, and RoHS standard · additional market certifications (IC, TELEC, NCC, etc.) available via ODM
Downloads
Frequently Asked Questions
What is the difference between the WB510C and the WB630?
Both use the same MTK7620 + MT7612E platform with 900Mbps 5.8GHz performance over 5km. The WB510C ships as a complete pre-packaged 2-pack kit in a slim CPE housing with dual Ethernet ports — one Gigabit for backhaul plus one 10/100Mbps port that supplies PoE to power an attached IP camera. The WB630 is a single-unit panel bridge with one Gigabit port. Choose the WB510C for camera-at-the-pole CCTV deployments and ready-to-install kits; choose the WB630 when specifying units individually.
Can the WB510C power an IP camera directly?

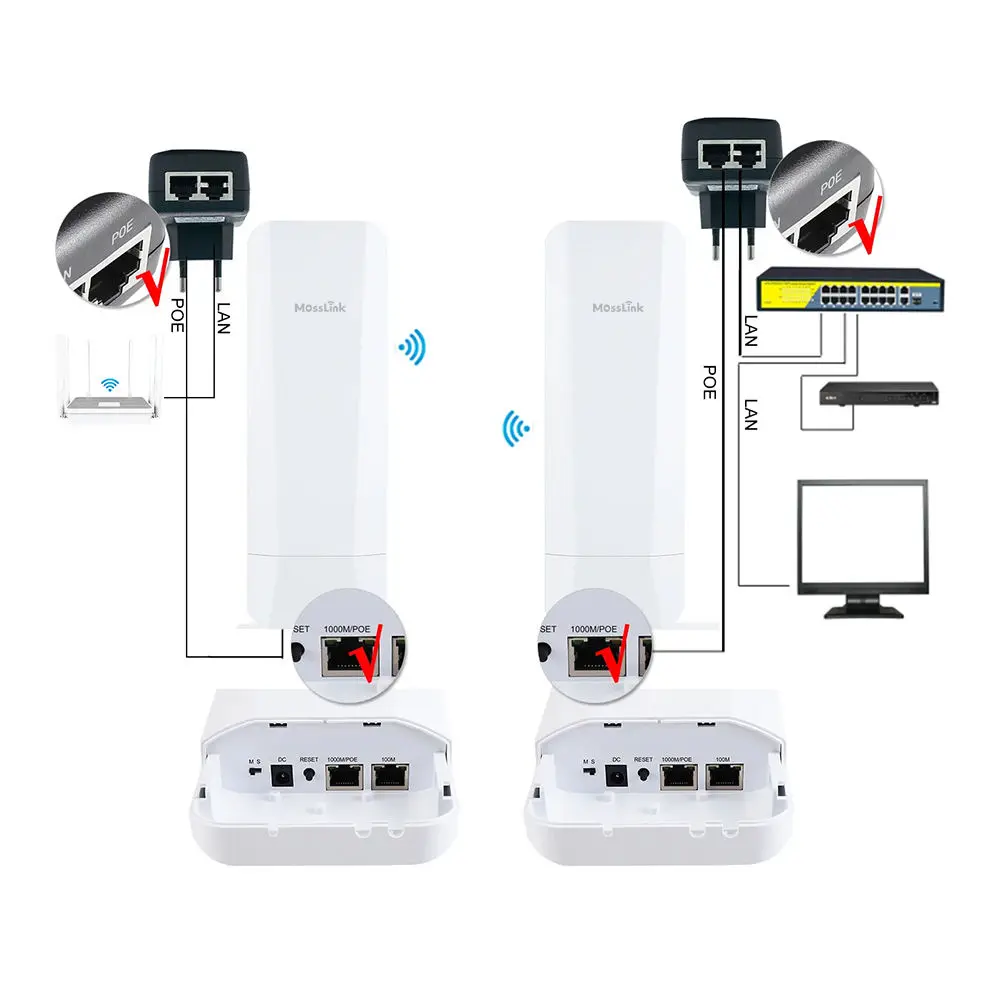

Yes. The WB510C supports PoE output to a single IP camera attached to its second Ethernet port. At a remote camera pole, one 24V PoE adapter at the near end powers the bridge, and the bridge in turn powers the camera — no power outlet or extra adapter is needed at the mounting point.
How many IP cameras can a WB510C link carry?
The 900Mbps wireless link with a Gigabit wired port supports multiple simultaneous HD streams. At 4MP H.265 encoding, a 5km link typically carries 8–12 simultaneous camera streams without lag; shorter links with stronger signal margin support more.
Is OEM/ODM customization available for this product?
Yes — the WB510C is one of MossLink's most proven OEM platforms and already ships under multiple international partner brands. Software customization covers firmware features, web UI branding, default configurations, and regional frequency settings. Hardware customization covers enclosure logo and color, antenna gain options, port configuration, and private-label kit packaging. Contact us to discuss your project requirements.
What is the MOQ for the WB510C?
Standard WB510C orders start at 100 units. Logo and packaging customization (OEM) also starts at 100 units, custom firmware at 500 units, and custom hardware (ODM) at 1,000 units. Contact sales with your target quantity for a formal quotation.
Can I get a sample of the WB510C before bulk ordering?
Yes. We supply 1–5 evaluation units at product cost plus shipping, and the sample fee is credited toward your first bulk order. Contact us via email or WhatsApp with the model number to arrange a sample.
What is the lead time for the WB510C?
In-stock units ship within 3–5 business days. Bulk production orders typically require 3–4 weeks, and OEM/ODM orders with customization take 4–8 weeks depending on complexity. Rush production is available at additional cost.
Is the WB510C certified for my market?
The WB510C carries CE, FCC, and RoHS certification as standard. Additional certifications for specific markets (IC, TELEC, NCC, etc.) can be arranged through our ODM service.
How is product quality controlled before shipment?
Every unit undergoes 100% inspection and 24-hour burn-in testing before leaving the factory, and a signed QC report ships with every order — full traceability from component to delivery.
What payment terms do you accept?
Standard terms are a 30% deposit with order confirmation and the 70% balance before shipment, paid in USD via T/T. Letter of credit and flexible terms are available for established partners.
