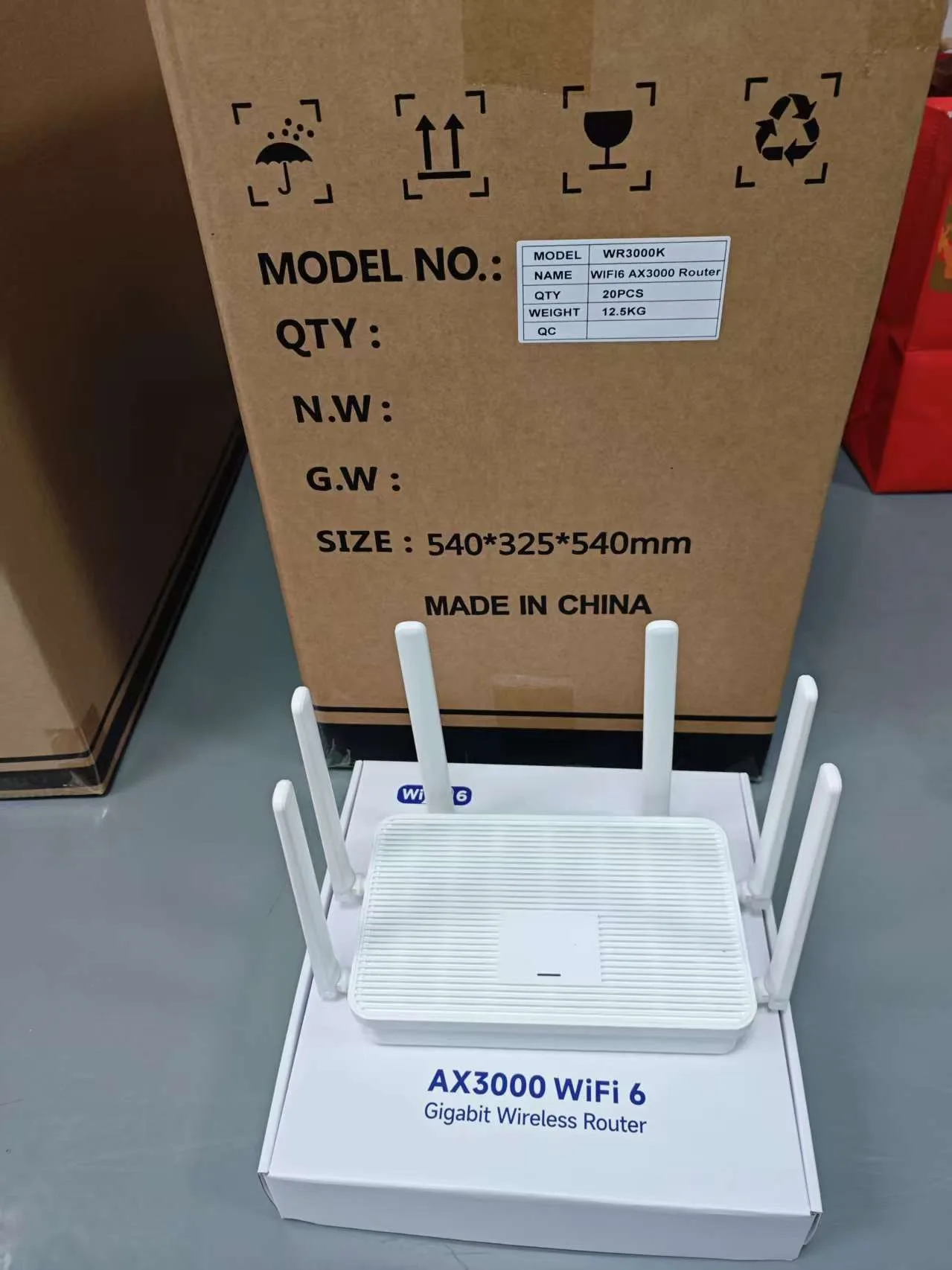

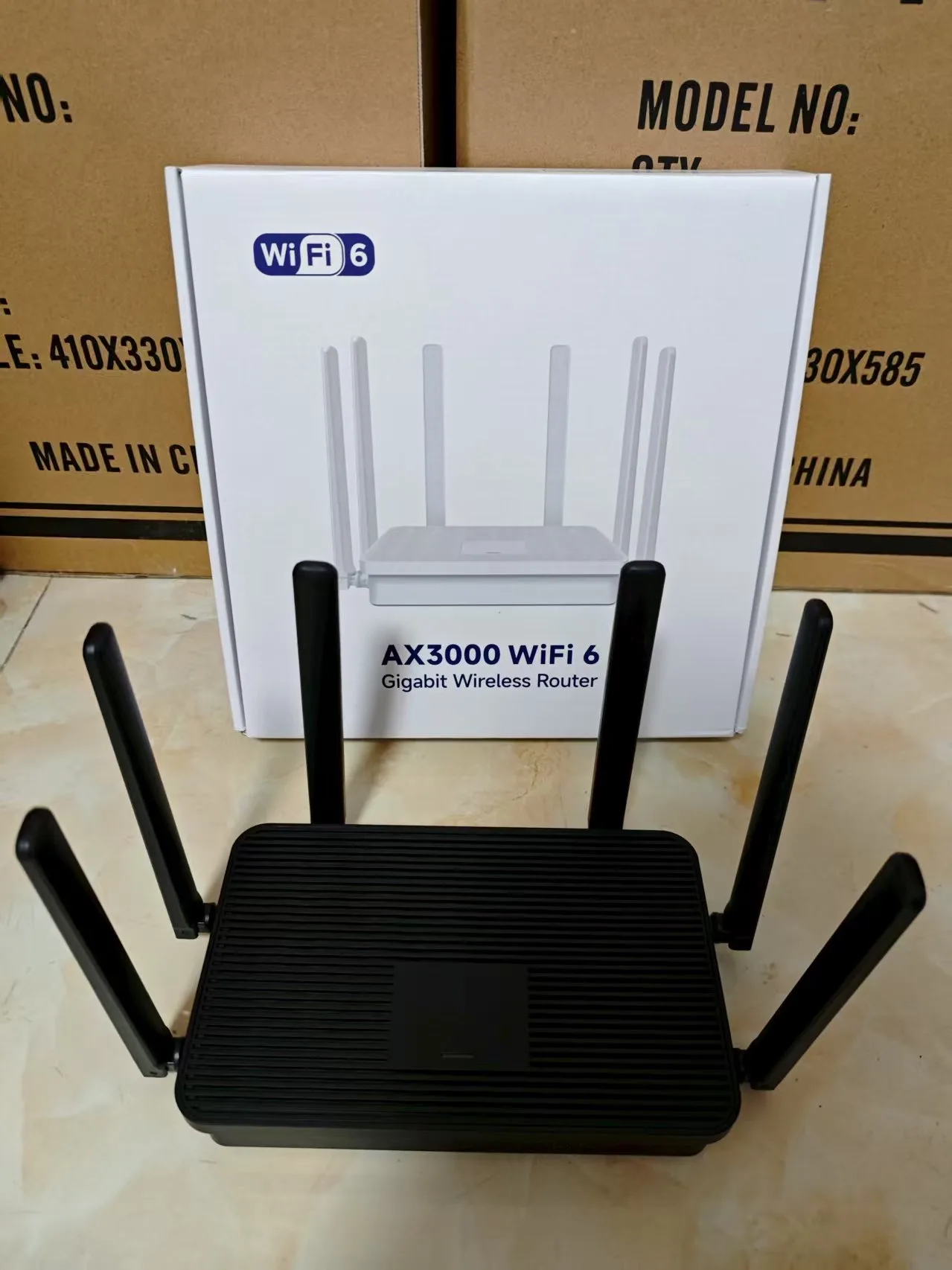

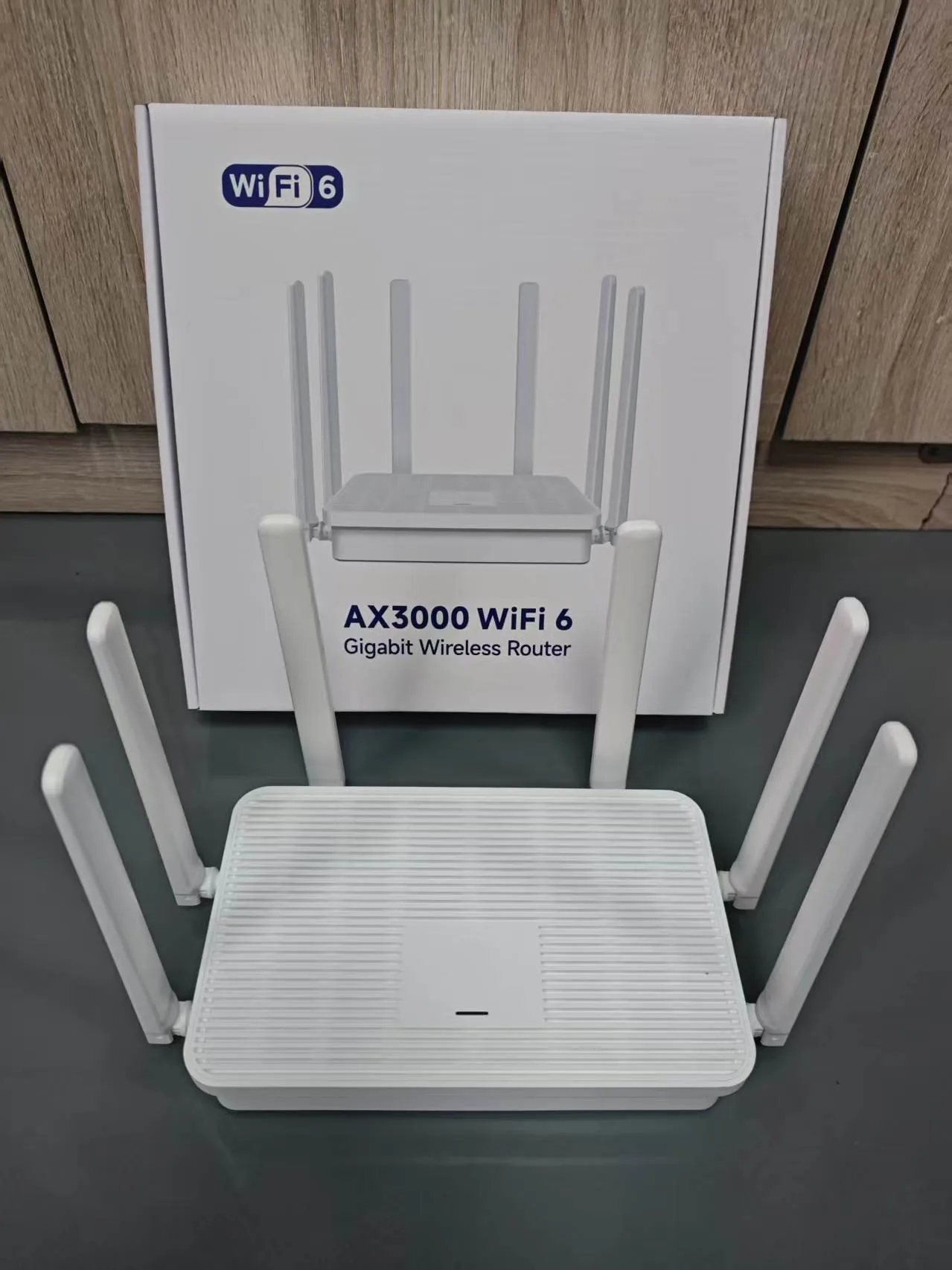

WR3000K Wi-Fi 6 AX3000 Dual-Band Router, 6 Antennas, Mesh

WR3000K

Standard Wi-Fi 6 (802.11ax)
Band Dual-Band (2.4GHz + 5GHz)
Max Speed AX3000 (574 + 2402 Mbps)
CPU MT7981B + MT7976 + MT7531, ARM Dual-Core 1.3GHz
RAM 512MB DDR
View all specifications →

5 Years Warranty

Talk via WhatsApp

Specifications

Standard Wi-Fi 6 (802.11ax)
Band Dual-Band (2.4GHz + 5GHz)
Max Speed AX3000 (574 + 2402 Mbps)
CPU MT7981B + MT7976 + MT7531, ARM Dual-Core 1.3GHz
RAM 512MB DDR
Flash 128MB
Antenna 6× 5dBi External (2×2.4G + 4×5G)

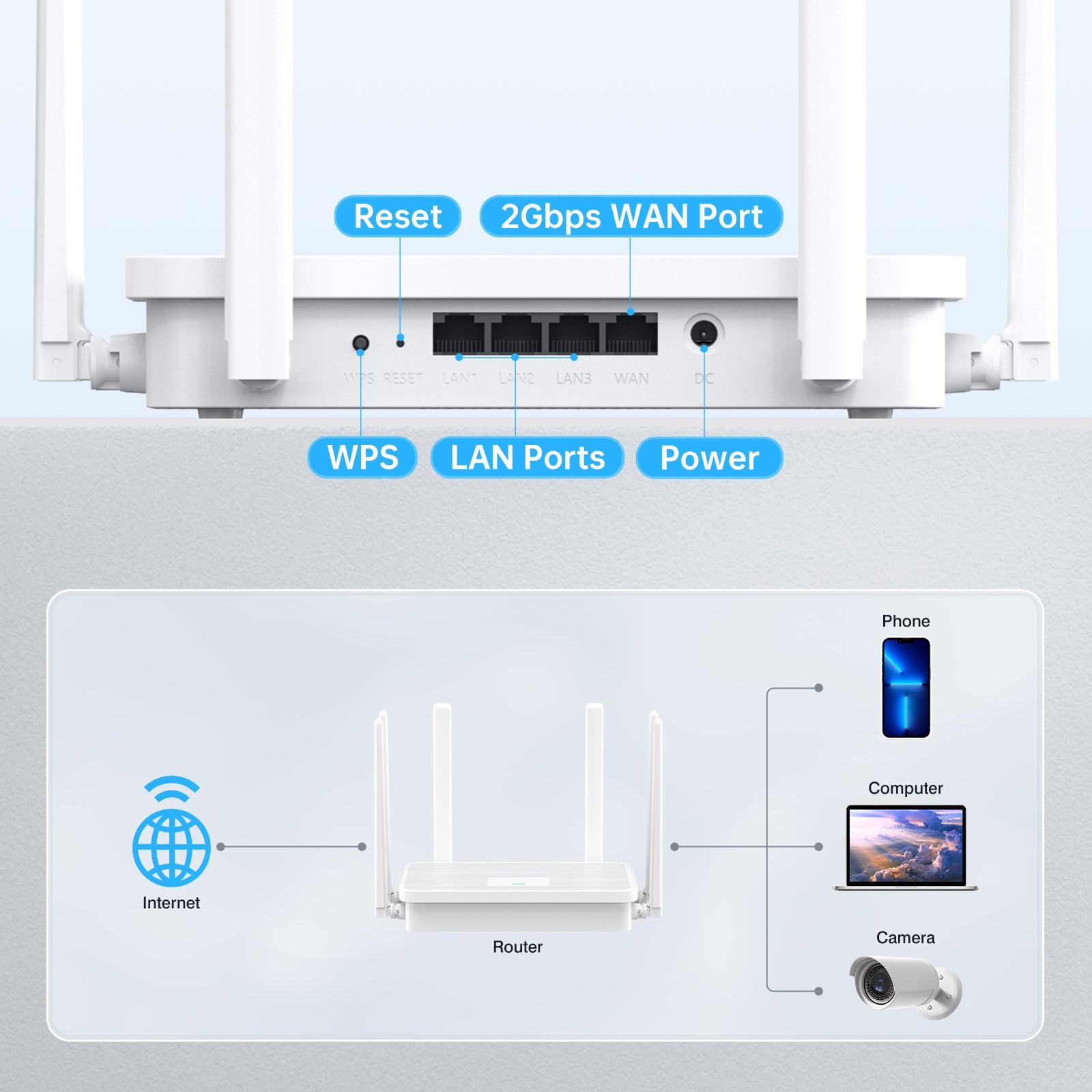

Ethernet 1× GbE WAN + 3× GbE LAN
Max Clients 128
Security WPA3, Guest WiFi, VPN, Anti-DDoS
Dimensions 208.6 × 129.5 × 40.6 mm
Temperature -10°C ~ +45°C
Power DC 12V / 1A

Features

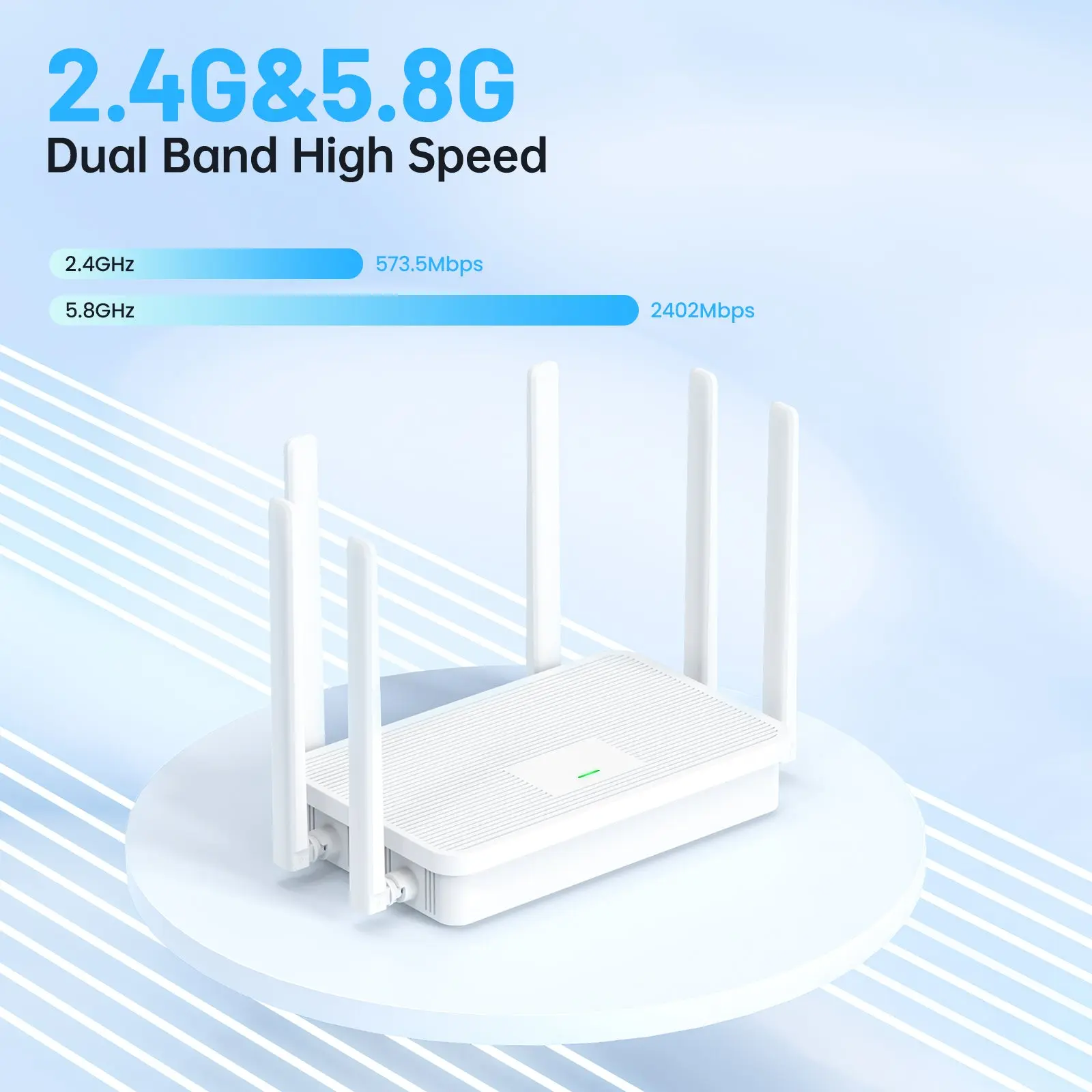

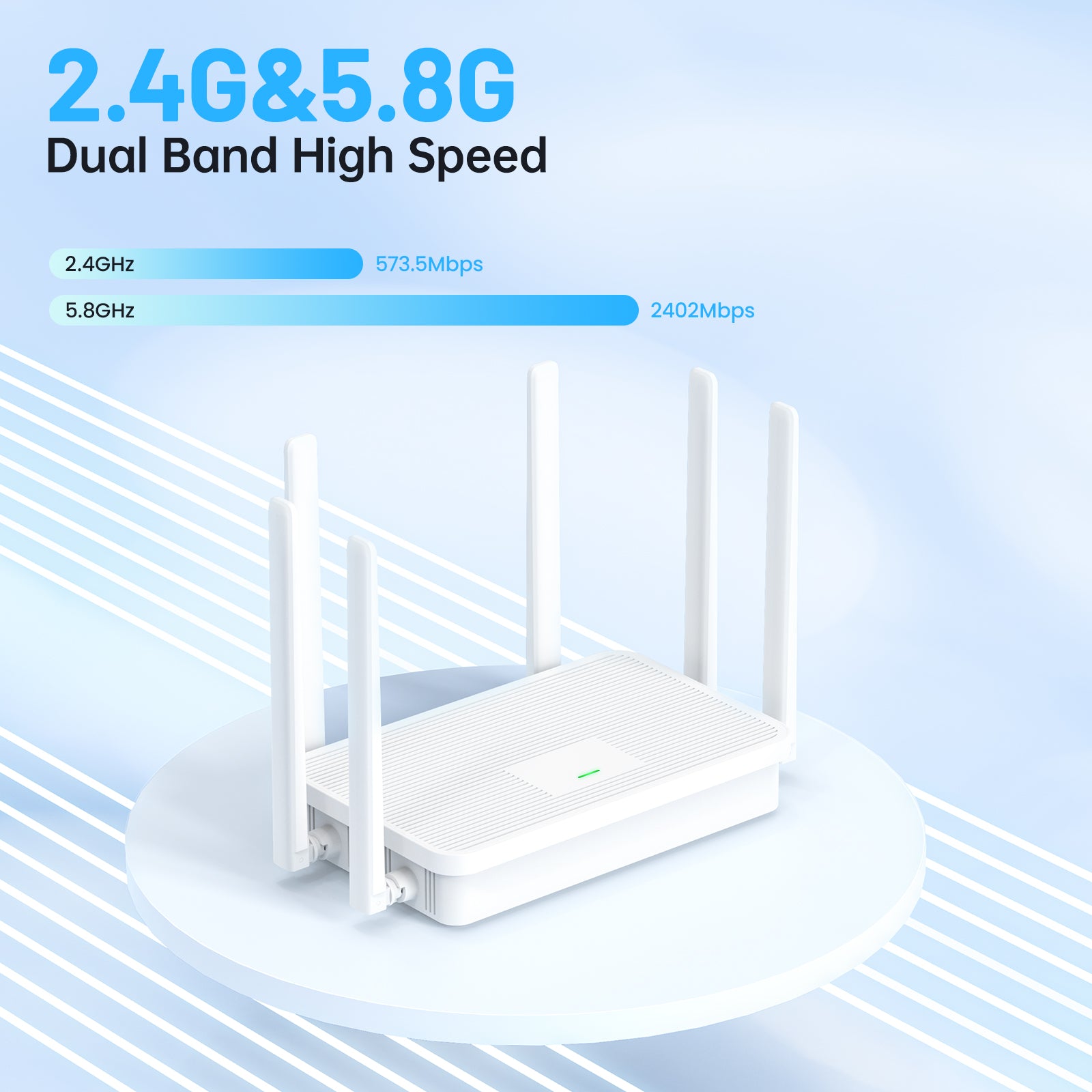

  • Wi-Fi 6 AX3000 dual-band — 574Mbps @ 2.4GHz + 2402Mbps @ 5GHz

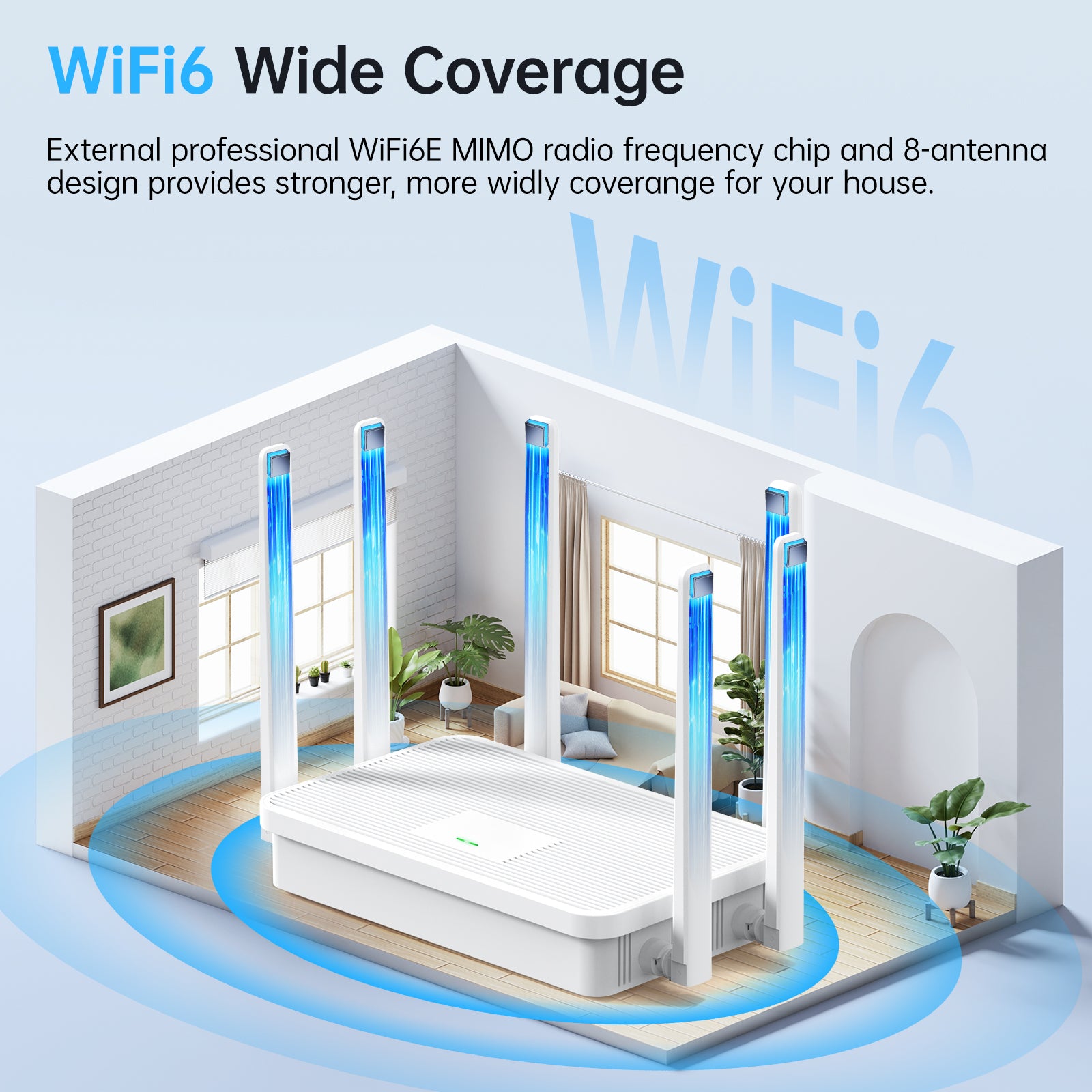

  • Six 5dBi external antennas for extended multi-room coverage
  • MTK MT7981B enterprise-grade chipset with ARM Dual-Core 1.3GHz
  • 512MB RAM / 128MB Flash for stable high-load performance
  • Mesh and relay mode for easy network expansion
  • OFDMA, MU-MIMO, BSS Color, Beamforming, 160MHz bandwidth
  • WPA3 security, guest WiFi, VPN client (PPTP/L2TP), anti-DDoS

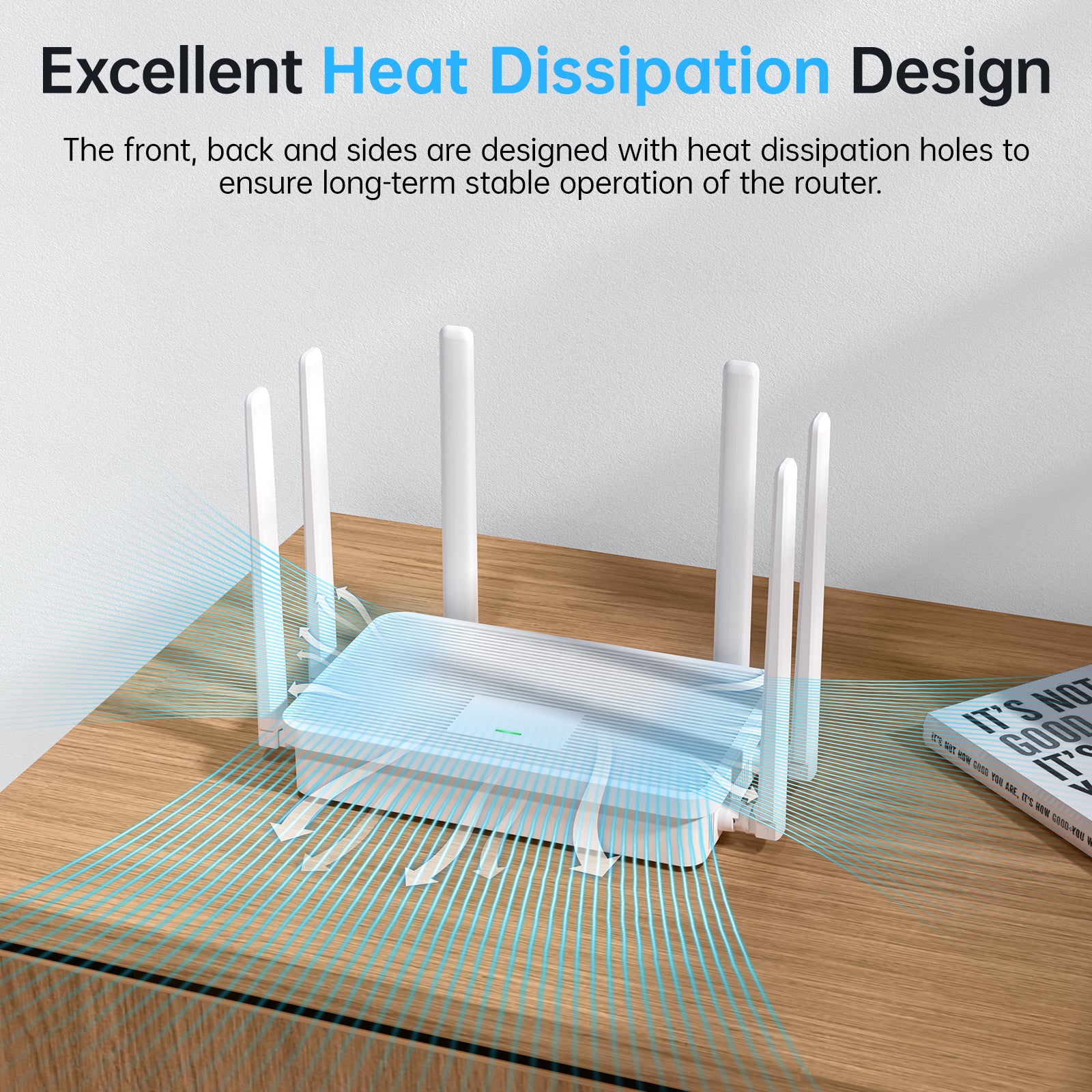

  • Four-sided heat dissipation for stable operation under heavy load

The WR3000K is a dual-band Wi-Fi 6 AX3000 router built on the MTK MT7981B ARM Dual-Core 1.3GHz platform with 512MB RAM. Six 5dBi external antennas provide wide coverage across homes, offices, and small businesses, while Mesh support, WPA3 security, and VPN client capability make it a versatile and cost-effective Wi-Fi 6 networking solution for B2B distribution.

Ideal For

  • Large homes and multi-room residential Wi-Fi coverage
  • Small offices, co-working spaces, and retail networks
  • Mesh network deployments requiring easy expansion
  • Distributors and ISPs supplying Wi-Fi 6 home gateway devices
  • Gaming, 4K streaming, and high-demand multi-device environments

Deployment Advantages

Six high-gain external antennas — four on 5GHz and two on 2.4GHz — provide a strong RF advantage over four-antenna designs, especially in environments with walls, floors, and obstacles. The four-sided heat dissipation design ensures the router maintains stable performance under sustained high-traffic loads without thermal throttling.

OFDMA and MU-MIMO allow simultaneous efficient communication with multiple clients, while 160MHz bandwidth support unlocks the full AX3000 throughput potential on 5GHz. TR069 remote management support enables ISPs to manage devices across their subscriber base without on-site visits.

OEM/ODM Ready

MossLink offers OEM and ODM customization for this product, including custom firmware builds, ISP-specific UI branding, TR069 server configuration, enclosure labeling, and private-label packaging. Volume pricing is available for ISPs, distributors, and system integrators. Contact us to discuss your project requirements.

Frequently Asked Questions

What makes the WR3000K different from standard Wi-Fi 5 routers?
The WR3000K uses Wi-Fi 6 (802.11ax) technology with OFDMA, MU-MIMO, BSS Color, and 160MHz bandwidth support. These features reduce latency, improve multi-device efficiency, and maintain stable throughput in dense environments — providing a significant performance improvement over Wi-Fi 5 (802.11ac) routers.

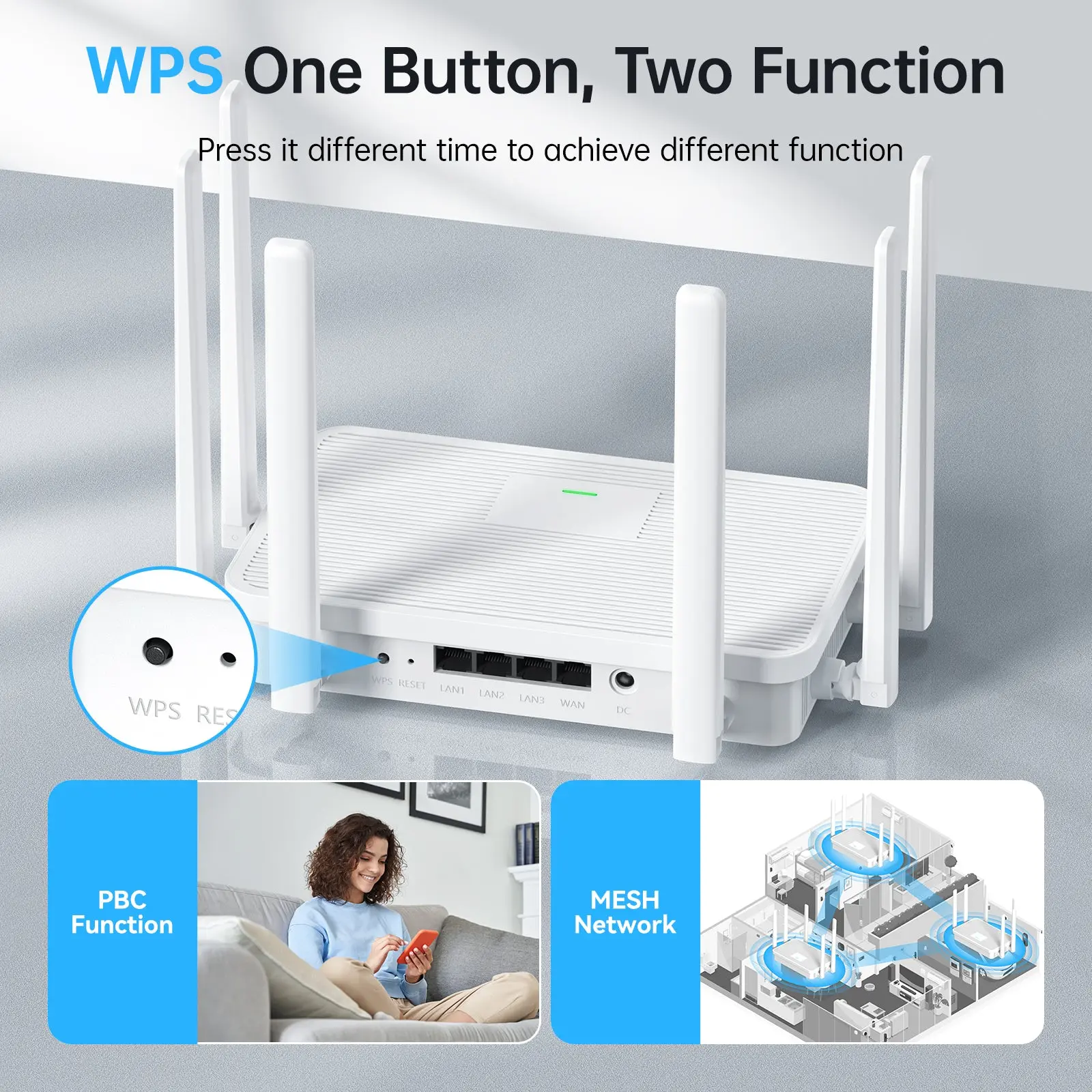

Does the WR3000K support Mesh networking?
Yes. The WR3000K supports Mesh and relay mode, allowing multiple units to form a unified wireless network with a single SSID. This makes it easy to extend coverage across large homes, multi-floor offices, or commercial premises without complex configuration.
What security features does the WR3000K include?
The WR3000K provides WPA3/WPA2 encryption, guest WiFi isolation, VPN client support (PPTP/L2TP), MAC/IP filtering, URL filtering, and anti-DDoS protection — suitable for both home users and small business environments requiring network security.
Is OEM/ODM customization available for this product?
Yes. MossLink offers full OEM and ODM services for this product, including custom firmware features, hardware modifications, enclosure branding, and private-label packaging. Minimum order quantities apply. Contact us to discuss your project requirements.
